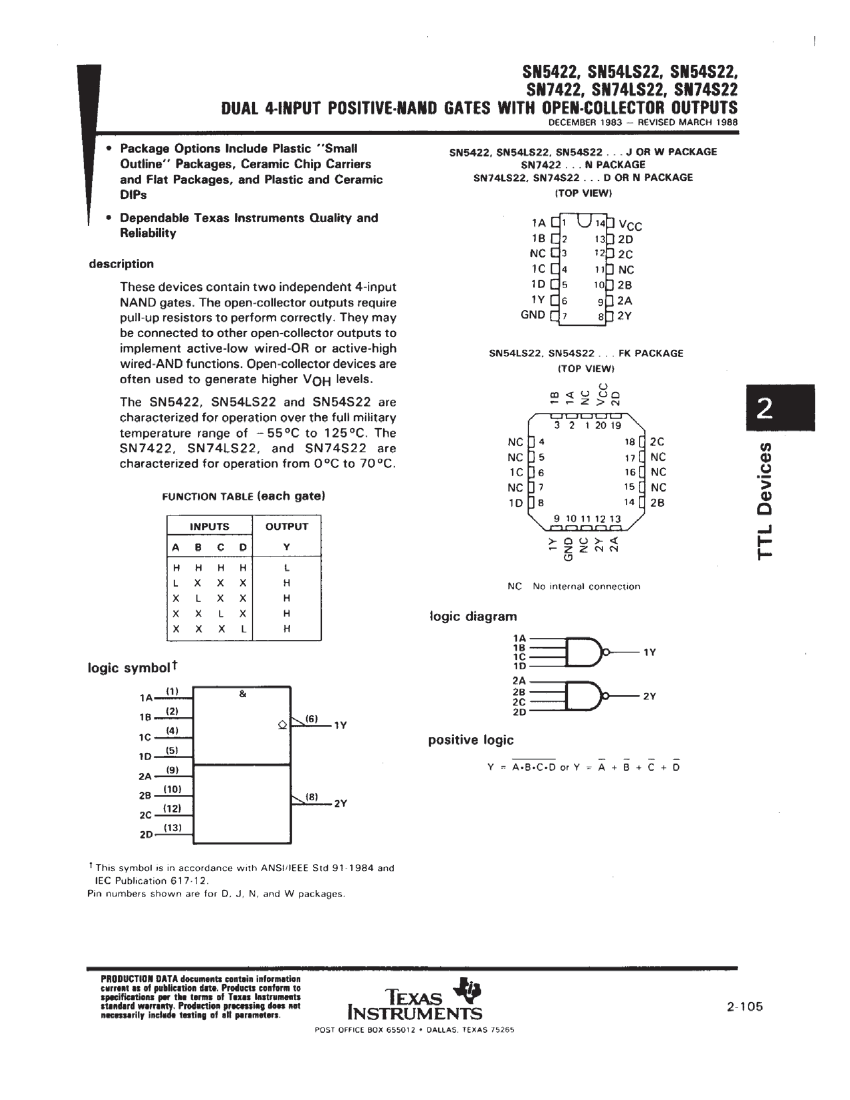

REI Datasheet
SN5422, SN54LS22, SN54S22
SN7422, SN74LS22, SN74S22
Dual 4-Input Positive-NAND Gates with Open-Collector Outputs
These devices contain two independent 4-input NAND gates. The open-collector outputs require
pull-up resistors to perform correctly. They may be connected to other open-collector outputs to
implement active-low wired-OR or active-high wired-AND functions. Open-collector devices are often
used to generate higher V
OH
levels.
Rochester Electronics
Manufactured Components
Rochester branded components are
manufactured using either die/wafers
purchased from the original suppliers
or Rochester wafers recreated from the
original IP. All recreations are done with
the approval of the OCM.
Parts are tested using original factory
test programs or Rochester developed
test solutions to guarantee product
meets or exceeds the OCM data sheet.
Quality Overview
•
•
•
•
ISO-9001
AS9120 certification
Qualified Manufacturers List (QML) MIL-PRF-38535
•
Class Q Military
•
Class V Space Level
Qualified Suppliers List of Distributors (QSLD)
•
Rochester is a critical supplier to DLA and
meets all industry and DLA standards.
Rochester Electronics, LLC is committed to supplying
products that satisfy customer expectations for
quality and are equal to those originally supplied by
industry manufacturers.
The original manufacturer’s datasheet accompanying this document reflects the performance
and specifications of the Rochester manufactured version of this device. Rochester Electronics
guarantees the performance of its semiconductor products to the original OEM specifications.
‘Typical’ values are for reference purposes only. Certain minimum or maximum ratings may be
based on product characterization, design, simulation, or sample testing.
© 2013 Rochester Electronics, LLC. All Rights Reserved 12022013
To learn more, please visit
www.rocelec.com
