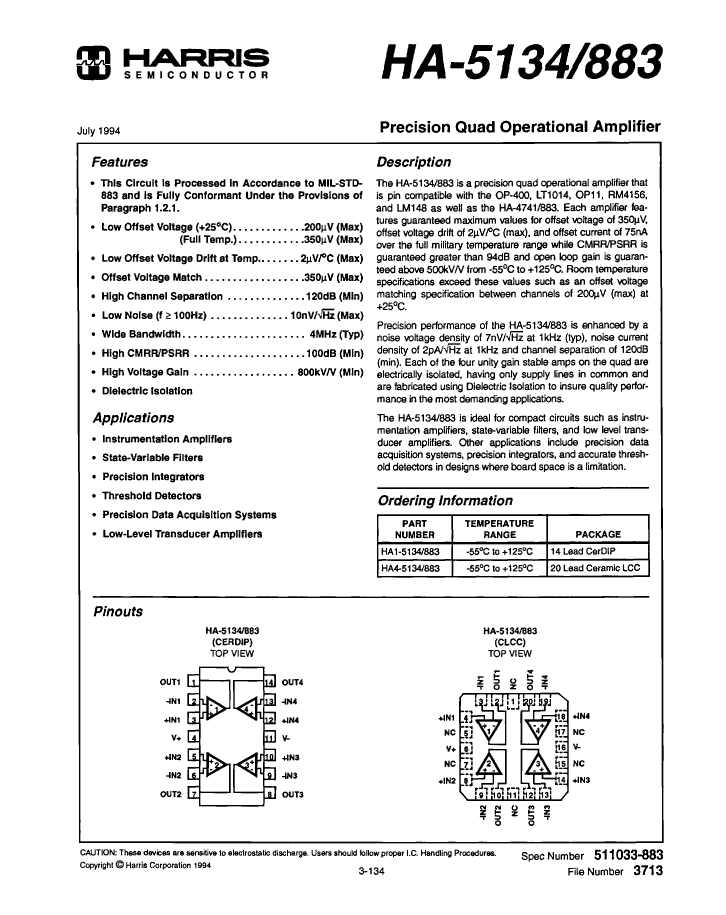

5962-9455301MCA amplifier basic information:
5962-9455301MCA is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are DIP, DIP14,.3
5962-9455301MCA amplifier core information:
The minimum operating temperature of the 5962-9455301MCA is -55 °C and the maximum operating temperature is 125 °C. Its peak reflow temperature is NOT SPECIFIED Its maximum bias current at 25°C is: 0.05 µA Its maximum average bias current is 0.075 µA
The minimum slew rate of the 5962-9455301MCA given by the manufacturer is 0.75 V/us. Its minimum voltage gain is 1000000. When the op amp is used in a closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the 5962-9455301MCA gain becomes 0.707 times the low-frequency gain is 4000 kHz.
The nominal supply voltage of 5962-9455301MCA is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of the 5962-9455301MCA is 350 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of 5962-9455301MCA:
The width of 5962-9455301MCA is: 7.62 mm and the length is 19.304 mm. 5962-9455301MCA has 14 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm. Total pins: 14
5962-9455301MCA amplifier additional information:
5962-9455301MCA adopts the VOLTAGE-FEEDBACK architecture. It belongs to the low offset class of amplifiers. The frequency compensation status of 5962-9455301MCA is: YES. Its temperature grade is: MILITARY. 5962-9455301MCA is not Rohs certified.
It contains lead. The corresponding JESD-30 code is: R-GDIP-T14. The corresponding JESD-609 code is: e0. The packaging code of 5962-9455301MCA is: DIP. 5962-9455301MCA packaging materials are mostly CERAMIC, GLASS-SEALED.
The package shape is RECTANGULAR. 5962-9455301MCA package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE. The maximum seat height is 5.08 mm.
5962-9455301MCA amplifier basic information:
5962-9455301MCA is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are DIP, DIP14,.3
5962-9455301MCA amplifier core information:
The minimum operating temperature of the 5962-9455301MCA is -55 °C and the maximum operating temperature is 125 °C. Its peak reflow temperature is NOT SPECIFIED Its maximum bias current at 25°C is: 0.05 µA Its maximum average bias current is 0.075 µA
The minimum slew rate of the 5962-9455301MCA given by the manufacturer is 0.75 V/us. Its minimum voltage gain is 1000000. When the op amp is used in a closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the 5962-9455301MCA gain becomes 0.707 times the low-frequency gain is 4000 kHz.
The nominal supply voltage of 5962-9455301MCA is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of the 5962-9455301MCA is 350 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of 5962-9455301MCA:
The width of 5962-9455301MCA is: 7.62 mm and the length is 19.304 mm. 5962-9455301MCA has 14 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm. Total pins: 14
5962-9455301MCA amplifier additional information:
5962-9455301MCA adopts the VOLTAGE-FEEDBACK architecture. It belongs to the low offset class of amplifiers. The frequency compensation status of 5962-9455301MCA is: YES. Its temperature grade is: MILITARY. 5962-9455301MCA is not Rohs certified.
It contains lead. The corresponding JESD-30 code is: R-GDIP-T14. The corresponding JESD-609 code is: e0. The packaging code of 5962-9455301MCA is: DIP. 5962-9455301MCA packaging materials are mostly CERAMIC, GLASS-SEALED.
The package shape is RECTANGULAR. 5962-9455301MCA package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE. The maximum seat height is 5.08 mm.

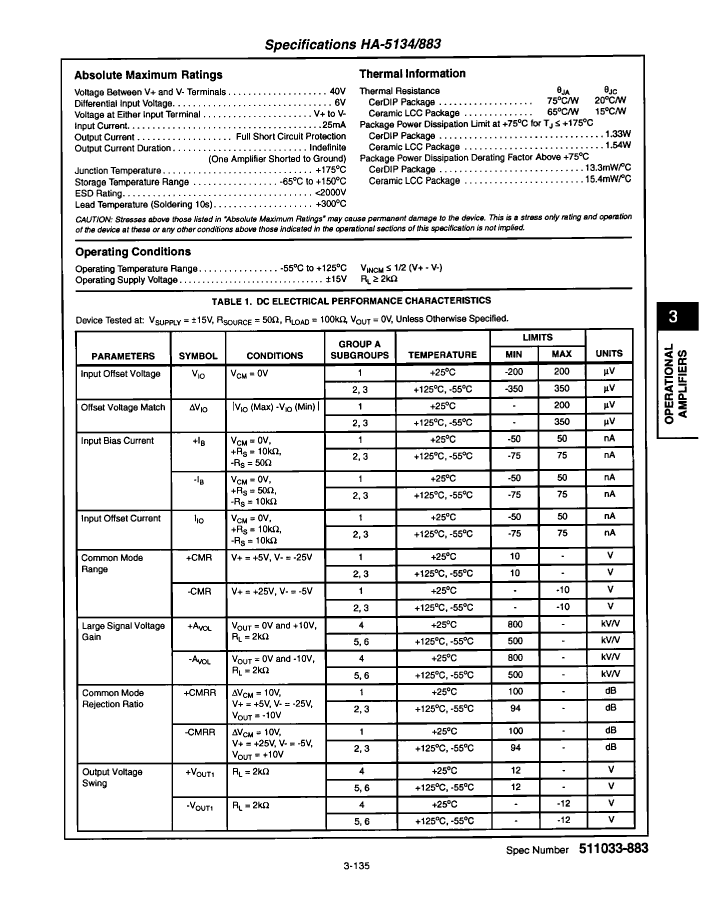

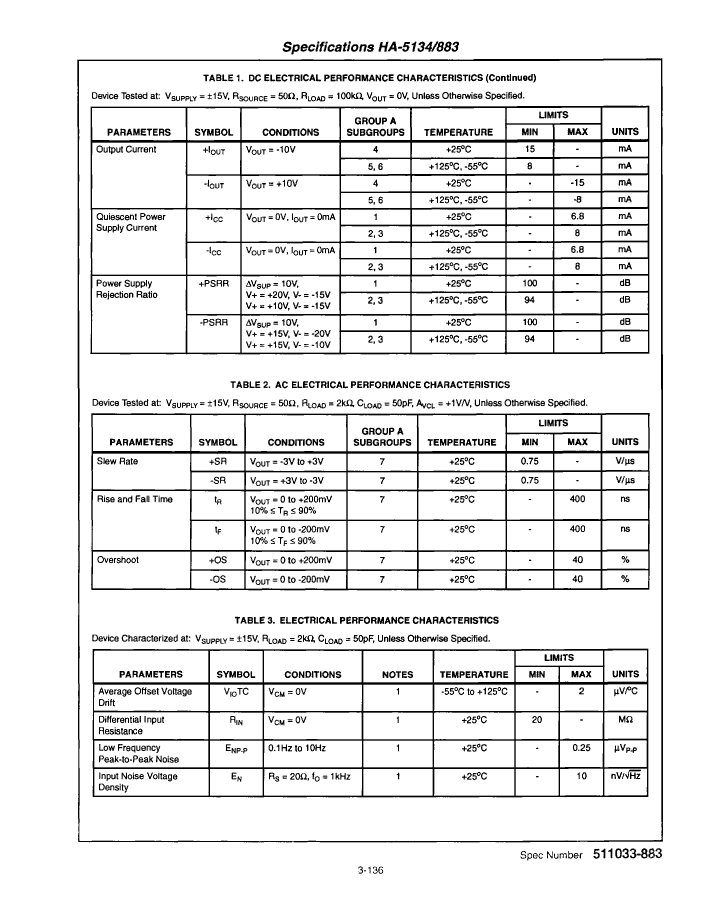

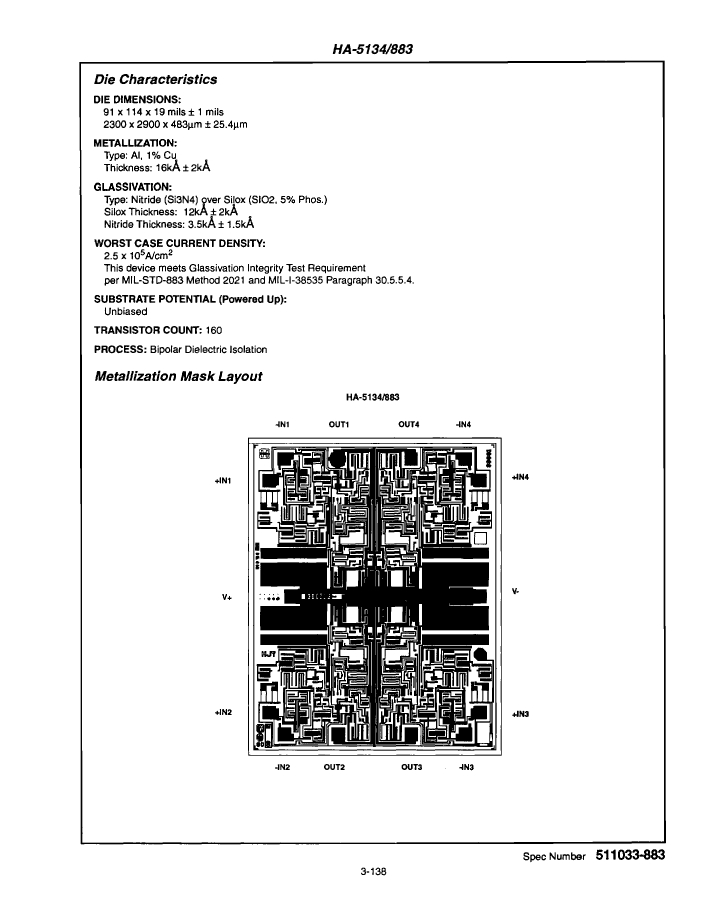

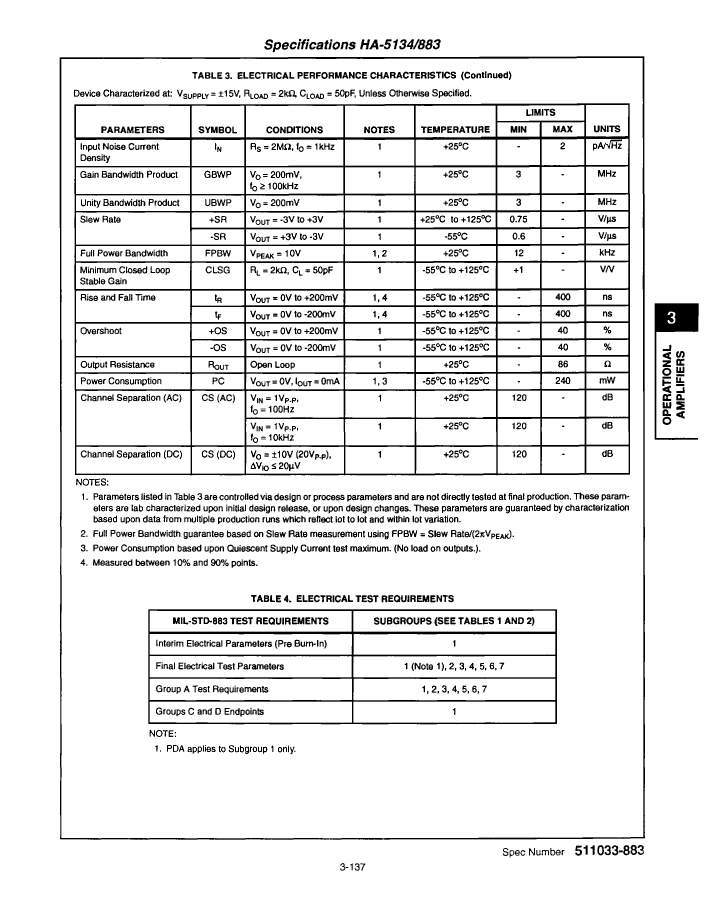

| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | Renesas Electronics Corporation |
| Parts packaging code | DIP |
| package instruction | DIP, DIP14,.3 |
| Contacts | 14 |
| Reach Compliance Code | not_compliant |
| ECCN code | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Maximum average bias current (IIB) | 0.075 µA |
| Maximum bias current (IIB) at 25C | 0.05 µA |
| Nominal Common Mode Rejection Ratio | 94 dB |
| frequency compensation | YES |
| Maximum input offset voltage | 350 µV |
| JESD-30 code | R-GDIP-T14 |
| JESD-609 code | e0 |
| length | 19.304 mm |
| low-dissonance | YES |
| Negative supply voltage upper limit | -20 V |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| Number of functions | 4 |
| Number of terminals | 14 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP14,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | +-15 V |
| Certification status | Not Qualified |
| Filter level | MIL-STD-883 |
| Maximum seat height | 5.08 mm |
| minimum slew rate | 0.75 V/us |
| Supply voltage upper limit | 20 V |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | NO |
| technology | BIPOLAR |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) - hot dipped |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Nominal Uniform Gain Bandwidth | 4000 kHz |
| Minimum voltage gain | 1000000 |
| width | 7.62 mm |
| Base Number Matches | 1 |
| 5962-9455301MCA | 5962-9455301M2A | |
|---|---|---|
| Description | QUAD OP-AMP, 350uV OFFSET-MAX, 4MHz BAND WIDTH, CDIP14, CERAMIC, DIP-14 | QUAD OP-AMP, 350uV OFFSET-MAX, 4MHz BAND WIDTH, CQCC20, CERAMIC, LCC-20 |
| Maker | Renesas Electronics Corporation | Renesas Electronics Corporation |
| Parts packaging code | DIP | QLCC |
| Contacts | 14 | 20 |
| Reach Compliance Code | not_compliant | unknown |
| ECCN code | EAR99 | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER |
| Maximum average bias current (IIB) | 0.075 µA | 0.075 µA |
| Nominal Common Mode Rejection Ratio | 94 dB | 94 dB |
| Maximum input offset voltage | 350 µV | 350 µV |
| JESD-30 code | R-GDIP-T14 | S-CQCC-N20 |
| JESD-609 code | e0 | e0 |
| Negative supply voltage upper limit | -20 V | -20 V |
| Nominal Negative Supply Voltage (Vsup) | -15 V | -15 V |
| Number of functions | 4 | 4 |
| Number of terminals | 14 | 20 |
| Maximum operating temperature | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C |
| Package body material | CERAMIC, GLASS-SEALED | CERAMIC, METAL-SEALED COFIRED |
| Package shape | RECTANGULAR | SQUARE |
| Package form | IN-LINE | CHIP CARRIER |
| Certification status | Not Qualified | Not Qualified |
| Filter level | MIL-STD-883 | MIL-STD-883 |
| Supply voltage upper limit | 20 V | 20 V |
| Nominal supply voltage (Vsup) | 15 V | 15 V |
| surface mount | NO | YES |
| technology | BIPOLAR | BIPOLAR |
| Temperature level | MILITARY | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) - hot dipped | TIN LEAD |
| Terminal form | THROUGH-HOLE | NO LEAD |
| Terminal location | DUAL | QUAD |
| Nominal Uniform Gain Bandwidth | 4000 kHz | 4000 kHz |
| Base Number Matches | 1 | 1 |
