850-10-100-30-001 datasheet, PDF

Datasheet> All Categories > The connector> 850-10-100-30-001

850-10-100-30-001: DescriptionBoard Connector, 10 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal,; CategoryThe connector; File Size120KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric Compare View All

850-10-100-30-001 Overview

Board Connector, 10 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal,

850-10-100-30-001 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (150)
Contact completed and terminated	GOLD (10) OVER NICKEL (150)
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	850
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	10
Base Number Matches	1

Preview

Download Datasheet

View All

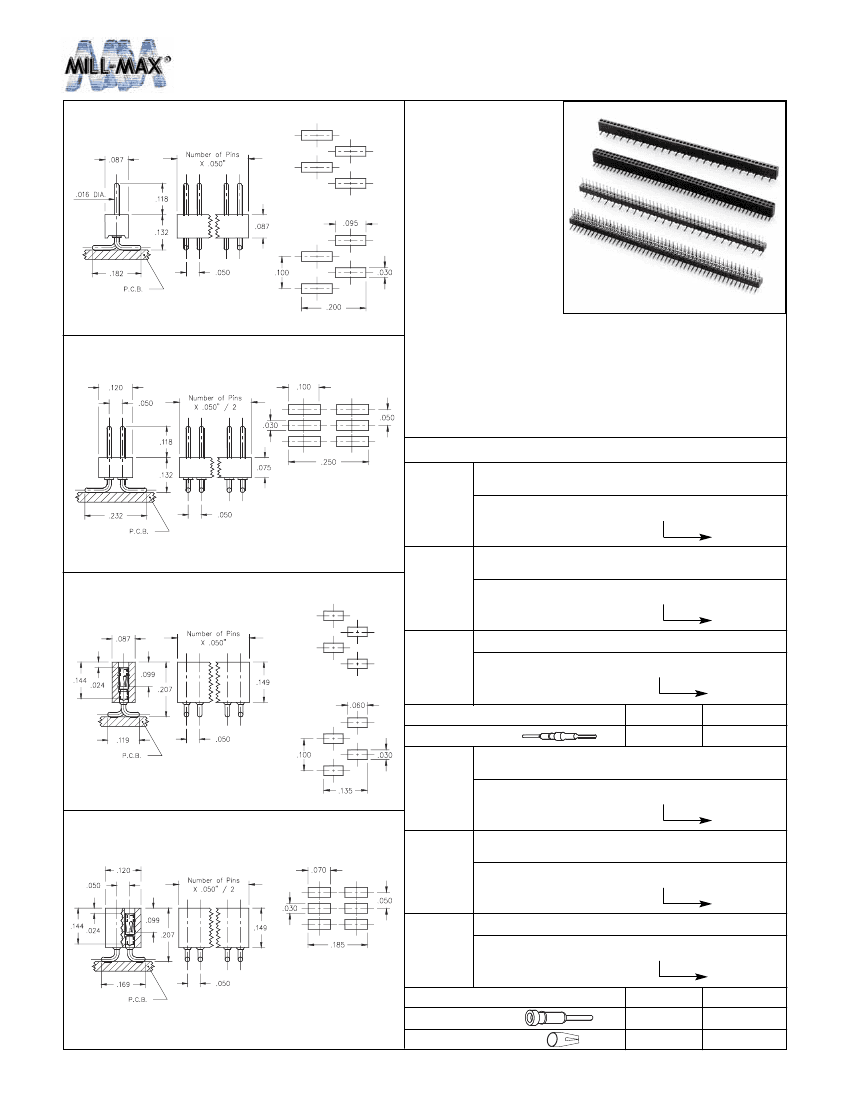

INTERCONNECTS

.050” Grid

Surface Mount Headers and Sockets

Left Hand

Footprint

Series 850, 851

852, 853

•

Series 850 and 851

interconnects are

available in single

and double row form.

•

Single row intercon-

nects having an even

number of pins are

now available with a

left or right hand

footprint.

•

Headers (850 & 852)

use MM# 4006 pins.

(See page 166 for details)

•

Sockets (851 & 853) use MM# 0489 receptacles and

accept pin diameters from .015-.021. (See page 129 for

details)

•

Insulators are high temp. thermoplastic.

Right Hand

Footprint

Fig. 1

Footprint

Ordering Information

Single Row Header, Left Hand Footprint

Odd or Even # of pins

Fig. 1L

Fig. 2

Fig. 1R

Left Hand

Footprint

850-XX-0_ _-30-001

Specify # of pins

01-50

Single Row Header, Right Hand Footprint

Even # of pins

850-XX-0_ _-30-002

Specify even # of pins

02-50

Double Row Header, Even # of pins

Fig. 2

Right Hand

Footprint

852-XX-_ _ _-30-001

Specify even # of pins

002-100

10µ” Au

200µ” Sn/Pb

SPECIFY PLATING CODE XX=

Pin Plating

Single Row Socket, Left Hand Footprint

Odd or Even # of pins

Fig. 3

Fig. 3L

851-XX-0_ _-30-001

Specify # of pins

01-50

Single Row Socket, Right Hand Footprint

Even # of pins

Footprint

Fig. 3R

851-XX-0_ _-30-002

Specify even # of pins

02-50

Double Row Socket, Even # of pins

Fig. 4

853-XX-_ _ _-30-001

Specify even # of pins

002-100

200µ” Sn/Pb

30µ” Au

200µ”Sn/Pb

SPECIFY PLATING CODE XX=

Fig. 4

Sleeve (Pin)

Contact (Clip)

Mill-Max-Mfg.Corp., P.O. Box 300, 190 Pine Hollow Road, Oyster Bay, NY 11771-0300.Tel: 516-922-6000 Fax: 516-922-9253

850-10-100-30-001 Related Products

	850-10-100-30-001	850-90-100-30-001
Description	Board Connector, 10 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal,	Board Connector, 10 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal,
Is it lead-free?	Lead free	Contains lead
Is it Rohs certified?	conform to	incompatible
Maker	Mill-Max	Mill-Max
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (150)	TIN LEAD (200) OVER NICKEL (150)
Contact completed and terminated	GOLD (10) OVER NICKEL (150)	TIN LEAD (200) OVER NICKEL (150)
Contact point gender	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
JESD-609 code	e4	e0
MIL compliance	NO	NO
Manufacturer's serial number	850	850
Mixed contacts	NO	NO
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of rows loaded	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1.27 mm	1.27 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	10	10
