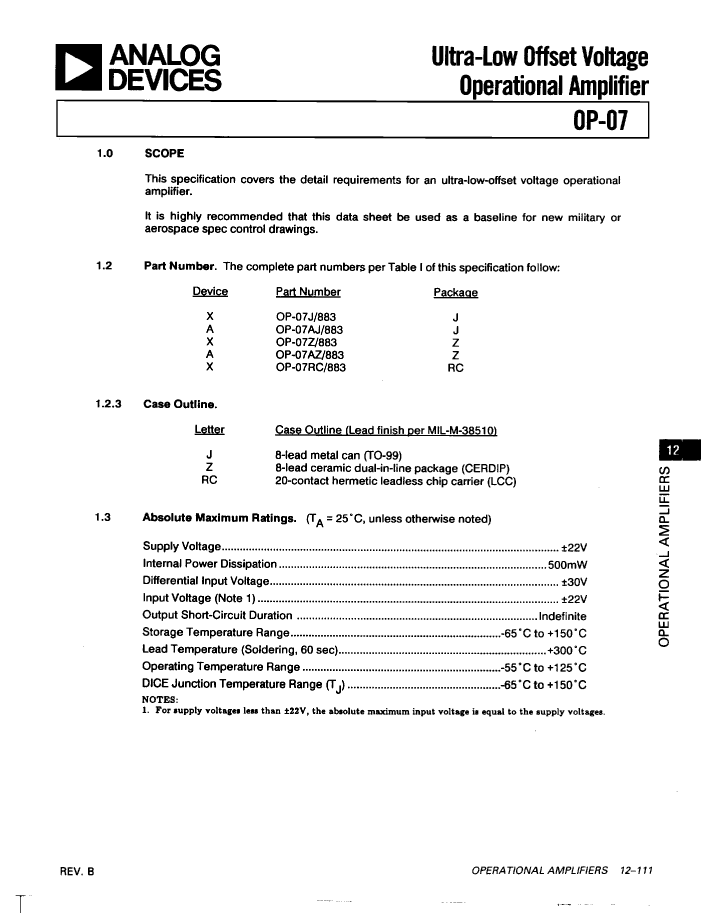

8203602GA amplifier basic information:
8203602GA is an OPERATIONAL AMPLIFIER. The commonly used packaging method is TO-99,
8203602GA amplifier core information:
The minimum operating temperature of the 8203602GA is -55 °C and the maximum operating temperature is 125 °C. Its peak reflow temperature is NOT SPECIFIED Its maximum average bias current is 0.006 µA

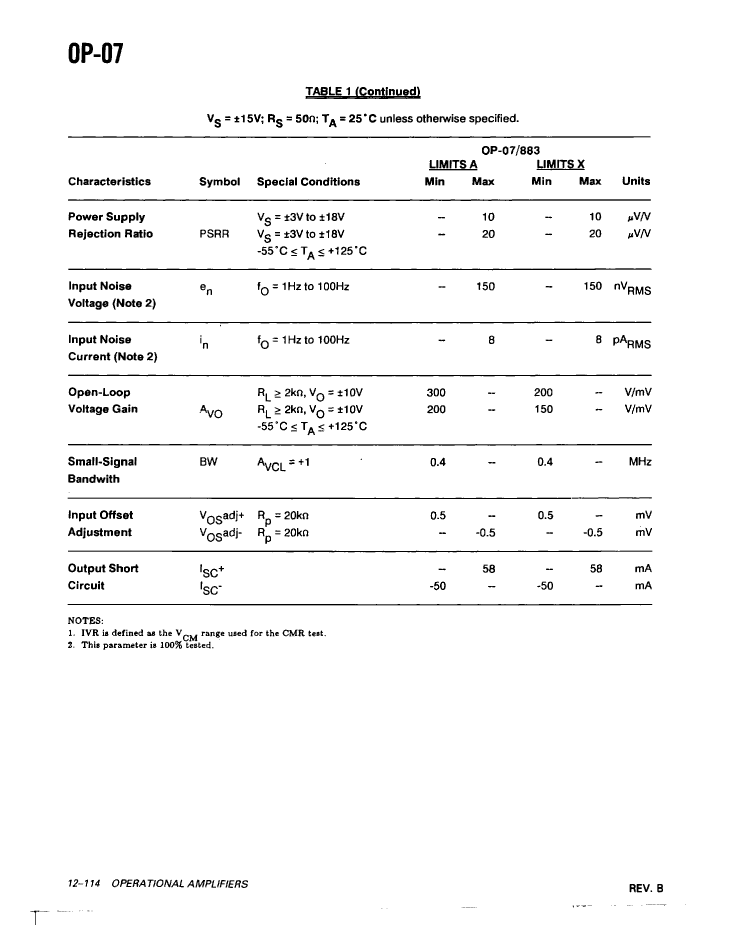

When the op amp is used in a closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the 8203602GA gain becomes 0.707 times the low-frequency gain is 600 kHz.
The nominal supply voltage of 8203602GA is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of the 8203602GA is 200 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of 8203602GA:
8203602GA has 8 terminals. Its terminal position type is: BOTTOM. Total pins: 8
8203602GA amplifier additional information:
Its temperature grade is: MILITARY. The corresponding JESD-30 code is: O-MBCY-W8. The corresponding JESD-609 code is: e0. The packaging code of 8203602GA is: TO-99. The material of 8203602GA packaging is mostly METAL.
And its package shape is ROUND. The 8203602GA package pin format is: CYLINDRICAL. Its terminal form is: WIRE.
8203602GA amplifier basic information:
8203602GA is an OPERATIONAL AMPLIFIER. The commonly used packaging method is TO-99,
8203602GA amplifier core information:
The minimum operating temperature of the 8203602GA is -55 °C and the maximum operating temperature is 125 °C. Its peak reflow temperature is NOT SPECIFIED Its maximum average bias current is 0.006 µA
When the op amp is used in a closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the 8203602GA gain becomes 0.707 times the low-frequency gain is 600 kHz.
The nominal supply voltage of 8203602GA is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of the 8203602GA is 200 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of 8203602GA:
8203602GA has 8 terminals. Its terminal position type is: BOTTOM. Total pins: 8
8203602GA amplifier additional information:
Its temperature grade is: MILITARY. The corresponding JESD-30 code is: O-MBCY-W8. The corresponding JESD-609 code is: e0. The packaging code of 8203602GA is: TO-99. The material of 8203602GA packaging is mostly METAL.
And its package shape is ROUND. The 8203602GA package pin format is: CYLINDRICAL. Its terminal form is: WIRE.

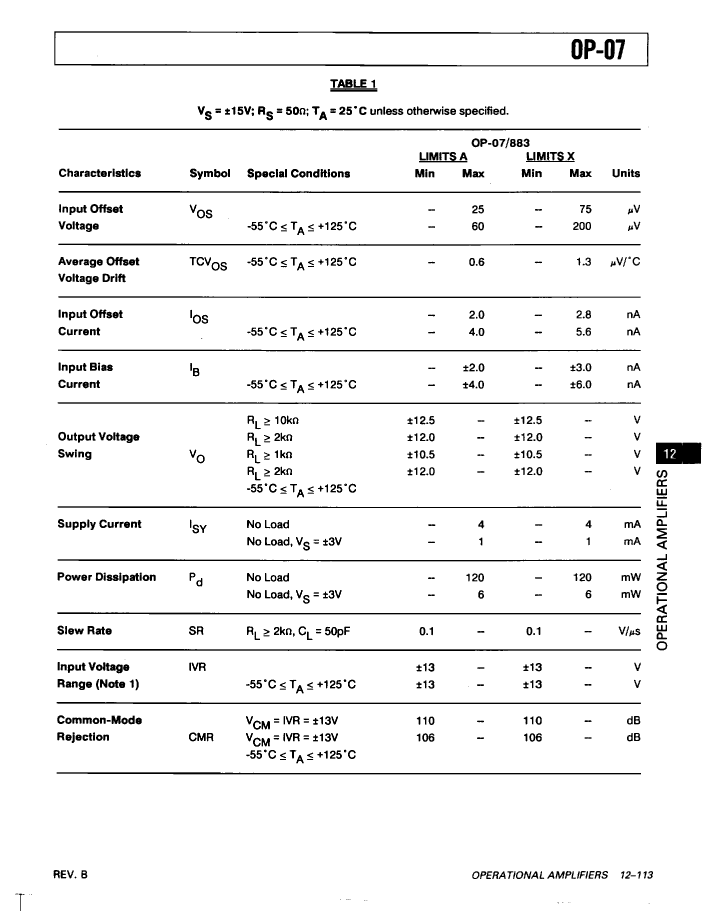

| Parameter Name | Attribute value |
| Maker | Fairchild |
| Parts packaging code | TO-99 |
| package instruction | TO-99, |
| Contacts | 8 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Maximum average bias current (IIB) | 0.006 µA |
| Nominal Common Mode Rejection Ratio | 106 dB |
| Maximum input offset voltage | 200 µV |
| JESD-30 code | O-MBCY-W8 |
| JESD-609 code | e0 |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| Number of functions | 1 |
| Number of terminals | 8 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | METAL |
| encapsulated code | TO-99 |
| Package shape | ROUND |
| Package form | CYLINDRICAL |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | NO |
| technology | BIPOLAR |
| Temperature level | MILITARY |
| Terminal surface | TIN LEAD |
| Terminal form | WIRE |
| Terminal location | BOTTOM |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Nominal Uniform Gain Bandwidth | 600 kHz |
| Base Number Matches | 1 |
