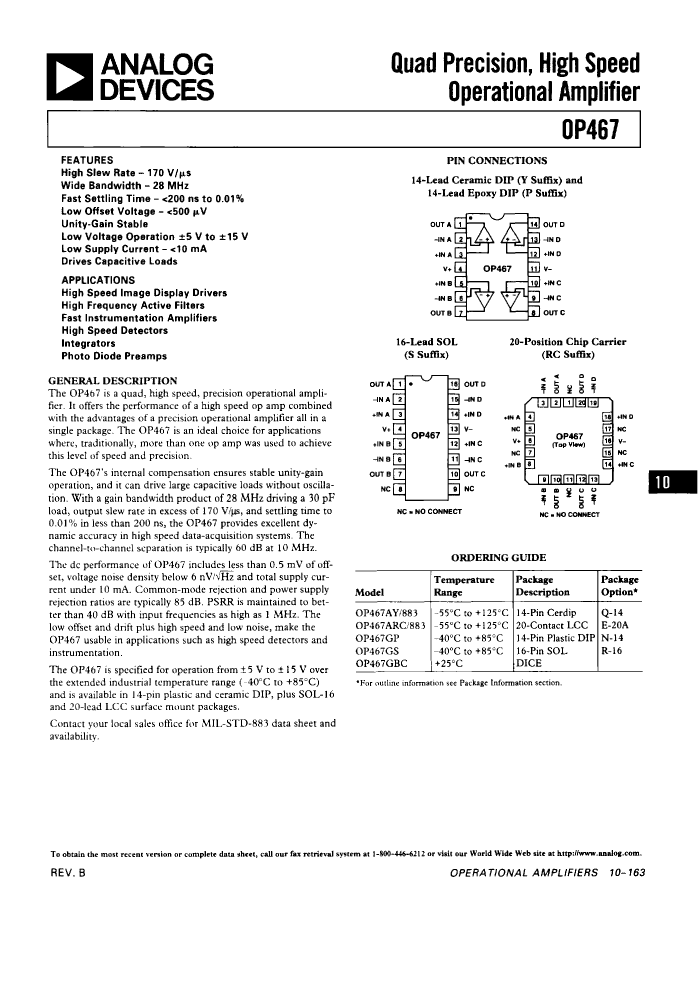

5962-9325801MCX amplifier basic information:
5962-9325801MCX is an OPERATIONAL AMPLIFIER. The commonly used packaging method is DIP,
5962-9325801MCX amplifier core information:
The minimum operating temperature of the 5962-9325801MCX is -55 °C and the maximum operating temperature is 125 °C. Its peak reflow temperature is NOT SPECIFIED Its maximum average bias current is 0.7 µA
How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of 5962-9325801MCX is 85 V/us. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the 5962-9325801MCX gain becomes 0.707 times the low-frequency gain is 16000 kHz.
The nominal supply voltage of 5962-9325801MCX is 5 V, and its corresponding nominal negative supply voltage is -5 V. The input offset voltage of 5962-9325801MCX is 1000 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of 5962-9325801MCX:
The width of 5962-9325801MCX is: 7.62 mm and the length is 19.43 mm. 5962-9325801MCX has 14 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm. Total pins: 14
5962-9325801MCX amplifier additional information:
Its temperature grade is: MILITARY. The corresponding JESD-30 code is: R-GDIP-T14. The packaging code of 5962-9325801MCX is: DIP. The materials used in the 5962-9325801MCX package are mostly CERAMIC and GLASS-SEALED. The package shape is RECTANGULAR.
The 5962-9325801MCX package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE. The maximum seat height is 5.08 mm.
5962-9325801MCX amplifier basic information:
5962-9325801MCX is an OPERATIONAL AMPLIFIER. The commonly used packaging method is DIP,
5962-9325801MCX amplifier core information:
The minimum operating temperature of the 5962-9325801MCX is -55 °C and the maximum operating temperature is 125 °C. Its peak reflow temperature is NOT SPECIFIED Its maximum average bias current is 0.7 µA
How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of 5962-9325801MCX is 85 V/us. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the 5962-9325801MCX gain becomes 0.707 times the low-frequency gain is 16000 kHz.
The nominal supply voltage of 5962-9325801MCX is 5 V, and its corresponding nominal negative supply voltage is -5 V. The input offset voltage of 5962-9325801MCX is 1000 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of 5962-9325801MCX:
The width of 5962-9325801MCX is: 7.62 mm and the length is 19.43 mm. 5962-9325801MCX has 14 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm. Total pins: 14
5962-9325801MCX amplifier additional information:
Its temperature grade is: MILITARY. The corresponding JESD-30 code is: R-GDIP-T14. The packaging code of 5962-9325801MCX is: DIP. The materials used in the 5962-9325801MCX package are mostly CERAMIC and GLASS-SEALED. The package shape is RECTANGULAR.
The 5962-9325801MCX package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE. The maximum seat height is 5.08 mm.

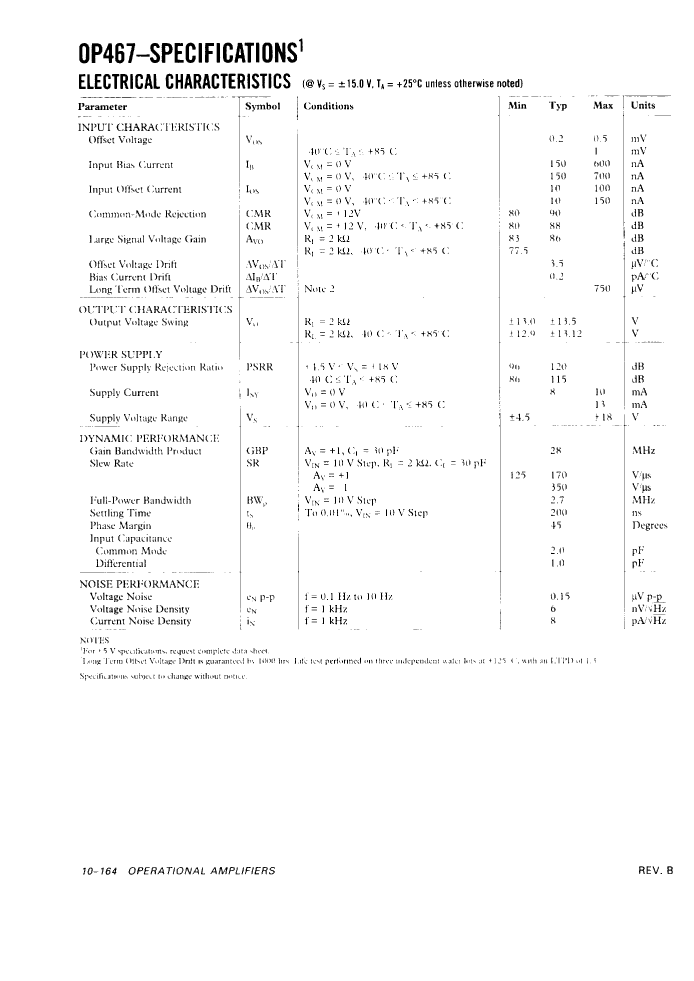

| Parameter Name | Attribute value |
| Maker | ADI |
| Parts packaging code | DIP |
| package instruction | DIP, |
| Contacts | 14 |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Maximum average bias current (IIB) | 0.7 µA |
| Nominal Common Mode Rejection Ratio | 76 dB |
| Maximum input offset voltage | 1000 µV |
| JESD-30 code | R-GDIP-T14 |
| length | 19.43 mm |
| Negative supply voltage upper limit | -18 V |
| Nominal Negative Supply Voltage (Vsup) | -5 V |
| Number of functions | 4 |
| Number of terminals | 14 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Qualified |
| Filter level | MIL-STD-883 |
| Maximum seat height | 5.08 mm |
| Nominal slew rate | 85 V/us |
| Supply voltage upper limit | 18 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| Temperature level | MILITARY |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Nominal Uniform Gain Bandwidth | 16000 kHz |
| width | 7.62 mm |
| Base Number Matches | 1 |
| 5962-9325801MCX | 5962-9325801M2X | |
|---|---|---|
| Description | IC QUAD OP-AMP, 1000 uV OFFSET-MAX, 16 MHz BAND WIDTH, CDIP14, CERDIP-14, Operational Amplifier | IC QUAD OP-AMP, 1000 uV OFFSET-MAX, 16 MHz BAND WIDTH, CQCC20, CERAMIC, LCC-20, Operational Amplifier |
| Maker | ADI | ADI |
| Parts packaging code | DIP | QLCC |
| package instruction | DIP, | QCCN, |
| Contacts | 14 | 20 |
| Reach Compliance Code | compliant | compliant |
| ECCN code | EAR99 | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER |
| Maximum average bias current (IIB) | 0.7 µA | 0.7 µA |
| Nominal Common Mode Rejection Ratio | 76 dB | 76 dB |
| Maximum input offset voltage | 1000 µV | 1000 µV |
| JESD-30 code | R-GDIP-T14 | S-CQCC-N20 |
| length | 19.43 mm | 8.89 mm |
| Negative supply voltage upper limit | -18 V | -18 V |
| Nominal Negative Supply Voltage (Vsup) | -5 V | -5 V |
| Number of functions | 4 | 4 |
| Number of terminals | 14 | 20 |
| Maximum operating temperature | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C |
| Package body material | CERAMIC, GLASS-SEALED | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | DIP | QCCN |
| Package shape | RECTANGULAR | SQUARE |
| Package form | IN-LINE | CHIP CARRIER |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED |
| Certification status | Qualified | Qualified |
| Filter level | MIL-STD-883 | MIL-STD-883 |
| Maximum seat height | 5.08 mm | 2.54 mm |
| Nominal slew rate | 85 V/us | 85 V/us |
| Supply voltage upper limit | 18 V | 18 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V |
| surface mount | NO | YES |
| Temperature level | MILITARY | MILITARY |
| Terminal form | THROUGH-HOLE | NO LEAD |
| Terminal pitch | 2.54 mm | 1.27 mm |
| Terminal location | DUAL | QUAD |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED |
| Nominal Uniform Gain Bandwidth | 16000 kHz | 16000 kHz |
| width | 7.62 mm | 8.89 mm |
