804-2N datasheet, PDF - EEWORLD Datasheet

804-2N: DescriptionRectifier Diode, 1 Phase, 2 Element, 20A, 100V V(RRM), Silicon, MF, 3 PIN; Categorydiode Rectifier diode; File Size78KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric View All

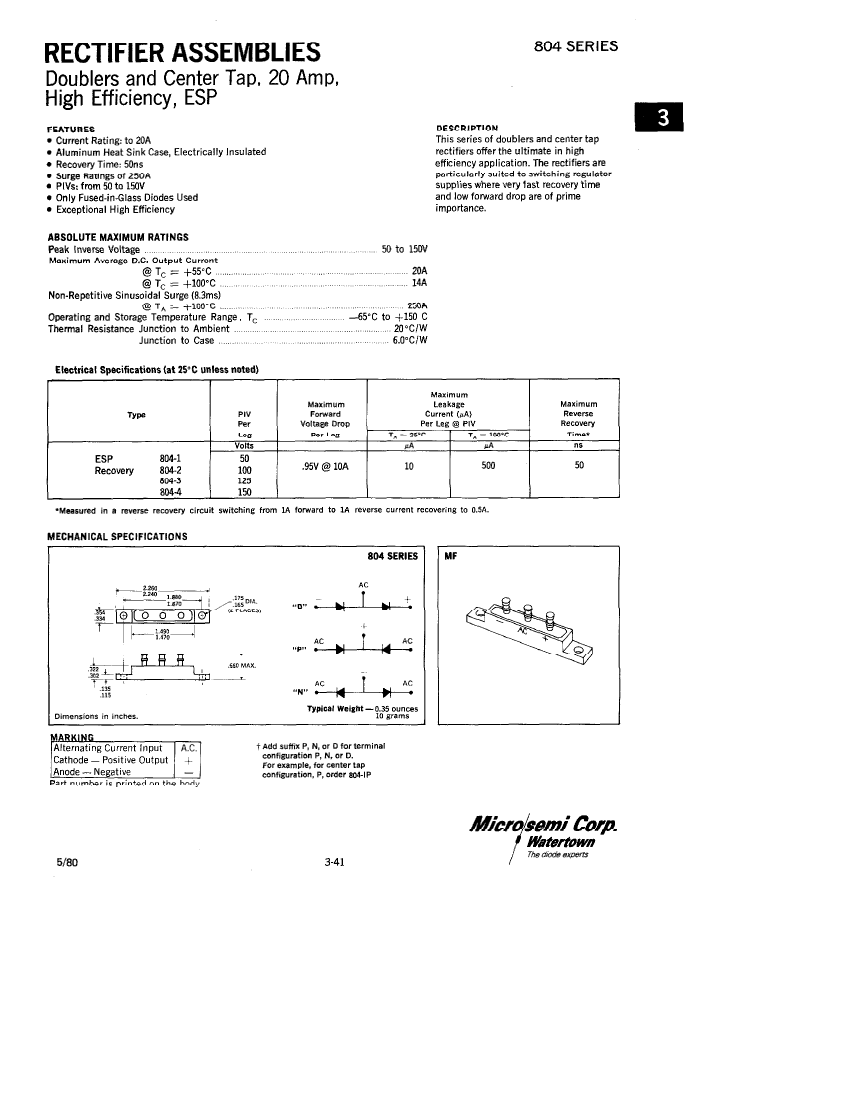

804-2N Overview

Rectifier Diode, 1 Phase, 2 Element, 20A, 100V V(RRM), Silicon, MF, 3 PIN

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Microsemi
package instruction	MF, 3 PIN
Contacts	3
Reach Compliance Code	unknown
application	ULTRA FAST RECOVERY
Shell connection	ISOLATED
Configuration	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.95 V
JESD-30 code	R-XUFM-X3
JESD-609 code	e0
Maximum non-repetitive peak forward current	250 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	20 A
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	100 V
Maximum reverse current	10 µA
Maximum reverse recovery time	0.05 µs
surface mount	NO
Terminal surface	TIN LEAD
Terminal form	UNSPECIFIED
Terminal location	UPPER
Base Number Matches	1
