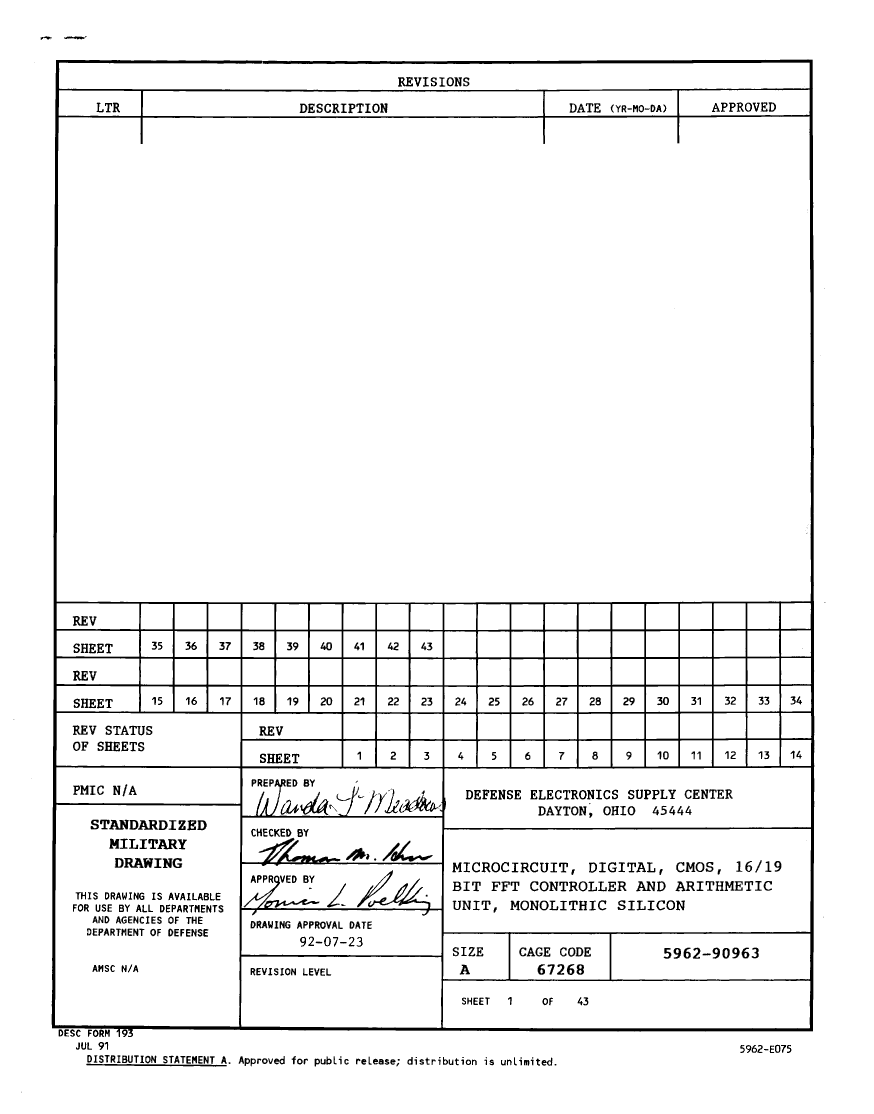

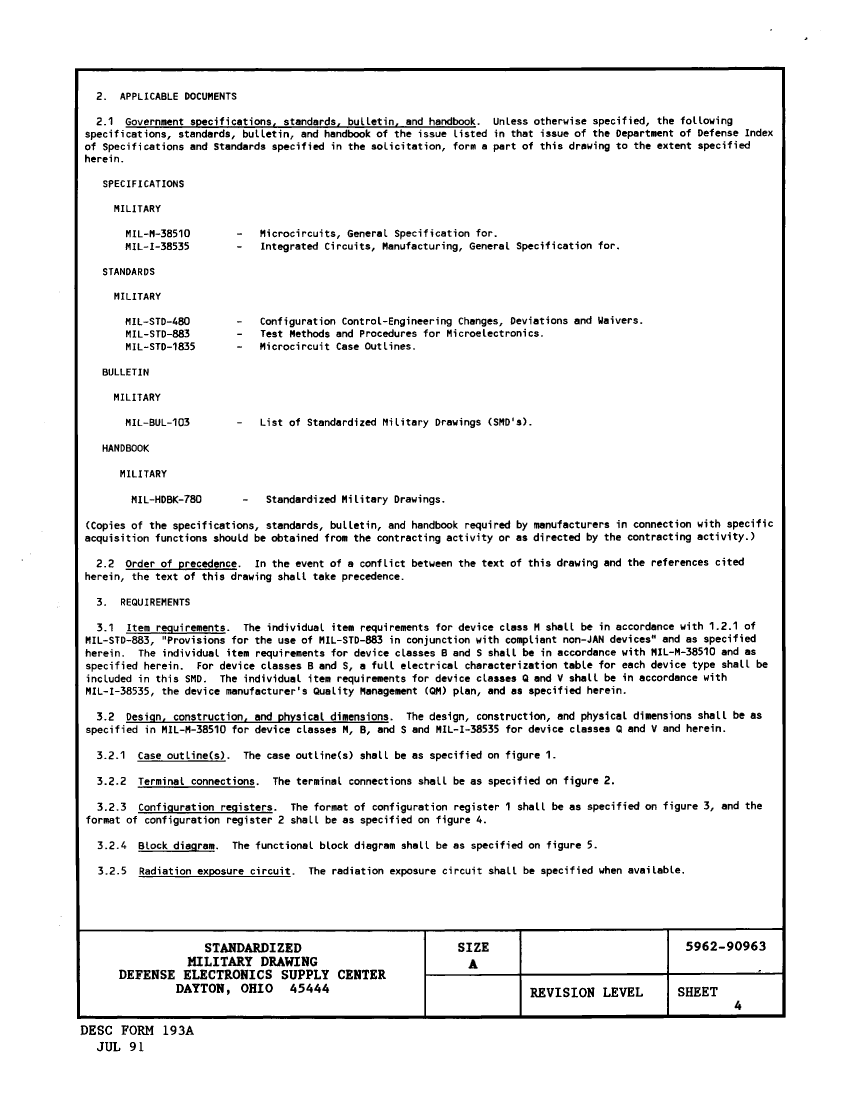

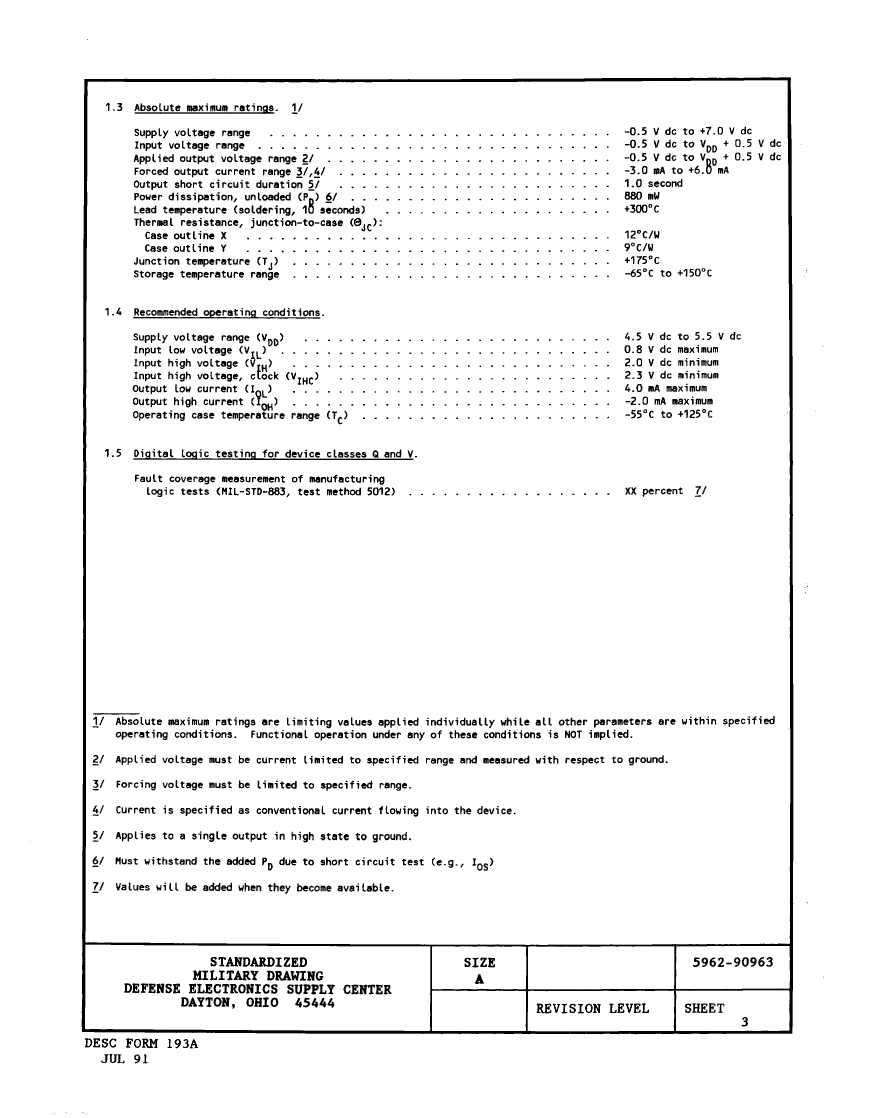

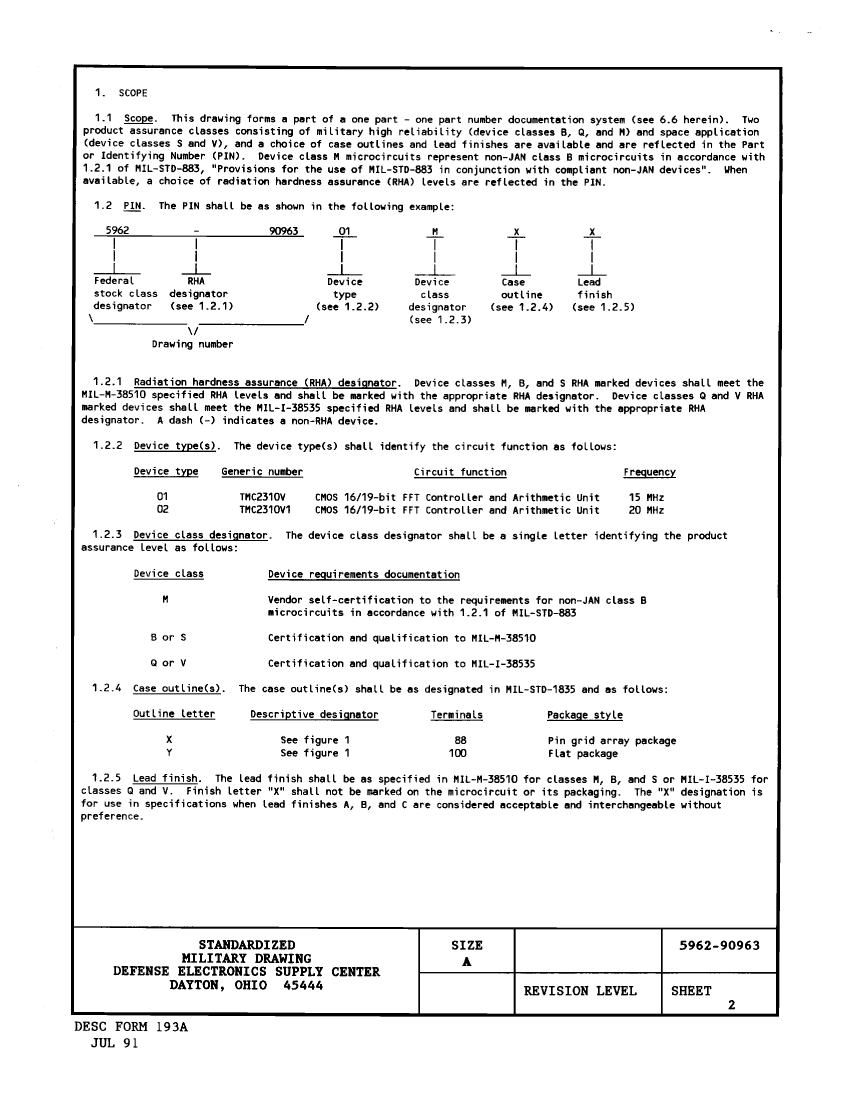

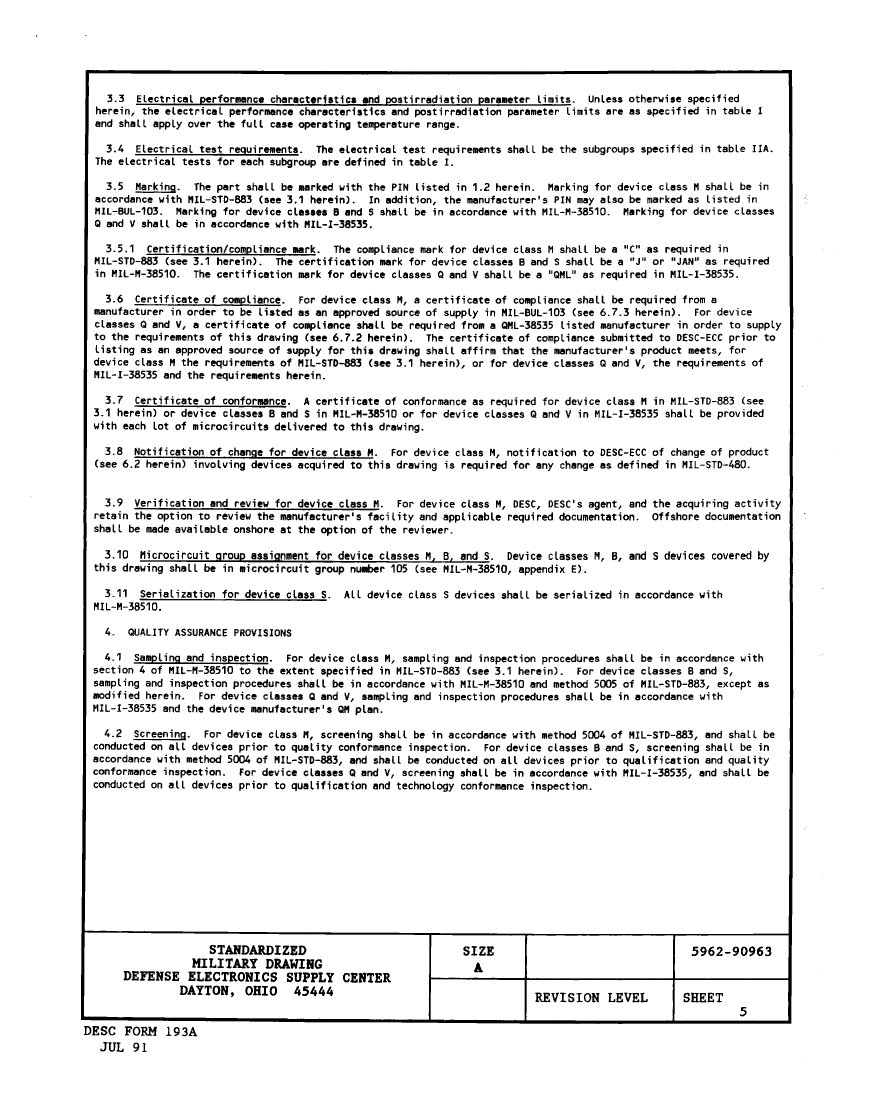

5962-9096301MYX: DescriptionFFT Processor, 19-Bit, CMOS, PPGA89,; CategoryMicrocontrollers and processors; File Size1MB，44 Pages; ManufacturerRaytheon Company; Websitehttps://www.raytheon.com/

Download Datasheet Parametric Compare View All

5962-9096301MYX Overview

FFT Processor, 19-Bit, CMOS, PPGA89,

5962-9096301MYX Parametric

Parameter Name	Attribute value
Maker	Raytheon Company
Reach Compliance Code	unknown
Other features	INTERNAL COEFFICIENT LOOK-UP TABLE ROM; OPTEMP SPECIFIED AS TC
boundary scan	NO
maximum clock frequency	20 MHz
External data bus width	19
JESD-30 code	S-PPGA-P89
low power mode	NO
Number of terminals	89
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output data bus width	10
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	GRID ARRAY
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	PIN/PEG
Terminal location	PERPENDICULAR
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, FFT PROCESSOR
Base Number Matches	1
