81CNQ050SL datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > diode> Rectifier diode> 81CNQ050SL

Preview

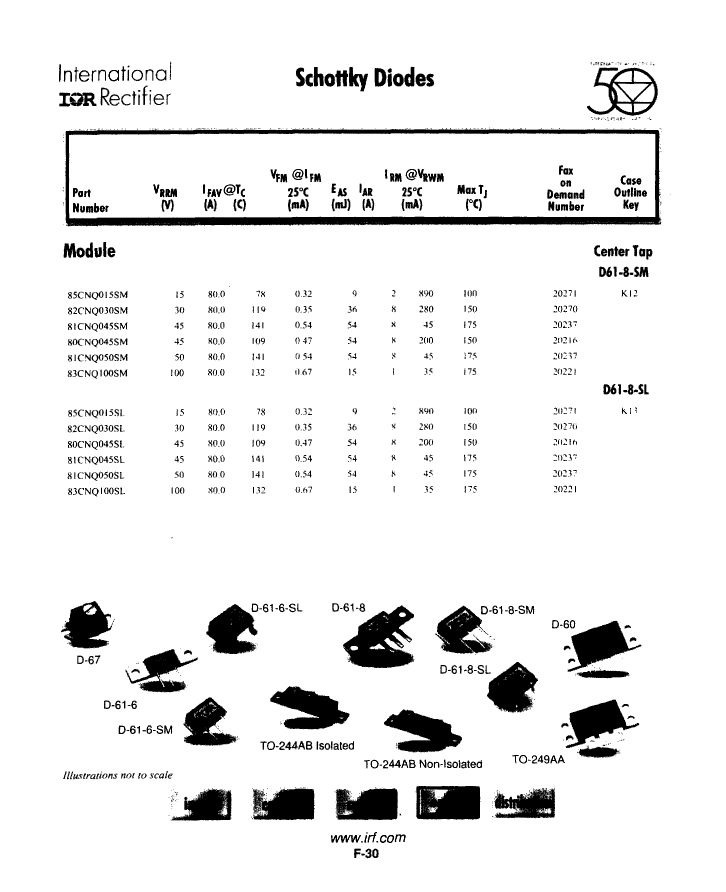

81CNQ050SL: DescriptionRectifier Diode, Schottky, 1 Phase, 2 Element, 80A, 50V V(RRM), Silicon; Categorydiode Rectifier diode; File Size29KB，1 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/

Download Datasheet Parametric Compare View All

81CNQ050SL Overview

Rectifier Diode, Schottky, 1 Phase, 2 Element, 80A, 50V V(RRM), Silicon

81CNQ050SL Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	International Rectifier （ Infineon ）
package instruction	R-PSSO-G2
Reach Compliance Code	compliant
ECCN code	EAR99
application	GENERAL PURPOSE
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.54 V
JESD-30 code	R-PSSO-G2
JESD-609 code	e0
Number of components	2
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Maximum output current	80 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	50 V
Maximum reverse current	45000 µA
surface mount	YES
technology	SCHOTTKY
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

81CNQ050SL Related Products

	81CNQ050SL	81CNQ050SM	81CNQ050SMPBF	81CNQ050SLPBF
Description	Rectifier Diode, Schottky, 1 Phase, 2 Element, 80A, 50V V(RRM), Silicon	Rectifier Diode, Schottky, 1 Phase, 2 Element, 80A, 50V V(RRM), Silicon	Rectifier Diode, Schottky, 1 Phase, 2 Element, 80A, 50V V(RRM), Silicon	Rectifier Diode, Schottky, 1 Phase, 2 Element, 80A, 50V V(RRM), Silicon
Is it lead-free?	Contains lead	Contains lead	Lead free	Lead free
Is it Rohs certified?	incompatible	incompatible	conform to	conform to
Maker	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）
package instruction	R-PSSO-G2	R-PSIP-T3	R-PSIP-T3	R-PSSO-G2
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	CATHODE	CATHODE	CATHODE	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.54 V	0.54 V	0.54 V	0.54 V
JESD-30 code	R-PSSO-G2	R-PSIP-T3	R-PSIP-T3	R-PSSO-G2
Number of components	2	2	2	2
Phase	1	1	1	1
Number of terminals	2	3	3	2
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C
Maximum output current	80 A	80 A	80 A	80 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	260	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	50 V	50 V	50 V	50 V
Maximum reverse current	45000 µA	45000 µA	45000 µA	45000 µA
surface mount	YES	NO	NO	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	40	40
Base Number Matches	1	1	1	1
