5962-9099602MUC datasheet, PDF

Datasheet> All Categories > Microcontrollers and processors> 5962-9099602MUC

5962-9099602MUC: DescriptionMultiplier Accumulator/Summer, 12-Bit, CMOS, CPGA68, CAVITY-DOWN, CERAMIC, PGA-68; CategoryMicrocontrollers and processors; File Size242KB，7 Pages; ManufacturerLOGIC Devices; Websitehttp://www.logicdevices.com/

Download Datasheet Parametric Compare View All

5962-9099602MUC Overview

Multiplier Accumulator/Summer, 12-Bit, CMOS, CPGA68, CAVITY-DOWN, CERAMIC, PGA-68

5962-9099602MUC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	LOGIC Devices
Parts packaging code	PGA
package instruction	PGA,
Contacts	68
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Other features	2 X 12 BIT DATA INPUT BUS; ICC SPECIFIED @ 5MHZ
boundary scan	NO
External data bus width	12
JESD-30 code	S-CPGA-P68
JESD-609 code	e4
length	29.4386 mm
low power mode	NO
Humidity sensitivity level	3
Number of terminals	68
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output data bus width	27
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA
Package shape	SQUARE
Package form	GRID ARRAY
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	3.81 mm
Maximum slew rate	25 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	PERPENDICULAR
width	29.4386 mm
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, MULTIPLIER ACCUMULATOR/SUMMER
Base Number Matches	1

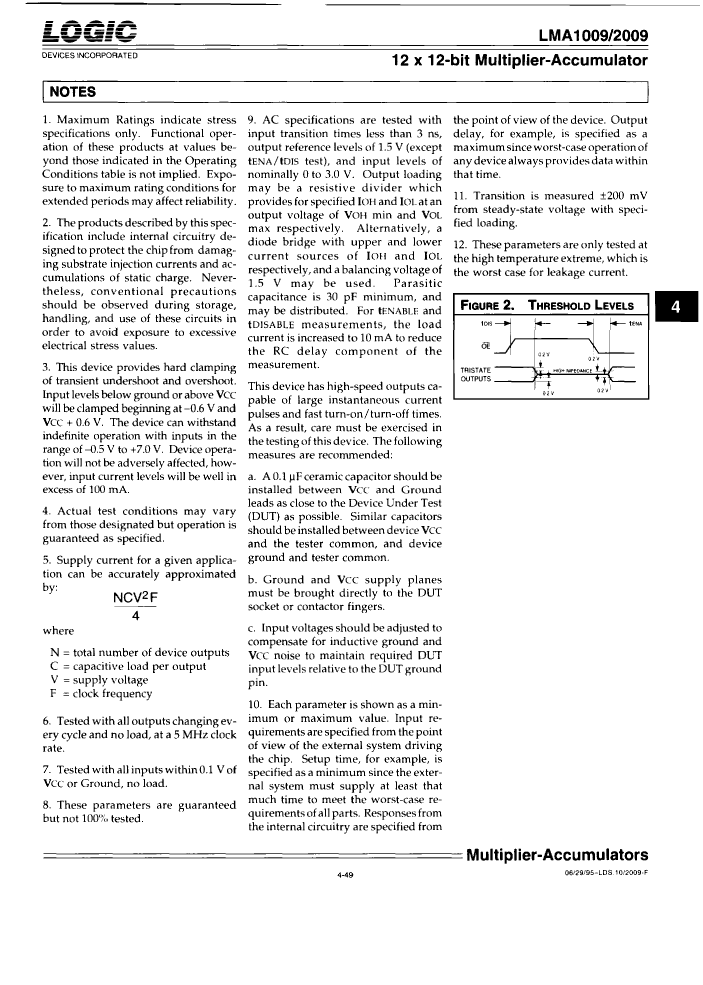

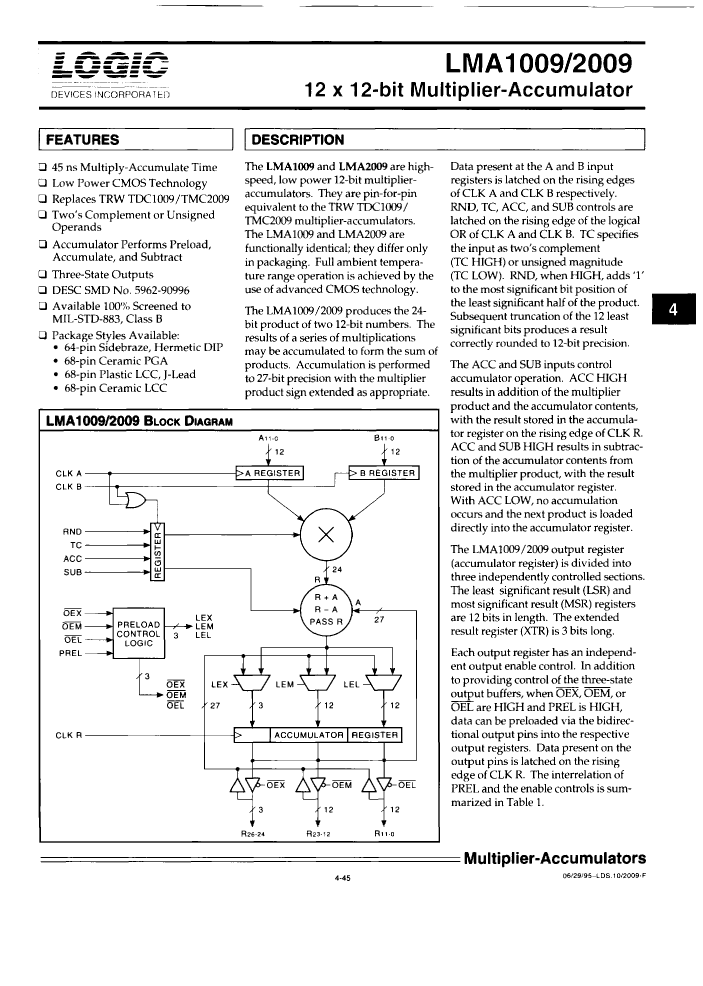

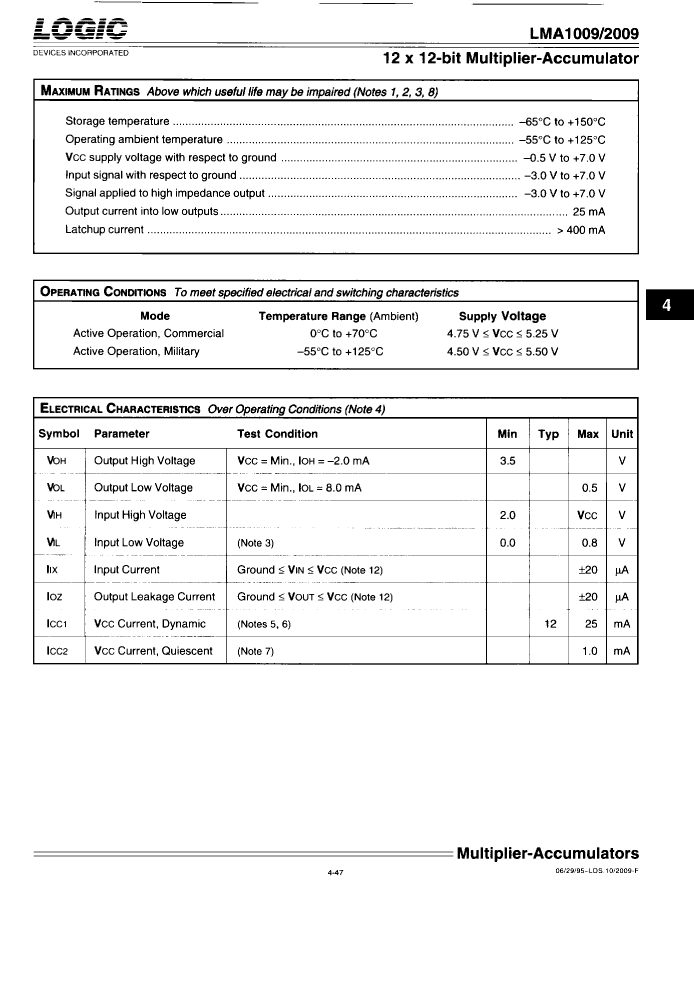

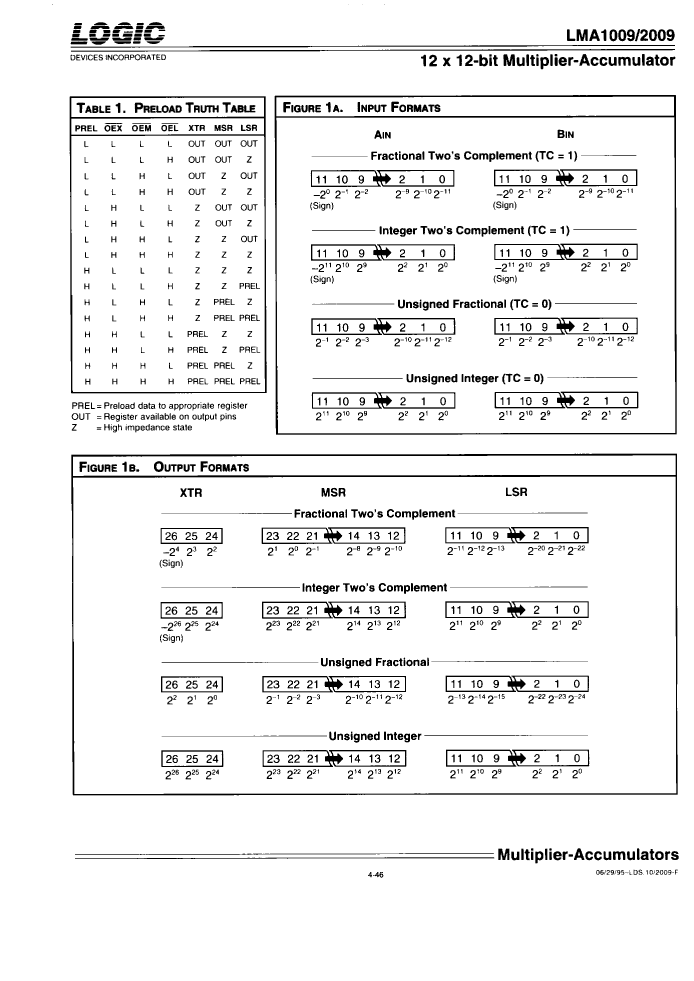

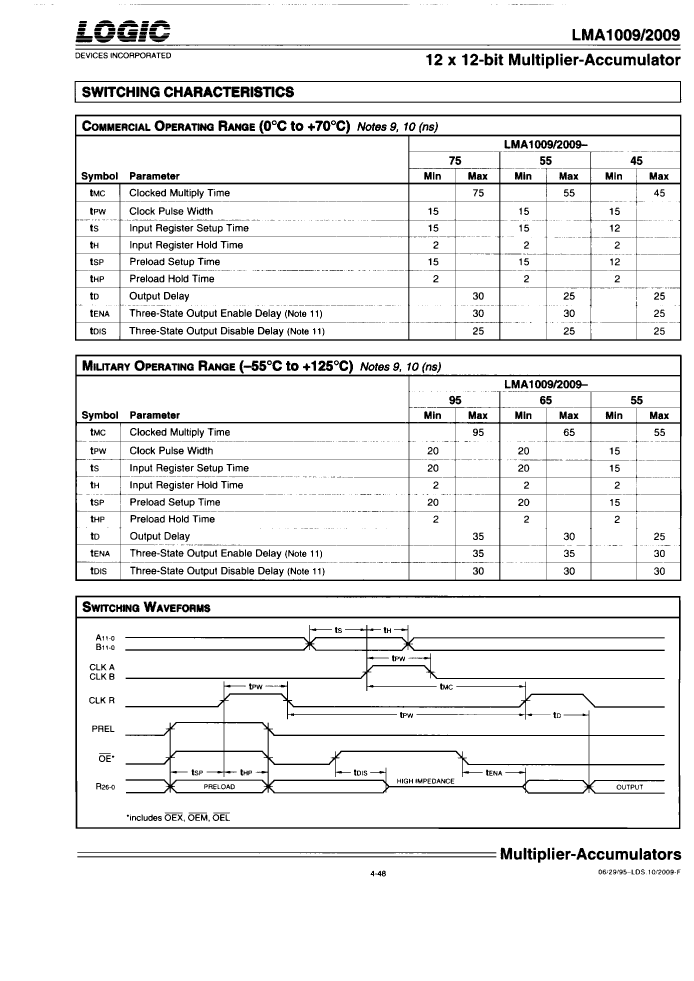

Preview

Download Datasheet

View All

5962-9099602MUC Related Products

	5962-9099602MUC	5962-9099602MXC	5962-9099603MYC	5962-9099602MYC	5962-9099604MYC	5962-9099603MXC	5962-9099604MXC	5962-9099604MUC	5962-9099603MUC
Description	Multiplier Accumulator/Summer, 12-Bit, CMOS, CPGA68, CAVITY-DOWN, CERAMIC, PGA-68	Multiplier Accumulator/Summer, 12-Bit, CMOS, CDIP64, 0.900 INCH, CAVITY DOWN, HERMETIC SEALED, SIDE BRAZED, DIP-64	Multiplier Accumulator/Summer, 12-Bit, CMOS, CQCC68, 0.950 X 0.950 INCH, CERAMIC, LCC-68	Multiplier Accumulator/Summer, 12-Bit, CMOS, CQCC68, 0.950 X 0.950 INCH, CERAMIC, LCC-68	Multiplier Accumulator/Summer, 12-Bit, CMOS, CQCC68, 0.950 X 0.950 INCH, CERAMIC, LCC-68	Multiplier Accumulator/Summer, 12-Bit, CMOS, CDIP64, 0.900 INCH, CAVITY DOWN, HERMETIC SEALED, SIDE BRAZED, DIP-64	Multiplier Accumulator/Summer, 12-Bit, CMOS, CDIP64, 0.900 INCH, CAVITY DOWN, HERMETIC SEALED, SIDE BRAZED, DIP-64	Multiplier Accumulator/Summer, 12-Bit, CMOS, CPGA68, CAVITY-DOWN, CERAMIC, PGA-68	Multiplier Accumulator/Summer, 12-Bit, CMOS, CPGA68, CAVITY-DOWN, CERAMIC, PGA-68
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	PGA	DIP	LCC	LCC	LCC	DIP	DIP	PGA	PGA
package instruction	PGA,	DIP,	QCCN,	QCCN,	QCCN,	DIP,	DIP,	PGA,	PGA,
Contacts	68	64	68	68	68	64	64	68	68
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Other features	2 X 12 BIT DATA INPUT BUS; ICC SPECIFIED @ 5MHZ	2 X 12 BIT DATA INPUT BUS; ICC SPECIFIED @ 5MHZ	2 X 12 BIT DATA INPUT BUS; ICC SPECIFIED @ 5MHZ	2 X 12 BIT DATA INPUT BUS; ICC SPECIFIED @ 5MHZ	2 X 12 BIT DATA INPUT BUS; ICC SPECIFIED @ 5MHZ	2 X 12 BIT DATA INPUT BUS; ICC SPECIFIED @ 5MHZ	2 X 12 BIT DATA INPUT BUS; ICC SPECIFIED @ 5MHZ	2 X 12 BIT DATA INPUT BUS; ICC SPECIFIED @ 5MHZ	2 X 12 BIT DATA INPUT BUS; ICC SPECIFIED @ 5MHZ
boundary scan	NO	NO	NO	NO	NO	NO	NO	NO	NO
External data bus width	12	12	12	12	12	12	12	12	12
JESD-30 code	S-CPGA-P68	R-CDIP-T64	S-CQCC-N68	S-CQCC-N68	S-CQCC-N68	R-CDIP-T64	R-CDIP-T64	S-CPGA-P68	S-CPGA-P68
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4	e4
length	29.4386 mm	81.28 mm	24.1935 mm	24.1935 mm	24.1935 mm	81.28 mm	81.28 mm	29.4386 mm	29.4386 mm
low power mode	NO	NO	NO	NO	NO	NO	NO	NO	NO
Humidity sensitivity level	3	3	3	3	3	3	3	3	3
Number of terminals	68	64	68	68	68	64	64	68	68
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output data bus width	27	27	27	27	27	27	27	27	27
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA	DIP	QCCN	QCCN	QCCN	DIP	DIP	PGA	PGA
Package shape	SQUARE	RECTANGULAR	SQUARE	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE
Package form	GRID ARRAY	IN-LINE	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	IN-LINE	IN-LINE	GRID ARRAY	GRID ARRAY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883
Maximum seat height	3.81 mm	3.81 mm	3.048 mm	3.048 mm	3.048 mm	3.81 mm	3.81 mm	3.81 mm	3.81 mm
Maximum slew rate	25 mA	25 mA	25 mA	25 mA	25 mA	25 mA	25 mA	25 mA	25 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	YES	YES	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Terminal form	PIN/PEG	THROUGH-HOLE	NO LEAD	NO LEAD	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	PIN/PEG	PIN/PEG
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	PERPENDICULAR	DUAL	QUAD	QUAD	QUAD	DUAL	DUAL	PERPENDICULAR	PERPENDICULAR
width	29.4386 mm	22.86 mm	24.1935 mm	24.1935 mm	24.1935 mm	22.86 mm	22.86 mm	29.4386 mm	29.4386 mm
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, MULTIPLIER ACCUMULATOR/SUMMER	DSP PERIPHERAL, MULTIPLIER ACCUMULATOR/SUMMER	DSP PERIPHERAL, MULTIPLIER ACCUMULATOR/SUMMER	DSP PERIPHERAL, MULTIPLIER ACCUMULATOR/SUMMER	DSP PERIPHERAL, MULTIPLIER ACCUMULATOR/SUMMER	DSP PERIPHERAL, MULTIPLIER ACCUMULATOR/SUMMER	DSP PERIPHERAL, MULTIPLIER ACCUMULATOR/SUMMER	DSP PERIPHERAL, MULTIPLIER ACCUMULATOR/SUMMER	DSP PERIPHERAL, MULTIPLIER ACCUMULATOR/SUMMER
Base Number Matches	1	1	1	1	1	1	1	1	1
Maker	LOGIC Devices	-	LOGIC Devices	-	-	-	LOGIC Devices	LOGIC Devices	LOGIC Devices
