8PH100 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > diode> 8PH100

8PH100: DescriptionBridge Rectifier Diode, 1 Phase, 8A, 1000V V(RRM), Silicon; Categorydiode; File Size85KB，2 Pages; ManufacturerEDI [Electronic devices inc.]

Download Datasheet Parametric Compare View All

8PH100 Overview

Bridge Rectifier Diode, 1 Phase, 8A, 1000V V(RRM), Silicon

8PH100 Parametric

Parameter Name	Attribute value
Maker	EDI [Electronic devices inc.]
package instruction	R-PSFM-W4
Reach Compliance Code	unknown
Other features	UL RECOGNIZED
Shell connection	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JESD-30 code	R-PSFM-W4
Maximum non-repetitive peak forward current	300 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Maximum output current	8 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	1000 V
surface mount	NO
Terminal form	WIRE
Terminal location	SINGLE
Base Number Matches	1

Preview

Download Datasheet

View All

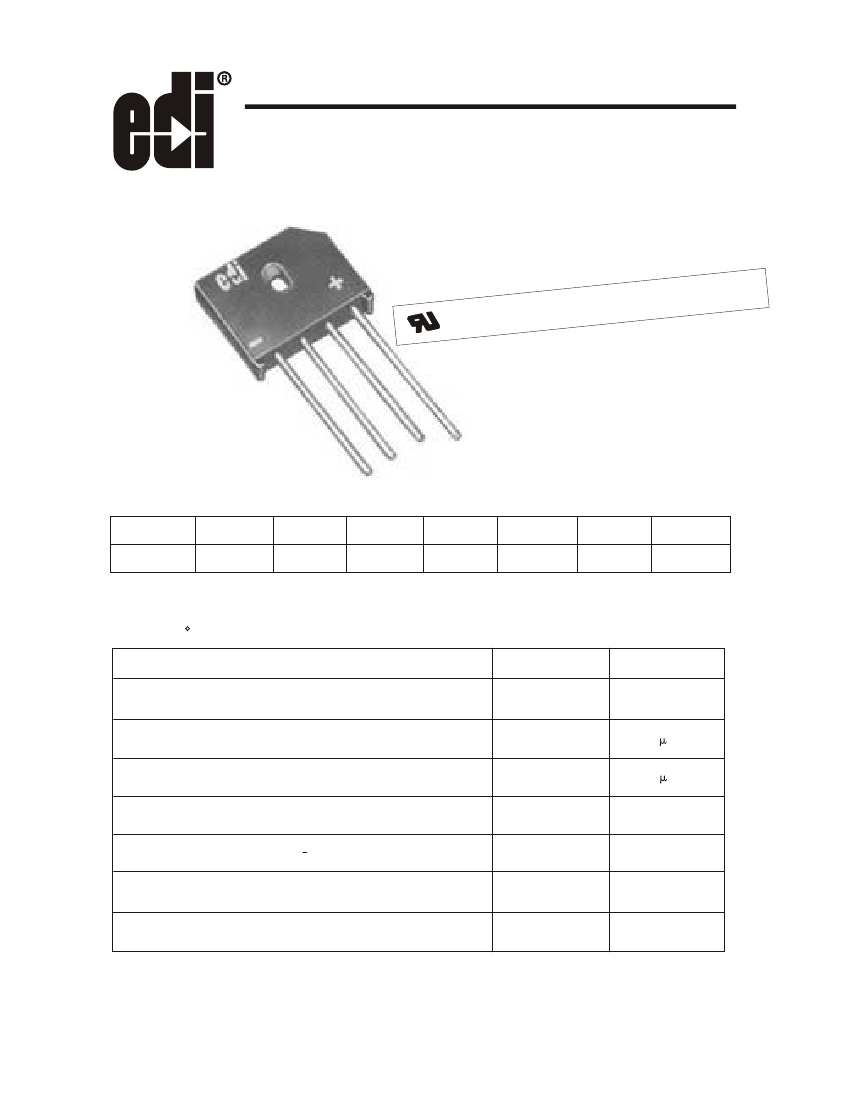

8PH

SINGLE-PHASE FULL WAVE BRIDGE

8 AMPERES

FOR P.C. BOARD AND HEAT SINK MOUNTING

omponent

under the c

ion

tes recognit

mark indica riters Laboratories, inc

This

erw

Und

program of

PRV/Leg

Type No.

50V

8PH05

100V

8PH10

200V

8PH20

400V

8PH40

600V

8PH60

800V

8PH80

1000V

8PH100

ELECTRICAL CHARACTERISTICS PER LEG

(at T

=25 C Unl es s Oth erw ise Spe ci fie d)

Average Output Current. lo @65 C Tc (Fig.1)

Max. Forward Voltage Drop, VF=1.0 V @

Max.DC Reverse Current @ PRV, I

Max.DC Reverse Current @ PRV,and 100

Max.Peak Surge Current, I

FSM

Thermal Resistance , R

j-c

Ambient Operating Temperature Range,T

Storge TemperatureRange,T

STG

(8.3ms) (Fig.2)

2.5

300

5.8

-55 to +150

Amp

C/ W

Note 1:Derate Io by 20% for capacitive loads

EDI reserves the right to change these specifications at any time without notice

8PH100 Related Products

	8PH100	8PH80	8PH60	8PH10
Description	Bridge Rectifier Diode, 1 Phase, 8A, 1000V V(RRM), Silicon	Bridge Rectifier Diode, 1 Phase, 8A, 800V V(RRM), Silicon	Bridge Rectifier Diode, 1 Phase, 8A, 600V V(RRM), Silicon	Bridge Rectifier Diode, 1 Phase, 8A, 100V V(RRM), Silicon
package instruction	R-PSFM-W4	R-PSFM-W4	R-PSFM-W4	R-PSFM-W4
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1 V	1 V	1 V	1 V
JESD-30 code	R-PSFM-W4	R-PSFM-W4	R-PSFM-W4	R-PSFM-W4
Maximum non-repetitive peak forward current	300 A	300 A	300 A	300 A
Number of components	4	4	4	4
Phase	1	1	1	1
Number of terminals	4	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Maximum output current	8 A	8 A	8 A	8 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	1000 V	800 V	600 V	100 V
surface mount	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
Base Number Matches	1	1	1	1
