5962-88565013B: Description5962-88565013B amplifier basic information: 5962-88565013B is an OPERATIONAL AMPLIFIER. The commonly used packaging method is QCCN, 5962-88565013B amplifier core information: The minimum operating temperature of 5962-88565013B is -55 °C and the maximum operating temperature is 125 °C. Its peak reflow temperature is NOT SPECIFIED Its maximum average bias current is 0.02 µA How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of 5962-88565013B is 2 V/us. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the 5962-88565013B gain becomes 0.707 times the low-frequency gain is 6000 kHz. The nominal supply voltage of 5962-88565013B is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of 5962-88565013B is 600 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the op amp 0V (or close to 0V).) Related dimensions of 5962-88565013B: The width of 5962-88565013B is: 11.43 mm and the length is 11.43 mm. 5962-88565013B has 28 terminals. Its terminal position type is: QUAD. Terminal pitch is 1.27 mm. Total pins: 28 5962-88565013B amplifier additional information: Its temperature grade is: MILITARY. The corresponding JESD-30 code is: S-CQCC-N28. The corresponding JESD-609 code is: e0. The packaging code of 5962-88565013B is: QCCN. The materials used in the 5962-88565013B package are mostly CERAMIC, METAL-SEALED COFIRED. The package shape is SQUARE. 5962-88565013B package pin form is: CHIP CARRIER. Its terminal forms are: NO LEAD. The maximum seat height is 2.54 mm.; CategoryAmplifier circuit; File Size681KB，16 Pages; ManufacturerDefense Supply Center Columbus; Alternative parts：5962-88565013B

Download Datasheet Parametric Compare View All

5962-88565013B Overview

5962-88565013B amplifier basic information:

5962-88565013B is an OPERATIONAL AMPLIFIER. The commonly used packaging method is QCCN,

5962-88565013B amplifier core information:

The minimum operating temperature of 5962-88565013B is -55 °C and the maximum operating temperature is 125 °C. Its peak reflow temperature is NOT SPECIFIED Its maximum average bias current is 0.02 µA

How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of 5962-88565013B is 2 V/us. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the 5962-88565013B gain becomes 0.707 times the low-frequency gain is 6000 kHz.

The nominal supply voltage of 5962-88565013B is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of 5962-88565013B is 600 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the op amp 0V (or close to 0V).)

Related dimensions of 5962-88565013B:

The width of 5962-88565013B is: 11.43 mm and the length is 11.43 mm. 5962-88565013B has 28 terminals. Its terminal position type is: QUAD. Terminal pitch is 1.27 mm. Total pins: 28

5962-88565013B amplifier additional information:

Its temperature grade is: MILITARY. The corresponding JESD-30 code is: S-CQCC-N28. The corresponding JESD-609 code is: e0. The packaging code of 5962-88565013B is: QCCN. The materials used in the 5962-88565013B package are mostly CERAMIC, METAL-SEALED COFIRED.

The package shape is SQUARE. 5962-88565013B package pin form is: CHIP CARRIER. Its terminal forms are: NO LEAD. The maximum seat height is 2.54 mm.

5962-88565013B Parametric

Parameter Name	Attribute value
Maker	Defense Supply Center Columbus
Parts packaging code	QLCC
package instruction	QCCN,
Contacts	28
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.02 µA
Nominal Common Mode Rejection Ratio	120 dB
Maximum input offset voltage	600 µV
JESD-30 code	S-CQCC-N28
JESD-609 code	e0
length	11.43 mm
Negative supply voltage upper limit	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	4
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	2.54 mm
Nominal slew rate	2 V/us
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	6000 kHz
width	11.43 mm
Base Number Matches	1

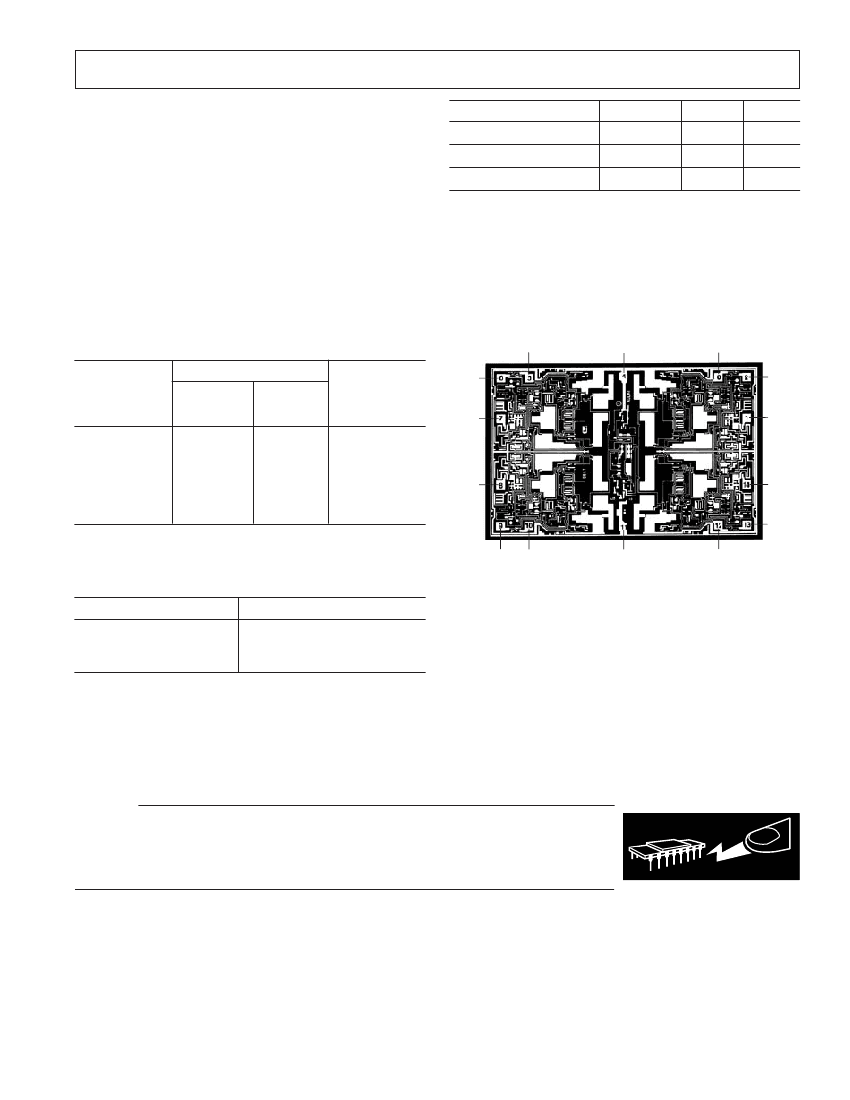

Preview

Download Datasheet

View All

FEATURES

Very Low-Noise, 5 nV/÷Hz @ 1 kHz Max

Excellent Input Offset Voltage, 0.4 mV Max

Low Offset Voltage Drift, 2 V/ C Max

Very High Gain, 1000 V/mV Min

Outstanding CMR, 110 dB Min

Slew Rate, 2 V/ s Typ

Gain-Bandwidth Product, 6 MHz Typ

Industry Standard Quad Pinouts

Available in Die Form

GENERAL DESCRIPTION

Very Low Noise Quad

Operational Amplifier

OP470

The OP470 offers excellent amplifier matching which is important

for applications such as multiple gain blocks, low noise instrumen-

tation amplifiers, quad buffers, and low noise active filters.

The OP470 conforms to the industry standard 14-pin DIP pinout.

It is pin compatible with the LM148/149, HA4741, HA5104,

and RM4156 quad op amps and can be used to upgrade systems

using these devices.

For higher speed applications, the OP471, with a slew rate of

8 V/ms, is recommended.

PIN CONNECTIONS

14–Lead Hermetic Dip

(Y–Suffix)

14–Lead Plastic Dip

(P–Suffix)

OUT A

–IN A

+IN A

V+

+IN B

–IN B

OUT B

OUT D

–IN D

+IN D

V–

+IN C

–IN C

OUT C

The OP470 is a high-performance monolithic quad operational

amplifier with exceptionally low voltage noise, 5 nV/X/ Hz at

1 kHz Max, offering comparable performance to ADI’s industry

standard OP27.

The OP470 features an input offset voltage below 0.4 mV,

excellent for a quad op amp, and an offset drift under 2

mV/∞C,

guaranteed over the full military temperature range. Open loop

gain of the OP470 is over 1,000,000 into a 10 kW load ensuring

excellent gain accuracy and linearity, even in high gain applica-

tions. Input bias current is under 25 nA, which reduces errors

due to signal source resistance. The OP470’s CMR of over

110 dB and PSRR of less than 1.8

mV/V

significantly reduce

errors due to ground noise and power supply fluctuations.

Power consumption of the quad OP470 is half that of four

OP27s, a significant advantage for power conscious applica-

tions. The OP470 is unity-gain stable with a gain bandwidth

product of 6 MHz and a slew rate of 2 V/ms.

16–Lead SOIC Package

(R–Suffix)

OUT A

–IN A

OUT D

–IN D

+IN D

+IN A

V+

+IN B

–IN B

OUT B

OP470

V–

+IN C

–IN C

OUT C

OP470

NC = NO CONNECT

SIMPLIFIED SCHEMATIC

V+

BIAS

–IN

+IN

V–

REV. A

Information furnished by Analog Devices is believed to be accurate and

reliable. However, no responsibility is assumed by Analog Devices for its

use, nor for any infringements of patents or other rights of third parties that

may result from its use. No license is granted by implication or otherwise

under any patent or patent rights of Analog Devices.

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.

Tel: 781/329-4700

www.analog.com

Fax: 781/326-8703
