74F365DC datasheet, PDF - EEWORLD Datasheet

74F365DC: DescriptionBus Driver, F/FAST Series, 1-Func, 6-Bit, True Output, TTL, CDIP16, CERAMIC, DIP-16; Categorylogic; File Size167KB，4 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

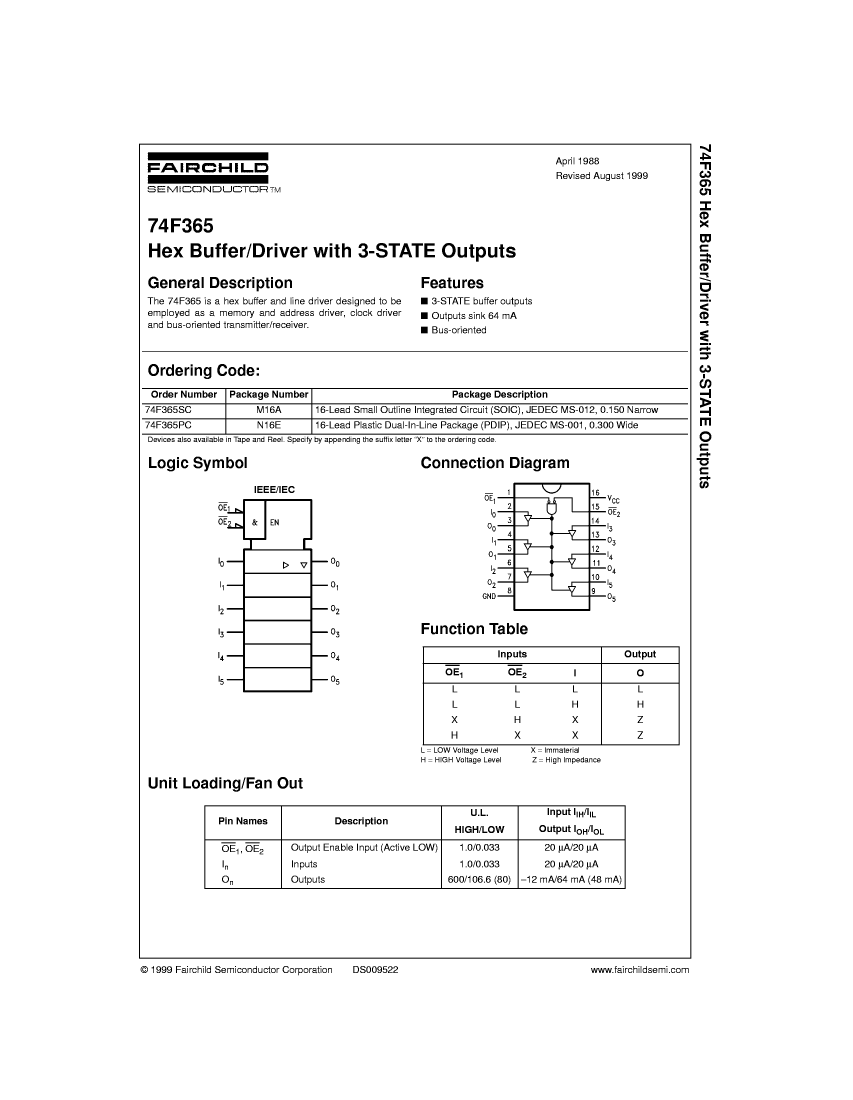

74F365DC Overview

Bus Driver, F/FAST Series, 1-Func, 6-Bit, True Output, TTL, CDIP16, CERAMIC, DIP-16

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	DIP,
Reach Compliance Code	unknown
Other features	WITH DUAL OUTPUT ENABLE
series	F/FAST
JESD-30 code	R-GDIP-T16
length	19.43 mm
Logic integrated circuit type	BUS DRIVER
Number of digits	6
Number of functions	1
Number of ports	2
Number of terminals	16

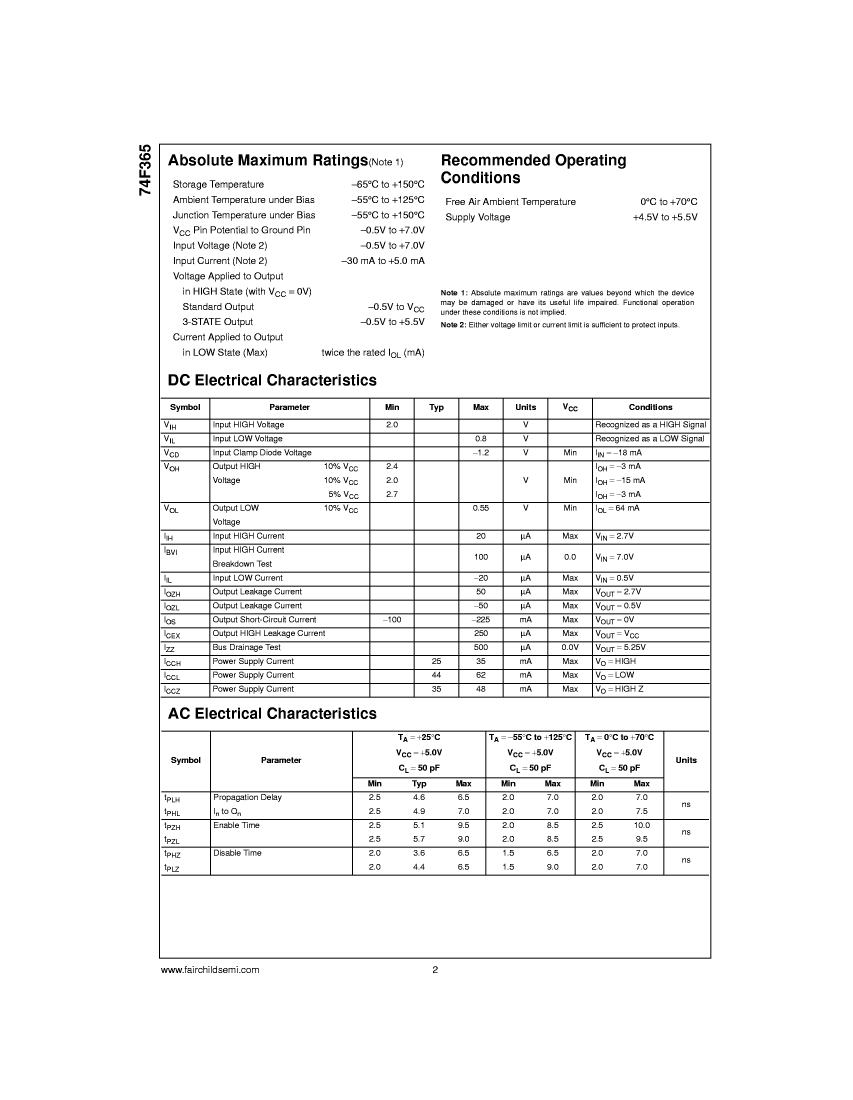

Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	7 ns
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE

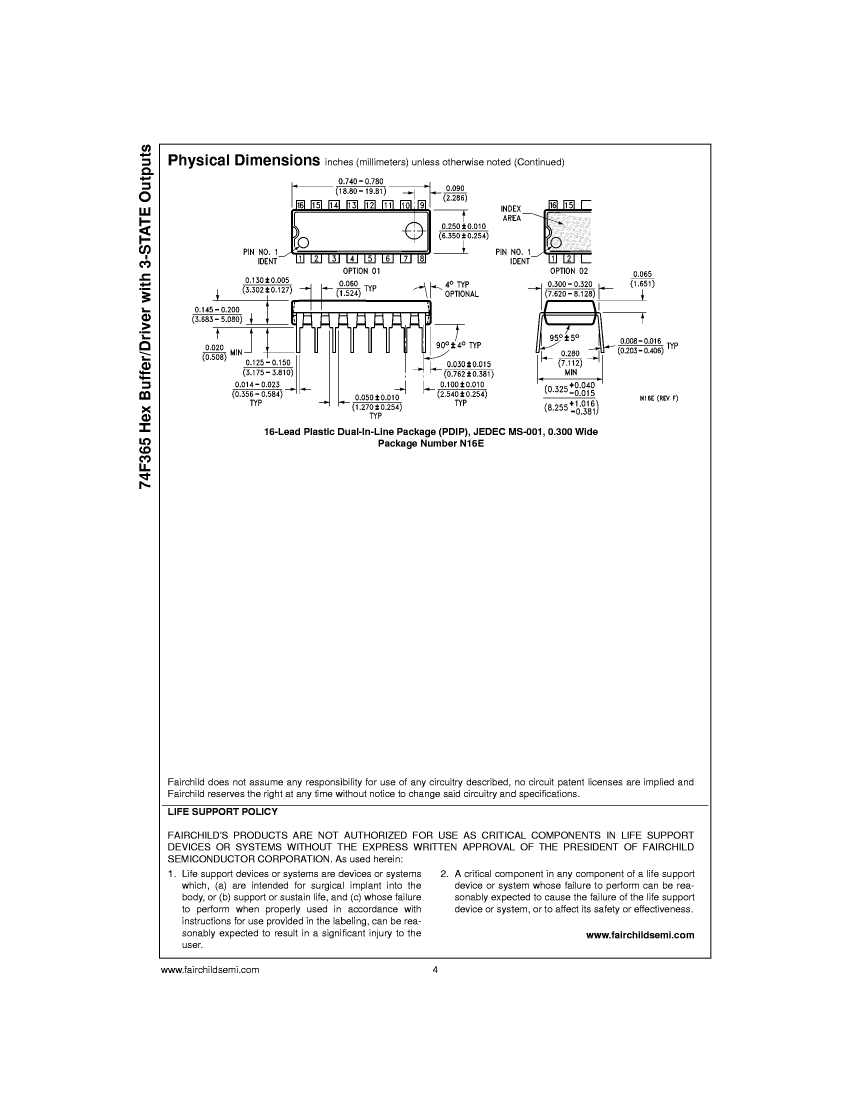

Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

	74F365DC	74F365PCQR
Description	Bus Driver, F/FAST Series, 1-Func, 6-Bit, True Output, TTL, CDIP16, CERAMIC, DIP-16	Bus Driver, F/FAST Series, 1-Func, 6-Bit, True Output, TTL, PDIP16, PLASTIC, DIP-16
Maker	Rochester Electronics	Rochester Electronics
package instruction	DIP,	DIP,
Reach Compliance Code	unknown	unknown
Other features	WITH DUAL OUTPUT ENABLE	WITH DUAL OUTPUT ENABLE
series	F/FAST	F/FAST
JESD-30 code	R-GDIP-T16	R-PDIP-T16
length	19.43 mm	19.18 mm
Logic integrated circuit type	BUS DRIVER	BUS DRIVER
Number of digits	6	6
Number of functions	1	1
Number of ports	2	2
Number of terminals	16	16
Maximum operating temperature	70 °C	70 °C
Output characteristics	3-STATE	3-STATE
Output polarity	TRUE	TRUE
Package body material	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY
encapsulated code	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
propagation delay (tpd)	7 ns	7 ns
Maximum seat height	5.08 mm	5.08 mm
Maximum supply voltage (Vsup)	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	NO
technology	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
width	7.62 mm	7.62 mm
Base Number Matches	1	1
