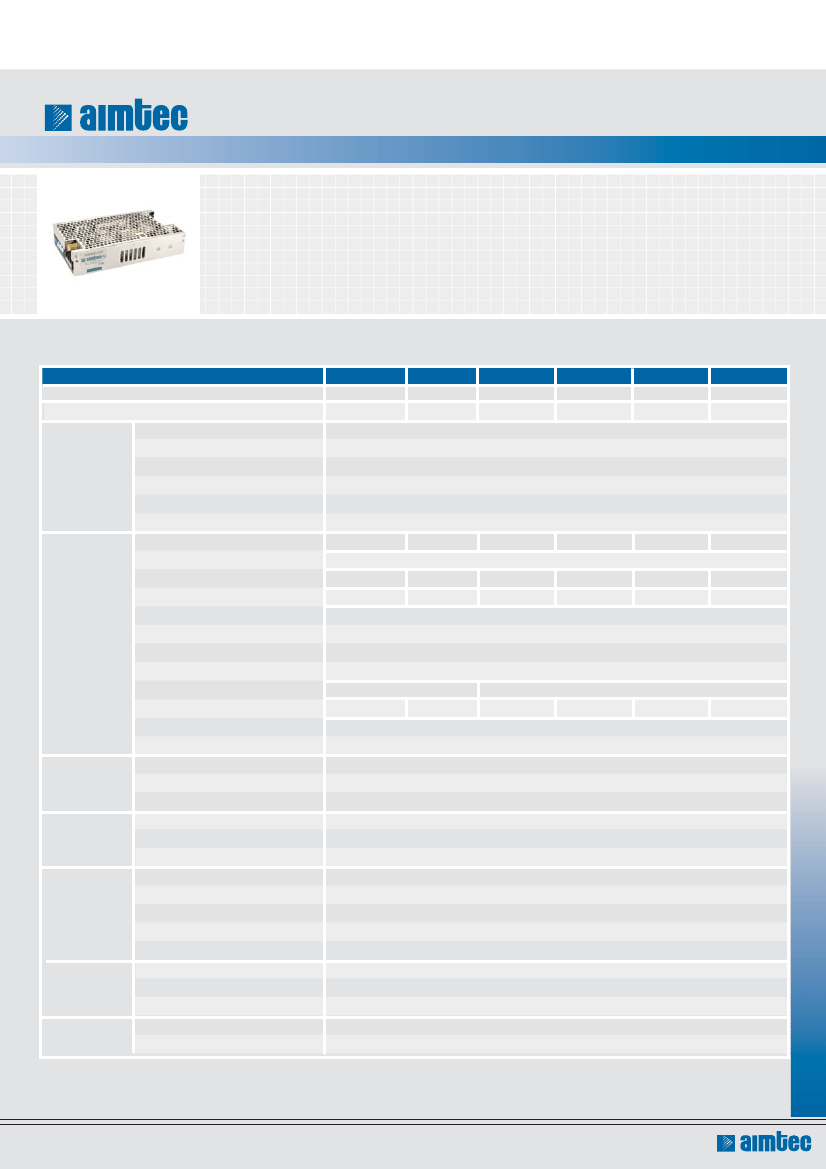

ENCLOSED SWITCHING POWER SUPPLY

UNIVERSAL INPUT RANGE 90…264 VAC,

47…63HZ OR 120…370VDC

ULTRA COMPACT SIZE

3000 VAC INPUT-OUTPUT ISOLATION

AME250-Z Series

•

REGULATED OUTPUT

250W WITH 18CFM FAN

EFFICIENCY UP TO 80%

PFC FUNCTION

ELECTRICAL SPECIFICATIONS

All specifications valid at nominal Input voltage, full load and +25°C after warm-up time unless otherwise stated.

Model No. (Single Output)

Max. Output Wattage (18CFM Fan)

Max. Output Wattage (Convection)

AME250-3.3S

AME250-5S

AME250-12S

AME250-15S

AME250-24S

AME250-48S

132

80W

200W

120W

250W

162W

250W

162W

250W

162W

250W

162W

Specifications are subject to change without notification.

Specifications are subject to change without notification

VISIT US AT WWW.AIMTEC.CA

Continued on next page

AC-DC CONVERTERS

Voltage

Frequency (Hz)

Input

Current (Full Load)

Inrush Current (<2ms)

Leakage Current

Power Factor

Voltage (VDC)

Voltage Accuracy

Max. Current

(18CFM Fan)

Max. Current

(Convection)

Line Regulation

(LL-HL) (typ.)

Output

Load Regulation

(5-100%) (typ.)

Minimum Load

Maximum Capacitive Load

Ripple & Noise

Efficiency

Hold-up Time

Switching Frequency

Over Power Protection

Protection

Over Voltage Protection

Short Circuit Protection

Input-Output (VAC)

Isolation

Input-FG (VAC)

Output-FG (VAC)

Operating Temperature

(Conv)

Storage Temperature

Environment Temperature Coefficient

Humidity

MTBF

Physical

Dimensions (LxWxH)

Weight

Cooling Method

EMI

(Conducted & Radiated Emission)

EMC

EMS

(Noise Immunity)

90-260 VAC or 120-370 VDC

47-63 Hz

4A Max. (115VAC) / 2A Max. (230VAC)

40A Max. (115VAC) / 80A Max. (230VAC)

3.5mA max.

PF>0.97 (115VAC) / PF>0.93 (230 VAC) at Full Load

3.3V

12V

15V

24V

48V

±2%

40A

20.83A

16.66A

10.4A

5.2A

24.24A

24A

13.5A

10.8A

6.75

3.375A

±1%

470-23,000μF Depending on model.

100mV max.

1% max.

69%

75%

80%

18ms min.

67kHz

Auto Recovery

Zener diode clamp

Auto Recovery

3000V

1500V

500V

-25°C ... +70°C (with derating)

-40°C ... +85°C

0.02% / °C (0~50°C)

95% RH

> 50,000 hrs @ 25°C (MIL-HDBK-217F)

7 x 4.2 x 1.6 Inches (177.8 x 106.68 x 40.64 mm) Tolerance ±0.5mm

842g

Free Air Convection / 18CFM Forced Air

EN55022 Class B

EN55024

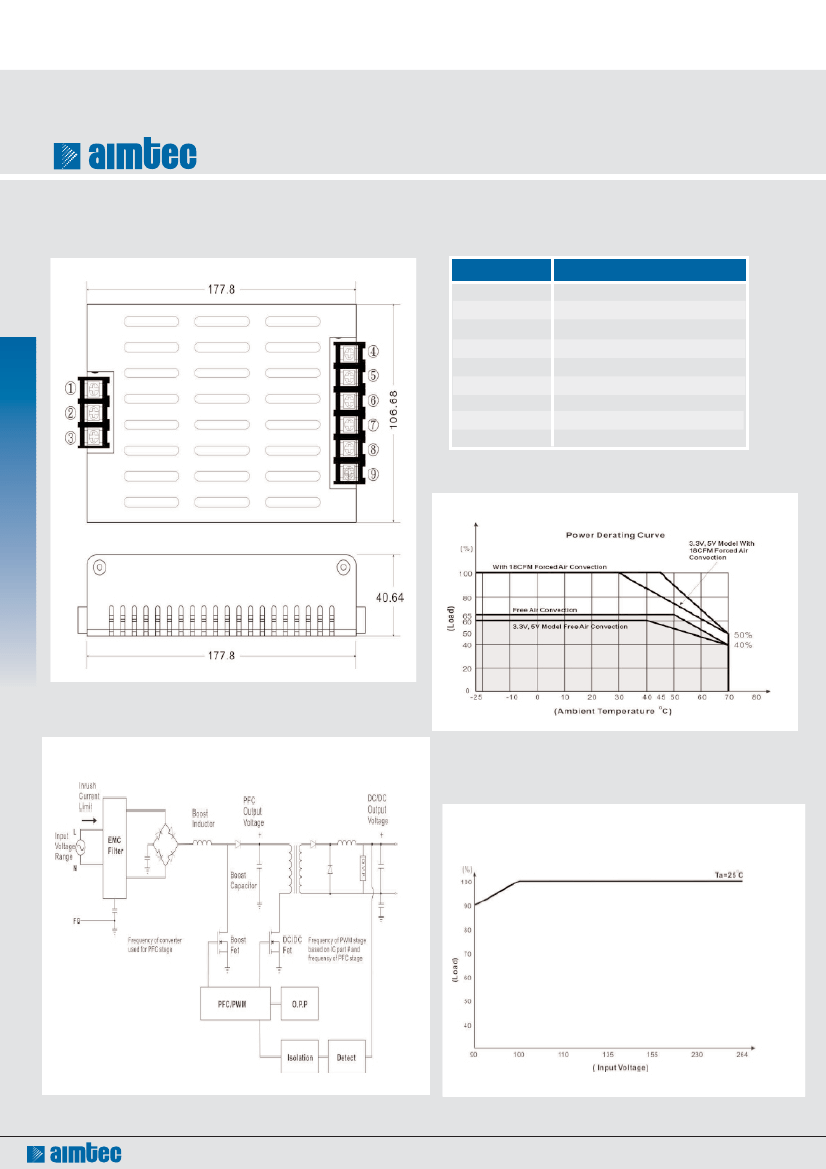

AME250-Z Series

OUTLINE DIMENSIONS & PIN CONNECTIONS

MECHANICAL DIMENSION (Top View)

DERATING

Single

AC IN (N)

AC IN (L)

+DC Output

-DC Output

DC-DC CONVERTERS

BLOCK DIAGRAM

SINGLE OUTPUT VOLTAGE

STATIC CHARACTERISTICS

TO ORDER CALL 1-888-9-AIMTEC

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
