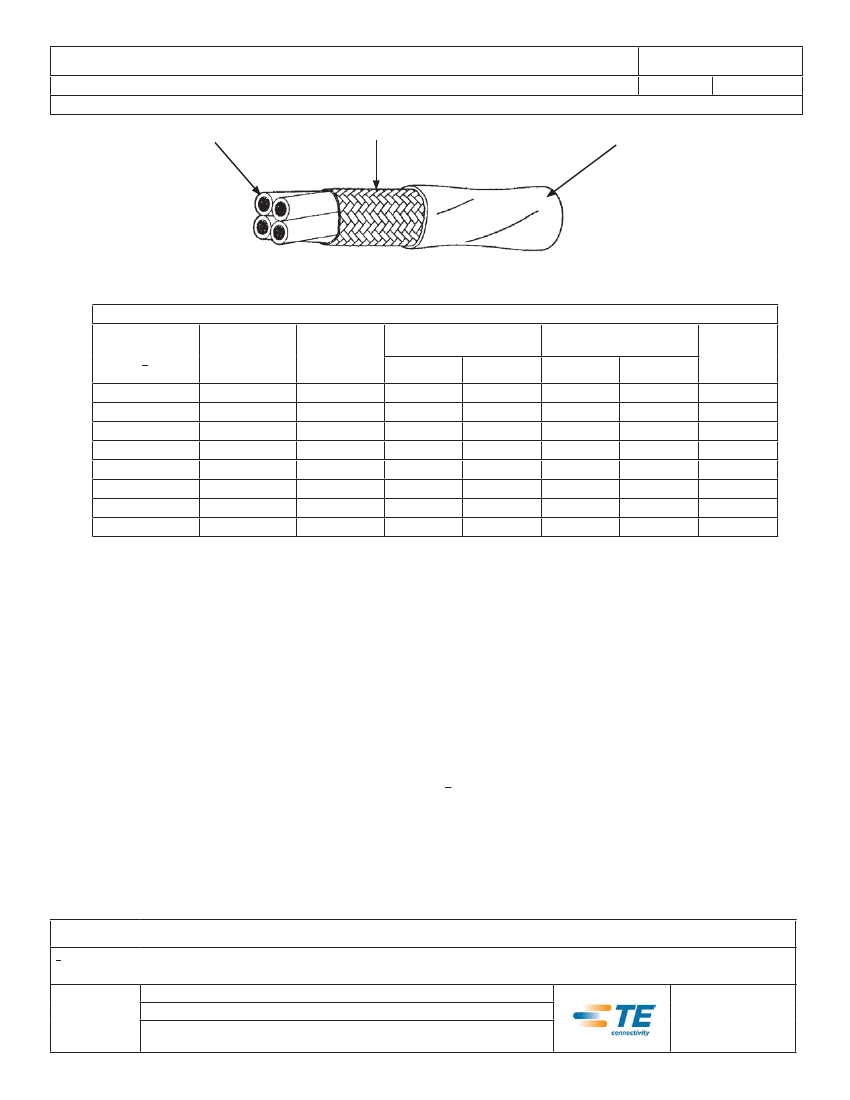

SPECIFICATION CONTROL DRAWING
TITLE
55A2141
Date
FOUR CONDUCTOR CABLE, FLAT BRAID SHIELDED, JACKETED, GENERAL PURPOSE, 600 VOLT
This specification sheet forms a part of the latest issue of Raychem Specification 55A.
COMPONENT WIRES - 55A0111
SHIELD - TIN-COATED COPPER
7-22-11
Revision
A
JACKET - RADIATION-CROSSLINKED,
MODIFIED ETFE
CABLE CONSTRUCTION DETAILS
PART NUMBER
1/
55A2141-30-*
55A2141-28-*
55A2141-26-*
55A2141-24-*
55A2141-22-*
55A2141-20-*
55A2141-18-*
55A2141-16-*
CONDUCTOR
SIZE
(AWG)
30
28
26
24
22
20
18
16
SHIELD
STRAND
THICKNESS
( ± .0004 inch )
.0015
.0015
.0015
.0015
.0015
.0015
.0015
.0015
JACKET THICKNESS
(in.)
MINIMUM
.006
.006
.006
.006
.006
.006
.006
.006
NOMINAL
.008
.008
.008
.008
.008
.008
.008
.008
OUTSIDE DIAMETER
(in.)
NOMINAL
.081
.088
.100
.113
.127
.144
.168
.188
MAXIMUM
.093
.102
.117
.131
.148
.169
.197
.221
MAXIMUM
WEIGHT
(lbs/1000 ft.)
5.8
7.1
9.7
12.7
16.6
23.5
33.6
41.8
CABLE RATINGS AND ADDITIONAL REQUIREMENTS
TEMPERATURE RATING: 150°C
Maximum continuous conductor temperature
VOLTAGE RATING: 600 volts (rms) at sea level
ACCELERATED AGING: 300 ± 3°C for 7 hours
BLOCKING: 200 ± 3°C for 6 hours
DIELECTRIC WITHSTAND: 1500 volts (rms), 60 Hz
FLAMMABILITY (Procedure 1): 3 seconds (maximum);
3 in. (maximum); no flaming of facial tissue
JACKET COLOR: White preferred
JACKET ELONGATION AND TENSILE STRENGTH:
Elongation, 50% (minimum)
Tensile Strength, 5000 lbf/in² (minimum)
JACKET FLAWS:
Spark Test, 1.0 kV (rms)
Impulse Dielectric Test, 6.0 kV (peak)
NOTE: Nominal values are for information only.
Nominal values are not requirements.
LIFE CYCLE: 200 ± 3°C for 168 hours
LOW TEMPERATURE-COLD BEND: -65 ± 2°C for 4 hours
SHIELD COVERAGE: 85% (minimum)
VOLTAGE WITHSTAND TEST (Post Environmental):
1000 volts (rms), 60 Hz, 1 minute
PART NUMBER:
The “*” in the part numbers above shall be replaced by color code
designators with a slash separating the component wire colors and a
dash separating the component wire colors from the jacket color. Colors
shown do not necessarily reflect the sequence of manufacturing.
1/
Example: AWG 24, black, brown, red and orange component wires;
white jacket: 55A2141-24-0/1/2/3-9
Users should evaluate the suitability of this product for their application. Specifications are subject to change without notice.
Tyco Electronics Corporation also reserves the right to make changes in materials or processing, which do not affect compliance with any specification, without notification to Buyer.
1/
COLORS AND COLOR CODE DESIGNATORS SHALL BE IN ACCORDANCE WITH MIL-STD-681. HOWEVER, DUE TO LENGTH LIMITATIONS OF THE RAYCHEM PART NUMBER,
AN ALTERNATIVE COLOR CODE MAY REPLACE MIL-STD-681 COLOR CODE DESIGNATORS. (EXAMPLE: “901/902...” MAY BE REPLACED BY “Axxx”.) OTHER CODES AND
SUFFIXES MAY BE ADDED TO THE PART NUMBER AS NECESSARY, TO CAPTURE ANY ADDITIONAL REQUIREMENTS IMPOSED BY THE PURCHASE ORDER.
Raychem, TE Connectivity, TE connectivity (logo) and TE (logo) are trademarks.
Raychem Wire & Cable
501 Oakside Avenue
Redwood City, CA 94063-3800
Phone: 1-800-227-8816
Fax: 1-650-361-6297
© 2011 Tyco Electronics Corporation. All rights reserved.
Page 1 of 1
DIMENSIONS ARE IN INCHES, AND UNLESS OTHERWISE DESIGNATED ARE NOMINAL.
THIS SPECIFICATION SHEET TAKES PRECEDENCE OVER DOCUMENTS REFERENCED HEREIN.
REFERENCED DOCUMENTS SHALL BE OF THE ISSUE IN EFFECT ON DATE OF INVITATION FOR BID.
