826845-1 datasheet, PDF - EEWORLD Datasheet

826845-1: Description10 CONTACT(S), MALE, COMBINATION LINE CONNECTOR, SOLDER; CategoryThe connector; File Size100KB，7 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

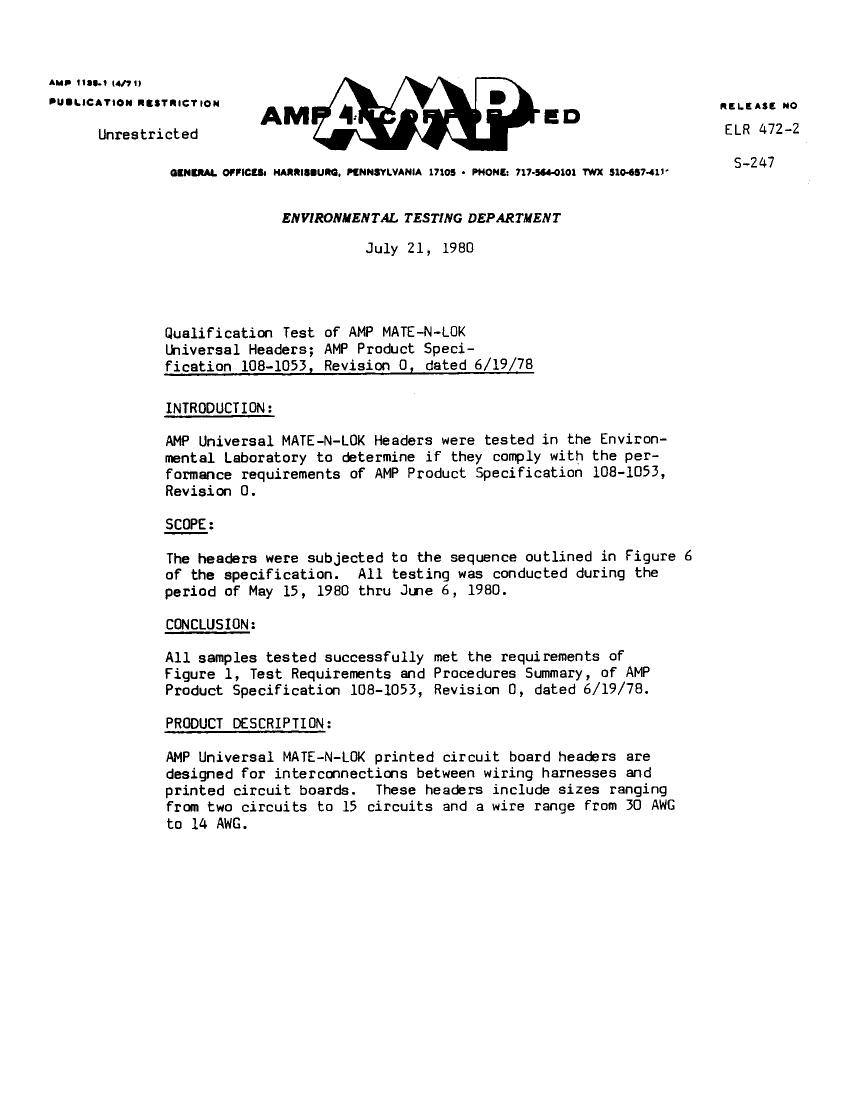

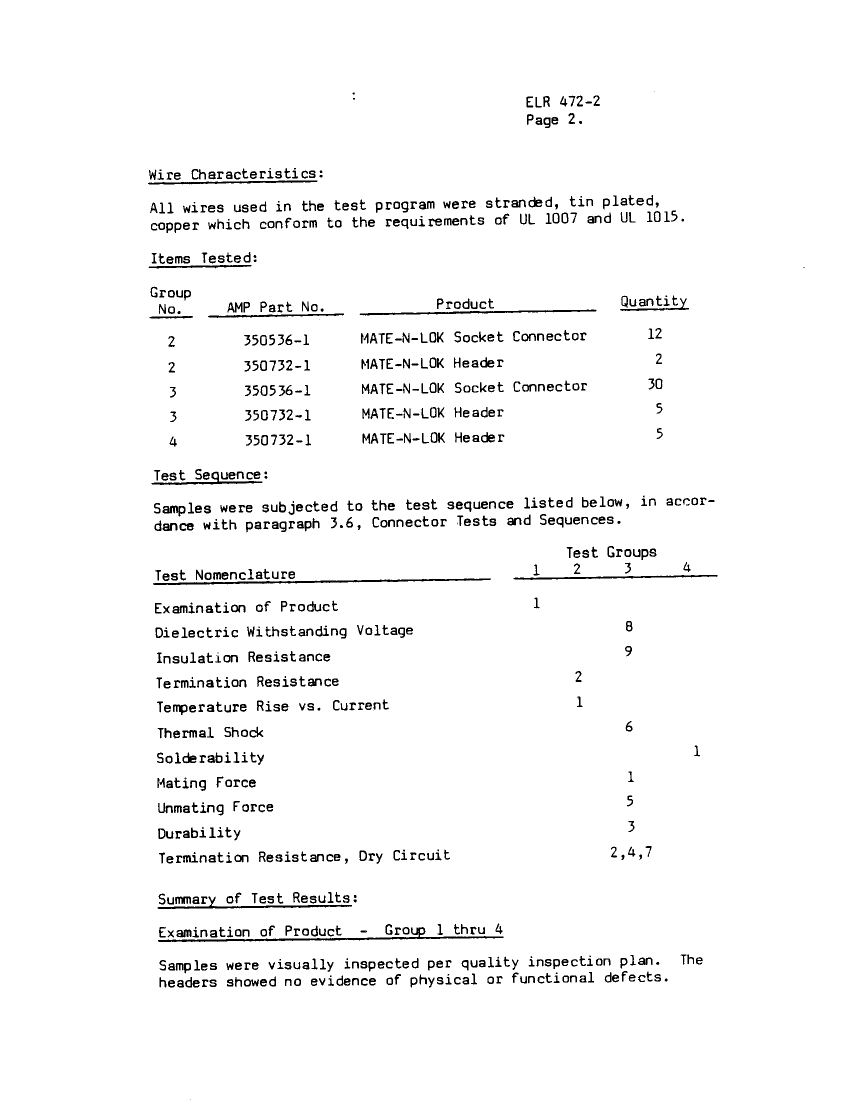

826845-1 Overview

10 CONTACT(S), MALE, COMBINATION LINE CONNECTOR, SOLDER

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	COMPATIBLE CONTACT: 167654-3
body width	0.3 inch
subject depth	0.581 inch
body length	2.55 inch
Body/casing type	RECEPTACLE
Connector type	COMBINATION LINE CONNECTOR
Contact arrangement	S0P10
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact style	RND PIN-SKT
DIN compliance	NO

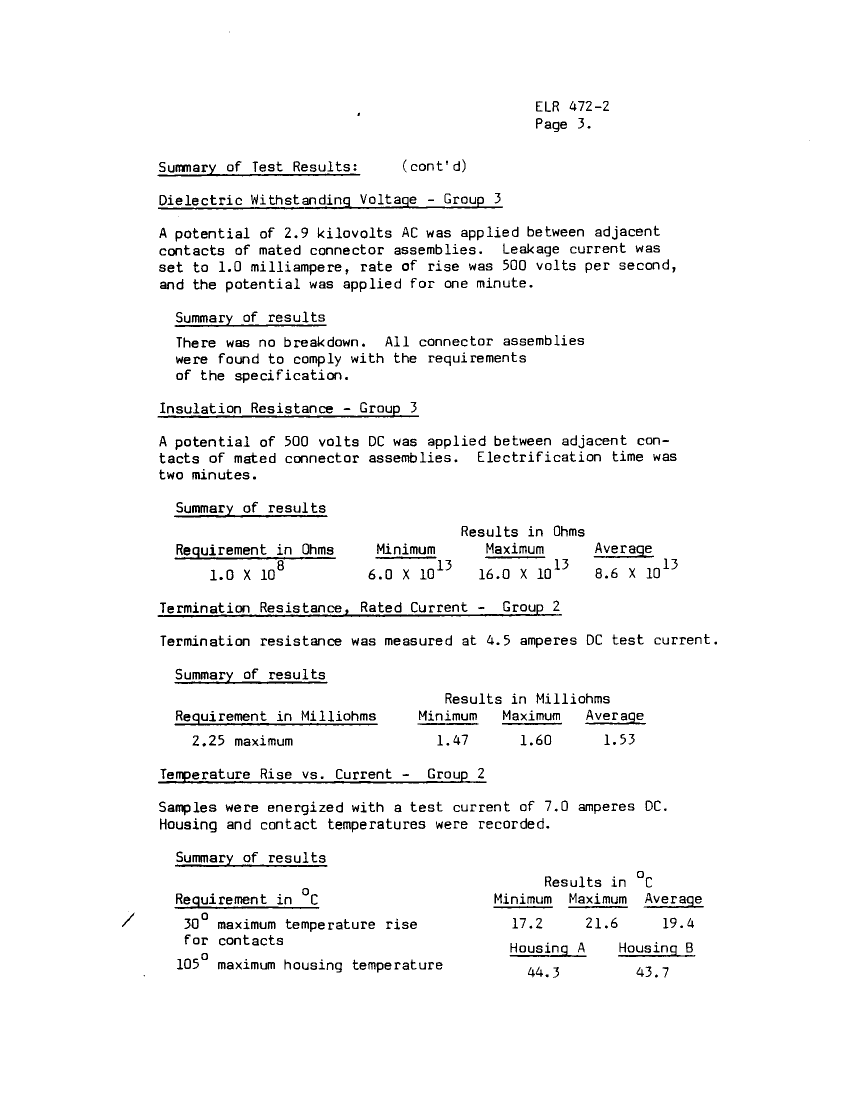

Dielectric withstand voltage	2900VAC V
Durability	50 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO

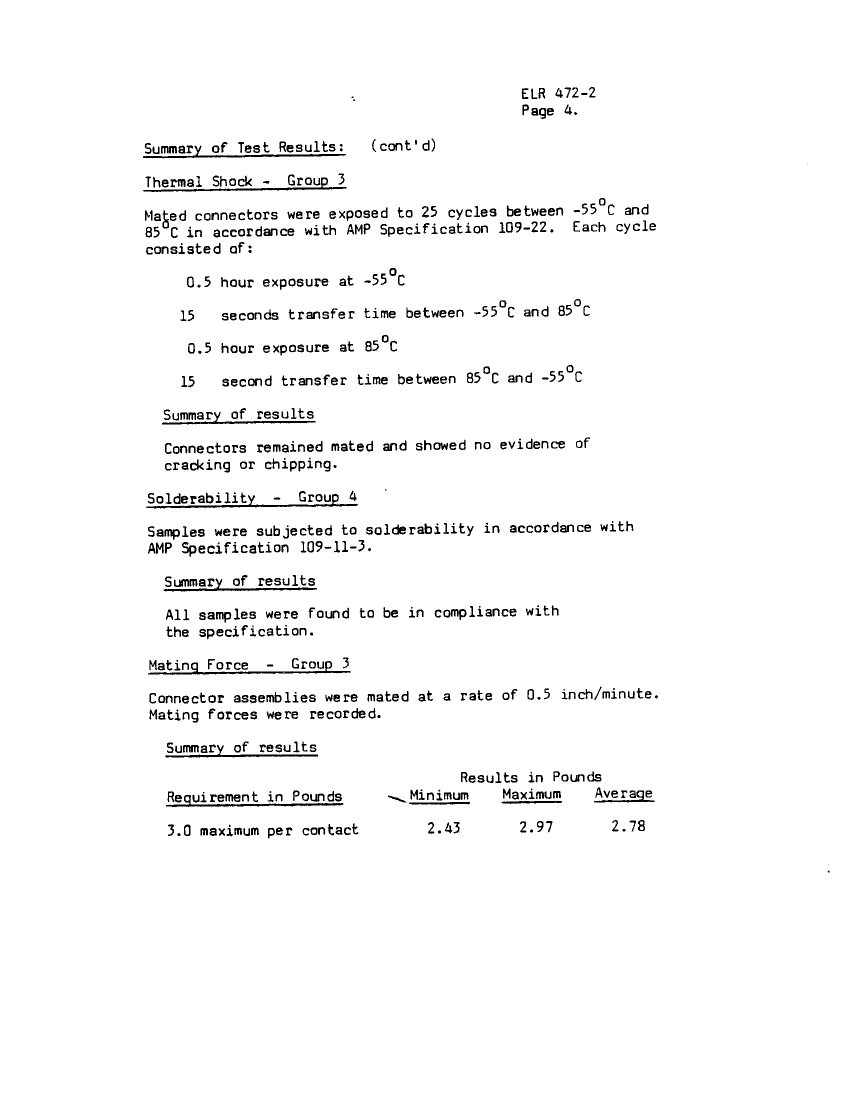

maximum insertion force	13.344 N
Insulation resistance	100000000 Ω
Insulator color	NATURAL
insulator material	POLYAMIDE
MIL compliance	NO
Manufacturer's serial number	826845
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.146 inch
Termination type	SOLDER
Total number of contacts	10
Evacuation force-minimum value	2.224 N
Base Number Matches	1

	826845-1	826844-3
Description	10 CONTACT(S), MALE, COMBINATION LINE CONNECTOR, SOLDER	HEADER CONNECTOR,HYBRID,RECEPT,0+8 CONTACTS,PIN,PC TAIL TERMINAL,NATURAL
Is it Rohs certified?	conform to	conform to
Maker	TE Connectivity	TE Connectivity
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Other features	COMPATIBLE CONTACT: 167654-3	ROHS & ELV COMPLIANT
body width	0.3 inch	0.3 inch
subject depth	0.581 inch	0.581 inch
body length	2.55 inch	2.05 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	COMBINATION LINE CONNECTOR	BOARD CONNECTOR
Contact arrangement	S0P10	S0P8
Contact to complete cooperation	NOT SPECIFIED	SN
Contact point gender	MALE	MALE
Contact material	NOT SPECIFIED	PHOSPHOR BRONZE
Contact style	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	2900VAC V	2900VAC V
Durability	50 Cycles	50 Cycles
maximum insertion force	13.344 N	13.344 N
Insulation resistance	100000000 Ω	100000000 Ω
Insulator color	NATURAL	NATURAL
insulator material	POLYAMIDE	POLYAMIDE
Manufacturer's serial number	826845	826844
Mixed contacts	NO	YES
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
Maximum operating temperature	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.146 inch	0.146 inch
Termination type	SOLDER	SOLDER
Total number of contacts	10	8
Evacuation force-minimum value	2.224 N	2.224 N
Base Number Matches	1	1
