803-93-094-20-001 datasheet, PDF

Datasheet> All Categories > The connector> 803-93-094-20-001

803-93-094-20-001: DescriptionBoard Connector, 94 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal, Socket; CategoryThe connector; File Size211KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

803-93-094-20-001 Overview

Board Connector, 94 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal, Socket

803-93-094-20-001 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Mill-Max
Reach Compliance Code	compliant
Other features	COMPATIBLE CONTACT: 1305-0-15-01-47-01-04-0
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN LEAD (200) OVER NICKEL
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	803
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	94
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

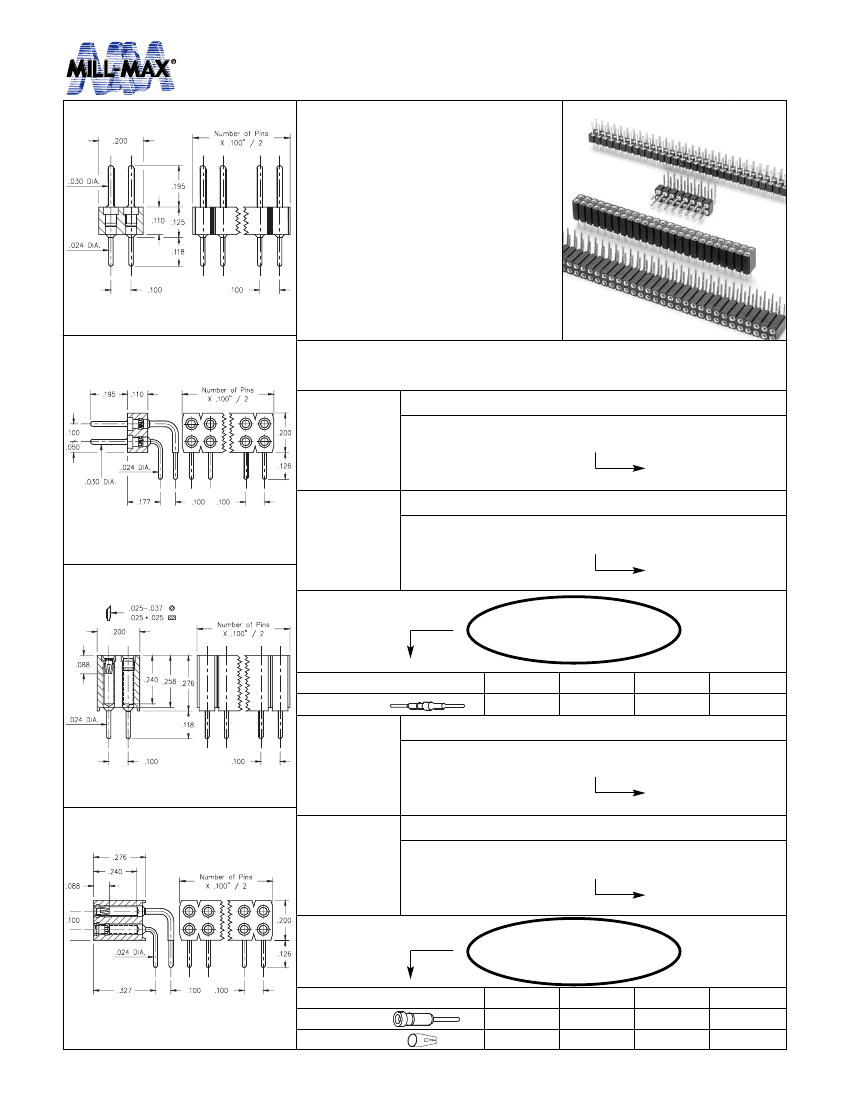

INTERCONNECTS

.030” dia. Pins Straight and Right Angle

Double Row

•

Receptacles accept .030”

diameter and .025” square pins

such as Series 890 and 892

pin headers.

•

Pin interconnects available with

straight (M-M# 7007) or right angle

(M-M# 5005, 5107) solder tails.

(See page 173 for details)

•

Sockets are available with straight

(M-M# 1304) or right angle (M-M#

1305, 1306) solder tails. (See

pages 146 & 147 for details)

Series 802, 803

Fig. 1

Ordering Information

Series 802...10-001

Straight Pin Header

Fig. 1

802-XX-0_ _-10-001

Specify # of pins

Series 802...20-001

02-64

Right Angle Pin Header

Fig. 2

802-XX-0 _ _-20-001

Specify # of pins

02-64

XX= Plating Code

See Below

SPECIFY PLATING CODE XX=

10µ” Au

200µ” Sn/Pb

Pin Plating

Series 803...10-001

Straight Socket

Fig. 3

803-XX-_ _ _-10-001

Specify # of pins

Series 803...20-001

002-100

Right Angle Socket

Fig. 4

803-XX-_ _ _-20-001

Specify # of pins

002-100

XX= Plating Code

See Below

SPECIFY PLATING CODE XX=

30µ” Au

200µ”Sn/Pb

Fig. 4

Sleeve (Pin)

Contact (Clip)

200µ” Sn/Pb 200µ”Sn/Pb
