80CE558EFB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Microcontrollers and processors> 80CE558EFB

80CE558EFB: DescriptionIC 8-BIT, 16 MHz, MICROCONTROLLER, PQFP80, PLASTIC, SOT-318, QFP-80, Microcontroller; CategoryMicrocontrollers and processors; File Size2MB，53 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

80CE558EFB Overview

IC 8-BIT, 16 MHz, MICROCONTROLLER, PQFP80, PLASTIC, SOT-318, QFP-80, Microcontroller

80CE558EFB Parametric

Parameter Name	Attribute value
Maker	NXP
Parts packaging code	QFP
package instruction	QFP,
Contacts	80
Reach Compliance Code	unknown
Has ADC	YES
Other features	I2C SERIAL BUS INTERFACE; CAPTURE/COMPARE UNIT
Address bus width	16
bit size	8
boundary scan	NO
maximum clock frequency	16 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-PQFP-G80
JESD-609 code	e3
length	20 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	6
Number of I/O lines	48
Number of serial I/Os	2
Number of terminals	80
Number of timers	3
On-chip data RAM width	8
On-chip program ROM width
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	RECTANGULAR
Package form	FLATPACK
Certification status	Not Qualified
RAM (number of words)	512
rom(word)	0
Maximum seat height	3.3 mm
speed	16 MHz
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
width	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

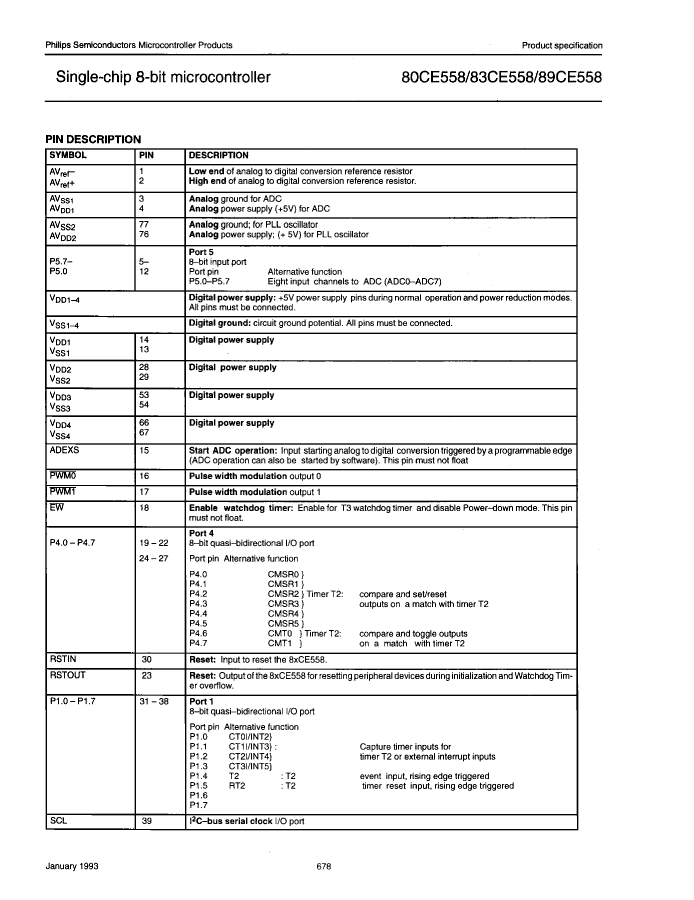

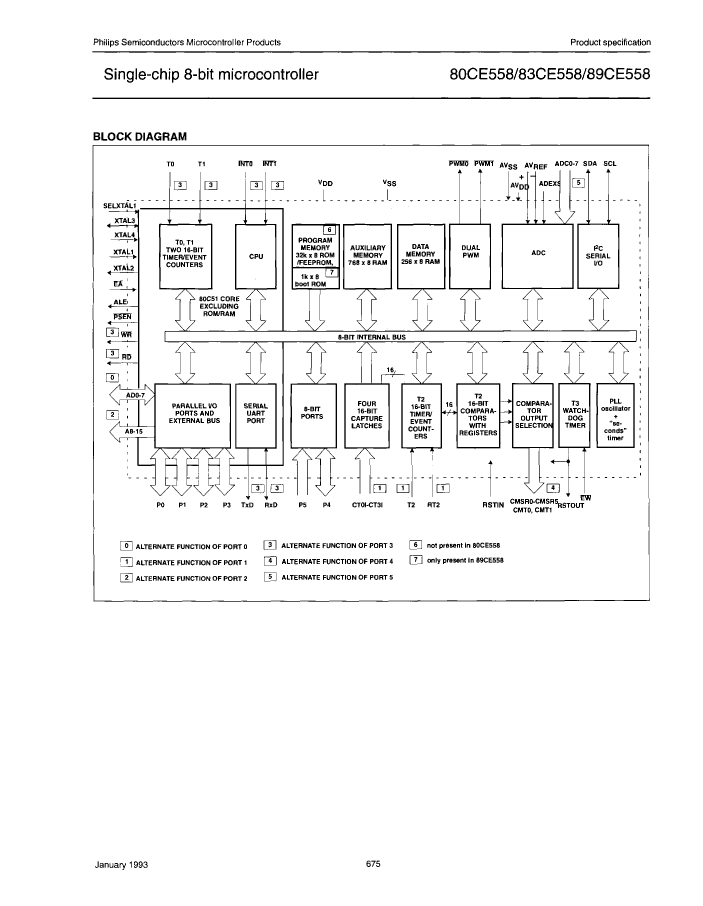

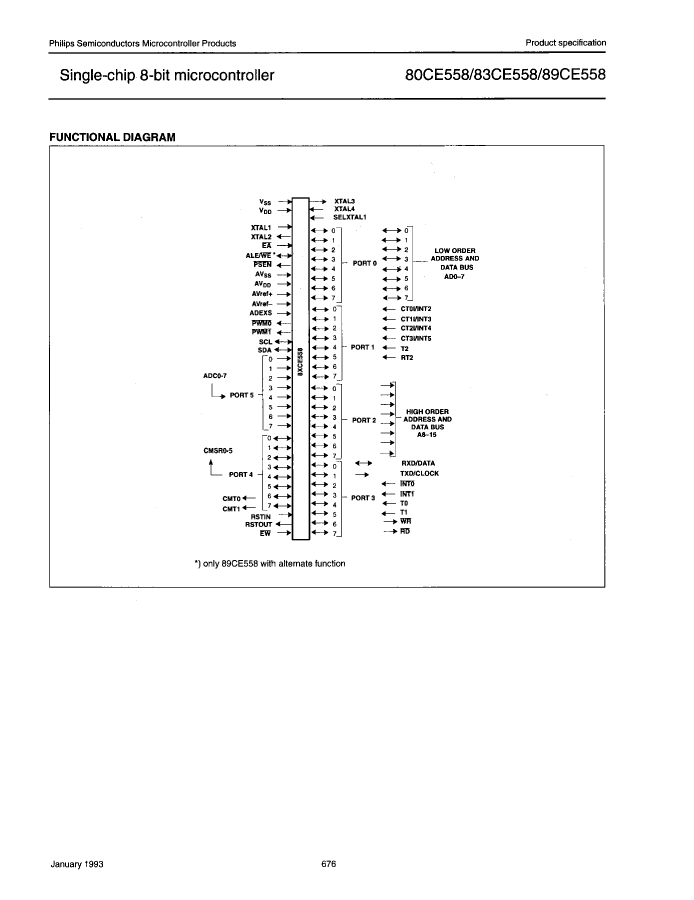

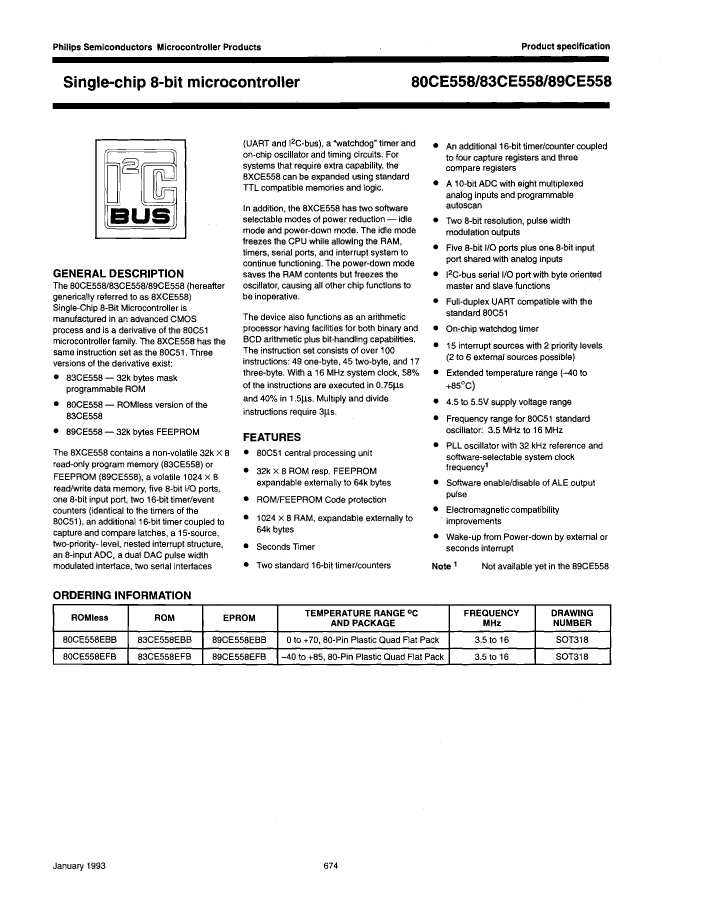

Preview

Download Datasheet

View All

80CE558EFB Related Products

	80CE558EFB	89CE558EFB	80CE558EBB	83CE558EBB	83CE558EFB	89CE558EBB
Description	IC 8-BIT, 16 MHz, MICROCONTROLLER, PQFP80, PLASTIC, SOT-318, QFP-80, Microcontroller	IC 8-BIT, FLASH, 16 MHz, MICROCONTROLLER, PQFP80, PLASTIC, SOT-318, QFP-80, Microcontroller	IC 8-BIT, 16 MHz, MICROCONTROLLER, PQFP80, PLASTIC, SOT-318, QFP-80, Microcontroller	IC 8-BIT, MROM, 16 MHz, MICROCONTROLLER, PQFP80, PLASTIC, SOT-318, QFP-80, Microcontroller	IC 8-BIT, MROM, 16 MHz, MICROCONTROLLER, PQFP80, PLASTIC, SOT-318, QFP-80, Microcontroller	IC 8-BIT, FLASH, 16 MHz, MICROCONTROLLER, PQFP80, PLASTIC, SOT-318, QFP-80, Microcontroller
Maker	NXP	NXP	NXP	NXP	NXP	NXP
Parts packaging code	QFP	QFP	QFP	QFP	QFP	QFP
package instruction	QFP,	QFP,	QFP,	PLASTIC, SOT-318, QFP-80	QFP,	QFP,
Contacts	80	80	80	80	80	80
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Has ADC	YES	YES	YES	YES	YES	YES
Other features	I2C SERIAL BUS INTERFACE; CAPTURE/COMPARE UNIT	I2C SERIAL BUS INTERFACE; ROM PROTECT; CAPTURE/COMPARE UNIT	I2C SERIAL BUS INTERFACE; CAPTURE/COMPARE UNIT	I2C SERIAL BUS INTERFACE; ROM PROTECT; CAPTURE/COMPARE UNIT	I2C SERIAL BUS INTERFACE; ROM PROTECT; CAPTURE/COMPARE UNIT	I2C SERIAL BUS INTERFACE; ROM PROTECT; CAPTURE/COMPARE UNIT
Address bus width	16	16	16	16	16	16
bit size	8	8	8	8	8	8
boundary scan	NO	NO	NO	NO	NO	NO
maximum clock frequency	16 MHz	16 MHz	16 MHz	16 MHz	16 MHz	16 MHz
DAC channel	NO	NO	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO	NO	NO
External data bus width	8	8	8	8	8	8
Format	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT
Integrated cache	NO	NO	NO	NO	NO	NO
JESD-30 code	R-PQFP-G80	R-PQFP-G80	R-PQFP-G80	R-PQFP-G80	R-PQFP-G80	R-PQFP-G80
JESD-609 code	e3	e3	e3	e3	e3	e3
length	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm
low power mode	YES	YES	YES	YES	YES	YES
Number of external interrupt devices	6	6	6	6	6	6
Number of I/O lines	48	48	48	48	48	48
Number of serial I/Os	2	2	2	2	2	2
Number of terminals	80	80	80	80	80	80
Number of timers	3	3	3	3	3	3
On-chip data RAM width	8	8	8	8	8	8
On-chip program ROM width	-	8	-	8	8	8
Maximum operating temperature	85 °C	85 °C	70 °C	70 °C	85 °C	70 °C
PWM channel	YES	YES	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	QFP	QFP	QFP	QFP	QFP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (number of words)	512	512	512	512	512	512
rom(word)	-	32768	-	32768	32768	32768
Maximum seat height	3.3 mm	3.3 mm	3.3 mm	3.3 mm	3.3 mm	3.3 mm
speed	16 MHz	16 MHz	16 MHz	16 MHz	16 MHz	16 MHz
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL
Terminal surface	TIN	TIN	TIN	TIN	TIN	TIN
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
width	14 mm	14 mm	14 mm	14 mm	14 mm	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Base Number Matches	1	1	1	1	1	-
ROM programmability	-	FLASH	-	MROM	MROM	FLASH
