74ACT04FCXR datasheet, PDF - EEWORLD Datasheet

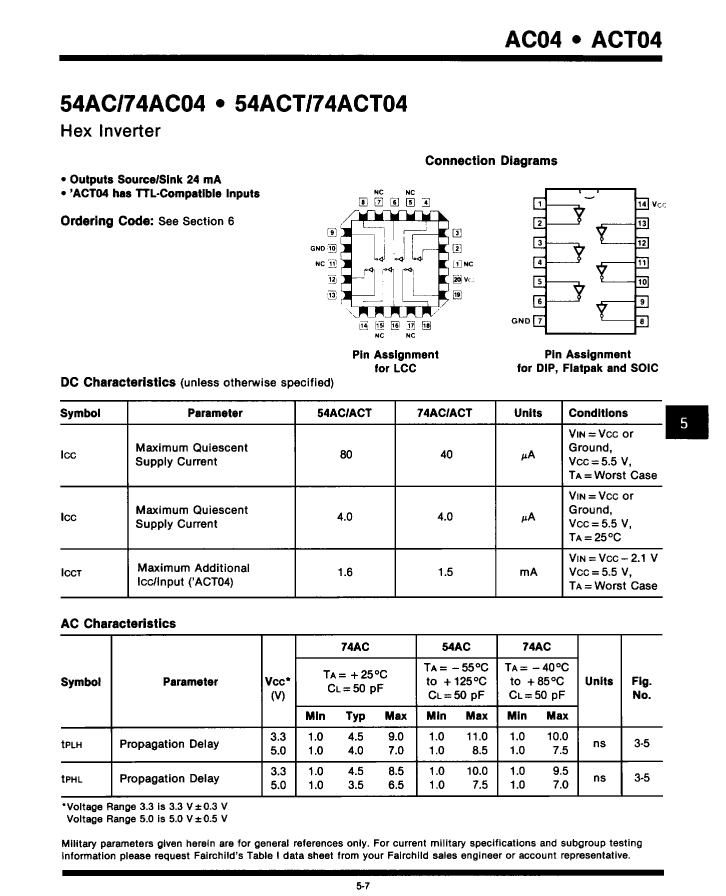

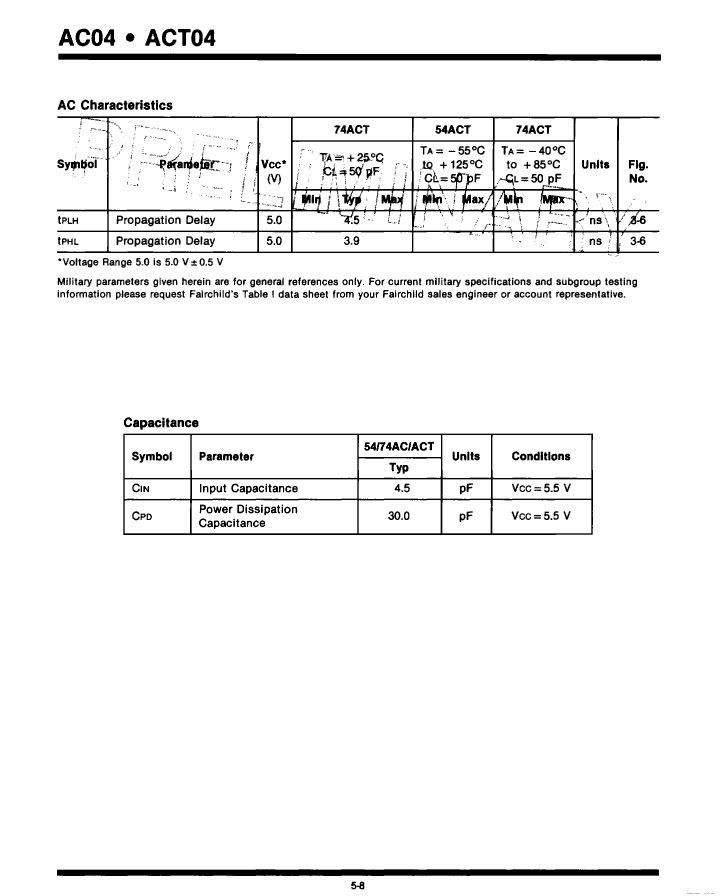

74ACT04FCXR: DescriptionInverter, ACT Series, 6-Func, 1-Input, CMOS, CDFP14, CERAMIC, FP-14; Categorylogic; File Size46KB，2 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric View All

74ACT04FCXR Overview

Inverter, ACT Series, 6-Func, 1-Input, CMOS, CDFP14, CERAMIC, FP-14

Parameter Name	Attribute value
Maker	Fairchild
Parts packaging code	DFP
package instruction	DFP,
Contacts	14
Reach Compliance Code	unknown
series	ACT
JESD-30 code	R-CDFP-F14
length	9.525 mm
Logic integrated circuit type	INVERTER
Number of functions	6
Number of entries	1
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
Certification status	Not Qualified
Maximum seat height	2.159 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
width	6.2865 mm
Base Number Matches	1
