82S141/BKA datasheet, PDF - EEWORLD Datasheet

82S141/BKA: DescriptionIC 512 X 8 OTPROM, 90 ns, CDFP24, CERAMIC, FP-24, Programmable ROM; Categorystorage; File Size66KB，3 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

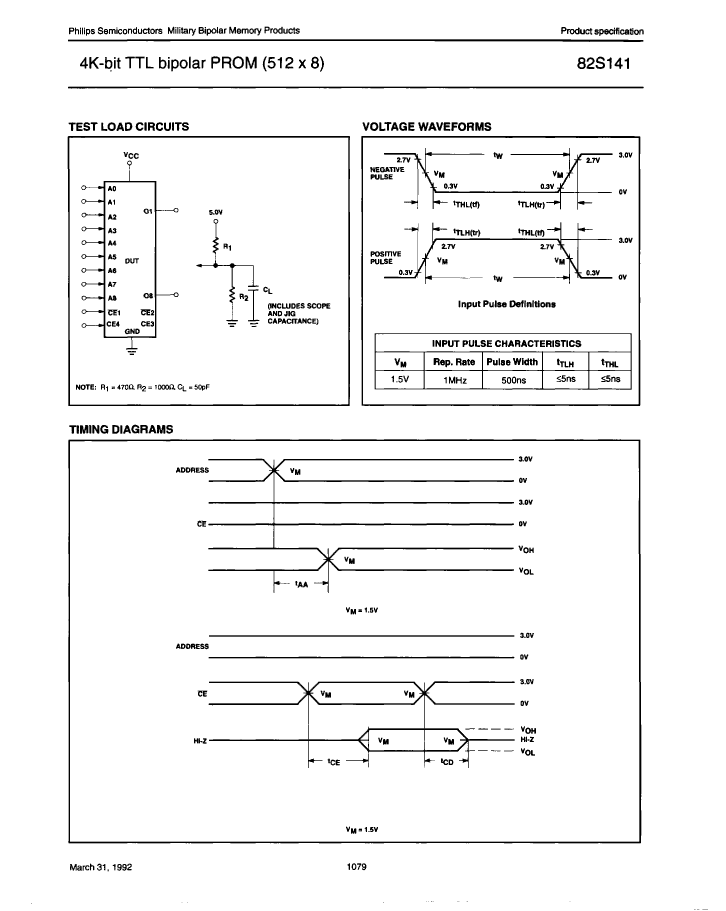

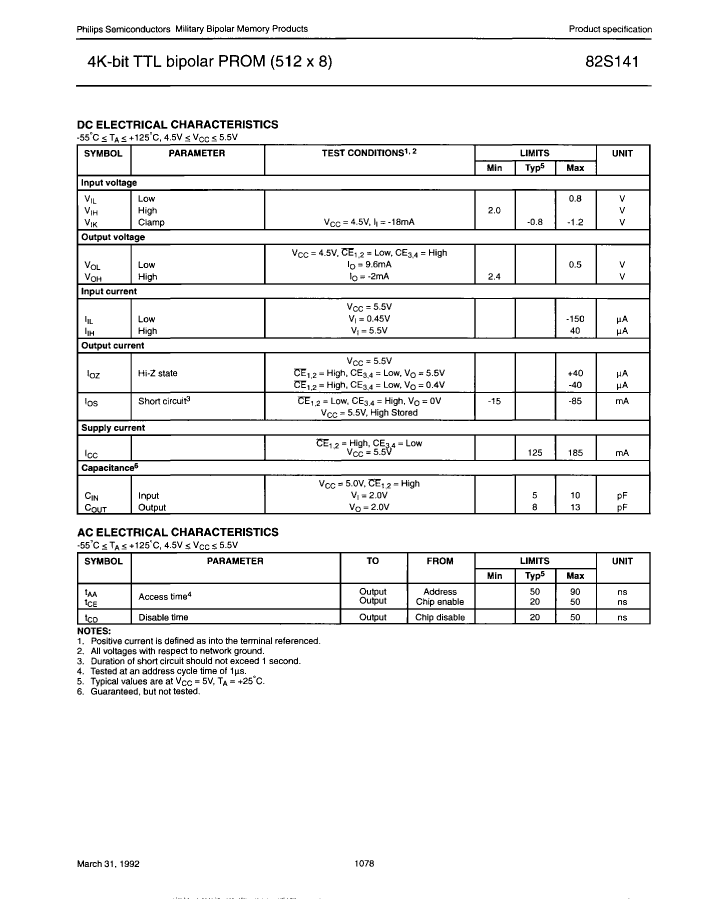

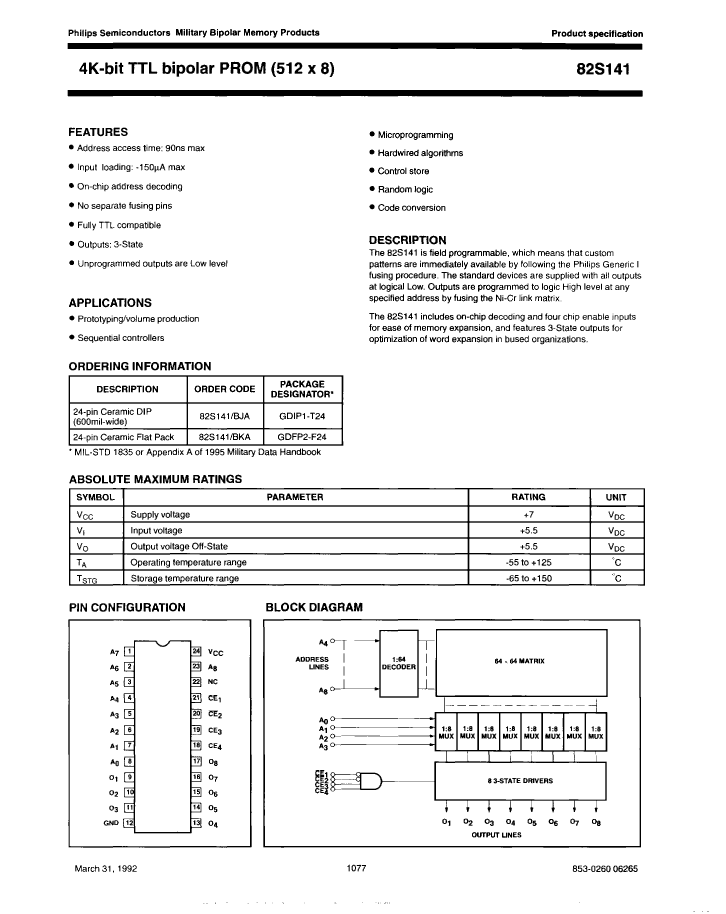

82S141/BKA Overview

IC 512 X 8 OTPROM, 90 ns, CDFP24, CERAMIC, FP-24, Programmable ROM

Parameter Name	Attribute value
Maker	NXP
Parts packaging code	DFP
package instruction	DFP,
Contacts	24
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	90 ns
JESD-30 code	R-CDFP-F24
memory density	4096 bit
Memory IC Type	OTP ROM
memory width	8
Number of functions	1
Number of terminals	24
word count	512 words
character code	512
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	512X8
Output characteristics	3-STATE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	2.286 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	MILITARY
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
width	9.144 mm
Base Number Matches	1

	82S141/BKA	82S141/BJA
Description	IC 512 X 8 OTPROM, 90 ns, CDFP24, CERAMIC, FP-24, Programmable ROM	IC 512 X 8 OTPROM, 90 ns, CDIP24, 0.600 INCH, CERAMIC, DIP-24, Programmable ROM
Maker	NXP	NXP
Parts packaging code	DFP	DIP
package instruction	DFP,	DIP,
Contacts	24	24
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Maximum access time	90 ns	90 ns
JESD-30 code	R-CDFP-F24	R-GDIP-T24
memory density	4096 bit	4096 bit
Memory IC Type	OTP ROM	OTP ROM
memory width	8	8
Number of functions	1	1
Number of terminals	24	24
word count	512 words	512 words
character code	512	512
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
organize	512X8	512X8
Output characteristics	3-STATE	3-STATE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED
encapsulated code	DFP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified
Maximum seat height	2.286 mm	5.715 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	NO
technology	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY
Terminal form	FLAT	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL
width	9.144 mm	15.24 mm
Base Number Matches	1	1
