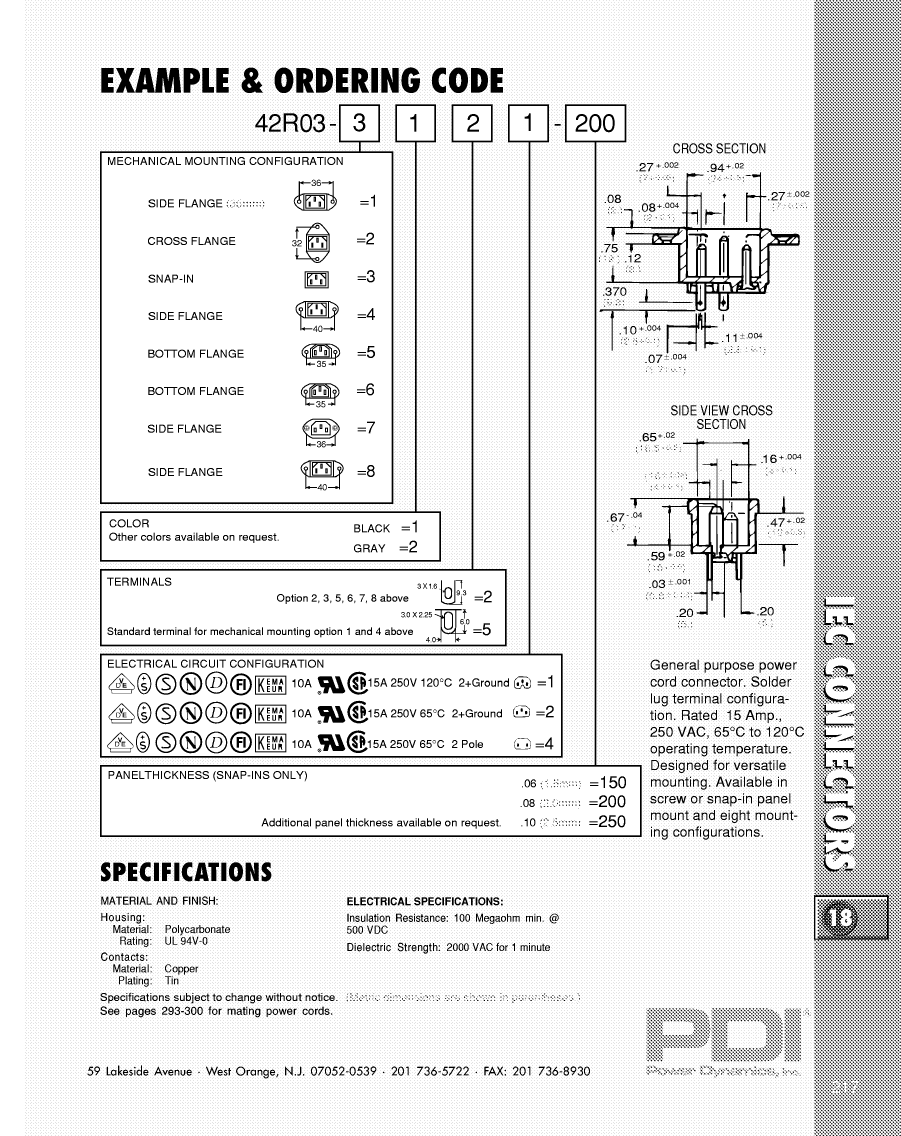

Preview

42R03-1251: DescriptionMains Power Connector, 15A, 250VAC, Male, Solder Terminal; CategoryThe connector The power connector; File Size318KB，1 Pages; ManufacturerPower Dynamics, Inc.; Websitehttp://www.powerdynamics.com/

Download Datasheet Parametric Compare View All

42R03-1251 Overview

Mains Power Connector, 15A, 250VAC, Male, Solder Terminal

42R03-1251 Parametric

Parameter Name	Attribute value
Maker	Power Dynamics, Inc.
Reach Compliance Code	compliant
Other features	1 GROUND CONTACT ALSO AVAILABLE, UL 94V-0
Connector type	MAINS POWER CONNECTOR
Contact completed and terminated	NICKEL
Contact point gender	MALE
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
MIL compliance	NO
Power Connector Ratings	15A, 250VAC
Installation type	PANEL
Options	GENERAL PURPOSE
Shell material	POLYCARBONATE
Termination type	SOLDER
Total number of contacts	3
Base Number Matches	1

Preview

Download Datasheet

View All

42R03-1251 Related Products

	42R03-1251	42R03-1151	42R03-1154	42R03-1252	42R03-1254	42R03-1152
Description	Mains Power Connector, 15A, 250VAC, Male, Solder Terminal	Mains Power Connector, 15A, 250VAC, Male, Solder Terminal	Mains Power Connector, 15A, 250VAC, Male, Solder Terminal	Mains Power Connector, 15A, 250VAC, Male, Solder Terminal	Mains Power Connector, 15A, 250VAC, Male, Solder Terminal	Mains Power Connector, 15A, 250VAC, Male, Solder Terminal
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compli
Connector type	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR
Contact completed and terminated	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
Coupling type	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP
DIN compliance	NO	NO	NO	NO	NO	NO
IEC compliance	YES	YES	YES	YES	YES	YES
MIL compliance	NO	NO	NO	NO	NO	NO
Power Connector Ratings	15A, 250VAC	15A, 250VAC	15A, 250VAC	15A, 250VAC	15A, 250VAC	15A, 250VAC
Installation type	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	3	3	2	3	2	3
Maker	Power Dynamics, Inc.	-	Power Dynamics, Inc.	Power Dynamics, Inc.	Power Dynamics, Inc.	Power Dynamics, Inc.
Other features	1 GROUND CONTACT ALSO AVAILABLE, UL 94V-0	1 GROUND CONTACT ALSO AVAILABLE, UL 94V-0	-	1 GROUND CONTACT ALSO AVAILABLE, UL 94V-0	-	1 GROUND CONTACT ALSO AVAILABLE, UL 94V-0
Base Number Matches	1	1	1	1	1	-
