80FXM-RSM1-G-1-TB(LF)(SN) datasheet, PDF

Datasheet> All Categories > The connector> The connector> 80FXM-RSM1-G-1-TB(LF)(SN)

80FXM-RSM1-G-1-TB(LF)(SN): DescriptionCard Edge Connector, 80 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size128KB，2 Pages; ManufacturerJST; Environmental Compliance

Download Datasheet Parametric Compare View All

80FXM-RSM1-G-1-TB(LF)(SN) Overview

Card Edge Connector, 80 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal, ROHS COMPLIANT

80FXM-RSM1-G-1-TB(LF)(SN) Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	JST
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Other features	ZIF
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.3 mm
Termination type	SURFACE MOUNT
Total number of contacts	80
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

0.3mmピッチ

0.3mm pitch/Connectors for FPC

FXM

CONNECTOR

Emboss Tape

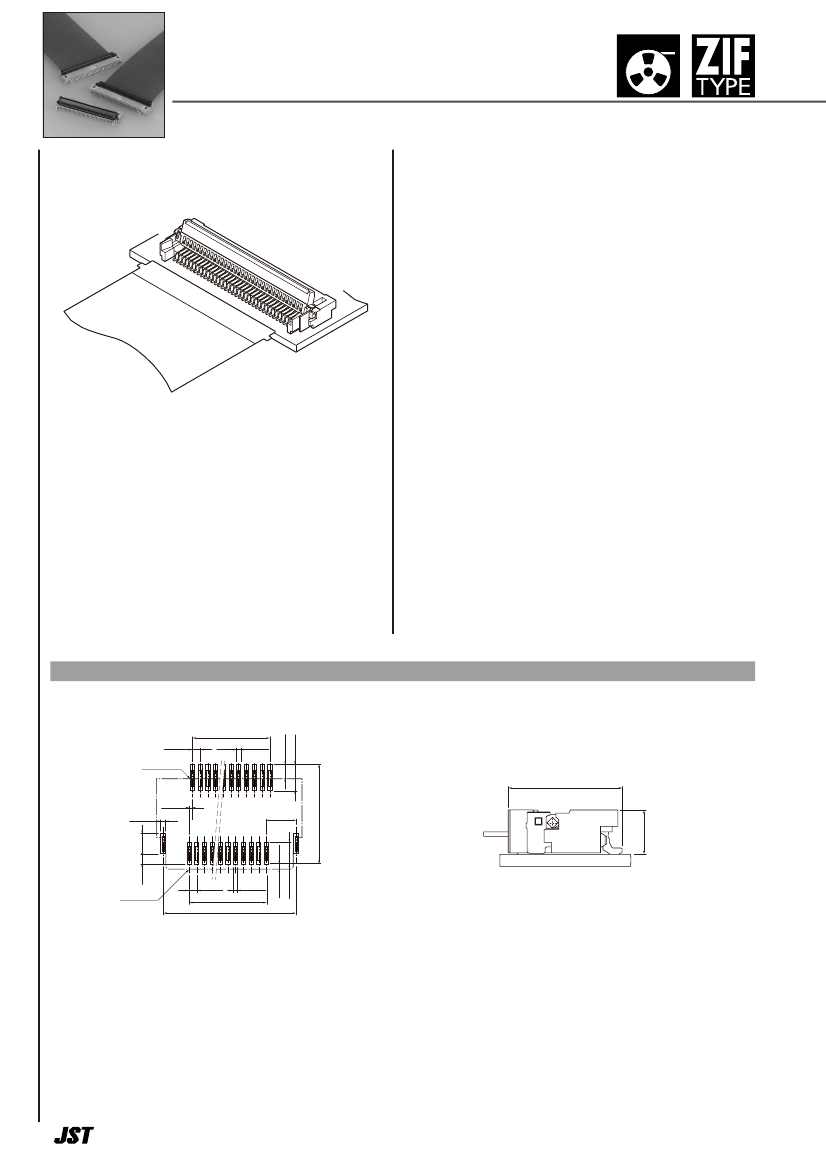

Specifications –––––––––––––––––––

• Current rating: 0.2A AC, DC

• Voltage rating: 50V AC, DC

• Temperature range: -25˚C to +85˚C

(including temperature rise in applying

electrical current)

• Contact resistance: Initial value/80m

Ω

max.

After environmental testing/50m

Ω

max.

(variation from initial value)

• Insulation resistance:

50M

Ω

min.

• Withstanding voltage: 200V AC/minute

• Applicable FPC: Conductor pitch/0.3mm

<0.6mm pitch staggered>

Conductor width/0.3mm

Mating part thickness/0.3±0.05mm

* Compliant with RoHS.

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

A substantial size for the 0.3mm pitch

connector ensures easy handling.

Moreover, since this connector accepts a

FPC with protrusion providing secure as

well as foolproof mating at the customers

production line.

• Double ZIF structure

• Self-lock mechanism enables the cover to

close by one-touch operation

• A FPC with protrusion improves operability

and reliability

PC board layout (viewed from component side) and Assembly layout

0.6

± 0.03

0.3

± 0.05

Circuit No.2

7.55

0.3

± 0.03

0.4

± 0.05

1.6

± 0.05

2.3

7.65

± 0.05

（1.1）

2.0

± 0.05

23.4

±0.05

0.6

± 0.03

0.3

± 0.05

±0.05

Circuit No.1

23.4

27.7

±0.05

Note: 1. Tolerances are non-cumulative:

0.05mm for all centers.

2. The dimensions above should serve as a guideline. Contact JST for details.

（0.35）

1.7

± 0.05

0.78

2.9

80FXM-RSM1-G-1-TB(LF)(SN) Related Products

	80FXM-RSM1-G-1-TB(LF)(SN)	80FXM-RSM1-1-TB(LF)(SN)	80FXM-RSM1-G-1-TB
Description	Card Edge Connector, 80 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal, ROHS COMPLIANT	conn ffc/fpc .3mm RA smt zif	Card Edge Connector, 80 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal
Is it lead-free?	Lead free	-	Contains lead
Is it Rohs certified?	conform to	-	incompatible
Maker	JST	-	JST
Reach Compliance Code	unknown	-	unknown
Other features	ZIF	-	ZIF
Connector type	FFC/FPC CONNECTOR	-	FFC/FPC CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL	-	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL	-	TIN OVER COPPER
Contact point gender	FEMALE	-	FEMALE
Contact material	COPPER ALLOY	-	COPPER ALLOY
DIN compliance	NO	-	NO
Filter function	NO	-	NO
IEC compliance	NO	-	NO
maximum insertion force	ZIF N	-	ZIF N
JESD-609 code	e4	-	e3
MIL compliance	NO	-	NO
Mixed contacts	NO	-	NO
Installation method	RIGHT ANGLE	-	RIGHT ANGLE
Installation type	BOARD	-	BOARD
Number of rows loaded	2	-	2
Options	GENERAL PURPOSE	-	GENERAL PURPOSE
Terminal pitch	0.3 mm	-	0.3 mm
Termination type	SURFACE MOUNT	-	SURFACE MOUNT
Total number of contacts	80	-	80
UL Flammability Code	94V-0	-	94V-0
Base Number Matches	1	-	1
