87568-3643 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 87568-3643

87568-3643: DescriptionBoard Connector, 36 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Friction Ramp, Black Insulator, Receptacle; CategoryThe connector; File Size179KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

87568-3643 Overview

Board Connector, 36 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Friction Ramp, Black Insulator, Receptacle

87568-3643 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	POLARIZED
body width	0.219 inch
subject depth	0.449 inch
body length	1.679 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	1.946 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Manufacturer's serial number	87568
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	FRICTION RAMP
Installation option 2	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
Plating thickness	15u inch
polarization key	CENTER
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	36
UL Flammability Code	94V-0
Maximum wire diameter	28 AWG
Minimum wire diameter	28 AWG
Evacuation force-minimum value	.3892 N
Base Number Matches	1

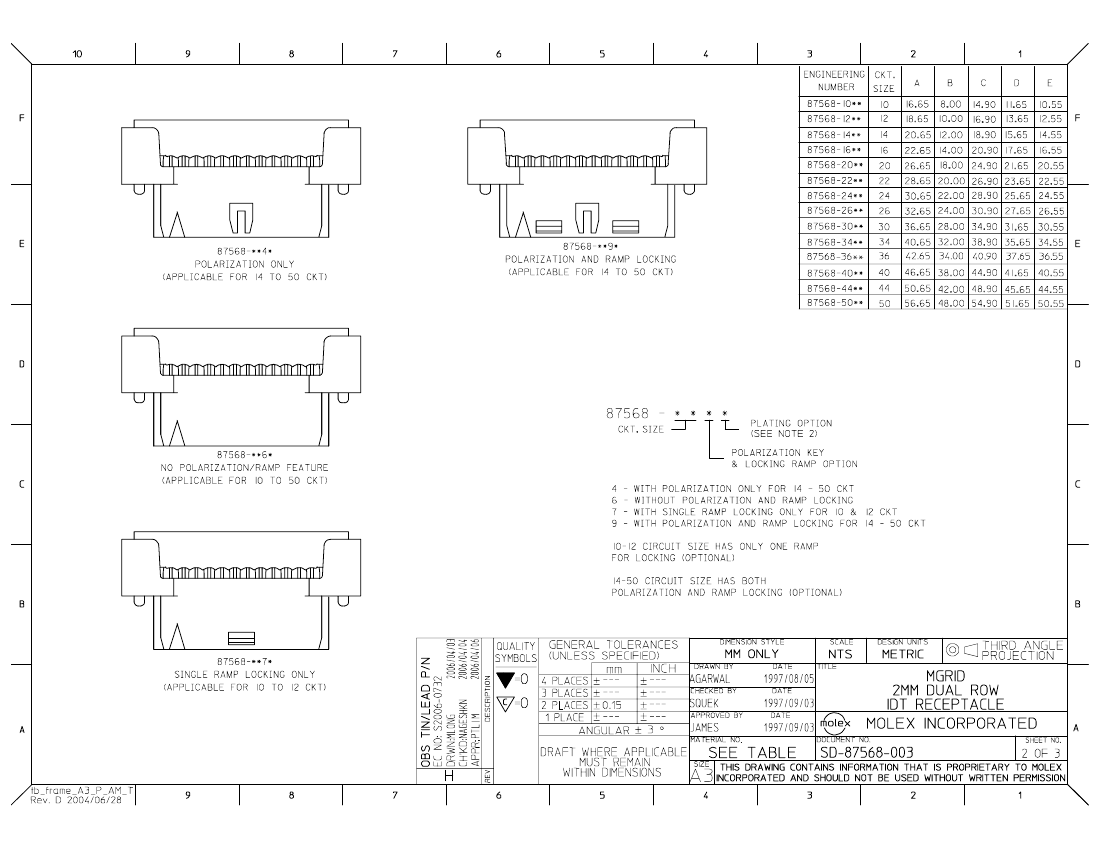

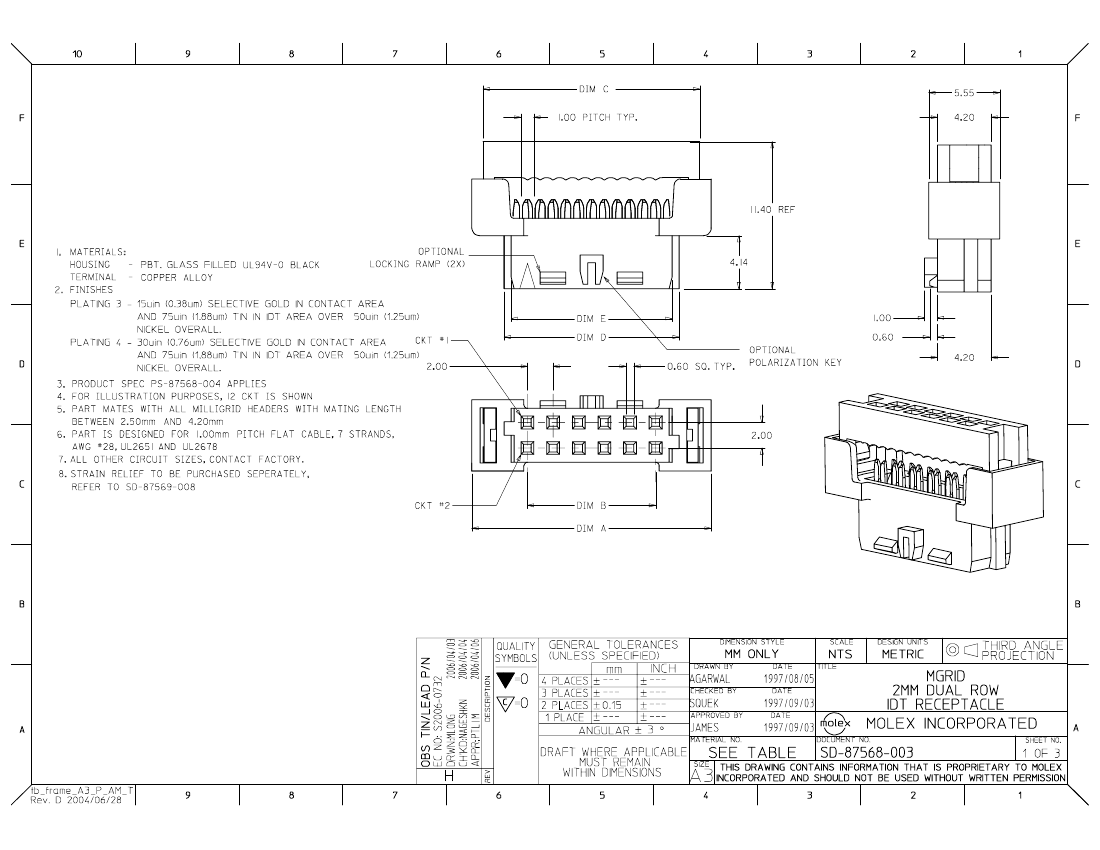

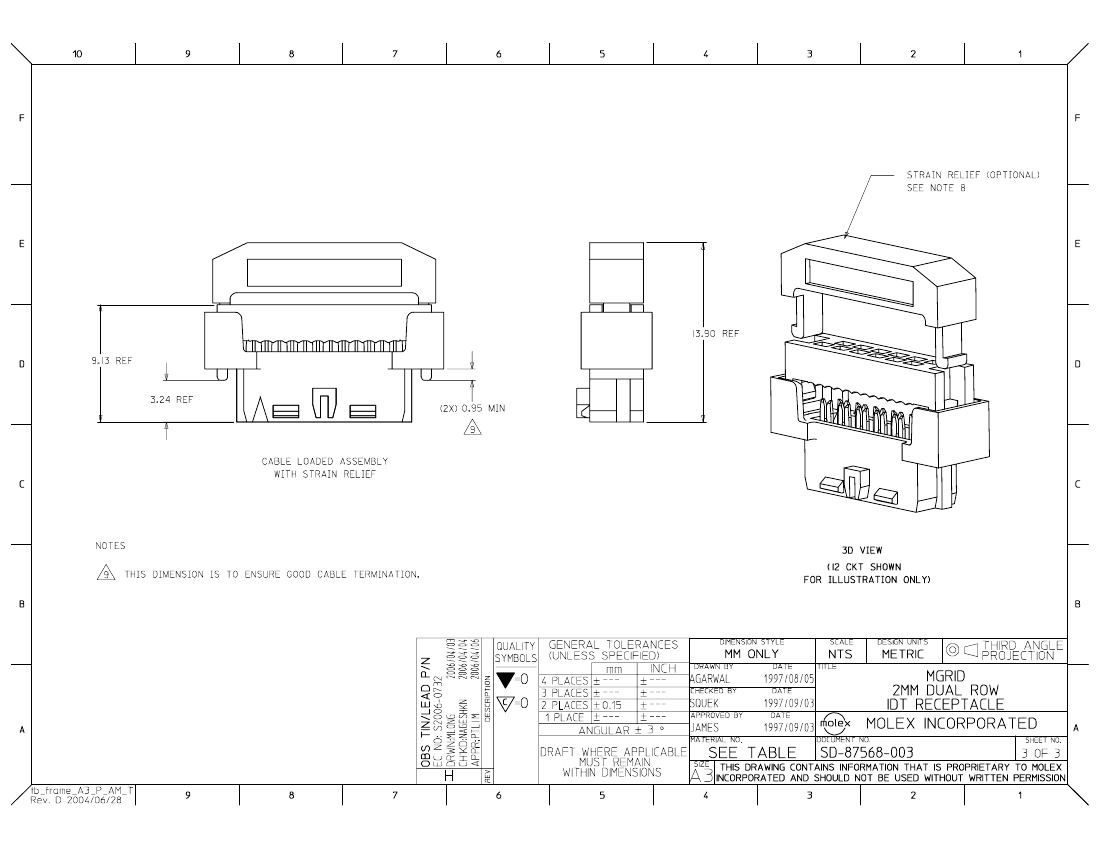

Preview

Download Datasheet

View All

87568-3643 Related Products

	87568-3643	87568-3694	87568-1094	87568-1294	87568-3644	87568-3663	87568-3664
Description	Board Connector, 36 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Friction Ramp, Black Insulator, Receptacle	Board Connector, 36 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Friction Ramp, Black Insulator, Receptacle	Board Connector, 10 Contact(s), 2 Row(s), Female, IDC Terminal, Receptacle	Board Connector, 12 Contact(s), 2 Row(s), Female, IDC Terminal, Receptacle	Board Connector, 36 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Friction Ramp, Black Insulator, Receptacle	Board Connector, 36 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Locking, Black Insulator, Receptacle	Board Connector, 36 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Locking, Black Insulator, Receptacle
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	87568	87568	87568	87568	87568	87568	87568
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	IDC	IDC	IDC	IDC	IDC	IDC	IDC
Total number of contacts	36	36	10	12	36	36	36
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1
Is it lead-free?	Lead free	Lead free	-	-	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	-	-	conform to	conform to	conform to
Maker	Molex	-	Molex	Molex	Molex	Molex	Molex
ECCN code	EAR99	EAR99	-	-	EAR99	EAR99	-
Other features	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	-	-
body width	0.219 inch	0.219 inch	-	-	0.219 inch	0.219 inch	0.219 inch
subject depth	0.449 inch	0.449 inch	-	-	0.449 inch	0.449 inch	0.449 inch
body length	1.679 inch	1.679 inch	-	-	1.679 inch	1.679 inch	1.679 inch
contact mode	RECTANGULAR	RECTANGULAR	-	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	30 mΩ	30 mΩ	-	-	30 mΩ	30 mΩ	30 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	-	-	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	500VAC V	500VAC V	-	-	500VAC V	500VAC V	500VAC V
Durability	100 Cycles	100 Cycles	-	-	100 Cycles	100 Cycles	100 Cycles
maximum insertion force	1.946 N	1.946 N	-	-	1.946 N	1.946 N	1.946 N
Insulation resistance	5000000000 Ω	5000000000 Ω	-	-	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	BLACK	BLACK	-	-	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	-	-	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Plug contact pitch	0.079 inch	0.079 inch	-	-	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	-	-	0.079 inch	0.079 inch	0.079 inch
Installation option 1	FRICTION RAMP	FRICTION RAMP	-	-	FRICTION RAMP	LOCKING	LOCKING
Maximum operating temperature	85 °C	85 °C	-	-	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-	-	-25 °C	-25 °C	-25 °C
Plating thickness	15u inch	30u inch	-	-	30u inch	15u inch	30u inch
polarization key	CENTER	CENTER	-	-	CENTER	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	1 A	1 A	-	-	1 A	1 A	1 A
Guideline	UL, CSA	UL, CSA	-	-	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	-	-	COMMERCIAL	COMMERCIAL	COMMERCIAL
Maximum wire diameter	28 AWG	28 AWG	-	-	28 AWG	28 AWG	28 AWG
Minimum wire diameter	28 AWG	28 AWG	-	-	28 AWG	28 AWG	28 AWG
Evacuation force-minimum value	.3892 N	.3892 N	-	-	.3892 N	.3892 N	.3892 N
