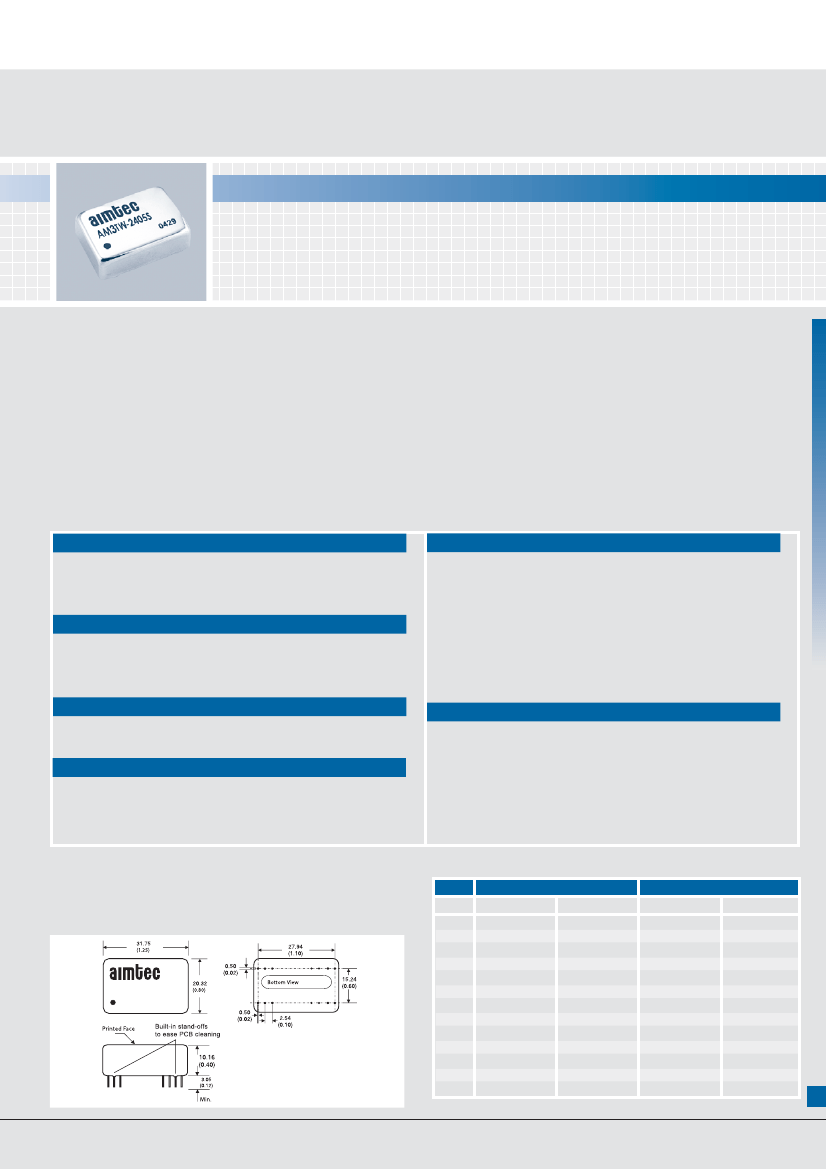

AM3TW Series
3 watt dc-dc converters
•
•
•
•
24-PIN DIP PACKAGE
LOW PROFILE METAL PACKAGE
HIGH EFFICIENCY UP TO 79%
WIDE 4:1 INPUT RANGE
•
•
•
•
INPUT/OUTPUT ISOLATION: 1500 & 3500VDC
OPERATING TEMPERATURE: -40°C ... +85°C
PIN-COMPATIBLE WITH MULTIPLE MANUFACTURERS
CONTINUOUS SHORT CIRCUIT PROTECTION
GENERAL DESCRIPTION
Our AM3TW series is a family of cost effective 3W single and dual
output DC-DC converters. These converters combine nickel-coated
copper package in a 24-pin DIP compatible case with high perform-
ance features such as 1500 & 3500VDC input/output isolation volt-
age, continuous short circuit protection with automatic restart and
tight line / load regulation. Wide range devices operate over 4:1
input voltage range providing stable output voltage. Devices are
encapsulated using flame retardant resin. Input voltages of 24
& 48VDC with output voltages of 3.3, 5, 7.2, 9, 12, 15, 18, 24,
±3.3, ±5, ±7.2, ±9, ±12, ±15, ±18 & ±24VDC. High performance
features include high efficiency operation up to 79% and output
voltage accuracy of ±1% maximum. All models are packaged in a
low profile 31.75x20.32x10.16mm 24 pin DIP nickel-coated copper
case. Operation is specified over the full operating temperature
range of -40°C to +85°C with no derating required. Cooling is by
free-air convection.
ELECTRICAL SPECIFICATIONS
Input Specifications:
Voltage range
Filter
Isolation Specifications:
Rated voltage
Resistance
Capacitance
General Specifications:
Efficiency
Switching Frequency
Physical Specifications:
Dimensions
Weight
Case material
Specifications typical at +25°C, nominal input voltage, rated output current unless otherwise specified
24 VDC, 9~36VDC
48 VDC, 18~72VDC
p
(Pi) Network
1500 & 3500VDC
> 1000MOhm
80pF, typ.
75% to 79%
250KHz, typ. 100% load
31.75x20.32x10.16mm
1.25x0.8x0.4 inches
21g
Nickel-Coated Copper
Output Specifications:
Voltage accuracy
Voltage balance (Dual Output)
Ripple & noise (at 20MHz BW)
Short circuit protection
Short circuit restart
Line voltage regulation
Load voltage regulation
Temperature Coefficient
±1%, max.
±1%
60mVp-p, max.
Continuous
Automatic
±0.5%, max.
±0.5%, max.
±0.02%/°C, typ.
Environmental Specifications:
Operating temperature (ambient) -40°C ... +85°C
Storage temperature
-55°C +125ºC
Case temperature
+100°C, max.
Derating
None required
Humidity (non-condensing)
Up to 90%
Cooling
Free-air Convection
MTBF: >1 222000 hrs (MIL-HDBK-217F, Ground Benign, t=+25°C)
Specifications are subject to change without notification
OUTLINE DIMENSIONS
& PIN CONNECTIONS
Pin
1500VDC
Single
Dual
3500VDC
Single
Dual
1
2
3
9
10
11
12/13
14
15
16
22
23
24
+V Input
N.C.
N.C.
Omitted
-V Output
+V Output
-V Input
+V Output
-V Output
Omitted
N.C.
N.C.
+V Input
+V Input
-V Output
Common
Omitted
Common
+V Output
-V Input
+V Output
Common
Omitted
Common
-V Output
+V Input
Omitted
-V Input
-V Input
N.C.
Omitted
N.C.
Omitted
+V Output
Omitted
-V Output
+V Input
+V Input
Omitted
Omitted
-V Input
-V Input
Common
Omitted
-V Output
Omitted
+V Output
Omitted
Common
+V Input
+V Input
Omitted
Continued on next page
51
VISIT US AT WWW.AIMTEC.CA
AM3TW Series
MODELS
Single output
Models
Isolation 1500VDC
AM3TW-2403S
AM3TW-2405S
AM3TW-2407S
AM3TW-2409S
AM3TW-2412S
AM3TW-2415S
AM3TW-2418S
AM3TW-2424S
AM3TW-4803S
AM3TW-4805S
AM3TW-4807S
AM3TW-4809S
AM3TW-4812S
AM3TW-4815S
AM3TW-4818S
AM3TW-4824S
Dual output
Models
Isolation 1500VDC
AM3TW-2403D
AM3TW-2405D
AM3TW-2407D
AM3TW-2409D
AM3TW-2412D
AM3TW-2415D
AM3TW-2418D
AM3TW-2424D
AM3TW-4803D
AM3TW-4805D
AM3TW-4807D
AM3TW-4809D
AM3TW-4812D
AM3TW-4815D
AM3TW-4818D
AM3TW-4824D
Isolation 3500VDC
AM3TW-2403DH35
AM3TW-2405DH35
AM3TW-2407DH35
AM3TW-2409DH35
AM3TW-2412DH35
AM3TW-2415DH35
AM3TW-2418DH35
AM3TW-2424DH35
AM3TW-4803DH35
AM3TW-4805DH35
AM3TW-4807DH35
AM3TW-4809DH35
AM3TW-4812DH35
AM3TW-4815DH35
AM3TW-4818DH35
AM3TW-4824DH35
Input Voltage
Ouput Voltage
±3.3VDC
±5VDC
±7.2VDC
±9VDC
±12VDC
±15VDC
±18VDC
±24VDC
±3.3VDC
±5VDC
±7.2VDC
±9VDC
±12VDC
±15VDC
±18VDC
±24VDC
Ouput Current max.
±400mA
±300mA
±208mA
±167mA
±125mA
±100mA
±84mA
±63mA
±400mA
±300mA
±208mA
±167mA
±125mA
±100mA
±84mA
±63mA
Isolation 3500VDC
AM3TW-2403SH35
AM3TW-2405SH35
AM3TW-2407SH35
AM3TW-2409SH35
AM3TW-2412SH35
AM3TW-2415SH35
AM3TW-2418SH35
AM3TW-2424SH35
AM3TW-4803SH35
AM3TW-4805SH35
AM3TW-4807SH35
AM3TW-4809SH35
AM3TW-4812SH35
AM3TW-4815SH35
AM3TW-4818SH35
AM3TW-4824SH35
Input Voltage
Ouput Voltage
3.3VDC
5VDC
7.2VDC
9VDC
12VDC
15VDC
18VDC
24VDC
3.3VDC
5VDC
7.2VDC
9VDC
12VDC
15VDC
18VDC
24VDC
Ouput Current max.
800mA
600mA
417mA
333mA
250mA
200mA
167mA
125mA
800mA
600mA
417mA
333mA
250mA
200mA
167mA
125mA
DC-DC CONVERTERS
9VDC - 36VDC
18VDC - 72VDC
9VDC - 36VDC
18VDC - 72VDC
