83CNQ080SMS2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > diode> Rectifier diode> 83CNQ080SMS2

83CNQ080SMS2: DescriptionRectifier Diode,; Categorydiode Rectifier diode; File Size405KB，6 Pages; ManufacturerSangdest Microelectronics (Nanjing) Co., Ltd.; Environmental Compliance

Download Datasheet Parametric Compare View All

83CNQ080SMS2 Overview

Rectifier Diode,

83CNQ080SMS2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Sangdest Microelectronics (Nanjing) Co., Ltd.
Reach Compliance Code	compliant
Other features	FREE WHEELING DIODE
application	GENERAL PURPOSE
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JESD-30 code	R-PSIP-T3
Maximum non-repetitive peak forward current	860 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Maximum output current	40 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum repetitive peak reverse voltage	80 V
Maximum reverse current	1500 µA
surface mount	NO
technology	SCHOTTKY
Terminal surface	Pure Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

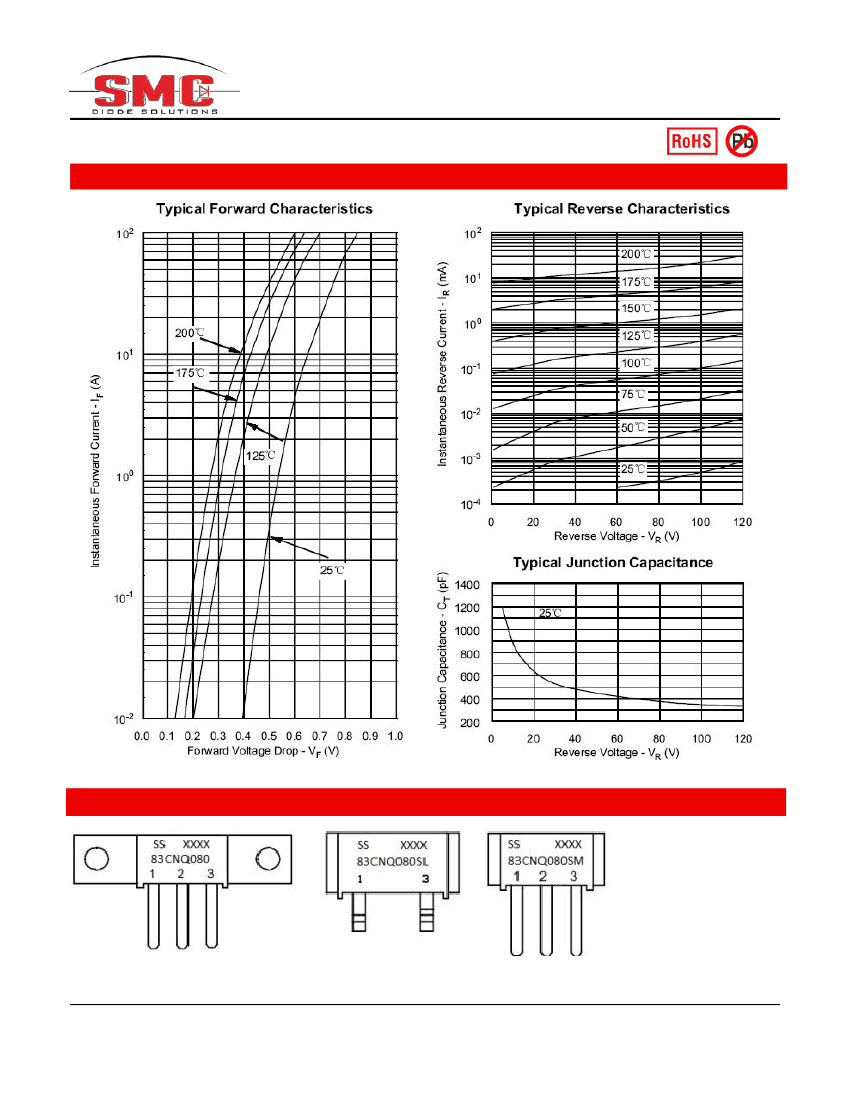

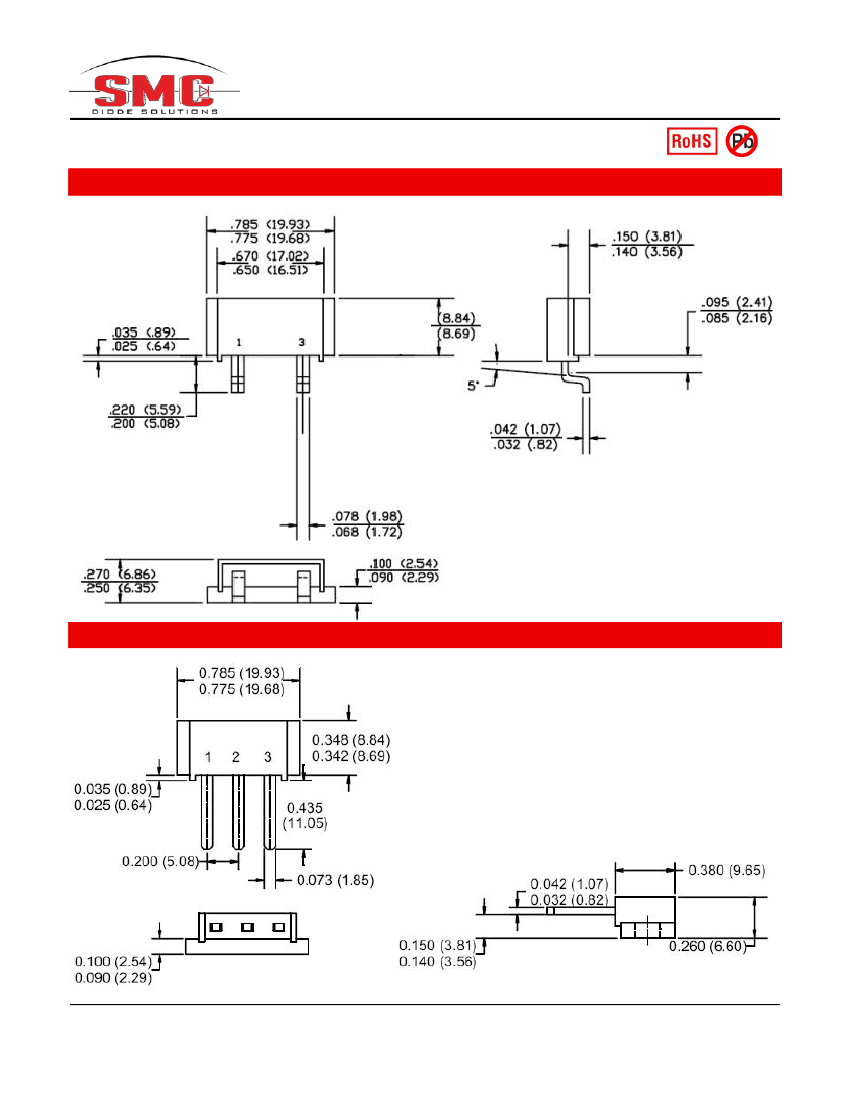

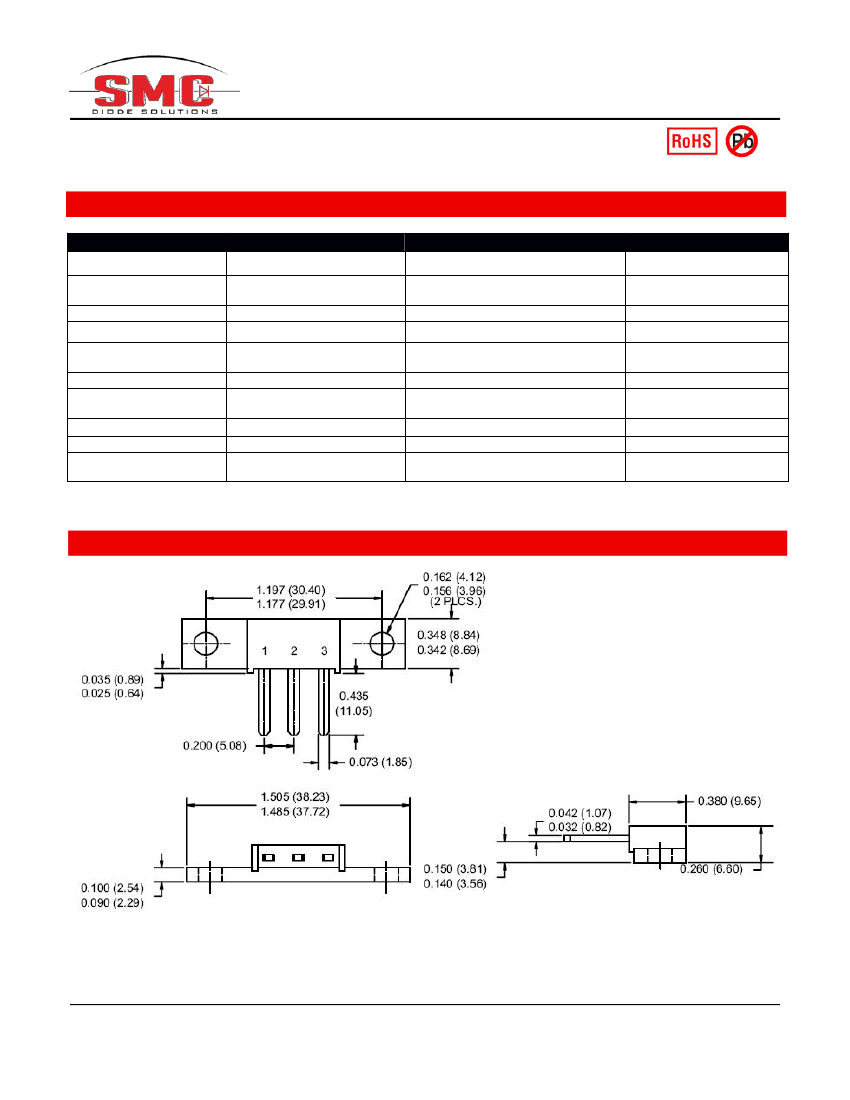

83CNQ SERIES

Technical Data

Data Sheet N1062, Rev. A

83CNQ080/83CNQ100 SCHOTTKY RECTIFIER

Features



175℃ T

operation

Center tap module

Very Low forward voltage drop

High purity, high temperature epoxy encapsulation for

enhanced mechanical strength and moisture resistance

High frequency operation

Guard ring for enhanced ruggedness and long term

reliability

Low profile, high current package

This is a Pb − Free Device

All SMC parts are traceable to the wafer lot

Additional electrical and life testing can be performed

upon request

Applications



Switching power supply

Converters

Free-Wheeling diodes

Reverse battery protection

83CNQ…

83CNQ…SL

83CNQ…SM

PRM2

PRM2-SL

PRM2-SM

Maximum Ratings:

Characteristics

Peak Repetitive Reverse Voltage

Working Peak Reverse Voltage

DC Blocking Voltage

Average Rectified Forward Current

Peak One Cycle Non-Repetitive Surge

Current(Per leg)

Non-Repetitive Avalanche Energy

(Peg leg)

Repetitive Avalanche Current(Peg leg)

Symbol

RRM

RWM

F (AV)

FSM

Condition

50% duty cycle @T

=132°C,

rectangular wave form

8.3 ms, half Sine pulse

=25℃,I

=1A,L=30mH

Current decaying linearly to zero in 1

μsec Frequency limited by T

max.

=1.5×V

typical

Max.

80 (83CNQ080)

100(83CNQ100)

40(Per Leg)

80(Per Device)

860

Units



China - Germany - Korea - Singapore - United States



http://www.smc-diodes.com - sales@ smc-diodes.com



83CNQ080SMS2 Related Products

	83CNQ080SMS2	83CNQ080S2	83CNQ100SMS2
Description	Rectifier Diode,	Rectifier Diode,	Rectifier Diode,
Is it Rohs certified?	conform to	conform to	conform to
Maker	Sangdest Microelectronics (Nanjing) Co., Ltd.	Sangdest Microelectronics (Nanjing) Co., Ltd.	Sangdest Microelectronics (Nanjing) Co., Ltd.
Reach Compliance Code	compliant	compliant	compliant
Other features	FREE WHEELING DIODE	FREE WHEELING DIODE	FREE WHEELING DIODE
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	CATHODE	CATHODE	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V	1 V	1 V
JESD-30 code	R-PSIP-T3	R-PSFM-T3	R-PSIP-T3
Maximum non-repetitive peak forward current	860 A	860 A	860 A
Number of components	2	2	2
Phase	1	1	1
Number of terminals	3	3	3
Maximum operating temperature	175 °C	175 °C	175 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Maximum output current	40 A	40 A	40 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLANGE MOUNT	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum repetitive peak reverse voltage	80 V	80 V	100 V
Maximum reverse current	1500 µA	1500 µA	1500 µA
surface mount	NO	NO	NO
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal surface	Pure Tin (Sn)	Pure Tin (Sn)	Pure Tin (Sn)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	1	1	-
