74F299DCQR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> Shift register> 74F299DCQR

74F299DCQR: DescriptionParallel In Parallel Out, F/FAST Series, 8-Bit, Bidirectional, True Output, TTL, CDIP20, CERAMIC, DIP-20; Categorylogic Shift register; File Size288KB，6 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

74F299DCQR Overview

Parallel In Parallel Out, F/FAST Series, 8-Bit, Bidirectional, True Output, TTL, CDIP20, CERAMIC, DIP-20

74F299DCQR Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	DIP,
Reach Compliance Code	unknown
Other features	HOLD MODE; COMMON I/O PINS; GATED OUTPUT CONTROL
Counting direction	BIDIRECTIONAL
series	F/FAST
JESD-30 code	R-GDIP-T20
Logic integrated circuit type	PARALLEL IN PARALLEL OUT
Number of digits	8
Number of functions	1
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	12 ns
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
width	7.62 mm
minfmax	100 MHz
Base Number Matches	1

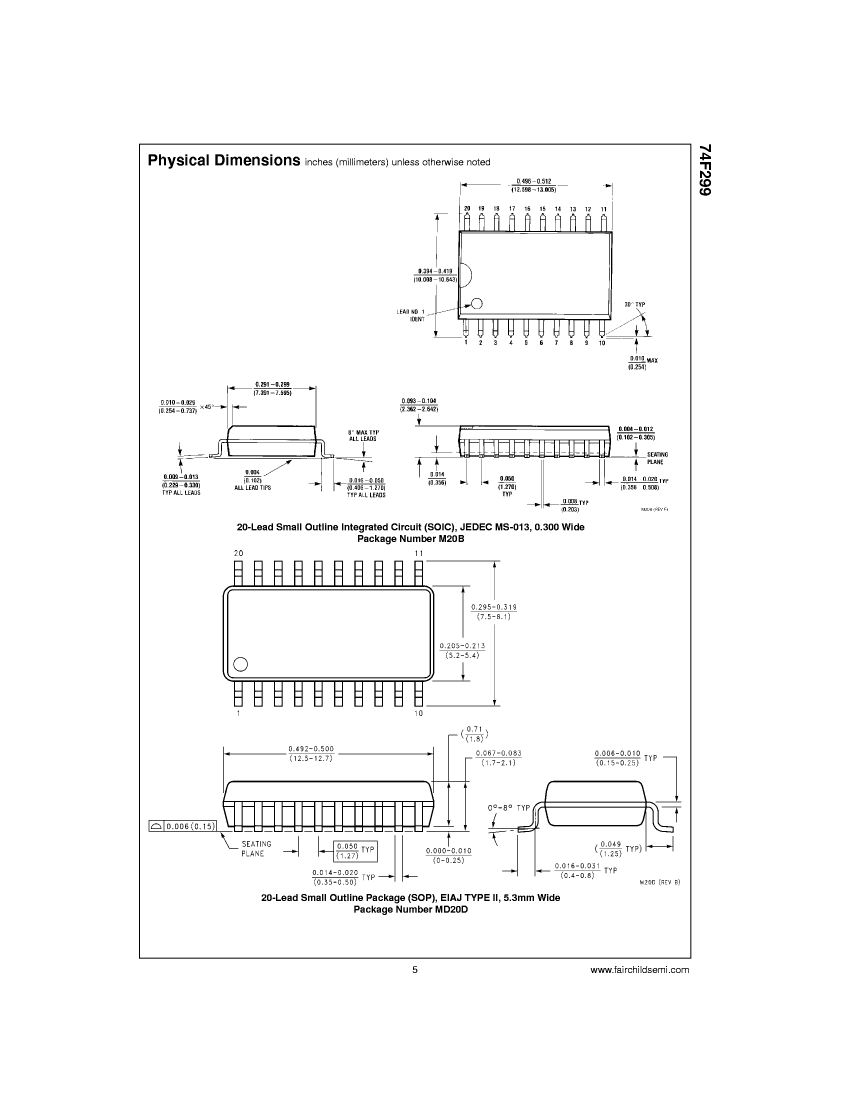

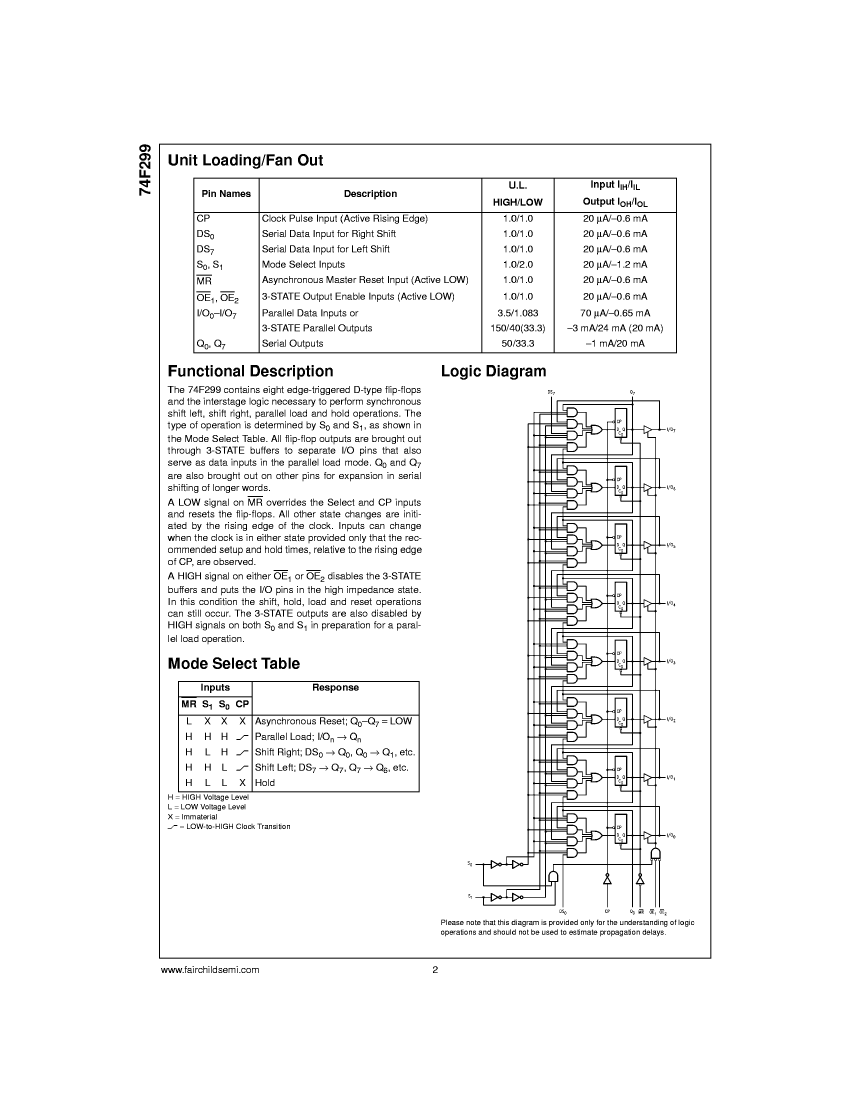

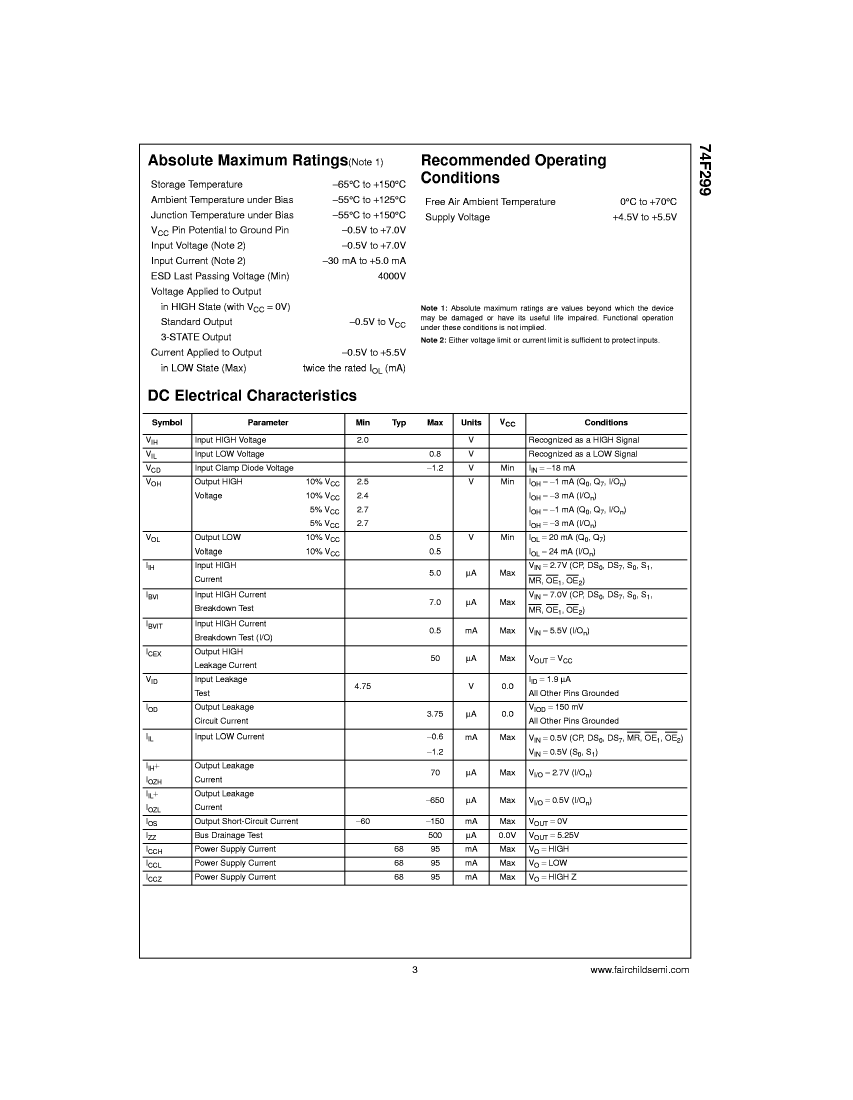

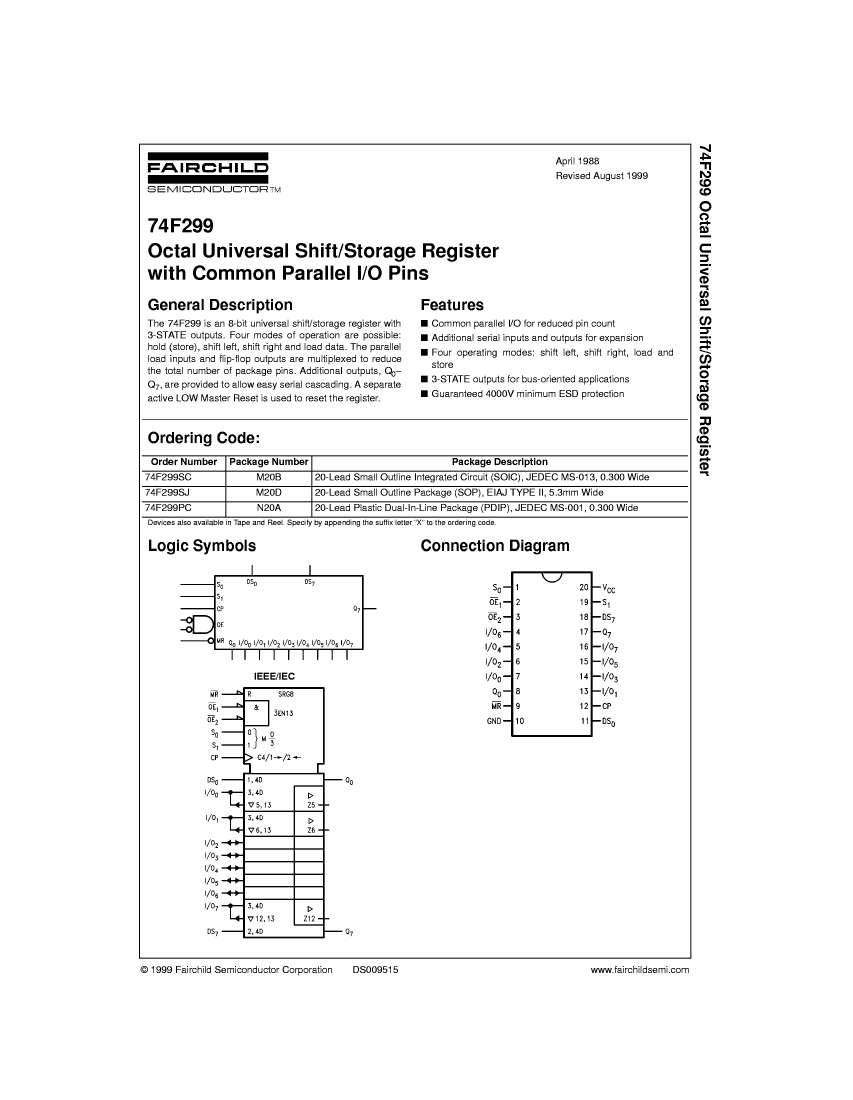

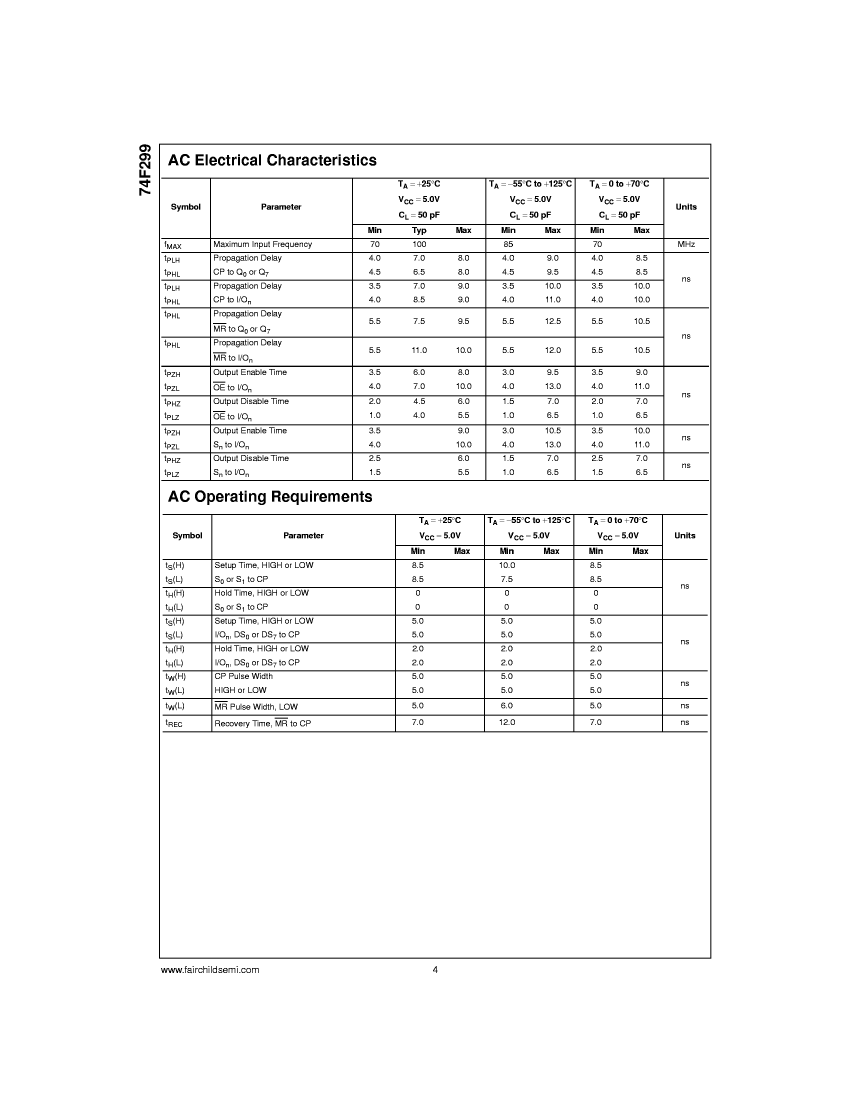

Preview

Download Datasheet

View All

74F299DCQR Related Products

	74F299DCQR	74F299PCQR	74F299PCQM	74F299DC	74F299DCQM
Description	Parallel In Parallel Out, F/FAST Series, 8-Bit, Bidirectional, True Output, TTL, CDIP20, CERAMIC, DIP-20	Parallel In Parallel Out, F/FAST Series, 8-Bit, Bidirectional, True Output, TTL, PDIP20, PLASTIC, DIP-20	Parallel In Parallel Out	Parallel In Parallel Out, F/FAST Series, 8-Bit, Bidirectional, True Output, TTL, CDIP20, CERAMIC, DIP-20	Parallel In Parallel Out
Maker	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics
package instruction	DIP,	DIP,	,	DIP,	,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Base Number Matches	1	1	1	1	1
Other features	HOLD MODE; COMMON I/O PINS; GATED OUTPUT CONTROL	HOLD MODE; COMMON I/O PINS; GATED OUTPUT CONTROL	-	HOLD MODE; COMMON I/O PINS; GATED OUTPUT CONTROL	-
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL	-	BIDIRECTIONAL	-
series	F/FAST	F/FAST	-	F/FAST	-
JESD-30 code	R-GDIP-T20	R-PDIP-T20	-	R-GDIP-T20	-
Logic integrated circuit type	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT	-	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT
Number of digits	8	8	-	8	-
Number of functions	1	1	-	1	-
Number of terminals	20	20	-	20	-
Maximum operating temperature	70 °C	70 °C	-	70 °C	-
Output characteristics	3-STATE	3-STATE	-	3-STATE	-
Output polarity	TRUE	TRUE	-	TRUE	-
Package body material	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	-	CERAMIC, GLASS-SEALED	-
encapsulated code	DIP	DIP	-	DIP	-
Package shape	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	-
Package form	IN-LINE	IN-LINE	-	IN-LINE	-
propagation delay (tpd)	12 ns	12 ns	-	12 ns	-
Maximum seat height	5.08 mm	5.08 mm	-	5.08 mm	-
Maximum supply voltage (Vsup)	5.25 V	5.25 V	-	5.25 V	-
Minimum supply voltage (Vsup)	4.75 V	4.75 V	-	4.75 V	-
Nominal supply voltage (Vsup)	5 V	5 V	-	5 V	-
surface mount	NO	NO	-	NO	-
technology	TTL	TTL	-	TTL	-
Temperature level	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	-
Terminal form	THROUGH-HOLE	THROUGH-HOLE	-	THROUGH-HOLE	-
Terminal pitch	2.54 mm	2.54 mm	-	2.54 mm	-
Terminal location	DUAL	DUAL	-	DUAL	-
Trigger type	POSITIVE EDGE	POSITIVE EDGE	-	POSITIVE EDGE	-
width	7.62 mm	7.62 mm	-	7.62 mm	-
minfmax	100 MHz	100 MHz	-	100 MHz	-
