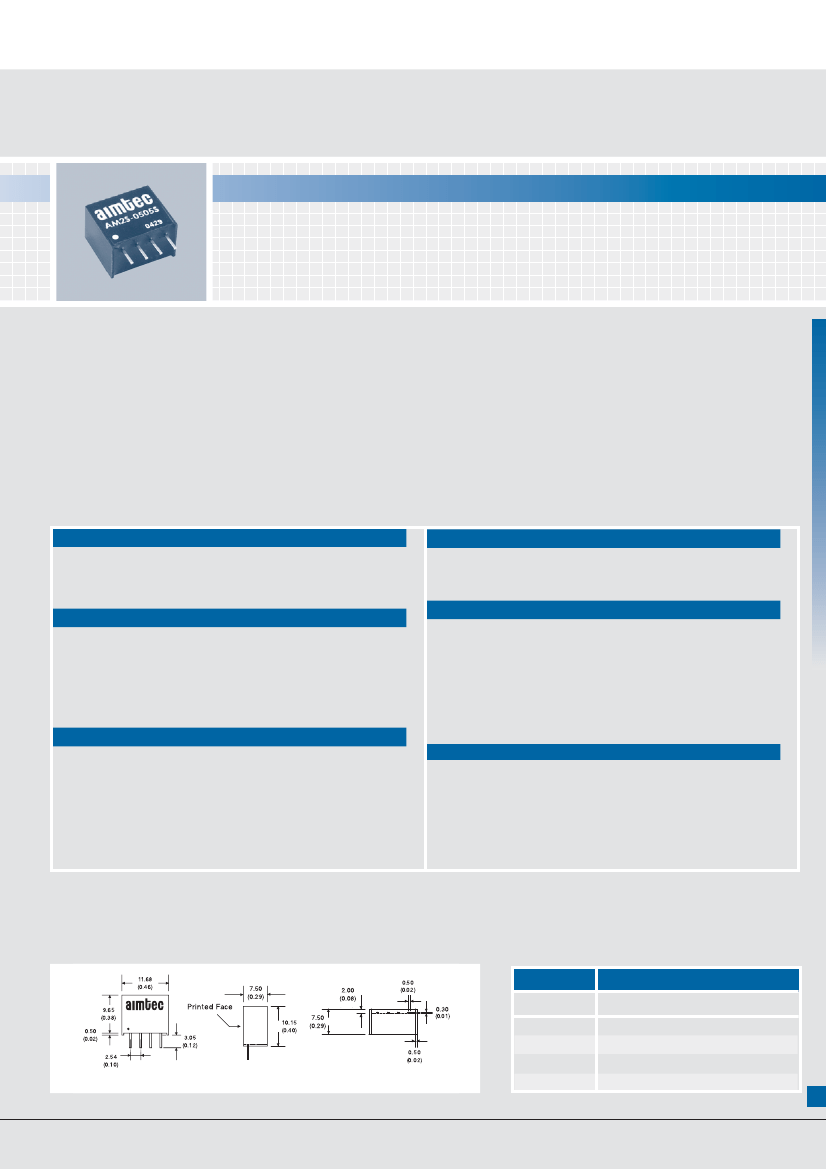

AM2S Series

2 watt dc-dc converters

•

4PIN SIP PACKAGE

LOW RIPPLE & NOISE

HIGH EFFICIENCY UP TO 85%

ULTRA MINIATURE PACKAGE

•

INPUT/OUTPUT ISOLATION: 1000 & 3000VDC

OPERATING TEMPERATURE: -40°C ... +85°C

PIN-COMPATIBLE WITH MULTIPLE MANUFACTURERS

GENERAL DESCRIPTION

Our AM2S series is a family of cost effective 2W single

output DC-DC converters. These converters achieve low

cost and ultra-miniature SIP4 pin size without compromis-

ing performance and reliability.

Forty eight models operate from input voltages of 5, 12 &

24VDC; producing output voltage levels of 3.3, 5, 7.2, 9,

12, 15, 18, 24VDC. Full SMD-design and a 100%

production test of parameters ensures a high reliability in

this product.

ELECTRICAL SPECIFICATIONS

Specifications typical at +25°C, nominal input voltage, rated output current unless otherwise specified

Input Specifications:

Voltage range

Filter

Isolation Specifications:

Rated voltage

Resistance

Capacitance

Output Specifications:

Voltage accuracy

Ripple & noise (at 20MHz BW)

Short circuit protection

Line voltage regulation

Load voltage regulation

Temperature coefficient

±10%

Capacitor

General Specifications:

Efficiency

Switching frequency

71% to 85%

125KHz, typ. 100% load

1000VDC

3000VDC

> 1000MOhm

60pF, typ.

Environmental Specifications:

Operating temperature (ambient) -40°C ... +85°C

Storage temperature

-55°C ... +125°C

Case temperature

+90°C, max.

Derating

None required

Humidity (non-condensing)

Up to 90%

Cooling

Free-air Convection

Physical Specifications:

Dimensions

Weight

Case material

11.68x7.50x10.15mm

0.46x0.29x0.40inches

2.5g

Non-conductive black

plastic

±5%, max.

150mVp-p, max.

Momentary

±1.2% / 1.0% of Vin

±8%, load=20~100%

±0.02%/°C, typ.

MTBF: > 668,000 hrs (MIL-HDBK-217F, Ground Benign, t=+25°C)

Specifications are subject to change without notification

OUTLINE DIMENSIONS & PIN CONNECTIONS

VISIT US AT WWW.AIMTEC.CA

1000 & 3000VDC

Single

-V Input

+V Input

-V Output

+V Output

Continued on next page

AM2S Series

MODELS

Single output

Models

Isolation 1000VDC

AM2S-0503S

AM2S-0505S

AM2S-0507S

AM2S-0509S

AM2S-0512S

AM2S-0515S

AM2S-0518S

AM2S-0524S

AM2S-1203S

AM2S-1205S

AM2S-1207S

AM2S-1209S

AM2S-1212S

AM2S-1215S

AM2S-1218S

AM2S-1224S

AM2S-2403S

AM2S-2405S

AM2S-2407S

AM2S-2409S

AM2S-2412S

AM2S-2415S

AM2S-2418S

AM2S-2424S

Isolation 3000VDC

AM2S-0503SH30

AM2S-0505SH30

AM2S-0507SH30

AM2S-0509SH30

AM2S-0512SH30

AM2S-0515SH30

AM2S-0518SH30

AM2S-0524SH30

AM2S-1203SH30

AM2S-1205SH30

AM2S-1207SH30

AM2S-1209SH30

AM2S-1212SH30

AM2S-1215SH30

AM2S-1218SH30

AM2S-1224SH30

AM2S-2403SH30

AM2S-2405SH30

AM2S-2407SH30

AM2S-2409SH30

AM2S-2412SH30

AM2S-2415SH30

AM2S-2418SH30

AM2S-2424SH30

Input Voltage

Ouput Voltage

3.3VDC

5VDC

7.2VDC

9VDC

12VDC

15VDC

18VDC

24VDC

3.3VDC

5VDC

7.2VDC

9VDC

12VDC

15VDC

18VDC

24VDC

3.3VDC

5VDC

7.2VDC

9VDC

12VDC

15VDC

18VDC

24VDC

Ouput Current max.

400mA

278mA

222mA

167mA

133mA

111mA

83mA

400mA

278mA

222mA

167mA

133mA

111mA

83mA

400mA

278mA

222mA

167mA

133mA

111mA

83mA

DC-DC CONVERTERS

5V±10%

12V±10%

24V±10%

TO ORDER CALL 1-888-9-AIMTEC
