2 watt dc-dc converters

AM2N-2412SH60-N Preview

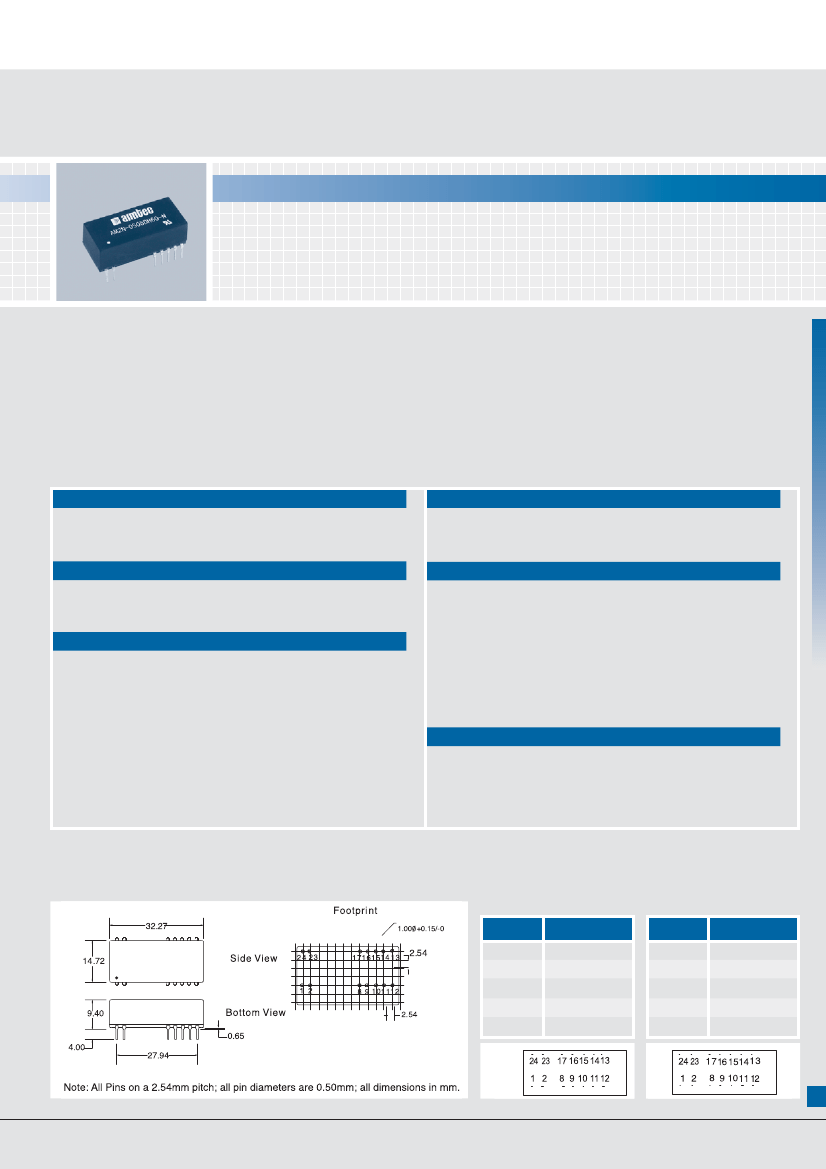

AM2N-N Series

2 watt dc-dc converters

•

24-PIN DIP PACKAGE

HIGH EFFICIENCY UP TO 85%

LOW PROFILE PLASTIC

PACKAGE

•

INPUT/OUTPUT ISOLATION: 6000VDC

OPERATING TEMPERATURE: -40°C ... +85°C

PIN-COMPATIBLE WITH MULTIPLE MANUFACTURERS

GENERAL DESCRIPTION

Our AM2N-N series is a family of cost effective 2W

single and dual output DC-DC converters. These converters

combine plastic package in a 24-pin DIP compatible case

with high performance feature such as 6000VDC input/

output isolation voltage. Input voltages of 5, 12 & 24VDC

with output voltages of 5, 9, 12, 15, ±5, ±9, ±12, ±15VDC.

Full SMD-design and a 100% production test of parame-

ters ensures a high reliability in this product.

ELECTRICAL SPECIFICATIONS

Specifications typical at +25°C, nominal input voltage, rated output current unless otherwise specified

Input Specifications:

Voltage range

Filter

Isolation Specifications:

Rated voltage (60 sec)

Resistance

±10%

Capacitor

6000VDC

> 1000MOhm

General Specifications:

Efficiency

Switching Frequency

Output Specifications:

Voltage accuracy

Ripple & noise (at 20MHz BW)

Short circuit protection

Line voltage regulation

Load voltage regulation

Temperature Coefficient

Physical Specifications:

Dimensions

Weight

Case material

MTBF: > 1,000,000 hrs (MIL-HDBK-217F, Ground Benign, t=+25ºC)

Specifications are subject to change without notification

72% to 81%

35KHz, typ. 100% load

See tolerance

envelope graph

100mVp-p, typ.

1 sec.

±1.2%/1% of Vin max.

15%, max.

±0.03%/ºC, max.

32.3x14.7x9.4mm

1.27x0.58x0.37inches

16g

Plastic UL94-VO

Environmental Specifications:

Operating temperature (ambient) -40ºC ... +85ºC

Storage temperature

-55ºC ... +125ºC

Case temperature

+95°C, max.

Derating

None required

Humidity (non-condensing)

Up to 90%

Cooling

Free-air Convection

OUTLINE DIMENSIONS & PIN CONNECTIONS

Single output

Function

8,17

10,15

12,13

Series

Dual output

Function

8,17

10,15

12,13

+V Input

-V Input

-V Output

+V Output

+V Input

-V Input

N.C.

+V Output

Continued on next page

VISIT US AT WWW.AIMTEC.CA

AM2N-N Series

MODELS

Single output

Models

AM2N-0505SH60-N

AM2N-0509SH60-N

AM2N-0512SH60-N

AM2N-0515SH60-N

AM2N-1205SH60-N

AM2N-1209SH60-N

AM2N-1212SH60-N

AM2N-1215SH60-N

AM2N-2405SH60-N

AM2N-2409SH60-N

AM2N-2412SH60-N

AM2N-2415SH60-N

Dual output

Models

AM2N-0505DH60-N

AM2N-0509DH60-N

AM2N-0512DH60-N

AM2N-0515DH60-N

AM2N-1205DH60-N

AM2N-1209DH60-N

AM2N-1212DH60-N

AM2N-1215DH60-N

AM2N-2405DH60-N

AM2N-2409DH60-N

AM2N-2412DH60-N

AM2N-2415DH60-N

Input Voltage

5V ± 10%

Ouput Voltage

5VDC

9VDC

12VDC

15VDC

5VDC

9VDC

12VDC

15VDC

5VDC

9VDC

12VDC

15VDC

Ouput Current max.

±200mA

±110mA

±84mA

±67mA

±200mA

±110mA

±84mA

±67mA

±200mA

±110mA

±84mA

±67mA

Input Voltage

5V ± 10%

Ouput Voltage

5VDC

9VDC

12VDC

15VDC

5VDC

9VDC

12VDC

15VDC

5VDC

9VDC

12VDC

15VDC

Ouput Current max.

400mA

222mA

167mA

133mA

400mA

222mA

167mA

133mA

400mA

222mA

167mA

133mA

DC-DC CONVERTERS

12V ± 10%

24V ± 10%

12V ± 10%

24V ± 10%

TYPICAL CHARACTERISTICS

TO ORDER CALL 1-888-9-AIMTEC

AM2N-N Series

APPLICATION NOTE

Filtering

In some circuits which are sensitive to noise and ripple, a filtering capacitor may be added to the dc/dc output end and input end to reduce the noise and

ripple. However, the capacitance of the output filter capacitor must be proper. If the capacitance is too big, a startup problem might arise. For every

channel of output, provided the safe and reliable operation is ensured, the greatest capacitance of its filter capacitor sees the external capacitor table. To

get an extremely low ripple, an ìLCî filtering network may be connected to the input and output ends of the dc/dc converter, which may produce a more

significant filtering effect. It should also be noted that the inductance and the frequency of the ìLCî filtering network should be staggered with the dc/dc

frequency to avoid mutual interference (see figure 1).

Requirement on output load

To ensure this module can operate efficiently and reliably, a minimum load is specified for this kind of dc/dc converter in addition to a maximum load (namely

full load). During operation, make sure the specified range of input voltage is not exceeded, the minimum output load is not less than 10% of the full load,

and that this product should never be operated under no load! If the actual output power is very small, please connect a resistor with proper resistance at the

output end in parallel to increase the load.

For single output

Overload Protection

Under normal operating conditions, the output

circuit of these products has no protection

against over-current and short-circuits. The

simplest method is to connect a self-recovery

fuse in series at the input end or add a circuit

breaker to the circuit.

Output Voltage Regulation and

Over-voltage Protection Circuit

The simplest device for output voltage

regulation, over-voltage and over-current

protection is a linear voltage stabilizer with

overheat protection that is connected to the

input or output end in series (see Figure 2).

For dual output

External Capacitor Table

for Single Output

Vin

External

Capacitor

Vout

External

Capacitor

External Capacitor Table

for Dual Output

Vin

External

Capacitor

Vout

External

Capacitor

5VDC

12VDC

24VDC

4.7uF

2.2uF

1uF

5VDC

9VDC

12VDC

15VDC

10uF

4.7uF

2.2uF

1uF

5VDC

12VDC

24VDC

4.7uF

2.2uF

1uF

5VDC

9VDC

12VDC

15VDC

4.7uF

2.2uF

1uF

0.47uF

VISIT US AT WWW.AIMTEC.CA
