25.627.3953.7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > terminals> 25.627.3953.7

25.627.3953.7: DescriptionBarrier Strip Terminal Block, 8A, 1 Row(s), 1 Deck(s); Categoryterminals; File Size29KB，1 Pages; ManufacturerWieland Electric GmbH; Websitehttps://www.wieland-electric.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

25.627.3953.7 Overview

Barrier Strip Terminal Block, 8A, 1 Row(s), 1 Deck(s)

25.627.3953.7 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Wieland Electric GmbH
Reach Compliance Code	compliant
ECCN code	EAR99
Fastening method	CONNECTOR AND SCREW
Manufacturer's serial number	25.627
Installation type	BOARD AND PANEL
Number of layers	1
Rows	1
Rated current	8 A
Rated voltage	300 V
safety certificate	CSA; UL
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Base Number Matches	1

Preview

Download Datasheet

View All

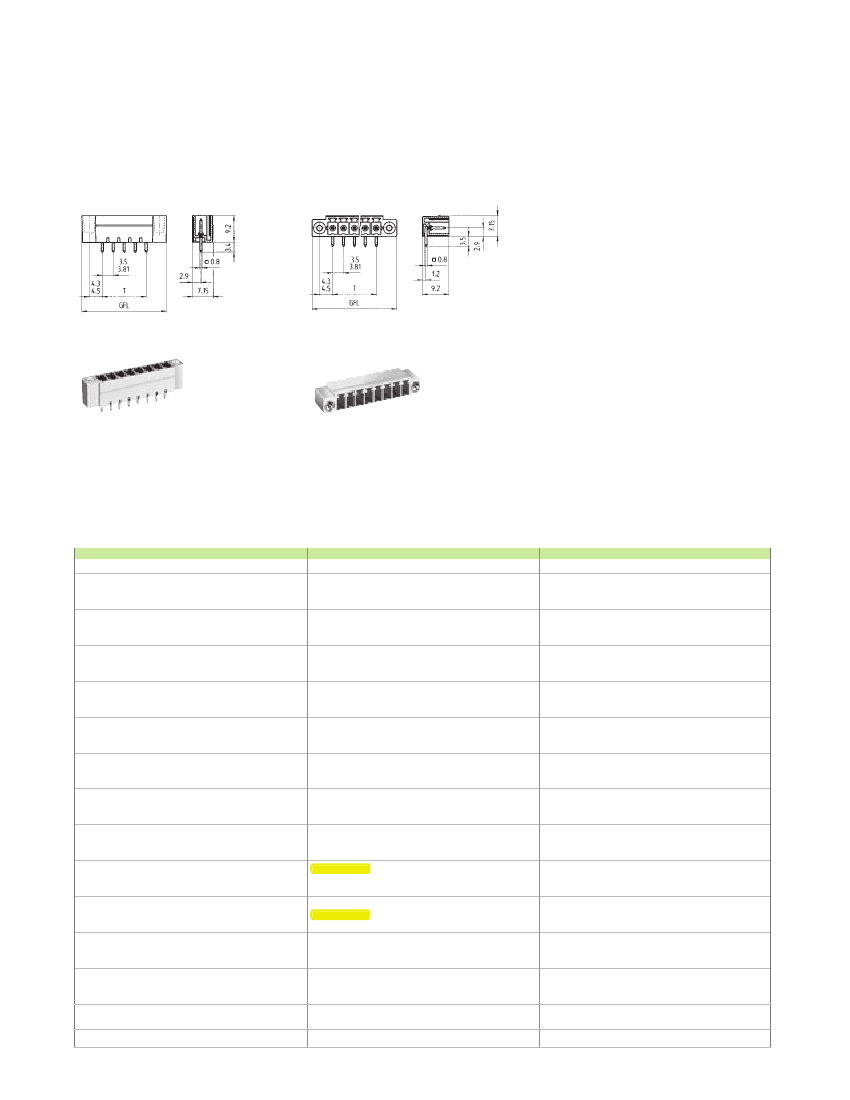

wiecon

with screw flange

Solder pin 0.8 x 0.8 mm

Bore hole Ø 1.2 mm

Solder pin 0.8 x 0.8 mm

Bore hole Ø 1.2 mm

with screw flange

Type 8513 S/... GF, 8813 S/... GF

Connection vertical to PCB

300 V

Part No.

Type 8513 S/... WF, 8813 S/... WF

Connection horizontal to PCB

Part No.

300 V

Part No.

unmarked

25.646.3253.0

25.646.3353.0

25.646.3453.0

25.646.3553.0

25.646.3653.0

25.646.3753.0

25.646.3853.0

25.646.3953.0

25.646.4053.0

25.646.4153.0

25.646.4253.0

25.646.4353.0

25.646.4453.0

25.646.4553.0

25.646.4653.0

unmarked

25.647.3253.0

25.647.3353.0

25.647.3453.0

25.647.3553.0

25.647.3653.0

25.647.3753.0

25.647.3853.0

25.647.3953.0

25.647.4053.0

25.647.4153.0

25.647.4253.0

25.647.4353.0

25.647.4453.0

25.647.4553.0

25.647.4653.0

unmarked

25.626.3253.0

25.626.3353.0

25.626.3453.0

25.626.3553.0

25.626.3653.0

25.626.3753.0

25.626.3853.0

25.626.3953.0

25.626.4053.0

25.626.4153.0

25.626.4253.0

25.626.4353.0

25.626.4453.0

25.626.4553.0

25.626.4653.0

unmarked

25.627.3253.0

25.627.3353.0

25.627.3453.0

25.627.3553.0

25.627.3653.0

25.627.3753.0

25.627.3853.0

25.627.3953.0

25.627.4053.0

25.627.4153.0

25.627.4253.0

25.627.4353.0

25.627.4453.0

25.627.4553.0

25.627.4653.0

05.561.0053.0

285

25.627.3953.7 Related Products

	25.627.3953.7	05.561.0053.0	25.627.3353.7	25.627.3453.7	25.626.4053.7	25.627.4053.7	25.627.4553.7
Description	Barrier Strip Terminal Block, 8A, 1 Row(s), 1 Deck(s)	Barrier Strip Terminal Block, 8A, 1 Row(s), 1 Deck(s)	Barrier Strip Terminal Block, 8A, 1 Row(s), 1 Deck(s)	Barrier Strip Terminal Block, 8A, 1 Row(s), 1 Deck(s)	Barrier Strip Terminal Block, 8A, 1 Row(s), 1 Deck(s)	Barrier Strip Terminal Block, 8A, 1 Row(s), 1 Deck(s)	Barrier Strip Terminal Block, 8A, 1 Row(s), 1 Deck(s)
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compli	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Fastening method	CONNECTOR AND SCREW	CONNECTOR AND SCREW	CONNECTOR AND SCREW	CONNECTOR AND SCREW	CONNECTOR AND SCREW	CONNECTOR AND SCREW	CONNECTOR AND SCREW
Manufacturer's serial number	25.627	05.561.0053.0	25.627	25.627	25.626	25.627	25.627
Installation type	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL
Number of layers	1	1	1	1	1	1	1
Rows	1	1	1	1	1	1	1
Rated current	8 A	8 A	8 A	8 A	8 A	8 A	8 A
Rated voltage	300 V	300 V	300 V	300 V	300 V	300 V	300 V
safety certificate	CSA; UL	CSA; UL	CSA; UL	CSA; UL	CSA; UL	CSA; UL	CSA; UL
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK	BARRIER STRIP TERMINAL BLOCK	BARRIER STRIP TERMINAL BLOCK	BARRIER STRIP TERMINAL BLOCK	BARRIER STRIP TERMINAL BLOCK	BARRIER STRIP TERMINAL BLOCK	BARRIER STRIP TERMINAL BLOCK
Base Number Matches	1	1	1	1	1	1	1
Is it lead-free?	Lead free	-	Lead free	Lead free	Lead free	Lead free	Lead free
Maker	Wieland Electric GmbH	-	Wieland Electric GmbH	Wieland Electric GmbH	Wieland Electric GmbH	Wieland Electric GmbH	Wieland Electric GmbH
