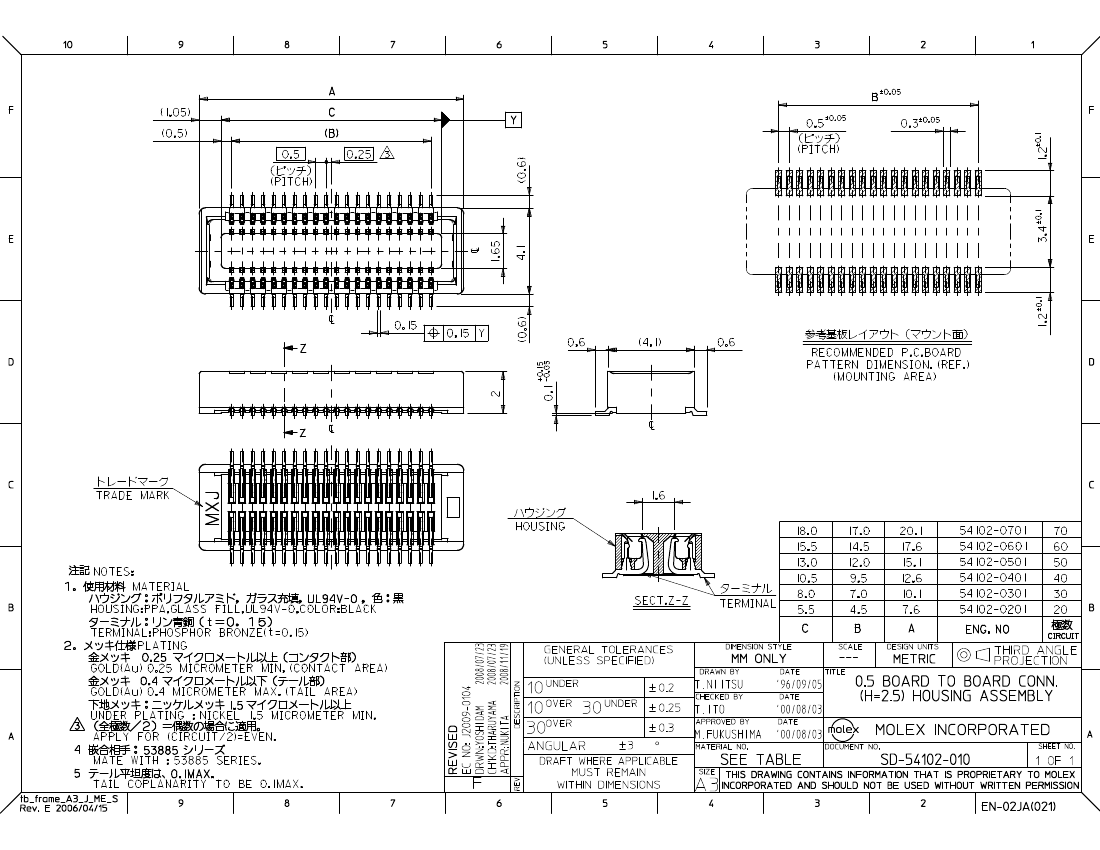

Board Stacking Connector, 16 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Receptacle,

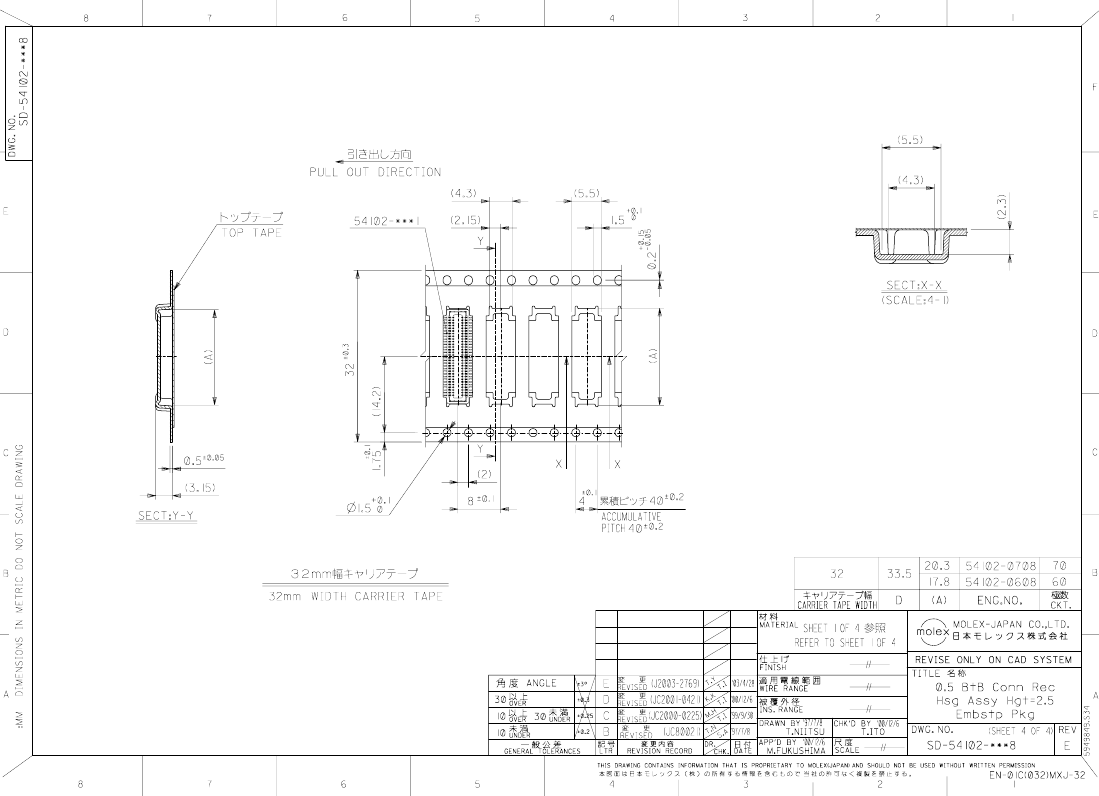

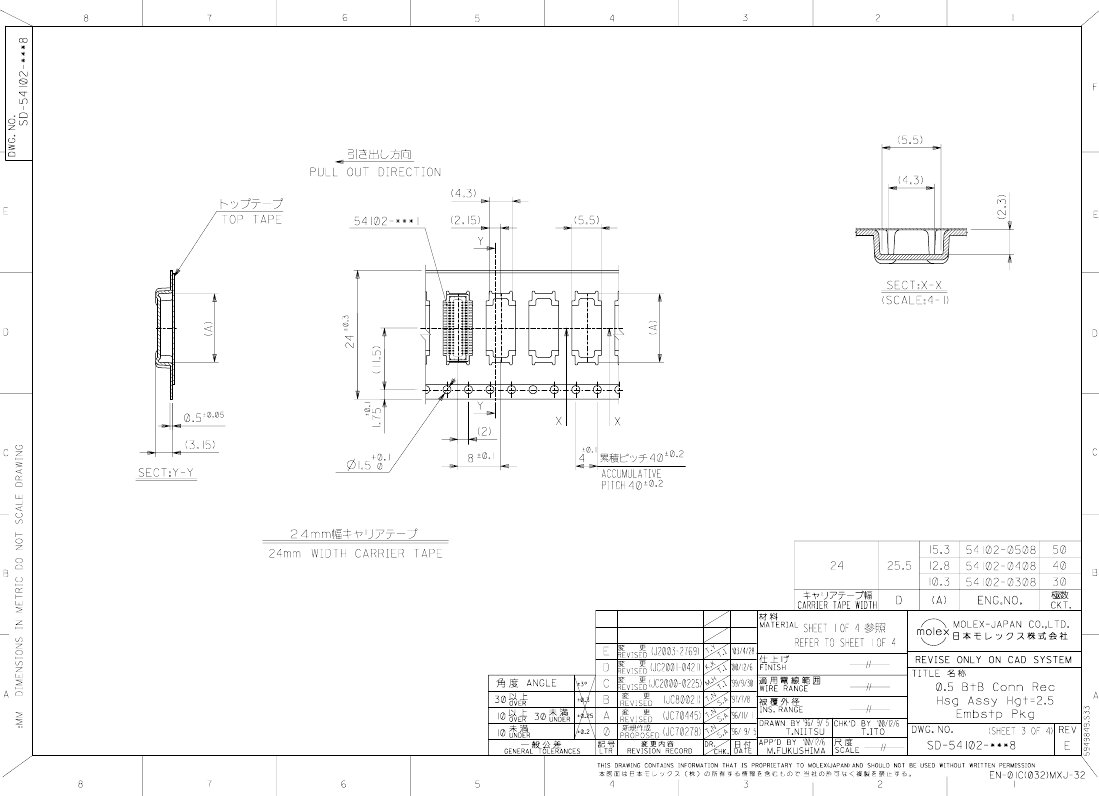

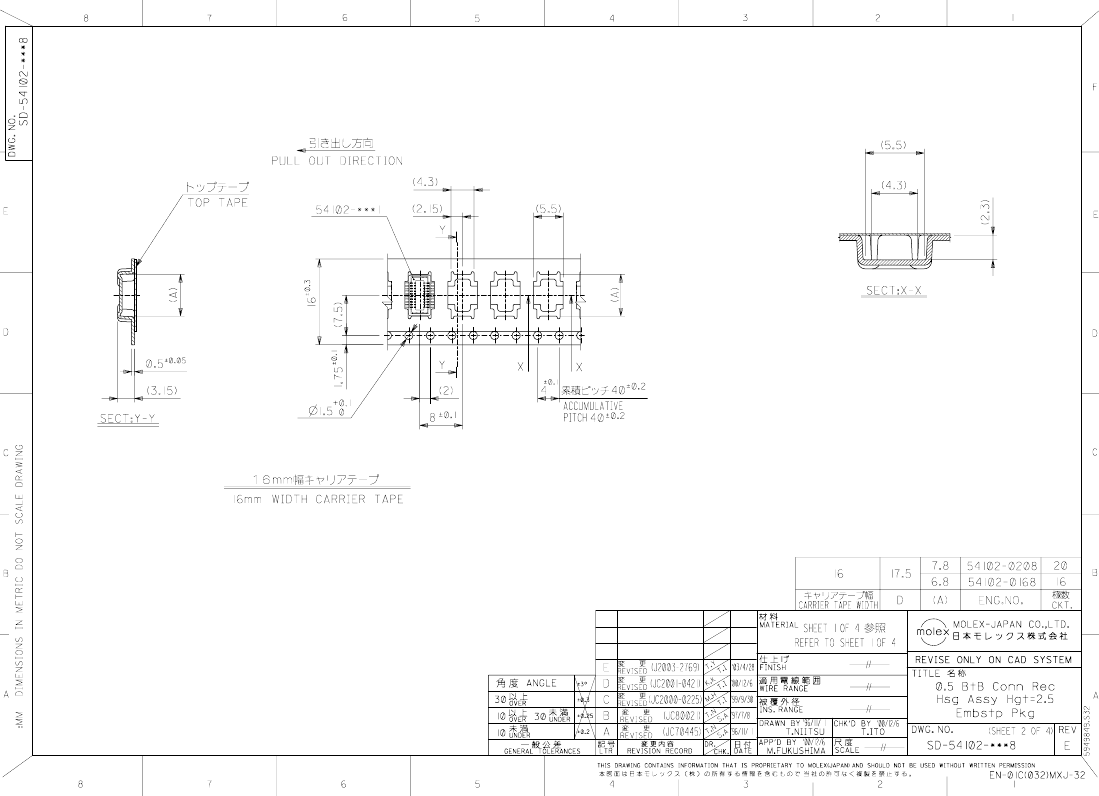

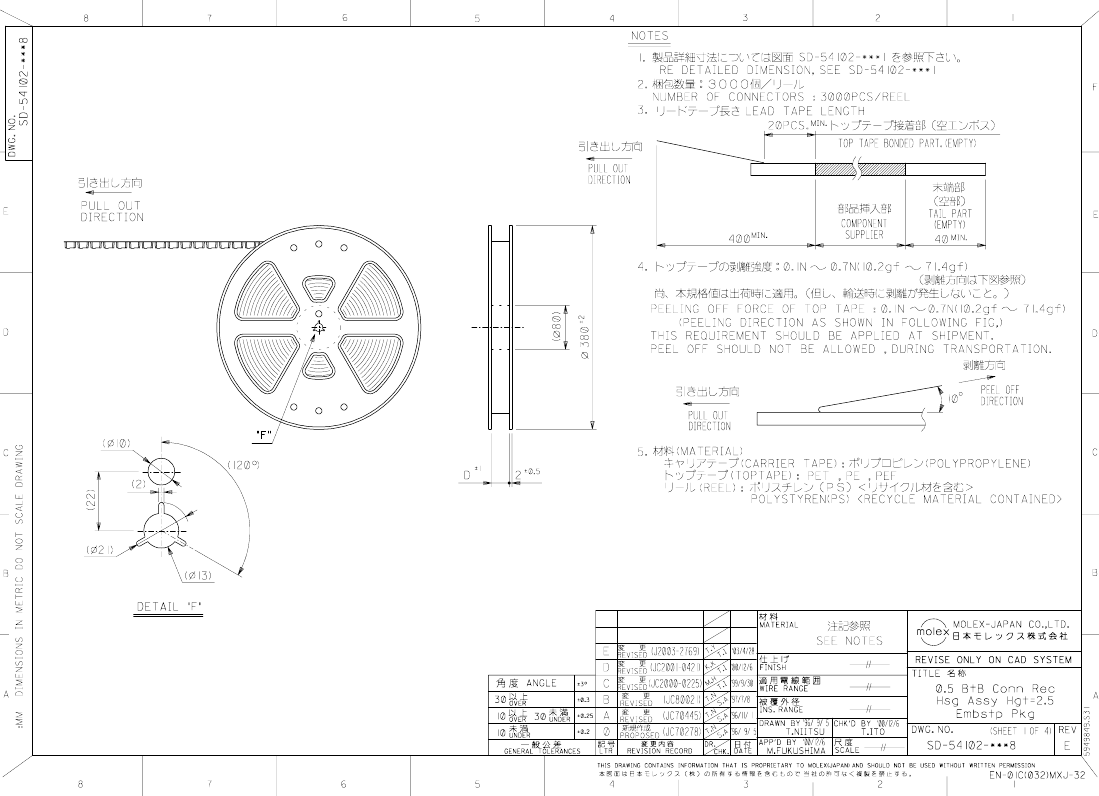

| Parameter Name | Attribute value |
| Maker | Molex |
| Reach Compliance Code | unknown |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD STACKING CONNECTOR |
| Contact to complete cooperation | GOLD (10) OVER NICKEL |
| Contact completed and terminated | GOLD (16) OVER NICKEL |
| Contact point gender | FEMALE |
| DIN compliance | NO |
| Filter function | NO |
| IEC compliance | NO |
| JESD-609 code | e4 |
| MIL compliance | NO |
| Manufacturer's serial number | 54102 |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of rows loaded | 2 |
| Options | GENERAL PURPOSE |
| Terminal pitch | 0.5 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 16 |
| UL Flammability Code | 94V-0 |
| Base Number Matches | 1 |
| 54102-0168 | 54102-0201 | 54102-0301 | 54102-0401 | 54102-0501 | 54102-0601 | 54102-0701 | |
|---|---|---|---|---|---|---|---|
| Description | Board Stacking Connector, 16 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Receptacle, | Board Stacking Connector, 20 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking Mech, Black Insulator, Receptacle, | Board Stacking Connector, 30 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking Mech, Black Insulator, Receptacle, | Board Stacking Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking Mech, Black Insulator, Receptacle, | Board Stacking Connector, 50 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking Mech, Black Insulator, Receptacle, | Board Stacking Connector, 60 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking Mech, Black Insulator, Receptacle, | Board Stacking Connector, 70 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking Mech, Black Insulator, Receptacle, |
| Maker | Molex | Molex | Molex | Molex | Molex | Molex | Molex |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | BOARD STACKING CONNECTOR | BOARD STACKING CONNECTOR | BOARD STACKING CONNECTOR | BOARD STACKING CONNECTOR | BOARD STACKING CONNECTOR | BOARD STACKING CONNECTOR | BOARD STACKING CONNECTOR |
| Contact to complete cooperation | GOLD (10) OVER NICKEL | GOLD (10) OVER NICKEL | GOLD (10) OVER NICKEL | GOLD (10) OVER NICKEL | GOLD (10) OVER NICKEL | GOLD (10) OVER NICKEL | GOLD (10) OVER NICKEL |
| Contact completed and terminated | GOLD (16) OVER NICKEL | GOLD (16) OVER NICKEL | GOLD (16) OVER NICKEL | GOLD (16) OVER NICKEL | GOLD (16) OVER NICKEL | GOLD (16) OVER NICKEL | GOLD (16) OVER NICKEL |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE |
| DIN compliance | NO | NO | NO | NO | NO | NO | NO |
| Filter function | NO | NO | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO | NO | NO |
| JESD-609 code | e4 | e4 | e4 | e4 | e4 | e4 | e4 |
| MIL compliance | NO | NO | NO | NO | NO | NO | NO |
| Manufacturer's serial number | 54102 | 54102 | 54102 | 54102 | 54102 | 54102 | 54102 |
| Plug information | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO | NO | NO | NO | NO | NO | NO |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of rows loaded | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Terminal pitch | 0.5 mm | 0.5 mm | 0.5 mm | 0.5 mm | 0.5 mm | 0.5 mm | 0.5 mm |
| Termination type | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT |
| Total number of contacts | 16 | 20 | 30 | 40 | 50 | 60 | 70 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| ECCN code | - | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Other features | - | SLIMSTACK | SLIMSTACK | SLIMSTACK | SLIMSTACK | SLIMSTACK | SLIMSTACK |
| body width | - | 0.161 inch | 0.161 inch | 0.161 inch | 0.161 inch | 0.161 inch | 0.161 inch |
| subject depth | - | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch |
| body length | - | 0.299 inch | 0.398 inch | 0.496 inch | 0.594 inch | 0.693 inch | 0.791 inch |
| Contact material | - | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE |
| contact mode | - | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact resistance | - | 40 mΩ | 40 mΩ | 40 mΩ | 40 mΩ | 40 mΩ | 40 mΩ |
| Contact style | - | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE |
| Dielectric withstand voltage | - | 500VAC V | 500VAC V | 500VAC V | 500VAC V | 500VAC V | 500VAC V |
| Durability | - | 30 Cycles | 30 Cycles | 30 Cycles | 30 Cycles | 30 Cycles | 30 Cycles |
| maximum insertion force | - | 2.4464 N | 1.6124 N | 1.2232 N | .973 N | .8062 N | .695 N |
| Insulation resistance | - | 100000000 Ω | 100000000 Ω | 100000000 Ω | 100000000 Ω | 100000000 Ω | 100000000 Ω |
| Insulator color | - | BLACK | BLACK | BLACK | BLACK | BLACK | BLACK |
| insulator material | - | GLASS FILLED POLYPHTHALAMIDE | GLASS FILLED POLYPHTHALAMIDE | GLASS FILLED POLYPHTHALAMIDE | GLASS FILLED POLYPHTHALAMIDE | GLASS FILLED POLYPHTHALAMIDE | GLASS FILLED POLYPHTHALAMIDE |
| Plug contact pitch | - | 0.02 inch | 0.02 inch | 0.02 inch | 0.02 inch | 0.02 inch | 0.02 inch |
| Installation option 1 | - | LOCKING MECH | LOCKING MECH | LOCKING MECH | LOCKING MECH | LOCKING MECH | LOCKING MECH |
| Number of connectors | - | ONE | ONE | ONE | ONE | ONE | ONE |
| PCB row number | - | 2 | 2 | 2 | 2 | 2 | 2 |
| Maximum operating temperature | - | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | - | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| PCB contact pattern | - | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | - | 4.6228 mm | 4.6228 mm | 4.6228 mm | 4.6228 mm | 4.6228 mm | 4.6228 mm |
| Plating thickness | - | 10u inch | 10u inch | 10u inch | 10u inch | 10u inch | 10u inch |
| polarization key | - | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING |
| Rated current (signal) | - | 0.5 A | 0.5 A | 0.5 A | 0.5 A | 0.5 A | 0.5 A |
| Guideline | - | UL | UL | UL | UL | UL | UL |
| reliability | - | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Evacuation force-minimum value | - | .2502 N | .1668 N | .1112 N | .1112 N | .0556 N | .0556 N |
