Z86L4308FSG datasheet, PDF - EEWORLD Datasheet

Z86L4308FSG: DescriptionIC 8-BIT, MROM, 8 MHz, MICROCONTROLLER, PQFP44, QFP-44, Microcontroller; CategoryMicrocontrollers and processors; File Size491KB，17 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

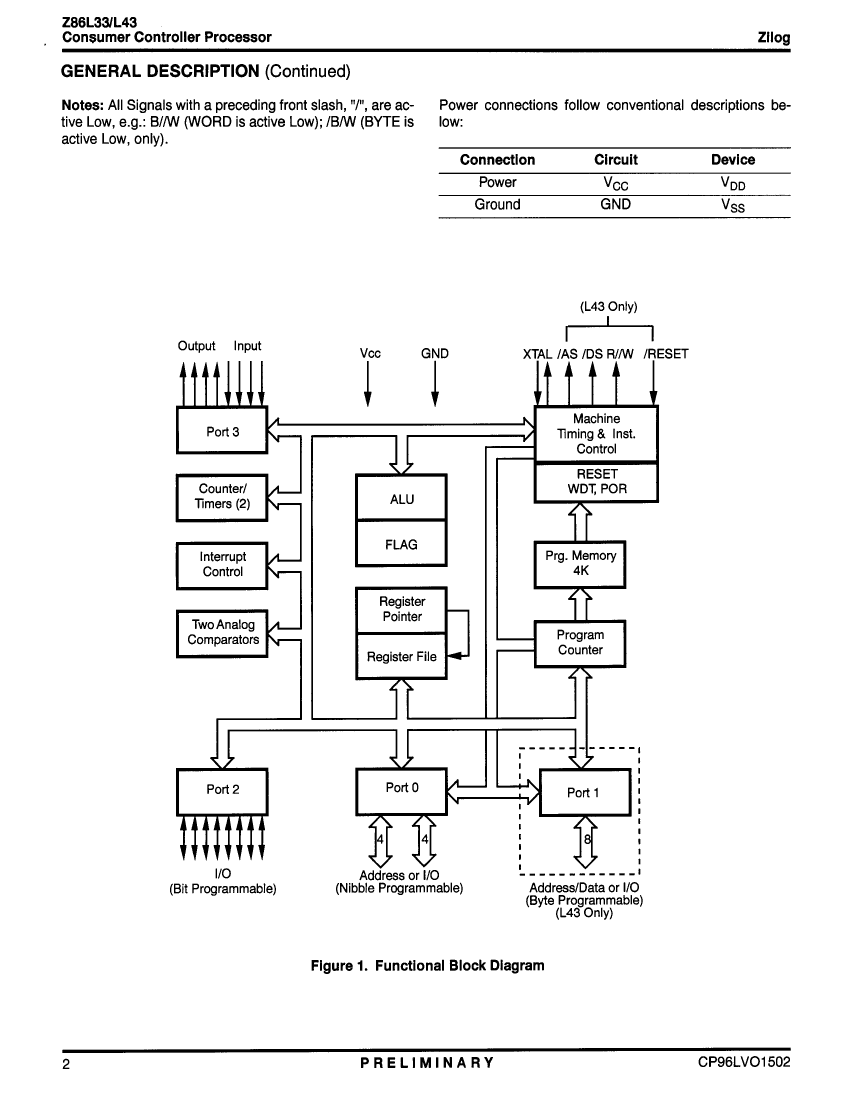

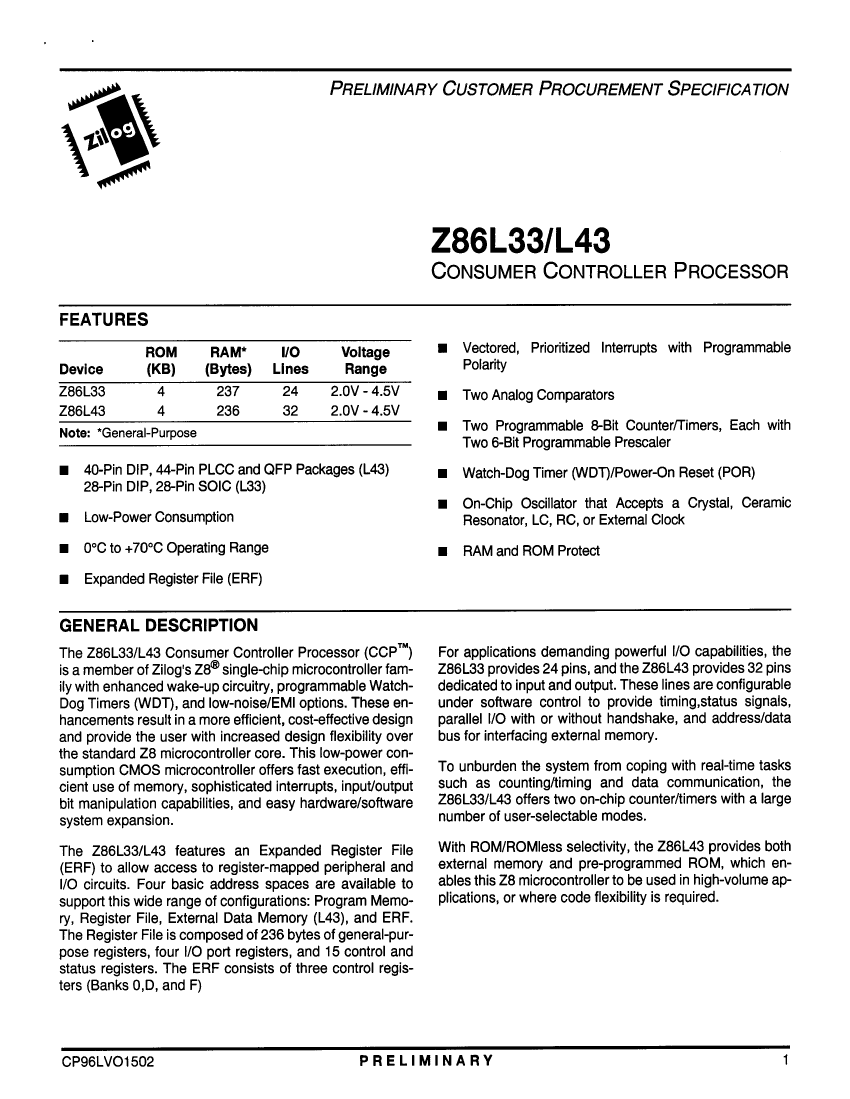

Z86L4308FSG Overview

IC 8-BIT, MROM, 8 MHz, MICROCONTROLLER, PQFP44, QFP-44, Microcontroller

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Zilog, Inc.
Parts packaging code	QFP
package instruction	QFP,
Contacts	44
Reach Compliance Code	unknown
Has ADC	NO
Address bus width	16
bit size	8
maximum clock frequency	8 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
JESD-30 code	S-PQFP-G44
JESD-609 code	e3
length	10 mm
Number of I/O lines	32

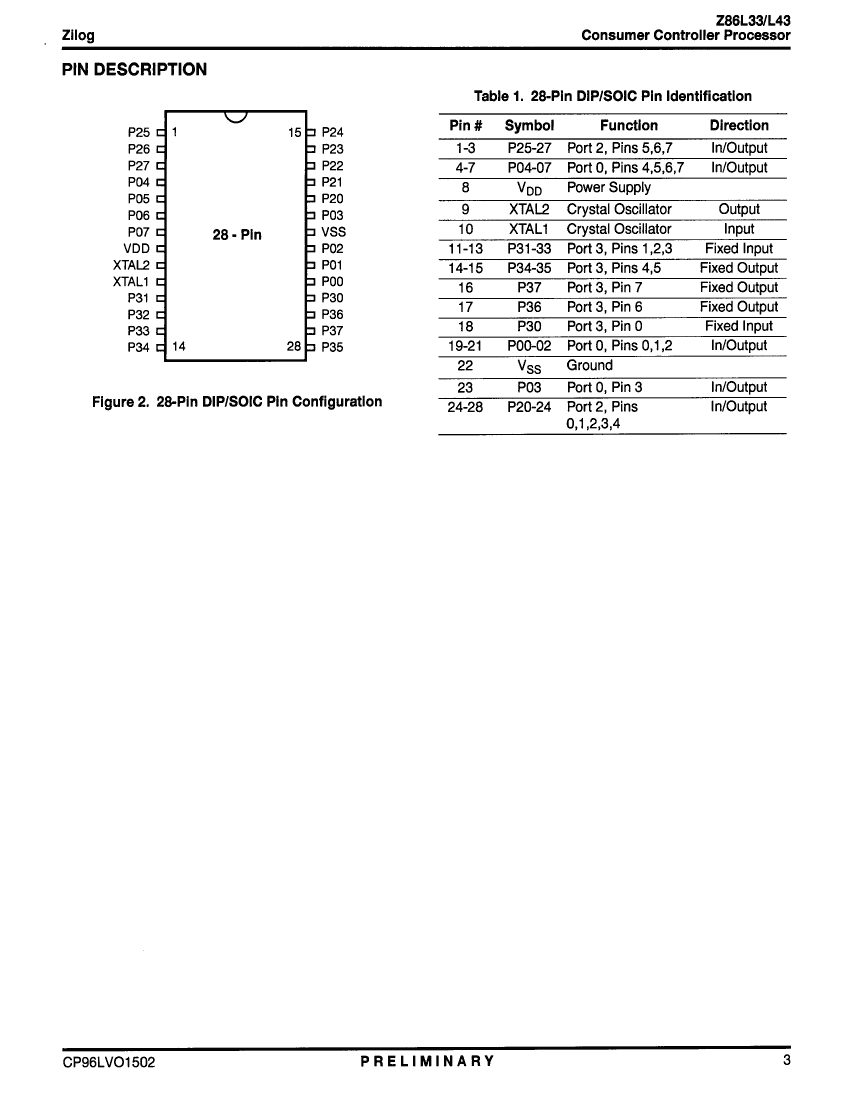

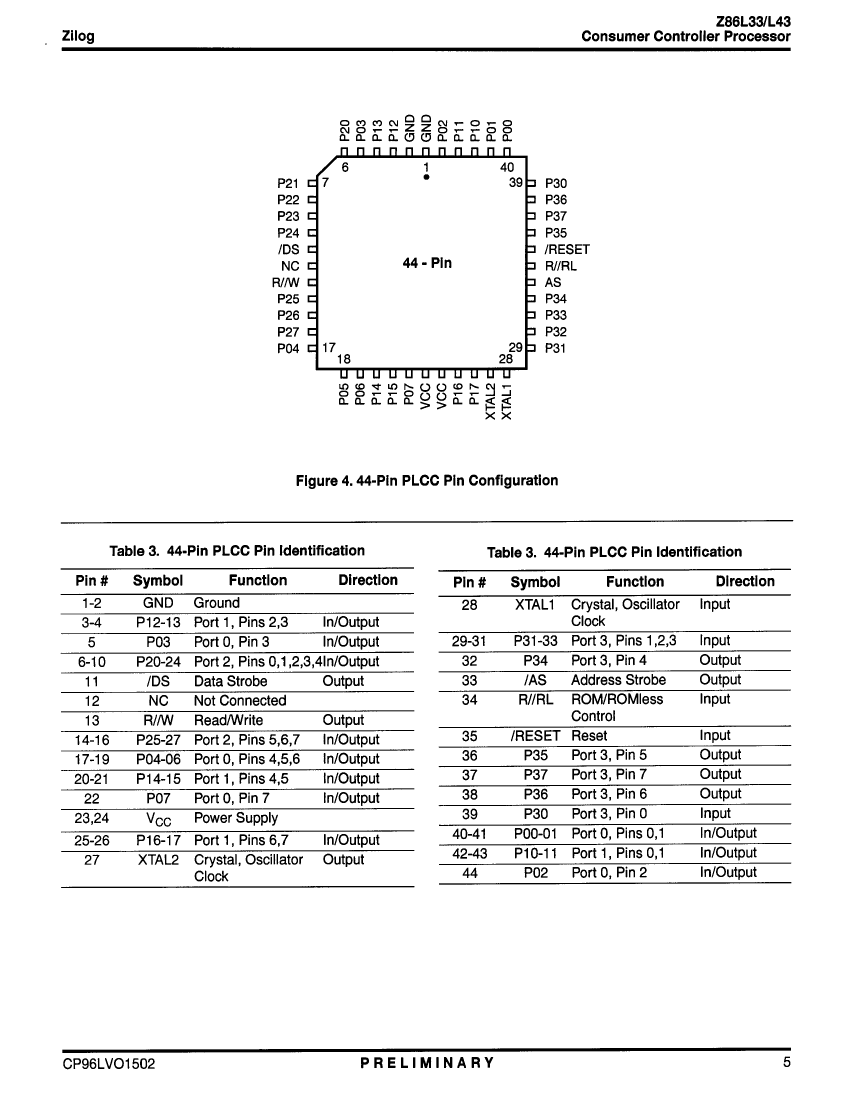

Number of terminals	44
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	SQUARE
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
ROM programmability	MROM
Maximum seat height	2.5 mm
speed	8 MHz
Maximum slew rate	17 mA
Maximum supply voltage	4.5 V
Minimum supply voltage	2 V
Nominal supply voltage	3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	40
width	10 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

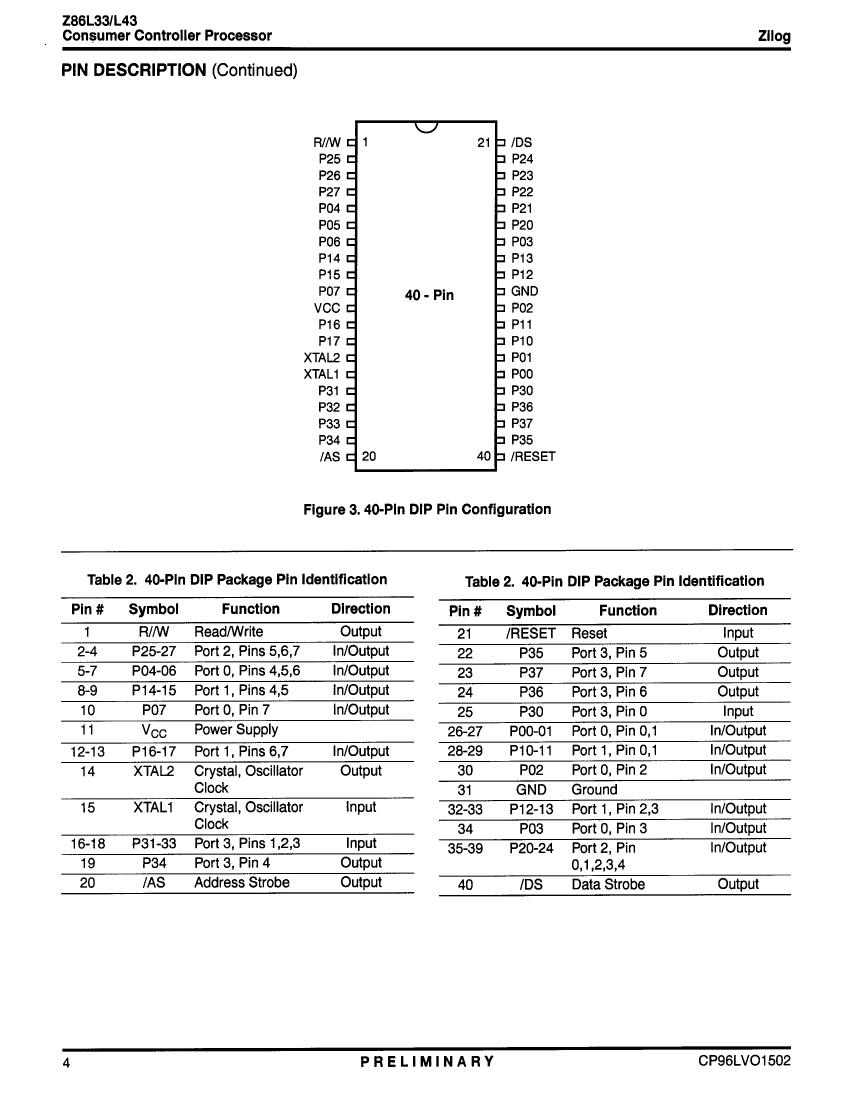

	Z86L4308FSG	Z86L4308PSG
Description	IC 8-BIT, MROM, 8 MHz, MICROCONTROLLER, PQFP44, QFP-44, Microcontroller	IC 8-BIT, MROM, 8 MHz, MICROCONTROLLER, PDIP40, DIP-40, Microcontroller
Is it lead-free?	Lead free	Lead free
Maker	Zilog, Inc.	Zilog, Inc.
Parts packaging code	QFP	DIP
package instruction	QFP,	DIP,
Contacts	44	40
Reach Compliance Code	unknown	unknown
Has ADC	NO	NO
Address bus width	16	16
bit size	8	8
maximum clock frequency	8 MHz	8 MHz
DAC channel	NO	NO
DMA channel	NO	NO
External data bus width	8	8
JESD-30 code	S-PQFP-G44	R-PDIP-T40
JESD-609 code	e3	e3
length	10 mm	52.325 mm
Number of I/O lines	32	32
Number of terminals	44	40
Maximum operating temperature	70 °C	70 °C
PWM channel	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	DIP
Package shape	SQUARE	RECTANGULAR
Package form	FLATPACK	IN-LINE
Peak Reflow Temperature (Celsius)	260	225
Certification status	Not Qualified	Not Qualified
ROM programmability	MROM	MROM
Maximum seat height	2.5 mm	4.24 mm
speed	8 MHz	8 MHz
Maximum slew rate	17 mA	17 mA
Maximum supply voltage	4.5 V	4.5 V
Minimum supply voltage	2 V	2 V
Nominal supply voltage	3 V	3 V
surface mount	YES	NO
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Matte Tin (Sn)	TIN
Terminal form	GULL WING	THROUGH-HOLE
Terminal pitch	0.8 mm	2.54 mm
Terminal location	QUAD	DUAL
Maximum time at peak reflow temperature	40	30
width	10 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER
Base Number Matches	1	1
