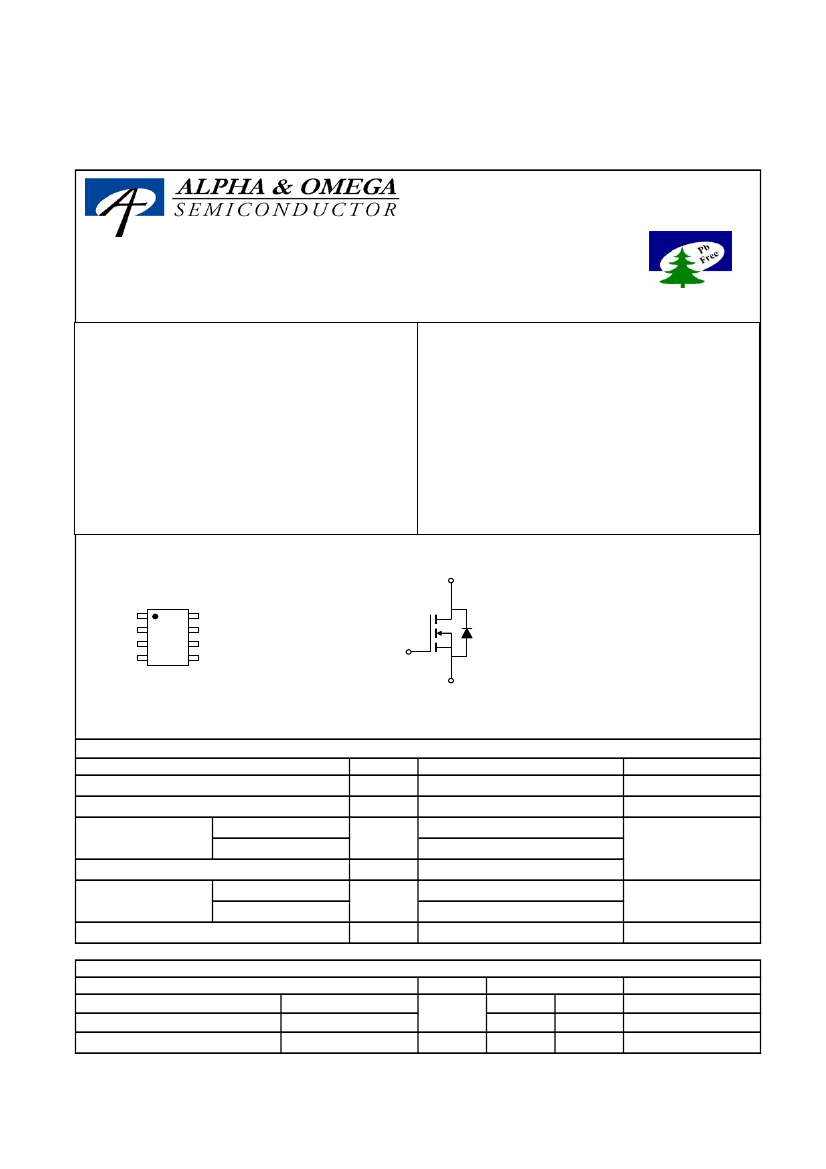

AO4412
N-Channel Enhancement Mode Field Effect Transistor
General Description
The AO4412 uses advanced trench technology to
provide excellent R
DS(ON)
and ultra low gate charge for
use has a fast high side switch. The source leads are
separated to allow a Kelvin connection to the source,
which may be used to bypass the source
inductance.Standard product AO4412 is Pb-free
(meets ROHS & Sony 259 specifications). AO4412L
is a Green Product ordering option. AO4412 and
AO4412L are electrically identical.
Features
V
DS
(V) = 30V
I
D
= 8.5A
(V
GS
= 10V)
R
DS(ON)
< 26mΩ (V
GS
= 10V)
R
DS(ON)
< 34mΩ (V
GS
= 4.5V)
D
S
S
S
G
D
D
D
D
G
S
SOIC-8
Absolute Maximum Ratings T
A
=25°C unless otherwise noted
Parameter
Symbol
V
DS
Drain-Source Voltage
V
GS
Gate-Source Voltage
Continuous Drain
Current
A
Pulsed Drain Current
Power Dissipation
B
Maximum
30
±12
8.5
7.1
60
3
2.1
-55 to 150
Units
V
V
A
T
A
=25°C
T
A
=70°C
T
A
=25°C
T
A
=70°C
I
D
I
DM
P
D
T
J
, T
STG
W
°C
Junction and Storage Temperature Range
Thermal Characteristics
Parameter
Maximum Junction-to-Ambient
A
Maximum Junction-to-Ambient
A
Maximum Junction-to-Lead
C
Symbol
t
≤
10s
Steady-State
Steady-State
R
θJA
R
θJL
Typ
31
59
16
Max
40
75
24
Units
°C/W
°C/W
°C/W
Alpha & Omega Semiconductor, Ltd.
AO4412
Electrical Characteristics (T
J
=25°C unless otherwise noted)
Parameter
Symbol
STATIC PARAMETERS
BV
DSS
Drain-Source Breakdown Voltage
I
DSS
I
GSS
V
GS(th)
I
D(ON)
R
DS(ON)
g
FS
V
SD
I
S
Zero Gate Voltage Drain Current
Gate-Body leakage current
Gate Threshold Voltage
On state drain current
Static Drain-Source On-Resistance
V
GS
=4.5V, I
D
=5A
Forward Transconductance
V
DS
=5V, I
D
=5A
Diode Forward Voltage
I
S
=1A,V
GS
=0V
Maximum Body-Diode Continuous Current
Conditions
I
D
=250µA, V
GS
=0V
V
DS
=24V, V
GS
=0V
T
J
=55°C
V
DS
=0V, V
GS
= ±12V
V
DS
=V
GS
I
D
=250µA
V
GS
=4.5V, V
DS
=5V
V
GS
=10V, I
D
=8.5A
T
J
=125°C
28
0.76
34
1
4
1
30
22
26
1.8
Min
30
1
5
100
3
Typ
Max
Units
V
µA
nA
V
A
mΩ
mΩ
S
V
A
pF
pF
pF
Ω
nC
nC
nC
ns
ns
ns
ns
ns
nC
DYNAMIC PARAMETERS
C
iss
Input Capacitance
C
oss
C
rss
R
g
Output Capacitance
Reverse Transfer Capacitance
Gate resistance
V
GS
=0V, V
DS
=15V, f=1MHz
V
GS
=0V, V
DS
=0V, f=1MHz
590
162
40
0.45
6.04
1.46
2.56
3.7
3.5
14.9
2.5
26
20
SWITCHING PARAMETERS
Q
g
Total Gate Charge
Q
gs
Gate Source Charge
Q
gd
Gate Drain Charge
t
D(on)
Turn-On DelayTime
t
r
Turn-On Rise Time
t
D(off)
t
f
t
rr
Q
rr
Turn-Off DelayTime
Turn-Off Fall Time
V
GS
=4.5V, V
DS
=15V, I
D
=8.5A
V
GS
=10V, V
DS
=15V, R
L
=1.8Ω,
R
GEN
=3Ω
I
F
=5A, dI/dt=100A/µs
Body Diode Reverse Recovery Time
Body Diode Reverse Recovery Charge I
F
=5A, dI/dt=100A/µs
2
A: The value of R
θJA
is measured with the device mounted on 1in FR-4 board with 2oz. Copper, in a still air environment with T
A
=25°C. The value
in any given application depends on the user's specific board design. The current rating is based on the t
≤
10s thermal resistance rating.
B: Repetitive rating, pulse width limited by junction temperature.
C. The R
θJA
is the sum of the thermal impedence from junction to lead R
θJL
and lead to ambient.
D. The static characteristics in Figures 1 to 6 are obtained using 80
µs
pulses, duty cycle 0.5% max.
E. These tests are performed with the device mounted on 1 in
2
FR-4 board with 2oz. Copper, in a still air environment with T
A
=25°C. The SOA
curve provides a single pulse rating.
THIS PRODUCT HAS BEEN DESIGNED AND QUALIFIED FOR THE CONSUMER MARKET. APPLICATIONS OR USES AS CRITICAL
COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS ARE NOT AUTHORIZED. AOS DOES NOT ASSUME ANY LIABILITY ARISING
OUT OF SUCH APPLICATIONS OR USES OF ITS PRODUCTS. AOS RESERVES THE RIGHT TO IMPROVE PRODUCT DESIGN,
FUNCTIONS AND RELIABILITY WITHOUT NOTICE.
Alpha & Omega Semiconductor, Ltd.
AO4412
TYPICAL ELECTRICAL AND THERMAL CHARACTERISTICS
30
25
20
I
D
(A)
15
10
5
0
0
1
2
3
4
5
V
DS
(Volts)

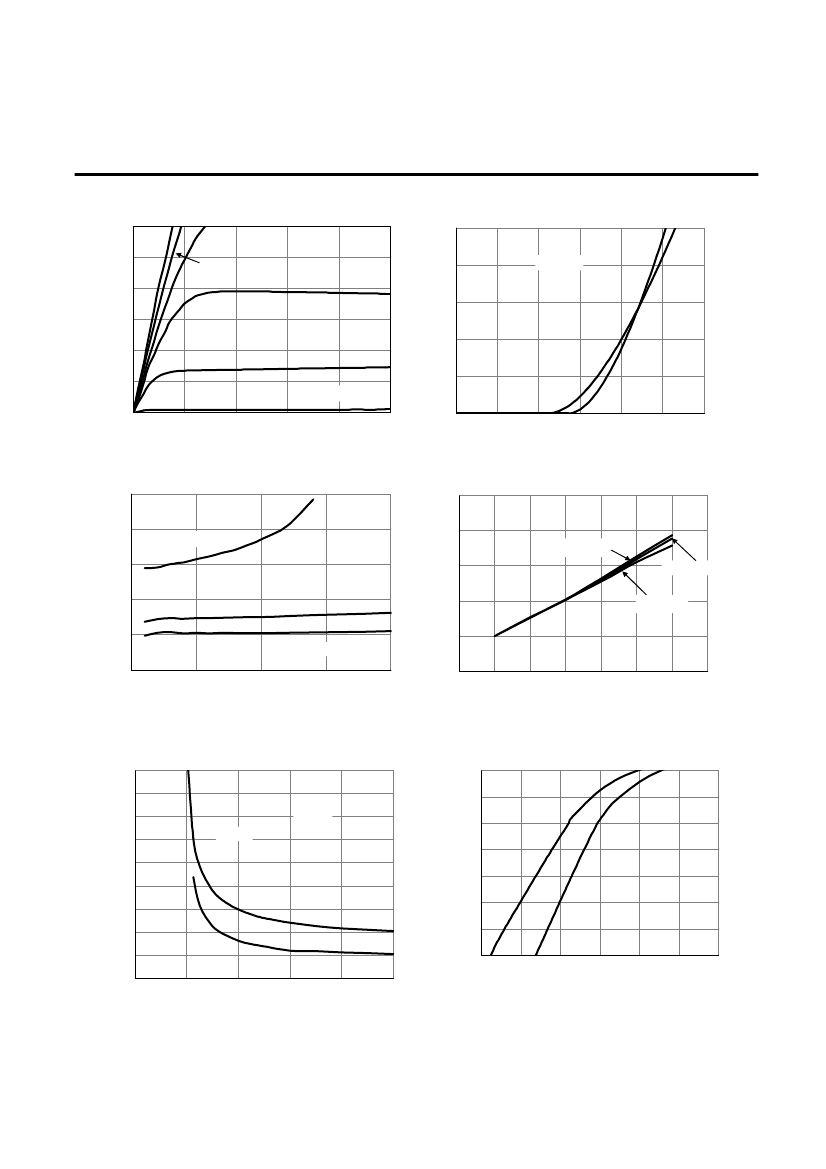

Fig 1: On-Region Characteristics
60
50
R
DS(ON)
(m
Ω
)
40
30
20
V
GS
=10V
10
0
5
10
15
20
I
D
(A)
Figure 3: On-Resistance vs. Drain Current and
Gate Voltage
100
90
80
70
R
DS(ON)
(m
Ω
)
60
50
40
30
20
10
0
4
6
8
10
V
GS
(Volts)
Figure 5: On-Resistance vs. Gate-Source Voltage
2
25°C
125°C
I
S
(A)
I
D
=5A
1.0E+01
1.0E+00
1.0E-01
1.0E-02
1.0E-03
1.0E-04
1.0E-05
1.0E-06
0.0
0.2
0.4
0.6
0.8
1.0
1.2
V
SD
(Volts)
Figure 6: Body-Diode Characteristics
25°C
125°C
Normalized On-Resistance
1.8
1.6
V
GS
=4.5V
1.4
1.2
1
0.8
0
25
50
75
100
125
150
175
Temperature (°C)
Figure 4: On-Resistance vs. Junction
Temperature
V
GS
=10V
V
GS
=2.5V
10V
20
3V
4.5V
2.5V
12
I
D
(A)
8
2V
4
V
GS
=1.5V
0
0
0.5
1
1.5
2
2.5
3
V
GS
(Volts)
Figure 2: Transfer Characteristics
125°C
25°C
16
V
DS
=5V
V
GS
=2.5V
V
GS
=4.5V
Alpha & Omega Semiconductor, Ltd.
AO4412
TYPICAL ELECTRICAL AND THERMAL CHARACTERISTICS
5
4
V
GS
(Volts)
3
2
1
200
0
0
1
2
3
4
5
6
Q
g
(nC)

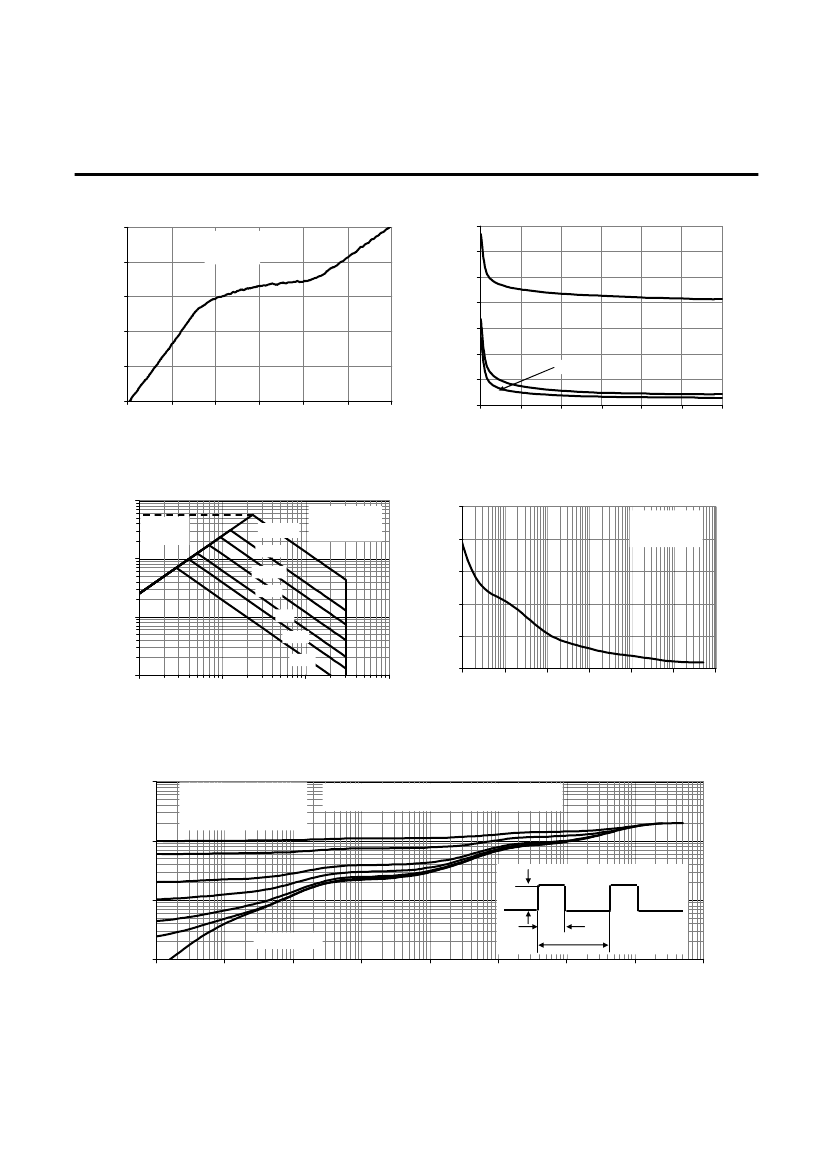

Figure 7: Gate-Charge Characteristics
0
0
5
10
15
20
25
30
V
DS
(Volts)
Figure 8: Capacitance Characteristics
1400
V
DS
=15V
I
D
=8.5A
Capacitance (pF)
1200
1000
800
600
400
C
oss
C
rss
C
iss
100.0
R
DS(ON)
limited
I
D
(Amps)
10.0
100µs
1ms
Power (W)
10ms
0.1s
1.0
1s
10s
DC
0.1
0.1
1
V
DS
(Volts)
Figure 9: Maximum Forward Biased Safe
Operating Area (Note E)
10
100
T
J(Max)
=150°C
T
A
=25°C
50
40
30
20
10
0
0.001
T
J(Max)
=150°C
T
A
=25°C
0.01
0.1
1
10
100
1000
Pulse Width (s)
Figure 10: Single Pulse Power Rating Junction-to-
Ambient (Note E)
10
Z
θJA
Normalized Transient
Thermal Resistance
D=T
on
/T
T
J,PK
=T
A
+P
DM
.Z
θJA
.R
θJA
R
θJA
=40°C/W
In descending order
D=0.5, 0.3, 0.1, 0.05, 0.02, 0.01, single pulse
1
0.1
P
D
T
on
Single Pulse
0.01
0.00001
0.0001
0.001
0.01
0.1
1
T
10
100
1000
Pulse Width (s)
Figure 11: Normalized Maximum Transient Thermal Impedance
