62040-313 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > photoelectric> 62040-313

62040-313: DescriptionSingle Color LED, Green, Tinted Diffused, HERMETIC SEALED PACKAGE-2; Categoryphotoelectric; File Size90KB，2 Pages; ManufacturerMicropac; Websitehttp://www.micropac.com

Download Datasheet Parametric Compare View All

62040-313 Overview

Single Color LED, Green, Tinted Diffused, HERMETIC SEALED PACKAGE-2

62040-313 Parametric

Parameter Name	Attribute value
Maker	Micropac
package instruction	HERMETIC SEALED PACKAGE-2
Reach Compliance Code	compliant
color	GREEN
Configuration	SINGLE
Maximum forward current	0.035 A
Lens type	TINTED DIFFUSED
Nominal luminous intensity	20.0 mcd
Installation features	PANEL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	SINGLE COLOR LED
total height	5.095 mm
method of packing	BULK
peak wavelength	570 nm
shape	ROUND
surface mount	NO
Terminal pitch	1.265 mm
Base Number Matches	1

Preview

Download Datasheet

View All

M19500/519HB

62040-X1X

M19500/520HB

M19500/521HB

04/27/2012

JAN AND JANTX QUALIFIED,

HI-BRITE PANEL MOUNT

HERMETIC LED INDICATORS

OPTOELECTRONIC PRODUCTS

DIVISION

Features:



Hermetically sealed

Choice of colors (Red, Yellow, Green)

Panel Mount with wire wrappable leads

Designed for Hi-Reliability applications

High Brite Glass Lens

DLA qualified

Applications:



P.C. Board Fault Indicator

Logic Status Indicator

Binary Data Display

Power supply on/off indicator

DESCRIPTION

The

62040-X1X

series indicators contain a hermetically sealed visible LED in a TO-46 package with a clear glass lens which

provides improved viewability in bright sunlight. The /519HB (red) and /520HB (yellow) indicators utilize a high efficiency GaAsP

on GaP LED, while the /521HB (green) indicator utilizes a GaP on GaP LED. All versions are available in commercial, JAN or

JANTX screened levels.

ABSOLUTE MAXIMUM RATINGS

Reverse Voltage ..................................................................................................................................................................... 5 Vdc

Power Dissipation (Note 1) ................................................................................................................................................. 120 mW

Forward Current-Continuous ..................................................................................................................................................35 mA

Storage Temperature............................................................................................................................................ -65°C to +100°C

Operating Temperature ........................................................................................................................................ -55°C to +100°C

Lead Soldering Temperature (10 seconds, 1/16” from case) ................................................................................................ 260°C

Maximum Mounting Torque (Panel mount version) ............................................................................................................ 25in•lbs

Notes:

1. Derate at the rate of 1.6 mW/°C above 50°C.

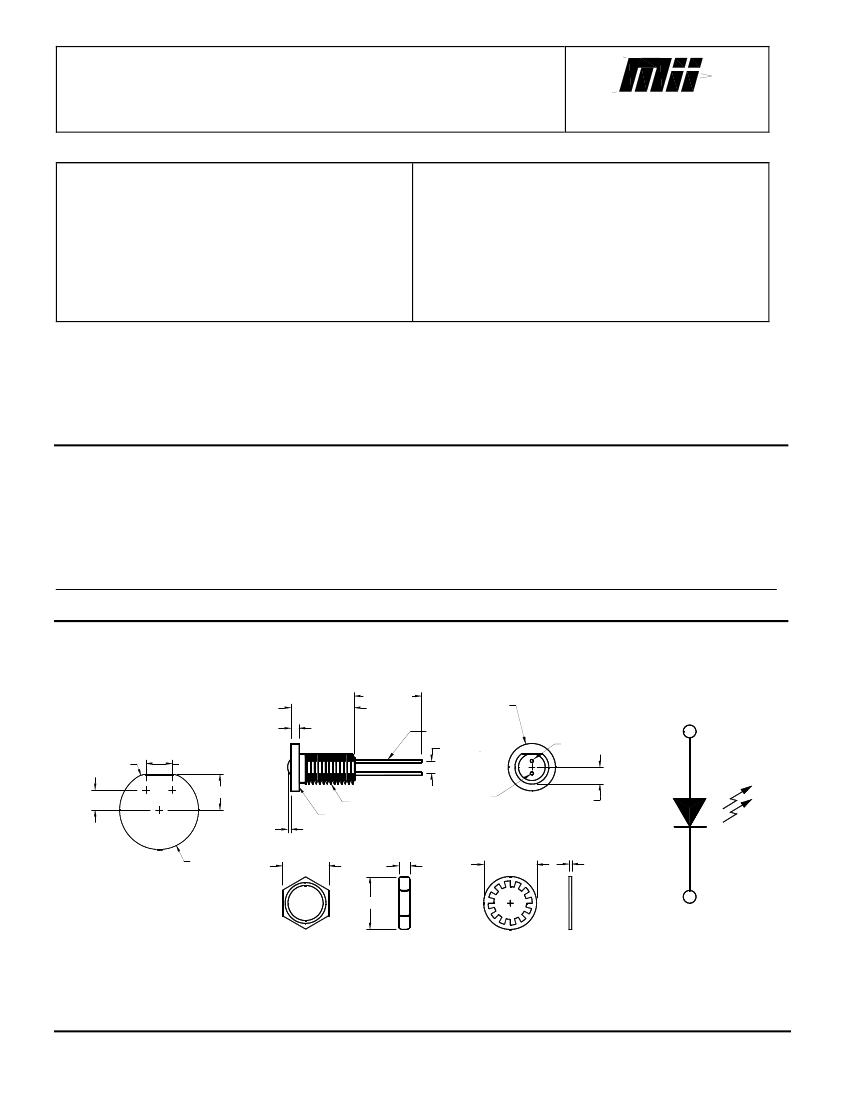

Indicator Dimensions

Panel Mount Dimensions

Schematic Diagram

0.520 [13.21]

0.500 [12.70]

0.583 [14.81]

0.500 [12.55]

Ø0.388 [9.86]

Ø0.373 [9.47]

CATHODE

0.105 [2.67]

0.095 [2.41]

CATHODE

PANEL MOUNT LED CUT-OUT

2X R0.062 [R1.57]

0.105 [2.67]

0.070 [1.78]

0.060 [1.52]

0.143 [3.63]

0.081 [2.06]

0.312-32 UNF-2A

ALODINE

0.045 [1.14] NOM

Ø0.028 [0.71]

Ø0.022 [0.56]

0.139 [3.53]

0.133 [3.38]

Ø0.317 [Ø8.05]

0.372 [9.45]

0.089 [2.26]

0.425 [10.80]

0.021 [0.53]

ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]

0.420 [10.67]

NOTES:

1. ALL EXTERNAL METAL SURFACES OF THE PACKAGE

ARE BLACK ANODIZED EXCEPT FOR THE ALODINE

AREA OF THE FLANGE AND THE GOLD-PLATED LEADS.

2. MOUNTING HARDWARE WHICH INCLUDES ONE LOCK

WASHER AND ONE HEX NUT IS INCLUDED WITH EACH

PANEL MOUNTABLE HERMETIC SOLID STATE LAMP.

MICROPAC INDUSTRIES, INC. OPTOELECTRONIC PRODUCTS DIVISION



725 E.Walnut St., Garland, TX 75040



(972)272-3571



Fax (972)487-6918

www.micropac.com

E-MAIL: OPTOSALES @ MICROPAC.COM

62040-313 Related Products

	62040-313	62040-113	62040-112	62040-111	62040-211	62040-212	62040-213	62040-311	62040-312
Description	Single Color LED, Green, Tinted Diffused, HERMETIC SEALED PACKAGE-2	Single Color LED, Red, Tinted Diffused, HERMETIC SEALED PACKAGE-2	Single Color LED, Red, Tinted Diffused, HERMETIC SEALED PACKAGE-2	Single Color LED, Red, Tinted Diffused, HERMETIC SEALED PACKAGE-2	Single Color LED, Yellow, Tinted Diffused, HERMETIC SEALED PACKAGE-2	Single Color LED, Yellow, Tinted Diffused, HERMETIC SEALED PACKAGE-2	Single Color LED, Yellow, Tinted Diffused, HERMETIC SEALED PACKAGE-2	Single Color LED, Green, Tinted Diffused, HERMETIC SEALED PACKAGE-2	Single Color LED, Green, Tinted Diffused, HERMETIC SEALED PACKAGE-2
package instruction	HERMETIC SEALED PACKAGE-2	HERMETIC SEALED PACKAGE-2	HERMETIC SEALED PACKAGE-2	HERMETIC SEALED PACKAGE-2	HERMETIC SEALED PACKAGE-2	HERMETIC SEALED PACKAGE-2	HERMETIC SEALED PACKAGE-2	HERMETIC SEALED PACKAGE-2	HERMETIC SEALED PACKAGE-2
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
color	GREEN	RED	RED	RED	YELLOW	YELLOW	YELLOW	GREEN	GREEN
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.035 A	0.035 A	0.035 A	0.035 A	0.035 A	0.035 A	0.035 A	0.035 A	0.035 A
Lens type	TINTED DIFFUSED	TINTED DIFFUSED	TINTED DIFFUSED	TINTED DIFFUSED	TINTED DIFFUSED	TINTED DIFFUSED	TINTED DIFFUSED	TINTED DIFFUSED	TINTED DIFFUSED
Nominal luminous intensity	20.0 mcd	20.0 mcd	20.0 mcd	20.0 mcd	20.0 mcd	20.0 mcd	20.0 mcd	20.0 mcd	20.0 mcd
Installation features	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	5.095 mm	5.095 mm	5.095 mm	5.095 mm	5.095 mm	5.095 mm	5.095 mm	5.095 mm	5.095 mm
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK
peak wavelength	570 nm	635 nm	635 nm	635 nm	585 nm	585 nm	585 nm	570 nm	570 nm
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal pitch	1.265 mm	1.265 mm	1.265 mm	1.265 mm	1.265 mm	1.265 mm	1.265 mm	1.265 mm	1.265 mm
Maker	Micropac	Micropac	Micropac	Micropac	Micropac	Micropac	Micropac	-	Micropac
Base Number Matches	1	1	1	-	1	1	1	1	-
