6-1825059-0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > switch> Dial the code switch> 6-1825059-0

6-1825059-0: DescriptionADF12STTR04=DIP S,FLUSH,SMT-GW; Categoryswitch Dial the code switch; File Size340KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

6-1825059-0 Overview

ADF12STTR04=DIP S,FLUSH,SMT-GW

6-1825059-0 Parametric

Parameter Name	Attribute value
Brand Name	TE Connectivity
Is it Rohs certified?	conform to
Maker	TE Connectivity
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
body width	7.5 mm
body height	3.61 mm
Body length or diameter	32.51 mm
Maximum contact current (DC)	0.1 A
Contact (DC) maximum rated R load	.1A@24VDC
Maximum contact voltage (DC)	24 V
Electrical life	1000 Cycle(s)
Installation features	SURFACE MOUNT-STRAIGHT
Number of switching segments	12
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
method of packing	TAPE AND REEL; TUBE
seal	TAPE SEALED
surface mount	NO
Switch action	LATCHED
switch function	SPST
Switch type	SLIDE DIP SWITCH
Termination type	SOLDER
Base Number Matches	1

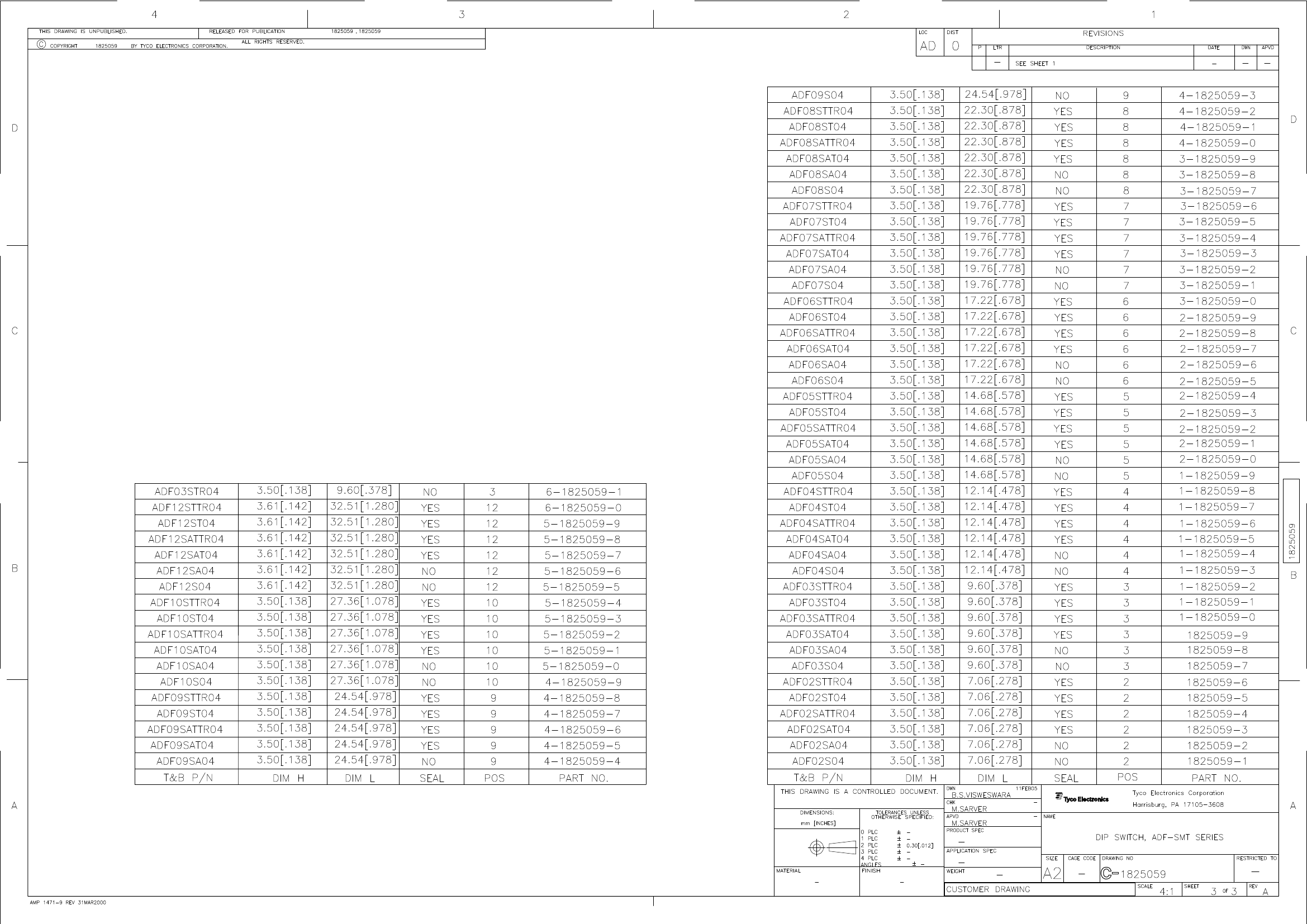

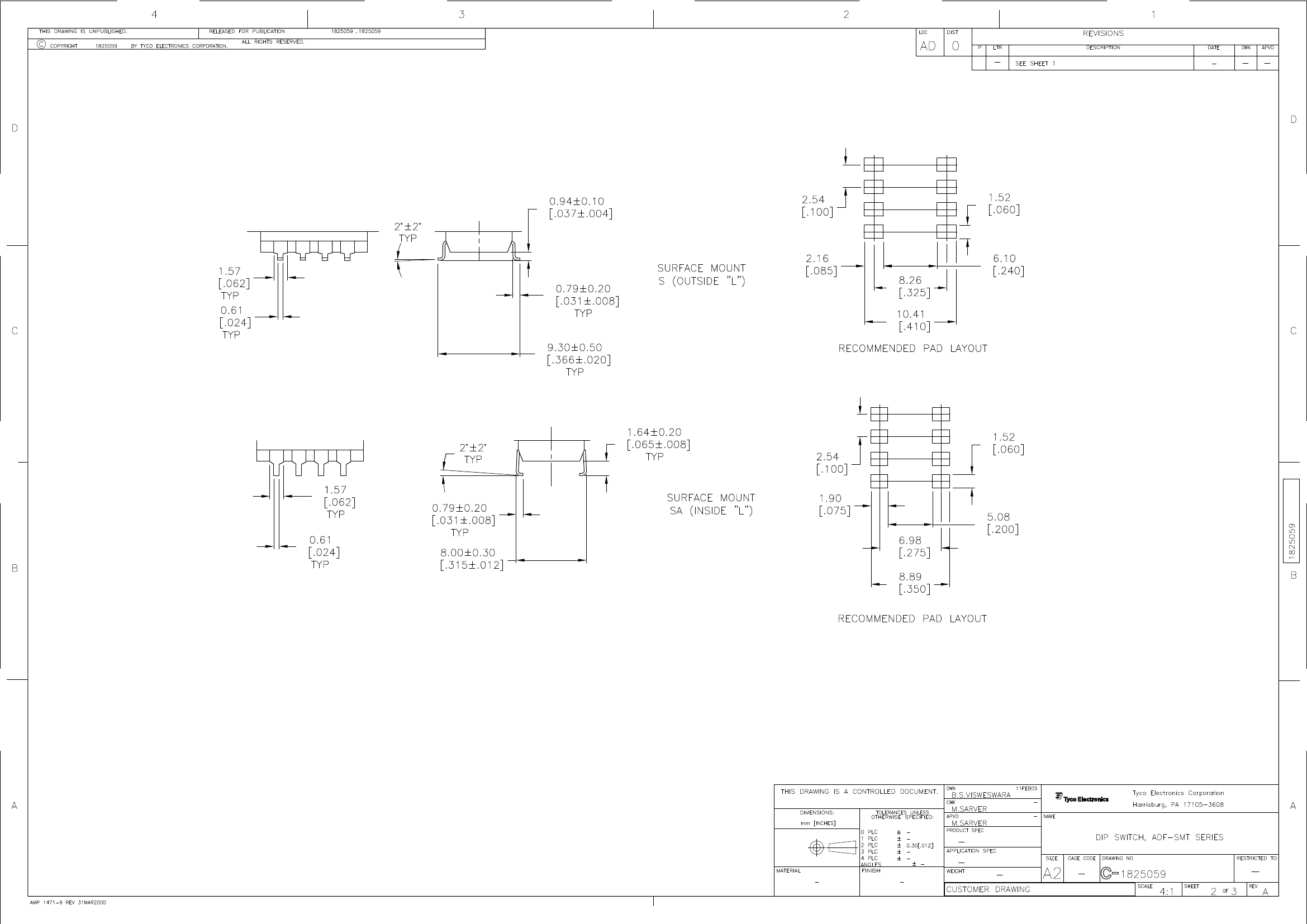

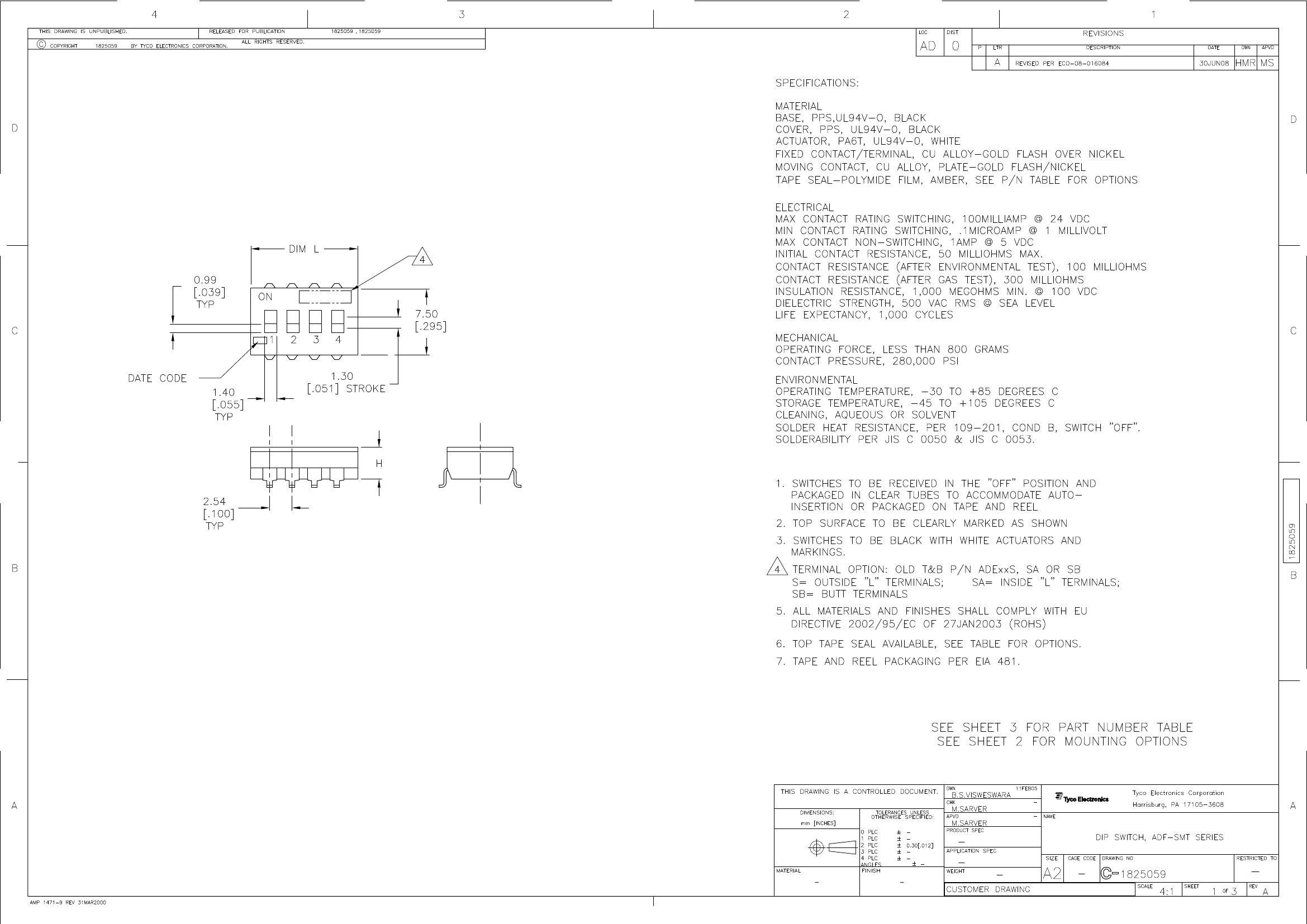

Preview

Download Datasheet

View All
