N74S181N datasheet, PDF - EEWORLD Datasheet

N74S181N: DescriptionArithmetic Logic Unit, S Series, 4-Bit, Bipolar, PDIP24; Categorylogic; File Size248KB，8 Pages; ManufacturerSignetics

Download Datasheet Parametric Compare View All

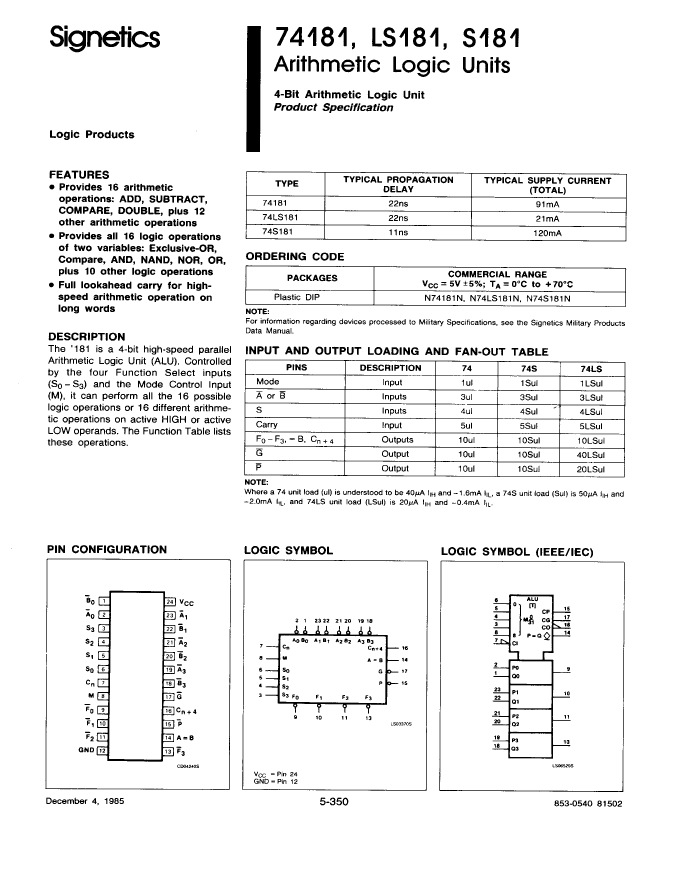

N74S181N Overview

Arithmetic Logic Unit, S Series, 4-Bit, Bipolar, PDIP24

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Signetics
package instruction	DIP, DIP24,.6
Reach Compliance Code	unknown
Other features	CAPABLE OF 16 LOGIC & ARITHMETIC OPERATIONS
series	S
JESD-30 code	R-PDIP-T24
JESD-609 code	e0
Logic integrated circuit type	ARITHMETIC LOGIC UNIT
Number of digits	4
Number of functions	1
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	220 mA
propagation delay (tpd)	30 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

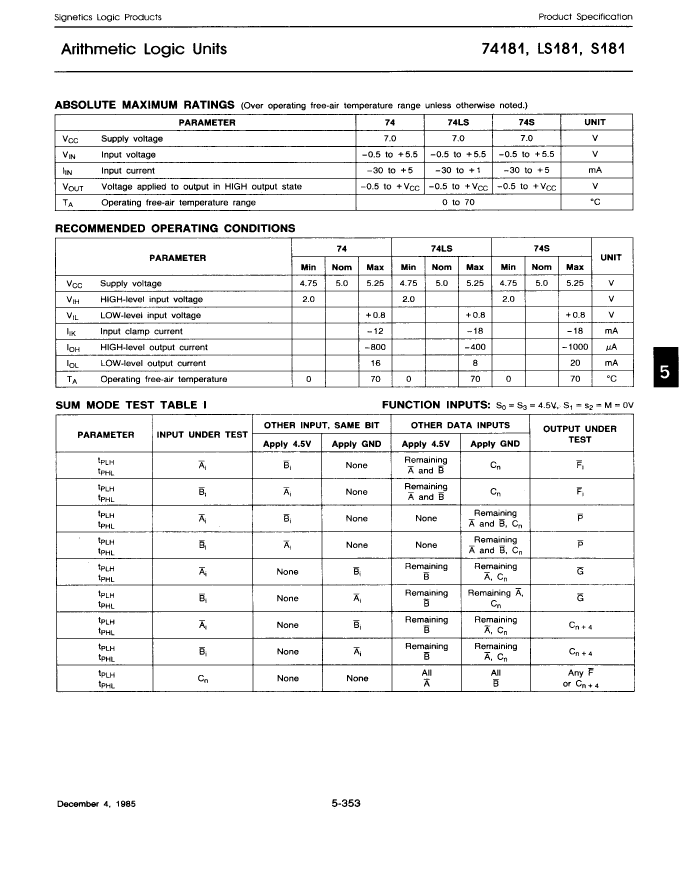

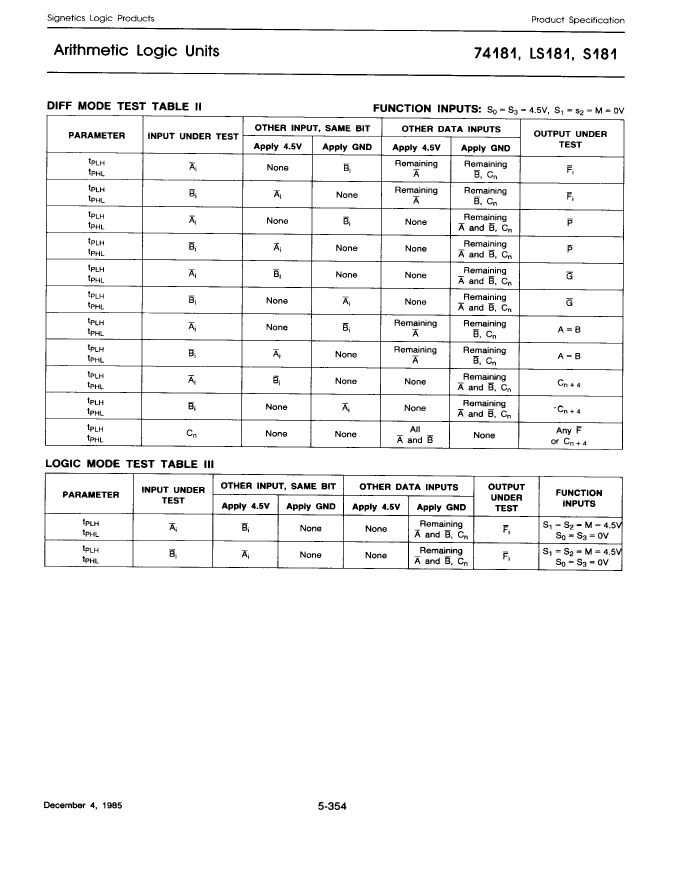

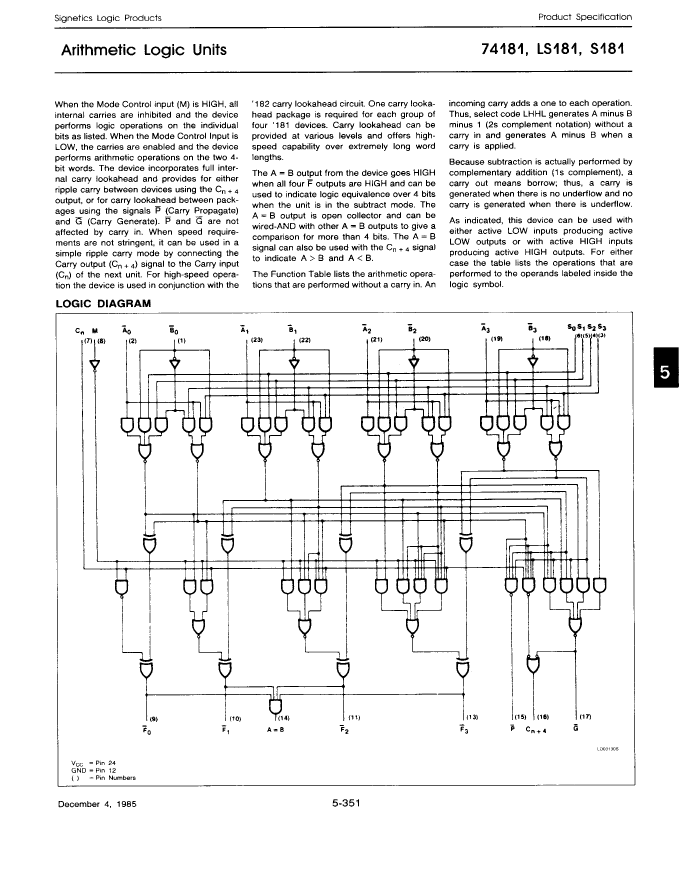

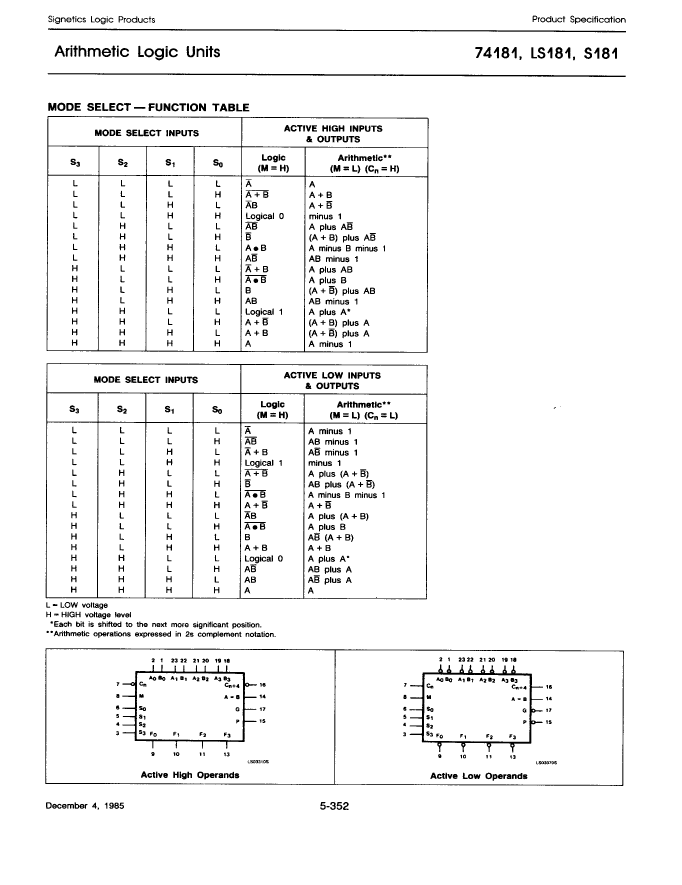

This Material Copyrighted By Its Respective Manufacturer

	N74S181N	N74181N
Description	Arithmetic Logic Unit, S Series, 4-Bit, Bipolar, PDIP24	Arithmetic Logic Unit, 74 Series, 4-Bit, Bipolar, PDIP24
Is it Rohs certified?	incompatible	incompatible
Maker	Signetics	Signetics
package instruction	DIP, DIP24,.6	DIP, DIP24,.6
Reach Compliance Code	unknown	unknown
Other features	CAPABLE OF 16 LOGIC & ARITHMETIC OPERATIONS	CAPABLE OF 16 LOGIC & ARITHMETIC OPERATIONS
series	S	74
JESD-30 code	R-PDIP-T24	R-PDIP-T24
JESD-609 code	e0	e0
Logic integrated circuit type	ARITHMETIC LOGIC UNIT	ARITHMETIC LOGIC UNIT
Number of digits	4	4
Number of functions	1	1
Number of terminals	24	24
Maximum operating temperature	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP24,.6	DIP24,.6
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Maximum supply current (ICC)	220 mA	140 mA
propagation delay (tpd)	30 ns	48 ns
Certification status	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	NO
technology	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Base Number Matches	1	1
