74HCT9114DB-T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> 74HCT9114DB-T

74HCT9114DB-T: DescriptionIC HCT SERIES, 9 1-INPUT INVERT GATE, PDSO20, Gate; Categorylogic; File Size99KB，5 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

74HCT9114DB-T Overview

IC HCT SERIES, 9 1-INPUT INVERT GATE, PDSO20, Gate

74HCT9114DB-T Parametric

Parameter Name	Attribute value
Maker	NXP
package instruction	SSOP,
Reach Compliance Code	unknown
series	HCT
JESD-30 code	R-PDSO-G20
length	7.2 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	INVERTER
Number of functions	9
Number of entries	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Output characteristics	OPEN-DRAIN
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
propagation delay (tpd)	47 ns
Certification status	Not Qualified
Maximum seat height	2 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	5.3 mm
Base Number Matches	1

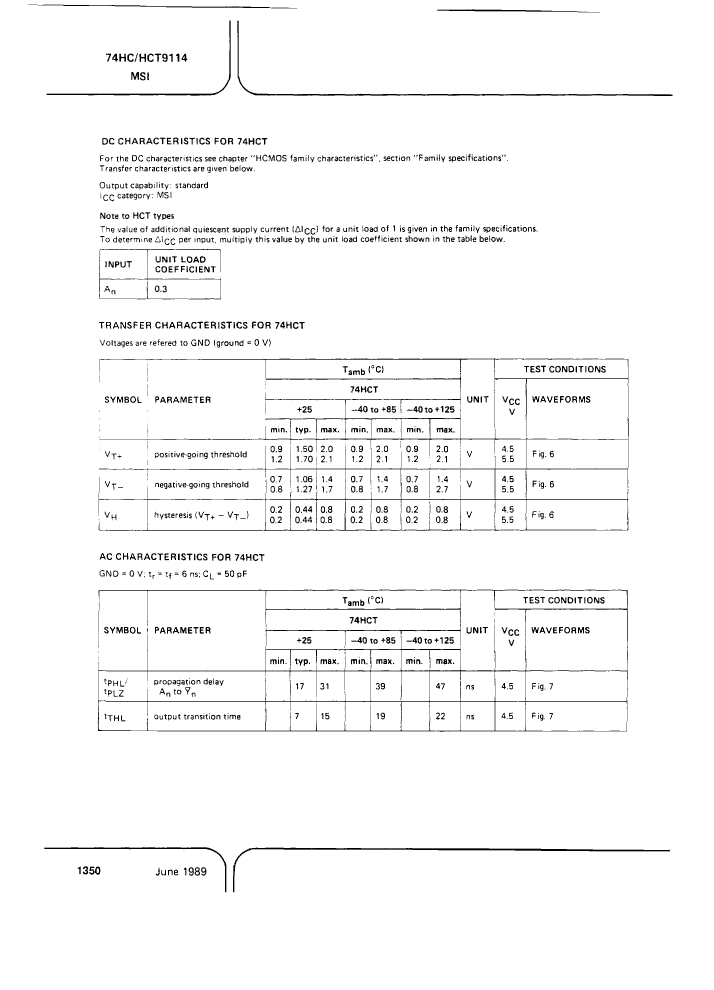

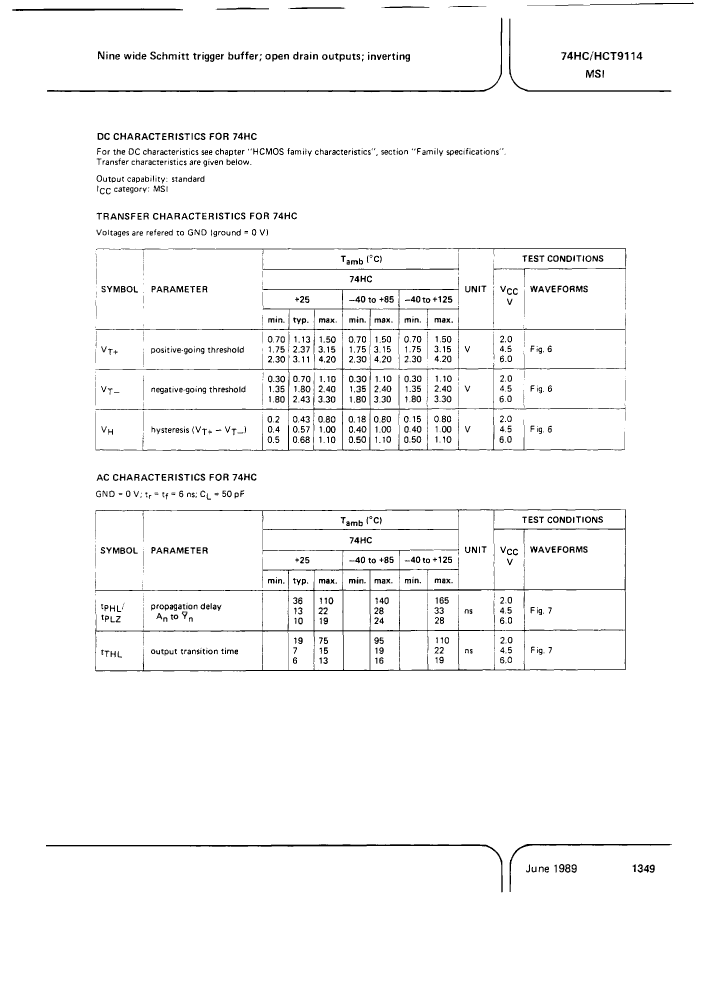

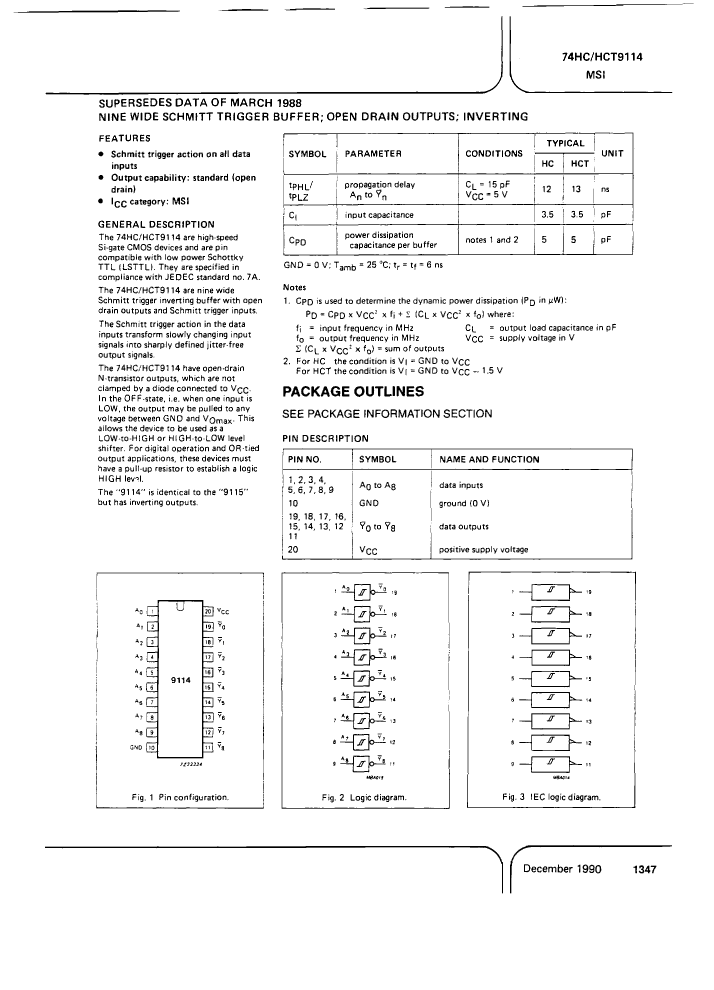

Preview

Download Datasheet

View All

74HCT9114DB-T Related Products

	74HCT9114DB-T	74HCT9114NB	74HCT9114PW	74HCT9114PW-T	RCWP0502158KFMS6	RCWP0502158KFMS669	RCWP0502158RFKEA	74HC9114PW-T	74HCT9114DB	74HC9114PW
Description	IC HCT SERIES, 9 1-INPUT INVERT GATE, PDSO20, Gate	IC HCT SERIES, 9 1-INPUT INVERT GATE, PDIP20, Gate	IC HCT SERIES, 9 1-INPUT INVERT GATE, PDSO20, Gate	IC HCT SERIES, 9 1-INPUT INVERT GATE, PDSO20, Gate	RESISTOR, METAL GLAZE/THICK FILM, 0.05 W, 1 %, 300 ppm, 158000 ohm, SURFACE MOUNT, 0502, CHIP	RESISTOR, METAL GLAZE/THICK FILM, 0.05 W, 1 %, 300 ppm, 158000 ohm, SURFACE MOUNT, 0502, CHIP	RESISTOR, METAL GLAZE/THICK FILM, 0.05 W, 1 %, 100 ppm, 158 ohm, SURFACE MOUNT, 0502, CHIP, ROHS COMPLIANT	IC HC/UH SERIES, 9 1-INPUT INVERT GATE, PDSO20, Gate	IC HCT SERIES, 9 1-INPUT INVERT GATE, PDSO20, Gate	IC HC/UH SERIES, 9 1-INPUT INVERT GATE, PDSO20, Gate
package instruction	SSOP,	DIP,	TSSOP,	TSSOP,	SMT, 0502	SMT, 0502	SMT, 0502	TSSOP,	SSOP,	TSSOP,
Reach Compliance Code	unknown	unknown	unknown	unknown	compliant	compliant	compliant	unknown	unknown	unknown
Number of terminals	20	20	20	20	2	2	2	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	155 °C	155 °C	155 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-65 °C	-65 °C	-65 °C	-40 °C	-40 °C	-40 °C
Package form	SMALL OUTLINE, SHRINK PITCH	IN-LINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMT	SMT	SMT	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
surface mount	YES	NO	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	CMOS	CMOS	CMOS
Maker	NXP	NXP	NXP	NXP	-	-	-	NXP	NXP	NXP
series	HCT	HCT	HCT	HCT	-	-	-	HC/UH	HCT	HC/UH
JESD-30 code	R-PDSO-G20	R-PDIP-T20	R-PDSO-G20	R-PDSO-G20	-	-	-	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20
length	7.2 mm	26.73 mm	6.5 mm	6.5 mm	-	-	-	6.5 mm	7.2 mm	6.5 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	-	-	-	50 pF	50 pF	50 pF
Logic integrated circuit type	INVERTER	INVERTER	INVERTER	INVERTER	-	-	-	INVERTER	INVERTER	INVERTER
Number of functions	9	9	9	9	-	-	-	9	9	9
Number of entries	1	1	1	1	-	-	-	1	1	1
Output characteristics	OPEN-DRAIN	OPEN-DRAIN	OPEN-DRAIN	OPEN-DRAIN	-	-	-	OPEN-DRAIN	OPEN-DRAIN	OPEN-DRAIN
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	-	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	DIP	TSSOP	TSSOP	-	-	-	TSSOP	SSOP	TSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	-	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
propagation delay (tpd)	47 ns	47 ns	47 ns	47 ns	-	-	-	33 ns	47 ns	33 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	-	-	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2 mm	4.2 mm	1.1 mm	1.1 mm	-	-	-	1.1 mm	2 mm	1.1 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	-	-	-	6 V	5.5 V	6 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	-	-	-	2 V	4.5 V	2 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	-	-	-	5 V	5 V	5 V
Temperature level	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	-	-	-	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE
Terminal form	GULL WING	THROUGH-HOLE	GULL WING	GULL WING	-	-	-	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	2.54 mm	0.65 mm	0.65 mm	-	-	-	0.65 mm	0.65 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	-	-	-	DUAL	DUAL	DUAL
width	5.3 mm	7.62 mm	4.4 mm	4.4 mm	-	-	-	4.4 mm	5.3 mm	4.4 mm
Base Number Matches	1	1	1	1	-	-	-	1	1	-
