DB25FXLRMXLRF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> DB25FXLRMXLRF

DB25FXLRMXLRF: DescriptionInterconnection Device, ROHS COMPLIANT; CategoryThe connector; File Size311KB，1 Pages; ManufacturerSwitchcraft; Environmental Compliance

Download Datasheet Parametric View All

DB25FXLRMXLRF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DB25FXLRMXLRF	-	-	View	Buy Now

DB25FXLRMXLRF Overview

Interconnection Device, ROHS COMPLIANT

DB25FXLRMXLRF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Switchcraft
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Is Samacsys	N
Connector type	INTERCONNECTION DEVICE
Base Number Matches	1

Preview

Download Datasheet

View All

CHANNEL 1

CHANNEL 3

CHANNEL 5

CHANNEL 2

3-PIN XLR MALE

(4) PLACES

EMPTY HOLE

NO PIN

13 12 11 10

CHANNEL 4

CHANNEL 6

CHANNEL 7

25 24 23 22 21 20 19 18 17 16 15 14

0.13

TYP

HEAT SHRINK TUBING

8 PAIR, 26 AWG CABLE

0.54

1.852

REF

2.00

6.00±0.50

2.09

25-PIN FEMALE DSUB

METAL SHELL, #4-40 SCREW-LOCKS

DB25F PIN-OUT VIEW

DB25F

BREAKOUT CABLE

SEE NOTE 1

0.62

H.S. TUBING PRINTED

WITH CHANNEL NUMBER

(8) PLACES

3-PIN XLR FEMALE

(4) PLACES

NOTES:

1. BREAKOUT CABLE LENGTH: 18 +/- 0.75 INCHES. SEE TABLE FOR COLOR.

2. THIS PRODUCT COMES COILED AND PACKAGED IN BAG.

3. MATERIALS:

XLR CONNECTORS:

HANDLE - ZINC ALLOY, NICKEL PLATED

HOUSING AND LATCH - ZINC ALLOY, NICKEL PLATED

INSULATOR - THERMOPLASTIC, GREEN

SOCKET CONTACTS AND PINS - SPECIAL COPPER ALLOY, SILVER PLATED

H.S. TUBING - THERMOPLASTIC

DSUB:

CABLE CLAMP - COPPER, NICKEL PLATED

SHELL - STEEL, TIN PLATED

INSULATORS - THERMOPLASTIC

SCREW LOCKS - BRASS, NICKEL PLATED

UNLESS OTHERWISE SPECIFIED

1. ALL DIMENSIONS IN INCHES

- TWO PLACE DECIMALS

- THREE PLACE DECIMALS

REV

SIZE

FINISH

WIDTH

MULT

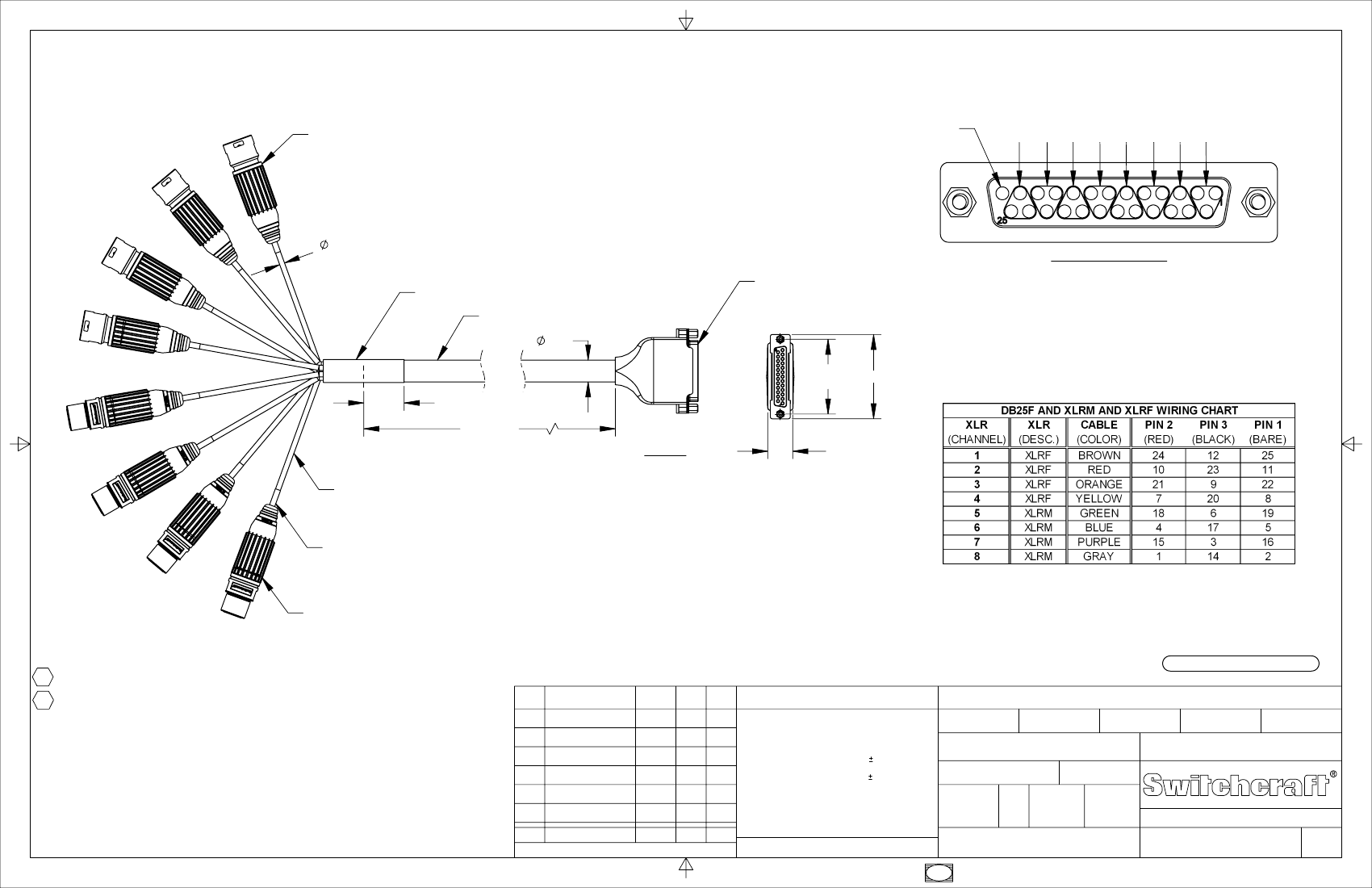

CUSTOMER DRAWING

THIS DRAWING DESCRIBES A DESIGN CONSIDERED PROPRIETARY IN NATURE, DEVELOPED AND MANUFACTURED

BY SWITCHCRAFT INC. AND IS RELEASED ON A CONFIDENTIAL BASIS FOR IDENTIFICATION PURPOSES ONLY.

LBS/M

MATERIAL

SPEC No.

CHANNEL 8

TEMPER

0.02

0.005

SPEC No.

FIRST USED ON

DATE DRAWN

CHKD

SCALE

1:2

26637

26568

ECO NUMBER

10/4/10

7/20/10

DATE

TJK

APVD

7/15/09

JGK

12/1/10

TJK

12/1/10

PART No.

APVD

SHEET

REV

4. THIS PRODUCT IS RoHS COMPLIANT.

REVISIONS

DO NOT SCALE DRAWING

NAME

DB25F TO 4-XLRM & 4-XLRF, RoHS

DB25FXLRMXLRF

SolidWorks CAD File
