HSP45102SC-40

Description
Numeric Controlled Oscillator, 1-Bit, CMOS, PDSO28
CategoryMicrocontrollers and processors
File Size36KB,1 Pages
ManufacturerHarris
Websitehttp://www.harris.com/

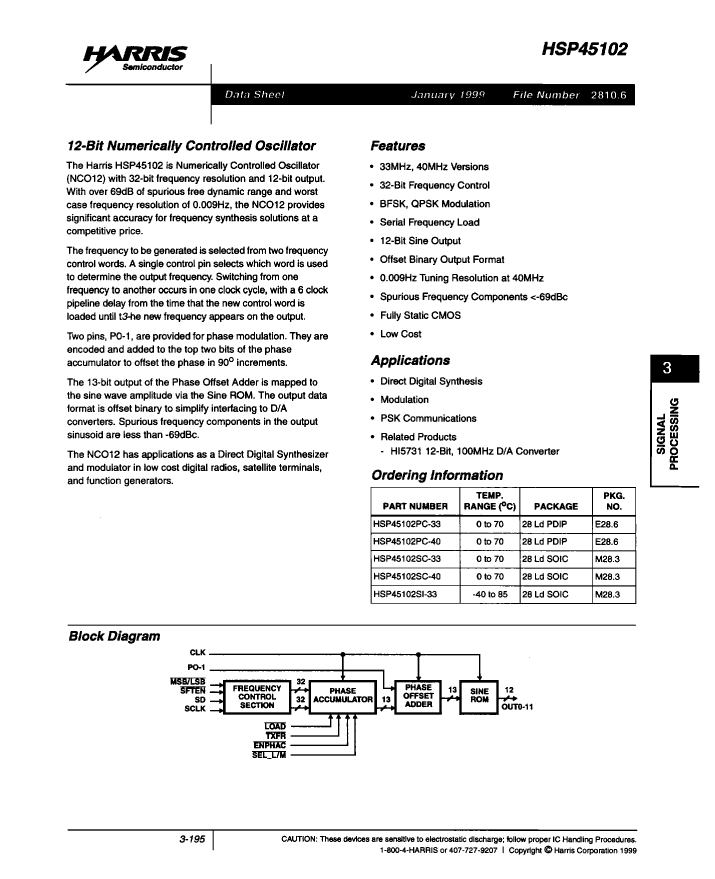

Download Datasheet Parametric Compare View All

HSP45102SC-40 Overview

Numeric Controlled Oscillator, 1-Bit, CMOS, PDSO28

HSP45102SC-40 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerHarris
package instructionSOP, SOP28,.4
Reach Compliance Codeunknown
ECCN code3A991.A.2
Is SamacsysN
boundary scanNO
maximum clock frequency40 MHz
External data bus width1
JESD-30 codeR-PDSO-G28
JESD-609 codee0
low power modeYES
Number of terminals28
Maximum operating temperature70 °C
Minimum operating temperature
Output data bus width12
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Encapsulate equivalent codeSOP28,.4
Package shapeRECTANGULAR
Package formSMALL OUTLINE
power supply5 V
Certification statusNot Qualified
Maximum slew rate99 mA
Maximum supply voltage5.25 V
Minimum supply voltage4.75 V
Nominal supply voltage5 V
surface mountYES
technologyCMOS
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formGULL WING
Terminal pitch1.27 mm
Terminal locationDUAL
uPs/uCs/peripheral integrated circuit typeDSP PERIPHERAL, NUMERIC CONTROLLED OSCILLATOR
Base Number Matches1

HSP45102SC-40 Related Products

HSP45102SC-40 HSP45102PC-33 HSP45102SC-33 HSP45102SI-33 HSP45102PC-40
Description Numeric Controlled Oscillator, 1-Bit, CMOS, PDSO28 Numeric Controlled Oscillator, 1-Bit, CMOS, PDIP28 Numeric Controlled Oscillator, 1-Bit, CMOS, PDSO28 Numeric Controlled Oscillator, 1-Bit, CMOS, PDSO28 Numeric Controlled Oscillator, 1-Bit, CMOS, PDIP28
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible
Maker Harris Harris Harris Harris Harris
Reach Compliance Code unknown unknown unknown unknown unknow
ECCN code 3A991.A.2 3A991.A.2 3A991.A.2 3A991.A.2 3A991.A.2
boundary scan NO NO NO NO NO
maximum clock frequency 40 MHz 33.33 MHz 33.33 MHz 33.33 MHz 40 MHz
External data bus width 1 1 1 1 1
JESD-30 code R-PDSO-G28 R-PDIP-T28 R-PDSO-G28 R-PDSO-G28 R-PDIP-T28
JESD-609 code e0 e0 e0 e0 e0
low power mode YES YES YES YES YES
Number of terminals 28 28 28 28 28
Maximum operating temperature 70 °C 70 °C 70 °C 85 °C 70 °C
Output data bus width 12 12 12 12 12
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code SOP DIP SOP SOP DIP
Encapsulate equivalent code SOP28,.4 DIP28,.6 SOP28,.4 SOP28,.4 DIP28,.6
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE IN-LINE SMALL OUTLINE SMALL OUTLINE IN-LINE
power supply 5 V 5 V 5 V 5 V 5 V
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Maximum slew rate 99 mA 99 mA 99 mA 99 mA 99 mA
Maximum supply voltage 5.25 V 5.25 V 5.25 V 5.25 V 5.25 V
Minimum supply voltage 4.75 V 4.75 V 4.75 V 4.75 V 4.75 V
Nominal supply voltage 5 V 5 V 5 V 5 V 5 V
surface mount YES NO YES YES NO
technology CMOS CMOS CMOS CMOS CMOS
Temperature level COMMERCIAL COMMERCIAL COMMERCIAL INDUSTRIAL COMMERCIAL
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form GULL WING THROUGH-HOLE GULL WING GULL WING THROUGH-HOLE
Terminal pitch 1.27 mm 2.54 mm 1.27 mm 1.27 mm 2.54 mm
Terminal location DUAL DUAL DUAL DUAL DUAL
uPs/uCs/peripheral integrated circuit type DSP PERIPHERAL, NUMERIC CONTROLLED OSCILLATOR DSP PERIPHERAL, NUMERIC CONTROLLED OSCILLATOR DSP PERIPHERAL, NUMERIC CONTROLLED OSCILLATOR DSP PERIPHERAL, NUMERIC CONTROLLED OSCILLATOR DSP PERIPHERAL, NUMERIC CONTROLLED OSCILLATOR
package instruction SOP, SOP28,.4 DIP, DIP28,.6 - - DIP, DIP28,.6
Is Samacsys N N N - -
Base Number Matches 1 1 1 - -
