8812485300 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > relay> 8812485300

8812485300: DescriptionDry Reed Relay, 4PST, Momentary, 0.046A (Coil), 12VDC (Coil), 550mW (Coil), 1A (Contact), 1000VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount; Categoryrelay; File Size142KB，2 Pages; ManufacturerStandex

Download Datasheet Parametric View All

8812485300 Overview

Dry Reed Relay, 4PST, Momentary, 0.046A (Coil), 12VDC (Coil), 550mW (Coil), 1A (Contact), 1000VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount

8812485300 Parametric

Parameter Name	Attribute value
Maker	Standex
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
body width	17.8 mm
body height	10 mm
Body length or diameter	33 mm
Maximum coil current (DC)	0.046 A
Coil operating voltage (DC)	8.4 V
Coil power	550 mW
Coil release voltage (DC)	0.77 V
Coil resistance	288 Ω
Maximum coil voltage (DC)	12 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	1A@1000VAC
Maximum contact current (AC)	1 A
Maximum contact current (DC)	1 A
Contact (DC) maximum rated R load	1A@1000VDC
Maximum contact voltage (AC)	1000 V
Maximum contact voltage (DC)	1000 V
Contact/Output Power Type	AC/DC
JESD-609 code	e3
Manufacturer's serial number	8812485300
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	1.1 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
method of packing	TUBE
physical size	33mm x 17.8mm x 10mm
Relay action	MOMENTARY
Relay function	4PST
Relay type	DRY REED RELAY
release time	0.1 ms
surface mount	NO
Terminal surface	TIN
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

Europe: +49 / 7731 8399 0

USA:

Asia:

+1 / 508 295 0771

+852 / 2955 1682

| Email: info@meder.com

| Email: salesusa@meder.com

| Email: salesasia@meder.com

Item No.:

8812485300

Item:

BE12-4A85-P

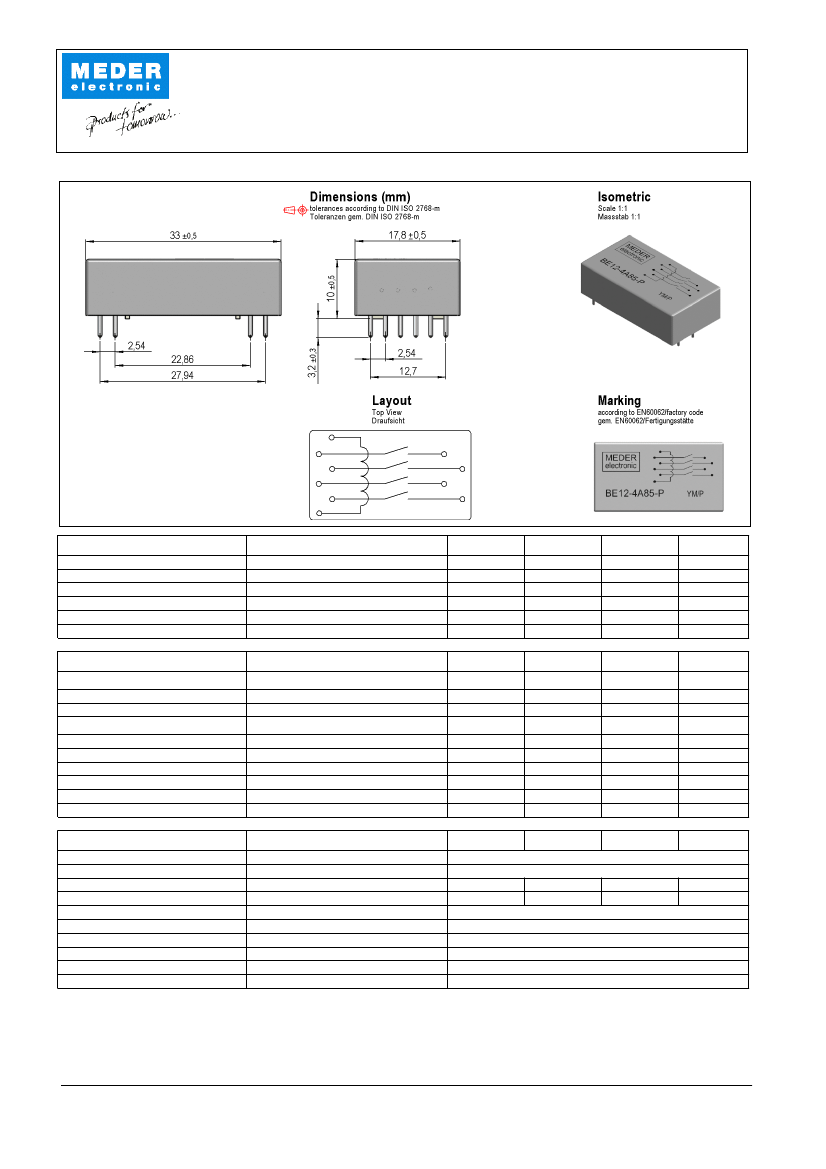

Coil Data at 20 °

Coil resistance

Coil voltage

Rated power

Coil current

Pull-In voltage

Drop-Out voltage

Conditions

Min

Typ

Max

Unit

Contact Data 85

Contact rating

Switching voltage

Switching current

Carry current

Contact resistance static

Insulation resistance

Breakdown voltage (<20 AT)

Operate time incl. bounce

Release time

Capacitance

Conditions

not to exceed their individual max.'s

Min

Typ

Max

Unit

DC or Peak AC

! "

100% Duty Cycle

Measured with 40% overdrive

RH <45 %, 100 V test voltage

measured with 40% overdrive

measured with no coil excitation

@ 10 kHz across open switch

Special Product Data

Number of contacts

Contact - form

Dielectric Strength Coil/Contact

Insulation resistance Coil/Contact

Case colour

Housing material

Sealing compound

Connection pins

Magnetic Shield

Reach / RoHS conformity

Conditions

according to IEC 255-5

RH <45%, 200 VDC measuring voltage

Min

Typ

A - NO

Max

Unit

gray

Polycarbonat

Polyurethan

Copper alloy tin plated

yes

Modifications in the sense of technical progress are reserved

Designed at:

Last Change at:

12.07.10

Last Change by:

WKOVACS

Approval at:

23.07.10

Approval by:

KOLBRICH

Version:
