The PCIB Series encompasses all of the features of the PCIH Series in a smaller package. Reliability, high current
capacity and many system management connections make the PCIB Series ideal for use in telecom, computer,
information systems and industrial applications.

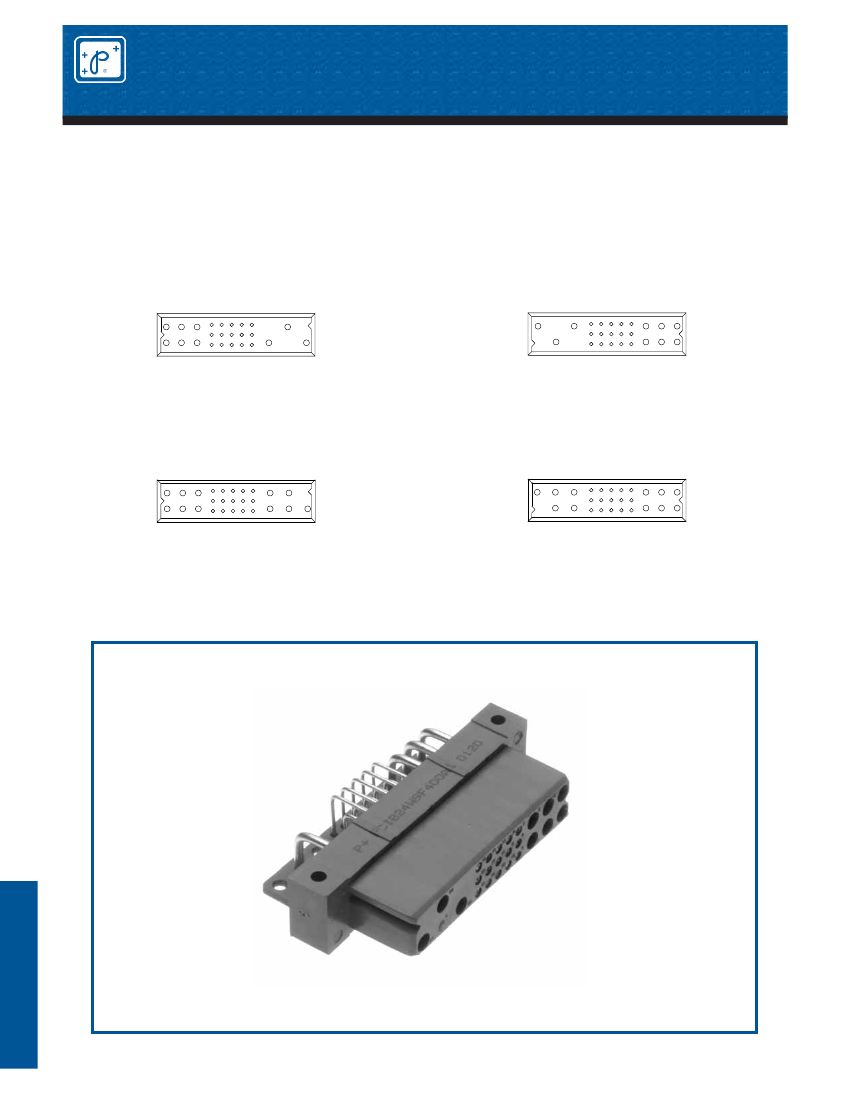

PCIB SERIES CONTACT VARIANTS
FACE VIEW OF MALE AND REAR VIEW OF FEMALE
1
2
3
5
7 10 13 16 19
8 11 14 17 20
9
12
15 18 21
22
23
24
24
23
22
21 18 15 12
20 17 14 11
19
16 13 10
9
8
7
6
4
2
4
6
5
3
1
PCIB24W9 VARIANT
PCIB VARIANT
PCIB 24w9
PCIB24W9R VARIANT (Inverted Termination)
PCIB VARIANT (inverted)
PCIB 24w9
9 Size 16 Power Contacts and 15 Size 22 Signal Contacts
1
2
3
4
5
6
7 10 13 16 19
8 11 14 17 20
9 12 15 18 21
22
24
26
25
24
23
22
21 18 15 12
20 17 14
19 16 13
11
10
9
8
7
6
5
4
3
2
1
23
25
26
PCIB26W11 VARIANT
PCIB VARIANT
PCIB26W11R VARIANT (Inverted Termination)
PCIB VARIANT (inverted)
11 Size 16 Power Contacts and 15 Size 22 Signal Contacts
PCIB SERIES
71
DIMENSIONS ARE IN MILLIMETERS [INCHES].
ALL DIMENSIONS ARE SUBJECT TO CHANGE.
C
ompact
P
ower
C
onnectors
MATERIALS AND FINISHES:
Insulator:
Contacts:
TECHNICAL
CHARACTERISTICS
Positronic Industries
connectpositronic.com
MECHANICAL CHARACTERISTICS:
Glass-filled polyester, UL 94V-0,
blue color.
Size 16 contacts: High conduc-
tivity precision-machined
copper alloy. Size 22 contacts:
Precision-machined copper
alloy. Plating: gold flash over
nickel. Other plating options
available, refer to
Step 7 on page 89.
Steel, zinc plated.
Stainless steel, passivated.
Removable Contact Retention
in Connector Body:
Size 16 Contacts:
Size 22 Contacts:
Fixed Contacts:
Blind Mating System:
Male and female connector
bodies provide “lead-in” for
1.3 mm [0.050 inch] diametral
misalignment.
Provided by connector body
design.
Install contact from rear of
insulator; release from front
of insulator. Size 16 and 22
female contacts feature
“Closed Entry” design for
highest reliability.
Polarization:
Removable Contacts:
Mounting Screws:
Jackscrews:
ELECTRICAL CHARACTERISTICS:
PCIB Contact Current Ratings, per UL 1977
See Temperature Rise Curves on page 5 for details.
PCIB24W9:
Size 16 Power Contacts:
Positions 22, 23, and 24:
45 amperes continuous,
all contacts under load.
Positions 1through 6:
35 amperes continuous,
all contacts under load.
Size 22 Signal Contacts:
3 amperes nominal rating.
PCIB26W11:
Size 16 Power Contacts:
34 amperes continuous,
all contacts under load.
Size 22 Signal Contacts:
3 amperes nominal rating.
Initial Contact Resistance; maximum:
Size 16 Contact:
0.0007 ohms maximum.
Size 22 Contact:
0.004 ohms maximum.
Per IEC 512-2, Test 2b.
Insulator Resistance:
Voltage Proof:
PCIB24W9:
Contacts 22, 23 and 24:
Contacts 1 through 6:
Contacts 7 through 21:
PCIB26W11:
Contacts 1 through 6 and
22 through 26:
Contacts 7 through 21:
Creepage and Clearance
Distance; minimum:
PCIB24W9:
Contact 24 to Contact 22:
Contact 23 to Contact 22:
Contact 24 to Signal Contacts:
Contact 23 to Signal Contacts:
Contact 24 to Contact 23:
Contact 22 to Signal Contacts:
PCIB26W11:
Contact 22 to Signal Contacts:
Working Voltage:
PCIB24W9:
Contacts 22, 23 and 24:
Contacts 1 through 6:
Contacts 7 through 21:
PCIB26W11:
Contacts 1 through 6 and
22 through 26:
Contacts 7 through 21:
5 G ohms per IEC 512-2,
Test 3a.
67 N [15 lbs.]
27 N [6 lbs.]
Printed board terminations,
both straight and right angle
(90º). Size 16 female contacts
feature “Closed Entry” design.
Size 22 feature rugged “Robi-D
Open Entry” contact design.
“Closed Entry” contacts avail-
able, consult Technical Sales.
Fixed Contact Retention
in Connector Body:
Size 16 Contacts:
Size 22 Contacts:
Resistance to Solder Heat:
45 N [10 lbs.]
27 N [6 lbs.]
260˚C [500˚F] for 10 seconds
duration per IEC 512-6, Test
12e, 25-watt soldering iron.
3,000 V r.m.s.
1,500 V r.m.s.
1,000 V r.m.s.
1,500 V r.m.s.
1,000 V r.m.s.
Sequential Contact Mating System:
PCIB24W9:
First mate contact 22 and last
mate contact position 7.
PCIB26W11:
Last mate contact position 7.
Consult Technical Sales for customer specified sequential mating.
Safety “Recessed in
Insulator” Contacts:
The following size 16 contacts
are recessed 5.00 mm [0.197
inch] below the face of the
female connector insulator per
safety requirements.
Contact positions 23 and 24.
None
Size 16 and 22 contacts are
available with Compliant
Contact Terminations.
Mounting holes provided in
connector body for printed
board mounting. Self-tapping
screws are available.
250 couplings, minimum.
-55˚C to +125˚C.
PCIB24W9:
PCIB26W11:
3.2mm
3.2mm
6.4mm
6.4mm
2.5mm
2.0mm
[0.126
[0.126
[0.252
[0.252
[0.098
[0.079
inch]
inch]
inch]
inch]
inch]
inch]
Compliant Terminations:
Printed Board Mounting:
2.0mm [0.079 inch]
Mechanical Operations:
1,000 V r.m.s.
500 V r.m.s.
333 V r.m.s.
500 V r.m.s.
333 V r.m.s.
Working Temperature:
R
O
NIC
INDU
S
U.L. Recognized File #E49351
CSA Recognized File #LR54219
Di
rec
tive
2002
/9
5/
EC
RoHS
Compliant
For RoHS options
see page 89.
DIMENSIONS ARE IN MILLIMETERS [INCHES].
ALL DIMENSIONS ARE SUBJECT TO CHANGE.
72
PCIB SERIES
CLIMATIC CHARACTERISTICS:
IT
TR
POS
IES
r
•
pe
•
EU
C
ompact
P
ower
C
onnectors

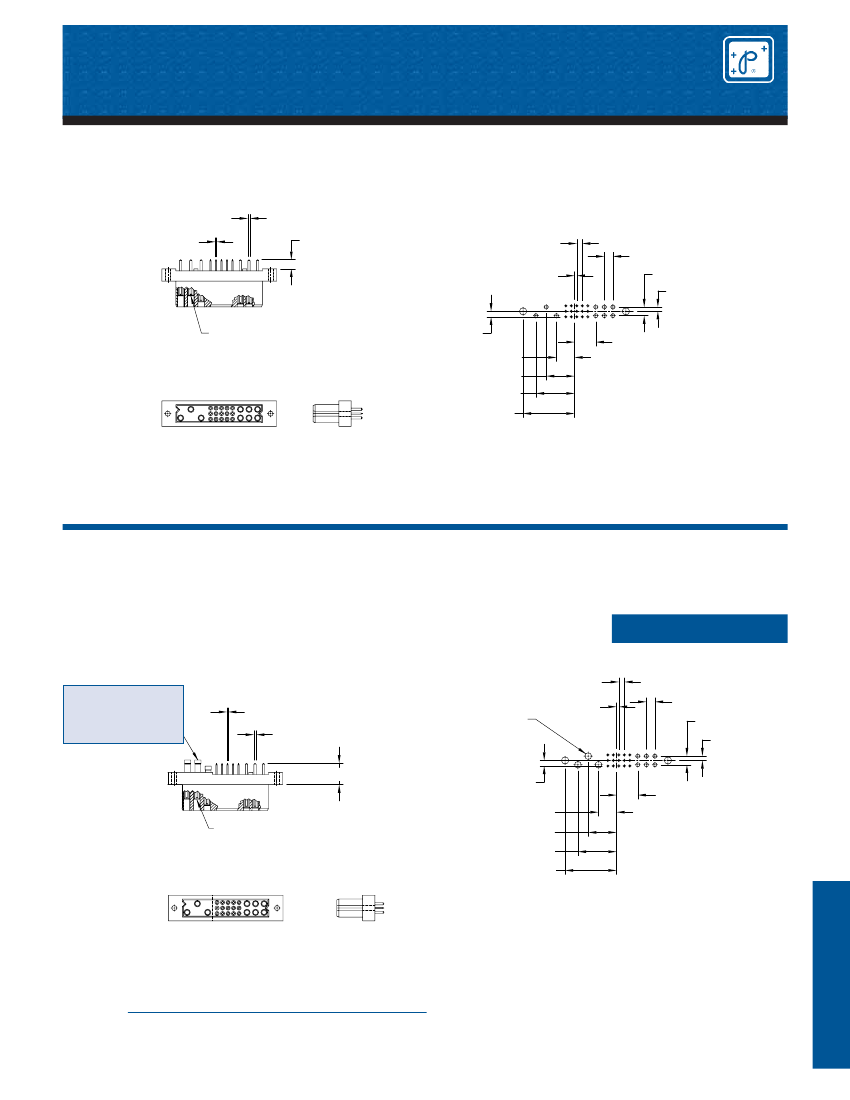

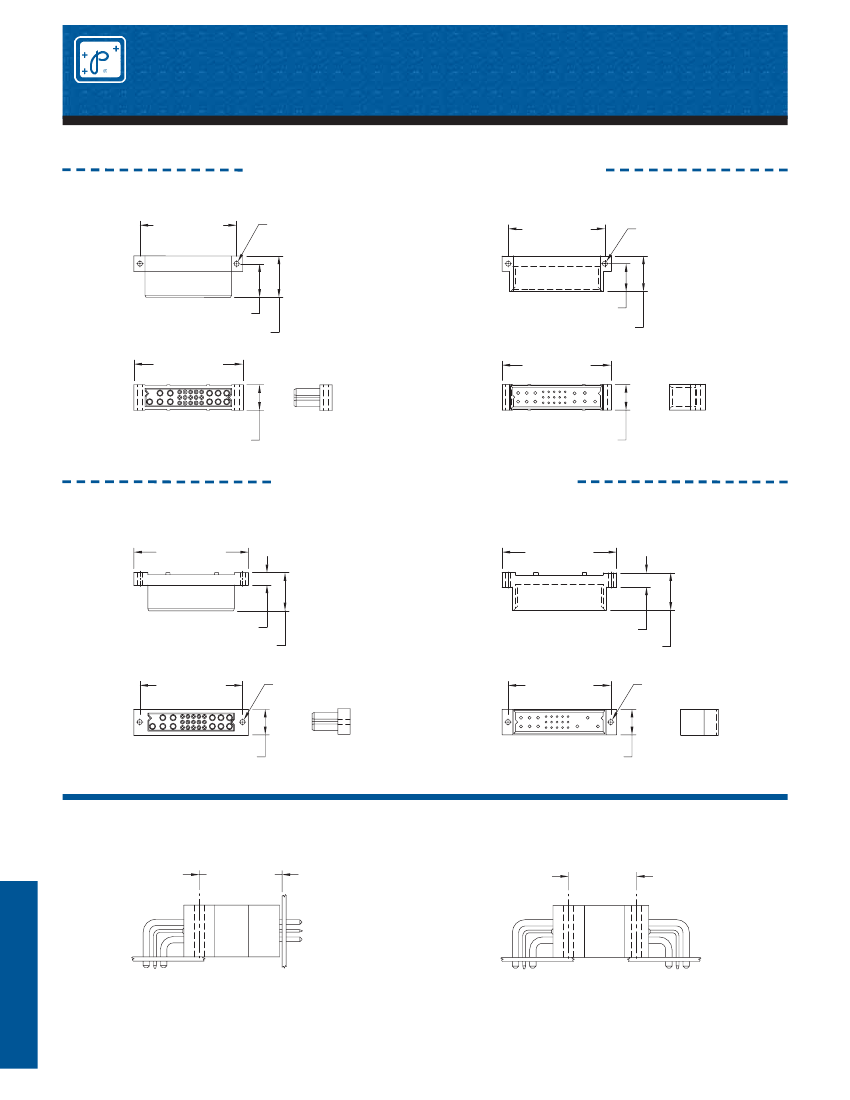

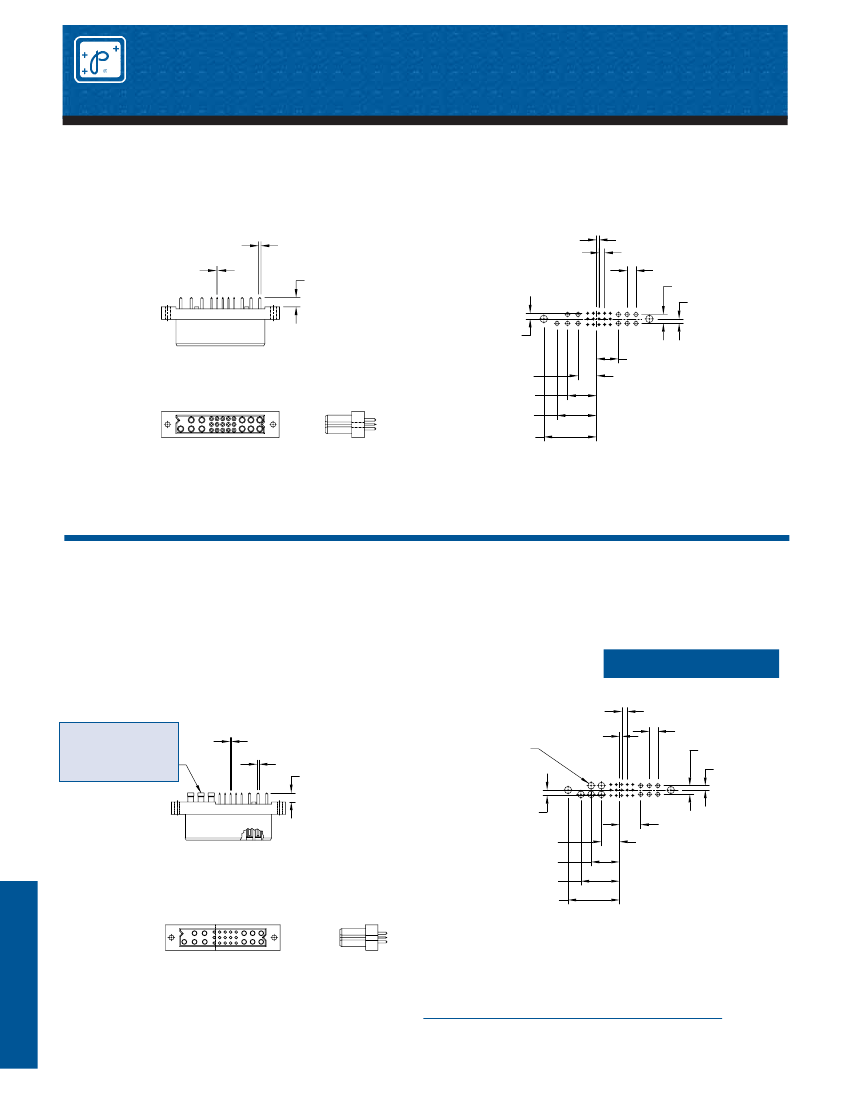

STRAIGHT SOLDER
CONNECTOR, FEMALE
FEMALE STRAIGHT SOLDER CONNECTOR
CODE 3
STANDARD PART NUMBER
PCIB24W9F300A1
Positronic Industries
connectpositronic.com
9X ø1.14 [0.045]
15X ø0.61 [0.024]
24X 4.50 [0.177]
4X
2.70 [0.106]
1.15 [0.045]
2X 4.20 [0.165]
4.25 [0.167]
2.125 [0.0837]
2X Size 16 Contacts
5 mm Recessed Min.
2X 2.70 [0.106]
8.85 [0.348]
13.90 [0.547]
18.95 [0.746]
2X 25.25 [0.994]
10.45 [0.411]
CONTACT HOLE PATTERN
CONNECTOR DIMENSIONS
Note:
See below for suggested printed board hole sizes.
FEMALE STRAIGHT SOLDER CONNECTOR WITH A.C. PASS-THROUGH
CODE 3 WITH MOS* -246.5
CRIMP CONTACTS ARE NOT SUPPLIED WITH CONNECTOR AND MUST BE ORDERED SEPARATELY
LOW PROFILE PART NUMBER
PCIB24W9F300A1-246.5
4X
2.70 [0.106]
Crimp contacts
ordered separately
ontacts
(see pages 102-103)
parately
* For MOS descriptions,
see chart on pages 111-112.
15X ø0.61 [0.024]
6X ø1.14 [0.045]
3X Ø3.30 [0.130] Min.
A.C. Pass-Through Holes
1.15 [0.045]
2X 4.20 [0.165]
4.25 [0.167]
2.125 [0.0837]
21X 4.50 [0.177]
2X 2.70 [0.106]
10.45 [0.411]
8.85 [0.348]
2X Size 16 Contacts
5mm Recessed Min.
13.90 [0.547]
18.95 [0.746]
2X 25.25 [0.994]
CONTACT HOLE PATTERN
CONNECTOR DIMENSIONS
SUGGESTED PRINTED BOARD HOLE SIZES:
Suggest Ø1.00 [0.039] holes for size 22 contact holes.
Suggest Ø1.60 [0.063] holes for size 16 contact holes.
Suggest Ø3.56±0.08 [0.140±0.003] holes for connector mounting holes.
DIMENSIONS ARE IN MILLIMETERS [INCHES].
ALL DIMENSIONS ARE SUBJECT TO CHANGE.
74
PCIB SERIES
Positronic Industries
connectpositronic.com
STRAIGHT SOLDER
CONNECTOR, FEMALE
FEMALE STRAIGHT SOLDER CONNECTOR
CODE 3
STANDARD PART NUMBER
PCIB26W11F300A1
11X
ø1.14 [0.045]
1.15 [0.045]
C
ompact
P
ower
C
onnectors
15X
ø0.61 [0.024]
4X 2.70 [0.106]
2X 4.20 [0.165]
4.25 [0.167]
2.125 [0.0837]
2X 2.70 [0.106]
10.45 [0.411]
8.85 [0.348]
13.90 [0.547]
18.95 [0.746]
2X 25.25 [0.994]
26X
4.50 [0.177]
CONNECTOR DIMENSIONS
CONTACT HOLE PATTERN
Note:
See below for suggested printed board hole sizes.
FEMALE STRAIGHT SOLDER CONNECTOR WITH A.C. PASS-THROUGH
CODE 3 WITH MOS* -246.6
CRIMP CONTACTS ARE NOT SUPPLIED WITH CONNECTOR AND MUST BE ORDERED SEPARATELY
LOW PROFILE PART NUMBER
PCIB26W11F300A1-246.6
* For MOS descriptions,
see chart on pages 111-112.
4X
2.70 [0.106]
Crimp contacts
ts
ordered separately
ly
(see pages 102-103)
15X ø0.61 [0.024]
6X ø1.14 [0.045]
21X 4.50 [0.177]
5X Ø3.30 [0.130] Min.
A.C. Pass-Through Holes
1.15 [0.045]
2X 4.20 [0.165]
4.25 [0.167]
2.125 [0.0837]
2X 2.70 [0.106]
10.45 [0.411]
8.85 [0.348]
13.90 [0.547]
18.95 [0.746]
2X 25.25 [0.994]
CONTACT HOLE PATTERN
CONNECTOR DIMENSIONS
SUGGESTED PRINTED BOARD HOLE SIZES:
75
DIMENSIONS ARE IN MILLIMETERS [INCHES].
ALL DIMENSIONS ARE SUBJECT TO CHANGE.
PCIB SERIES
Suggest Ø1.00 [0.039] holes for size 22 contact holes.
Suggest Ø1.60 [0.063] holes for size 16 contact holes.
Suggest Ø3.56±0.08 [0.140±0.003] holes for connector mounting holes.
