InGaAlP Red Ultra Bright 3mm LED
LC307THR1−30Q−A
Features
Lead Free
Applications
Advertising Signs
Indicators
Maximum Ratings (Ta=25 C)
Characteristic
Forward Current
Reverse Voltage
Power Dissipation
Operating Temperature
Storage Temperature
Soldering Temperature
Soldering Time
Symbol
I
F
V
R
P
D
T
opr
T
stg
T
sol
−
Max.
50
5
130.00
−40 ~ +95
−40 ~ +100
260
for 3 sec. max
o
o
Unit
mA
V
mW
o
C
C
o
o
C
−
Opto−Electrical Characteristics (Ta=25 C)
Characteristic
Forward Voltage
Reverse Current
Luminous Intensity
Viewing Angle
Peak Wavelength
Dominant Wavelength
Spectral Line Half Width
Symbol
V
F
I
R
I
V
2θ
1/2
λp
λd
∆λ
Test Condition
I
F
=20mA
V
R
=5V
I
F
=20mA
−
I
F
=20mA
I
F
=20mA
I
F
=20mA
Min
−
−
1100.00
−
−
−
−
Typ
2.30
−
2000.00
40
o
Max
2.60
100
−
−
−
−
−
Unit
V
µA
mcd
deg.
nm
nm
nm
639
628
23
Company Headquarters
3 Northway Lane North
Latham, New York 12110
Toll Free: 800.984.5337
Fax: 518.785.4725
Web: www.marktechopto.com | Email: info@marktechopto.com
California Sales Office:
950 South Coast Drive, Suite 225
Costa Mesa, California 92626
Toll Free: 800.984.5337
Fax: 714.850.9314
InGaAlP Red Ultra Bright 3mm LED

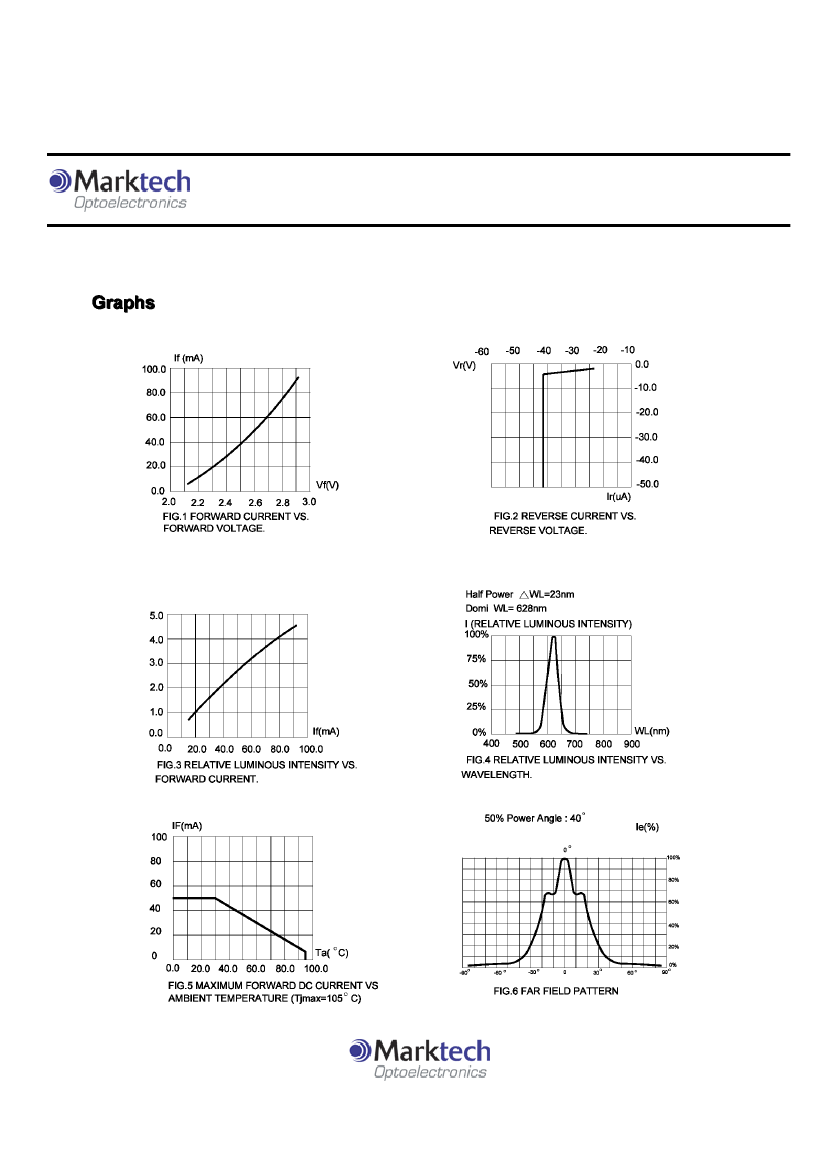

LC307THR1−30Q−A Graphs
