MC74VHC139DTEL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> MC74VHC139DTEL

MC74VHC139DTEL: DescriptionAHC/VHC SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDSO16, TSSOP-16; Categorylogic; File Size100KB，8 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn

Download Datasheet Parametric Compare View All

MC74VHC139DTEL Overview

AHC/VHC SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDSO16, TSSOP-16

MC74VHC139DTEL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ON Semiconductor
Parts packaging code	TSSOP
package instruction	TSSOP-16
Contacts	16
Reach Compliance Code	not_compliant
ECCN code	EAR99
Is Samacsys	N
series	AHC/VHC
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
length	5 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	OTHER DECODER/DRIVER
MaximumI(ol)	0.008 A
Number of functions	2
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP16,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
method of packing	TAPE AND REEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	2/5.5 V
Prop。Delay @ Nom-Sup	10.5 ns
propagation delay (tpd)	16.5 ns
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	4.4 mm
Base Number Matches	1

Preview

Download Datasheet

View All

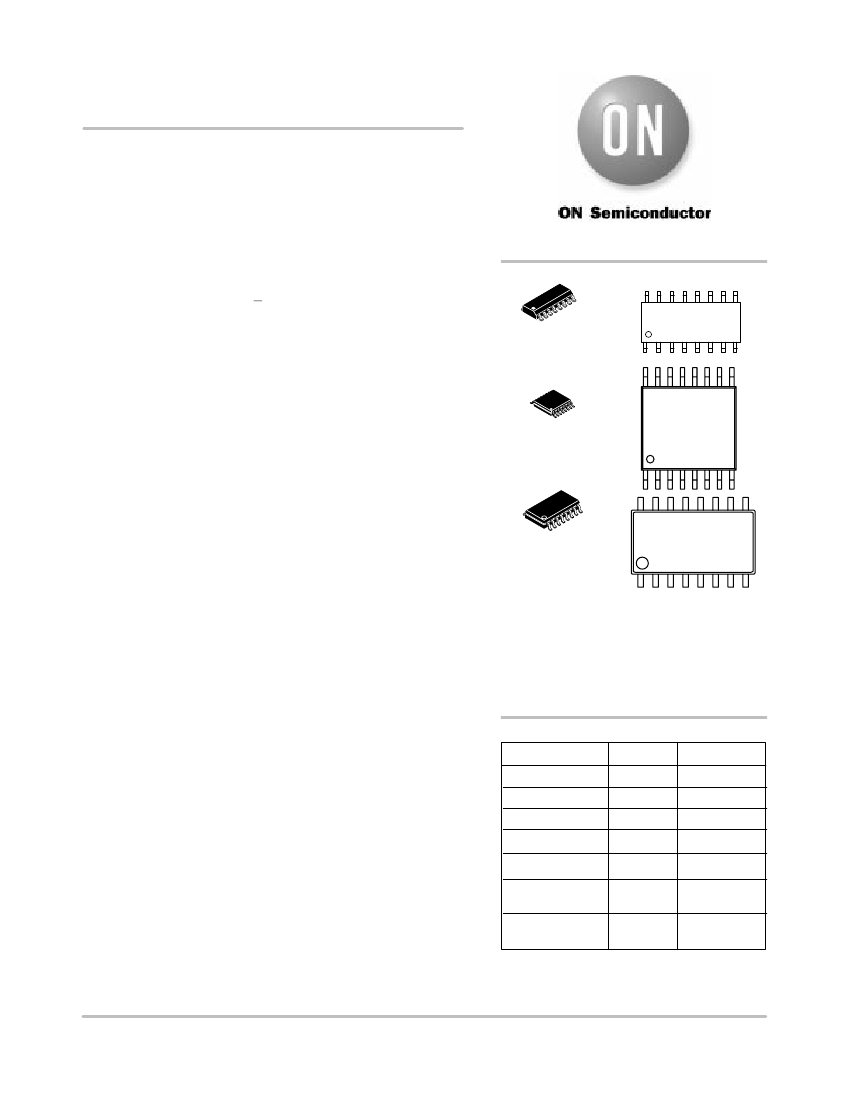

MC74VHC139

Dual 2-to-4 Decoder/

Demultiplexer

The MC74VHC139 is an advanced high speed CMOS 2–to–4

decoder/ demultiplexer fabricated with silicon gate CMOS

technology. It achieves high speed operation similar to equivalent

Bipolar Schottky TTL while maintaining CMOS low power

dissipation.

When the device is enabled (E = low), it can be used for gating or as

a data input for demultiplexing operations. When the enable input is

held high, all four outputs are fixed high, independent of other inputs.

The internal circuit is composed of three stages, including a buffer

output which provides high noise immunity and stable output. The

inputs tolerate voltages up to 7V, allowing the interface of 5V systems

to 3V systems.

http://onsemi.com

MARKING DIAGRAMS

SOIC–16

D SUFFIX

CASE 751B

VHC139

AWLYYWW

•

High Speed: t

= 5.0ns (Typ) at V

= 5V

Low Power Dissipation: I

= 4µΑ (Max) at T

= 25°C

High Noise Immunity: V

NIH

= V

NIL

= 28% V

Power Down Protection Provided on Inputs

Balanced Propagation Delays

Designed for 2V to 5.5V Operating Range

Low Noise: V

OLP

= 0.8 V (Max)

Pin and Function Compatible with Other Standard Logic Families

Latchup Performance Exceeds 300mA

ESD Performance: HBM > 2000V; Machine Model > 200V

Chip Complexity: 100 FETs or 25 Equivalent Gates

TSSOP–16

DT SUFFIX

CASE 948F

VHC

139

AWLYWW

SOIC EIAJ–16

M SUFFIX

CASE 966

VHC139

ALYW

= Assembly Location

= Wafer Lot

= Year

= Work Week

= Assembly Location

= Wafer Lot

= Year

= Work Week

= Assembly Location

= Wafer Lot

= Year

= Work Week

ORDERING INFORMATION

Device

MC74VHC139D

MC74VHC139DR2

MC74VHC139DT

Package

SOIC–16

TSSOP–16

Shipping

48 Units/Rail

2500 Units/Reel

96 Units/Rail

2000 Units/Reel

48 Units/Rail

2000 Units/Reel

MC74VHC139DTEL TSSOP–16

MC74VHC139DTR2 TSSOP–16

MC74VHC139M

MC74VHC139MEL

SOIC

EIAJ–16

SOIC

EIAJ–16

Semiconductor Components Industries, LLC, 2001

March, 2001 – Rev. 2

Publication Order Number:

MC74VHC139/D

MC74VHC139DTEL Related Products

	MC74VHC139DTEL	MC74VHC139MEL
Description	AHC/VHC SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDSO16, TSSOP-16	AHC/VHC SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDSO16, EIAJ, SOIC-16
Is it Rohs certified?	incompatible	conform to
Maker	ON Semiconductor	ON Semiconductor
Parts packaging code	TSSOP	SOIC
package instruction	TSSOP-16	EIAJ, SOIC-16
Contacts	16	16
Reach Compliance Code	not_compliant	unknown
ECCN code	EAR99	EAR99
series	AHC/VHC	AHC/VHC
JESD-30 code	R-PDSO-G16	R-PDSO-G16
JESD-609 code	e0	e4
length	5 mm	10.2 mm
Load capacitance (CL)	50 pF	50 pF
Logic integrated circuit type	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER
MaximumI(ol)	0.008 A	0.008 A
Number of functions	2	2
Number of terminals	16	16
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Output polarity	INVERTED	INVERTED
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	SOP
Encapsulate equivalent code	TSSOP16,.25	SOP16,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE
method of packing	TAPE AND REEL	TAPE AND REEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	2/5.5 V	2/5.5 V
Prop。Delay @ Nom-Sup	10.5 ns	10.5 ns
propagation delay (tpd)	16.5 ns	16.5 ns
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	2.05 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	2 V	2 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form	GULL WING	GULL WING
Terminal pitch	0.65 mm	1.27 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	4.4 mm	5.275 mm

Recommended Resources

Three electric motors have control circuits required for starting and stopping sequences

Goldfish XPB20-3S double-cylinder washing machine circuit household appliance circuit

Household emergency power circuit

Board bridge type double-ended switching power supply circuit composed of TL494

Charger circuit diagram using U2403B

Simple home walkie-talkie circuit diagram
