Ultra-Small, Low-Cost, 210MHz, Dual-Supply
Op Amps with Rail-to-Rail Outputs
General Description
The MAX4350 single and MAX4351 dual op amps are
unity-gain-stable devices that combine high-speed per-
formance with Rail-to-Rail
®
outputs. Both devices oper-
ate from dual ±5V supplies. The common-mode input
voltage range extends to the negative power-supply
rail.
The MAX4350/MAX4351 require only 6.9mA of quies-
cent supply current per op amp while achieving a
210MHz -3dB bandwidth and a 485V/µs slew rate. Both
devices are excellent solutions in low-power systems
that require wide bandwidth, such as video, communi-
cations, and instrumentation.
The MAX4350 is available in an ultra-small 5-pin SC70
package and the MAX4351 is available in a space-
saving 8-pin SOT23 package.
Features
o
Ultra-Small 5-Pin SC70, 5-Pin SOT23, and 8-Pin
SOT23 Packages
o
Low Cost
o
High Speed
210MHz -3dB Bandwidth
55MHz 0.1dB Gain Flatness
485V/µs Slew Rate
o
Rail-to-Rail Outputs
o
Input Common-Mode Range Extends to V
EE
o
Low Differential Gain/Phase: 0.02%/0.08°
o
Low Distortion at 5MHz
-65dBc SFDR
-63dB Total Harmonic Distortion
MAX4350/MAX4351
Applications
Set-Top Boxes
Surveillance Video Systems
Video Line Drivers
Analog-to-Digital Converter Interface
CCD Imaging Systems
Video Routing and Switching Systems
Digital Cameras
Ordering Information
PART
MAX4350EXK-T
MAX4350EUK-T
MAX4351EKA-T
MAX4351ESA
TEMP. RANGE
-40°C to +85°C
-40°C to +85°C
-40°C to +85°C
-40°C to +85°C
PIN-
PACKAGE
5 SC70-5
5 SOT23-5
8 SOT23-8
8 SO
TOP
MARK
ACF
ADRA
AAIC
—
Typical Operating Circuit
R
F
24Ω
R
TO
75Ω
MAX4350
IN
R
TIN
75Ω
UNITY-GAIN LINE DRIVER
(R
L
= R
O
+ R
TO
)
Z
O
= 75Ω
R
O
75Ω
Pin Configurations
TOP VIEW
OUT
1
5
V
CC
V
OUT
V
EE
2
MAX4350
IN+
3
4
IN-
SC70-5/SOT23-5
Pin Configurations continued at end of data sheet.
Rail-to-Rail is a registered trademark of Nippon Motorola, Ltd.
________________________________________________________________
Maxim Integrated Products
1
For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at
1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.
Ultra-Small, Low-Cost, 210MHz, Dual-Supply
Op Amps with Rail-to-Rail Outputs
MAX4350/MAX4351
ABSOLUTE MAXIMUM RATINGS
Supply Voltage (V
CC
to V
EE
)................................................+12V
IN_-, IN_+, OUT_..............................(V
EE
- 0.3V) to (V
CC
+ 0.3V)
Output Short-Circuit Current to V
CC
or V
EE
......................150mA
Continuous Power Dissipation (T
A
= +70°C)
5-Pin SC70 (derate 2.5mW/°C above +70°C) .............200mW
5-Pin SOT23 (derate 7.1mW/°C above +70°C) ...........571mW
8-Pin SOT23 (derate 5.26mW/°C above +70°C) .........421mW
8-Pin SO (derate 5.9mW/°C above +70°C) .................471mW
Operating Temperature Range ...........................-40°C to +85°C
Storage Temperature Range .............................-65°C to +150°C
Lead Temperature (soldering, 10s) .................................+300°C
Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional
operation of the device at these or at any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure
to absolute maximum rating conditions for extended periods may affect device reliability.
(V
CC
= +5V, V
EE
= -5V, R
L
=
∞
to 0, V
OUT
= 0, T
A
= T
MIN
to T
MAX
, unless otherwise noted. Typical values are at T
A
= +25°C.) (Note 1)
PARAMETER
Input Common-Mode
Voltage Range
Input Offset Voltage
Input Offset Voltage Matching
Input Offset Voltage Temperature
Coefficient
Input Bias Current
Input Offset Current
Input Resistance
Common-Mode Rejection Ratio
Open-Loop Gain
TC
VOS
I
B
I
OS
R
IN
CMRR
A
VOL
Differential mode (-1V
≤
V
IN
≤
+1V)
Common mode (-5V
≤
V
CM
≤
+2.75V)
V
EE
≤
V
CM
≤
(V
CC
- 2.25V)
-4.5V
≤
V
OUT
≤
+4.5V, R
L
= 2kΩ
-4.25V
≤
V
OUT
≤
+4.25V, R
L
= 150Ω
-3.75V
≤
V
OUT
≤
+3.75V, R
L
= 75Ω
R
L
= 2kΩ
Output Voltage Swing
V
OUT
R
L
= 150Ω
R
L
= 75Ω
Output Current
Output Short-Circuit Current
Open-Loop Output Resistance
Power-Supply Rejection Ratio
Operating Supply-Voltage
Range
Quiescent Supply Current
(Per Amplifier)
I
OUT
I
SC
R
OUT
PSRR
V
S
I
S
V
S
=
±4.5V
to
±5.5V
V
CC
, V
EE
52
±4.5
6.9
R
L
= 50Ω
Sinking or sourcing
V
CC
- V
OH
V
OL
- V
EE
V
CC
- V
OH
V
OL
- V
EE
V
CC
- V
OH
V
OL
- V
EE
Sourcing
Sinking
55
40
70
50
48
SYMBOL
V
CM
V
OS
MAX4351 only
CONDITIONS
Guaranteed by CMRR test
MIN
V
EE
1
1
8
7.5
0.5
70
3
95
60
58
57
0.125
0.065
0.525
0.370
0.925
0.750
80
75
±120
8
66
±5.5
9.0
0.350
0.170
0.750
0.550
1.550
1.7
mA
mA
Ω
dB
V
mA
V
dB
20
4
TYP
MAX
V
CC
-
2.25
26
UNITS
V
mV
mV
µV/°C
µA
µA
kΩ
MΩ
dB
DC ELECTRICAL CHARACTERISTICS
2
_______________________________________________________________________________________
Ultra-Small, Low-Cost, 210MHz, Dual-Supply
Op Amps with Rail-to-Rail Outputs
MAX4350/MAX4351
AC ELECTRICAL CHARACTERISTICS
(V
CC
= +5V, V
EE
= -5V, V
CM
= 0, R
F
= 24Ω, R
L
= 100Ω to 0, A
VCL
= +1V/V, T
A
= +25°C, unless otherwise noted.)
PARAMETER
Small-Signal -3dB Bandwidth
Large-Signal -3dB Bandwidth
Bandwidth for 0.1dB Gain
Flatness
Slew Rate
Settling Time to 0.1%
Rise/Fall Time
Spurious-Free Dynamic Range
SYMBOL
BW
SS
BW
LS
BW
0.1dB
SR
t
S
t
R
, t
F
SFDR
V
OUT
= 2Vp-p
V
OUT
= 100mVp-p
V
OUT
= 2Vp-p
V
OUT
= 2V step
V
OUT
= 2V step
V
OUT
= 100mVp-p
f
C
= 5MHz, V
OUT
= 2Vp-p
2nd harmonic
Harmonic Distortion
HD
f
C
= 5MHz,
V
OUT
= 2Vp-p
3rd harmonic
Total harmonic
distortion
CONDITIONS
V
OUT
= 100mVp-p
MIN
TYP
210
175
55
40
485
16
4
-65
-65
-58
-63
66
102
14
0.08
0.02
10
1.8
1
f = 10MHz
1.5
dBc
dB
dBm
degrees
%
nV/√
Hz
pA/√
Hz
pF
Ω
dBc
MAX
UNITS
MHz
MHz
MHz
V/µs
ns
ns
dBc
Two-Tone, Third-Order
Intermodulation Distortion
Channel-to-Channel Isolation
Input 1dB Compression Point
Differential Phase Error
Differential Gain Error
Input Noise-Voltage Density
Input Noise-Current Density
Input Capacitance
Output Impedance
IP3
CH
ISO
DP
DG
e
N
i
N
C
IN
Z
OUT
f1 = 4.7MHz, f2 = 4.8MHz, V
OUT
= 1Vp-p
Specified at DC, MAX4351 only
f
C
= 10MHz, A
VCL
= +2V/V
NTSC, R
L
= 150Ω
NTSC, R
L
= 150Ω
f = 10kHz
f = 10kHz
Note 1:
All devices are 100% production tested at T
A
= +25°C. Specifications over temperature limits are guaranteed by design.
_______________________________________________________________________________________
3
Ultra-Small, Low-Cost, 210MHz, Dual-Supply
Op Amps with Rail-to-Rail Outputs
MAX4350/MAX4351
Typical Operating Characteristics
(V
CC
= +5V, V
EE
= -5V, V
CM
= 0, A
VCL
= +1V/V, R
F
= 24Ω, R
L
= 100Ω to 0, T
A
= +25°C, unless otherwise noted.)
SMALL-SIGNAL GAIN vs. FREQUENCY
MAX4350-01
LARGE-SIGNAL GAIN vs. FREQUENCY
MAX4350-02
GAIN FLATNESS vs. FREQUENCY
0.3
0.2
0.1
GAIN (dB)
0
-0.1
-0.2
-0.3
-0.4
-0.5
-0.6
V
OUT
= 100mVp-p
MAX4350-03
4
3
2
1
GAIN (dB)
V
OUT
= 100mVp-p
4
3
2
1
GAIN (dB)
0
-1
-2
-3
-4
-5
-6
V
OUT
= 2Vp-p
0.4
0
-1
-2
-3
-4
-5
-6
100k
1M
10M
FREQUENCY (Hz)
100M
1G
100k
1M
10M
FREQUENCY (Hz)
100M
1G
100k
1M
10M
FREQUENCY (Hz)
100M
1G
GAIN FLATNESS vs. FREQUENCY
MAX4350 toc04
OUTPUT IMPEDANCE vs. FREQUENCY
MAX4350-05
DISTORTION vs. FREQUENCY
-10
-20
V
OUT
= 2Vp-p
A
VCL
= +1V/V
MAX4350-06
0.4
0.3
0.2
0.1
GAIN (dB)
0
-0.1
-0.2
-0.3
-0.4
-0.5
-0.6
100k
1M
10M
FREQUENCY (Hz)
100M
V
OUT
= 2Vp-p
100
0
10
DISTORTION (dBc)
IMPEDANCE (Ω)
-30
-40
-50
-60
-70
-80
-90
3RD HARMONIC
2ND HARMONIC
1
0.1
0.01
1G
100k
1M
10M
FREQUENCY (Hz)
100M
1G
-100
100k
1M
10M
100M
FREQUENCY (Hz)
DISTORTION vs. FREQUENCY
MAX4350-07
DISTORTION vs. FREQUENCY
MAX4350-08
DISTORTION vs. LOAD RESISTANCE
-10
-20
DISTORTION (dBc)
-30
-40
-50
-60
-70
-80
-90
-100
3RD HARMONIC
2ND HARMONIC
f
O
= 5MHz
V
OUT
= 2Vp-p
A
VCL
= +1V/V
MAX4350-09
0
-10
-20
DISTORTION (dBc)
-30
-40
-50
-60
-70
-80
-90
-100
100k
1M
10M
3RD HARMONIC
2ND HARMONIC
V
OUT
= 2Vp-p
A
VCL
= +2V/V
0
-10
-20
DISTORTION (dBc)
-30
-40
-50
-60
-70
-80
-90
-100
3RD HARMONIC
2ND HARMONIC
V
OUT
= 2Vp-p
A
VCL
= +5V/V
0
100M
100k
1M
10M
100M
0
200
400
600
R
LOAD
(Ω)
800
1000
1200
FREQUENCY (Hz)
FREQUENCY (Hz)
4
_______________________________________________________________________________________
Ultra-Small, Low-Cost, 210MHz, Single-Supply
Op Amps with Rail-to-Rail Outputs

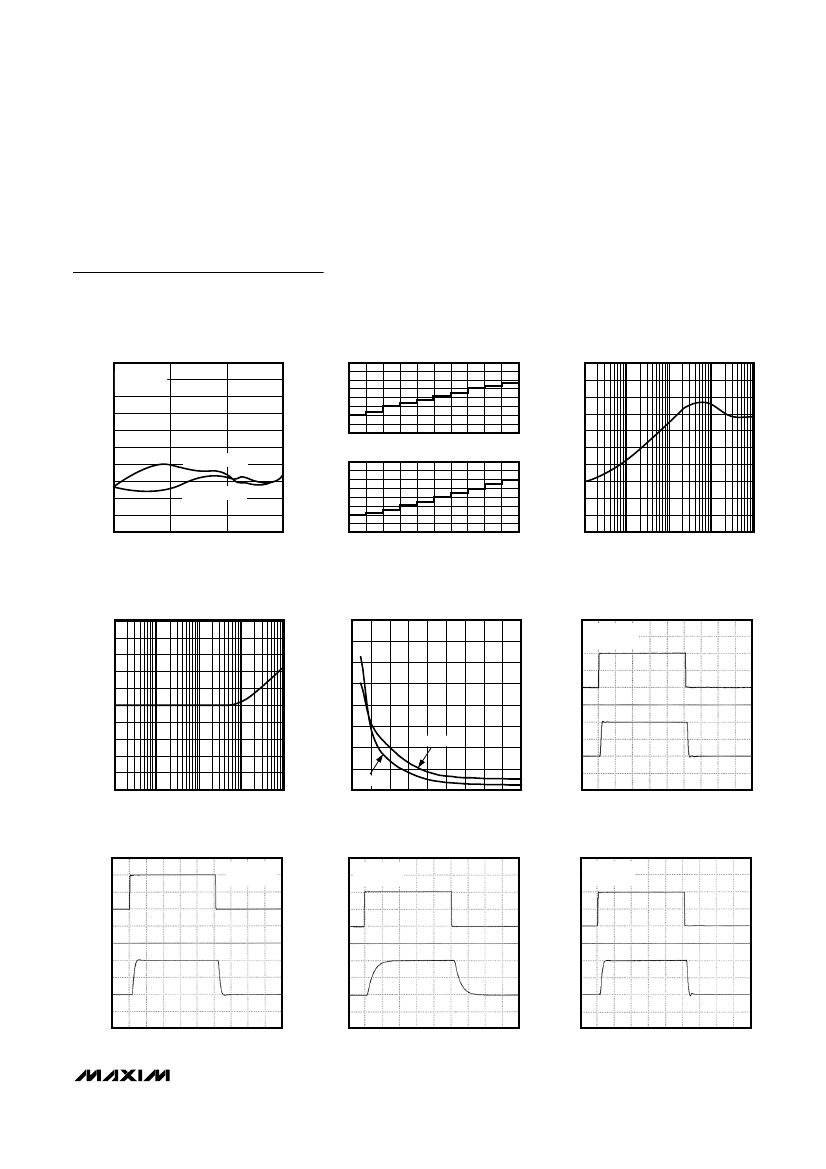

Typical Operating Characteristics (continued)
(V
CC
= +5V, V
EE
= -5V, V
CM
= 0, A
VCL
= +1V/V, R
F
= 24Ω, R
L
= 100Ω to 0, T
A
= +25°C, unless otherwise noted.)
MAX4350/MAX4351
DISTORTION vs. VOLTAGE SWING
MAX4350-10
DIFFERENTIAL GAIN AND PHASE
MAX4350-11
COMMON-MODE REJECTION
vs. FREQUENCY
-10
-20
-30
MAX4350-12
0
-10
-20
DISTORTION (dBc)
-30
-40
-50
-60
-70
-80
-90
-100
0.5
1.0
1.5
2ND HARMONIC
3RD HARMONIC
f
O
= 5MHz
A
VCL
= +1V/V
DIFF GAIN (%)
0
0.12
0.10
0.08
0.06
0.04
0.02
0
-0.02
-0.04
0
DIFF PHASE (degrees)
IRE
100
CMR (dB)
0.025
0.020
0.015
0.010
0.005
0
-0.005
-0.010
0
-40
-50
-60
-70
-80
-90
-100
2.0
VOLTAGE SWING (Vp-p)
IRE
100
100k
1M
10M
FREQUENCY (Hz)
100M
1G
POWER-SUPPLY REJECTION
vs. FREQUENCY
MAX4350-13
OUTPUT VOLTAGE SWING
vs. LOAD RESISTANCE
MAX4350-14
SMALL-SIGNAL PULSE RESPONSE
R
F
= 24Ω
A
VCL
= +1V/V
INPUT
50mV/div
MAX4350-15
0
-10
-20
-30
PSR (dB)
-40
-50
-60
-70
-80
-90
-100
100k
1M
10M
FREQUENCY (Hz)
100M
1.6
1.4
1.2
V
SWING
(V)
1.0
0.8
0.6
0.4
0.2
0
V
OL
- V
EE
0
V
CC
- V
OH
OUTPUT
50mV/div
1G
100 200 300 400 500 600 700 800 900
R
LOAD
(Ω)
20ns/div
SMALL-SIGNAL PULSE RESPONSE
MAX4350-16
SMALL-SIGNAL PULSE RESPONSE
MAX4350-17
LARGE-SIGNAL PULSE RESPONSE
R
F
= 24Ω
A
VCL
= +1V/V
INPUT
1V/div
MAX4350-18
INPUT
25mV/div
R
F
= 500Ω
A
VCL
= +2V/V
R
F
= 500Ω
A
VCL
= +5V/V
INPUT
10mV/div
OUTPUT
50mV/div
OUTPUT
50mV/div
OUTPUT
1V/div
20ns/div
20ns/div
20ns/div
_______________________________________________________________________________________
5
京公网安备 11010802033920号
EEWORLD
