IRF9532-001 datasheet, PDF - EEWORLD Datasheet

IRF9532-001: DescriptionPower Field-Effect Transistor, 10A I(D), 100V, 0.4ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET,; CategoryThe transistor; File Size41KB，1 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/

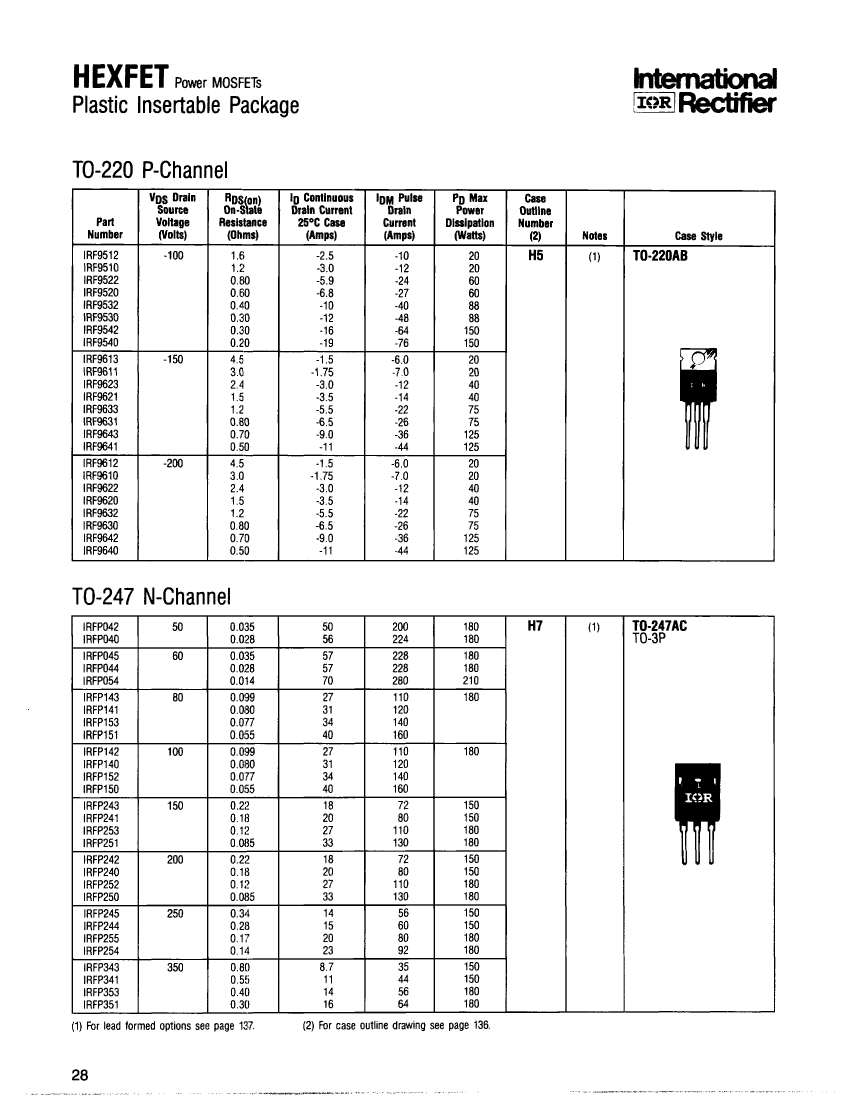

Download Datasheet Parametric View All

IRF9532-001 Overview

Power Field-Effect Transistor, 10A I(D), 100V, 0.4ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Infineon
package instruction	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Shell connection	DRAIN
Configuration	SINGLE
Minimum drain-source breakdown voltage	100 V
Maximum drain current (ID)	10 A
Maximum drain-source on-resistance	0.4 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-PSFM-T3
JESD-609 code	e3
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	P-CHANNEL
Maximum pulsed drain current (IDM)	40 A
Certification status	Not Qualified
surface mount	NO
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Transistor component materials	SILICON
Base Number Matches	1
