FS12-1000

Description
Power Transformer, 12VA
Categorytransformer
File Size56KB，1 Pages
ManufacturerMAGNETEK Inc
Download Datasheet Parametric View All

FS12-1000 Online Shopping

Suppliers Part Number Price MOQ In stock
FS12-1000 - - View Buy Now

FS12-1000 Overview

Power Transformer, 12VA

FS12-1000 Parametric

Parameter NameAttribute value
MakerMAGNETEK Inc
Reach Compliance Codeunknown
ECCN codeEAR99
Is SamacsysN
Other featuresPCB MOUNTABLE
CertificationUL
Number of secondary windings1
Output current 11 A
Transformer typePOWER TRANSFORMER
VA rating12 VA
Base Number Matches1

Preview

Download Datasheet

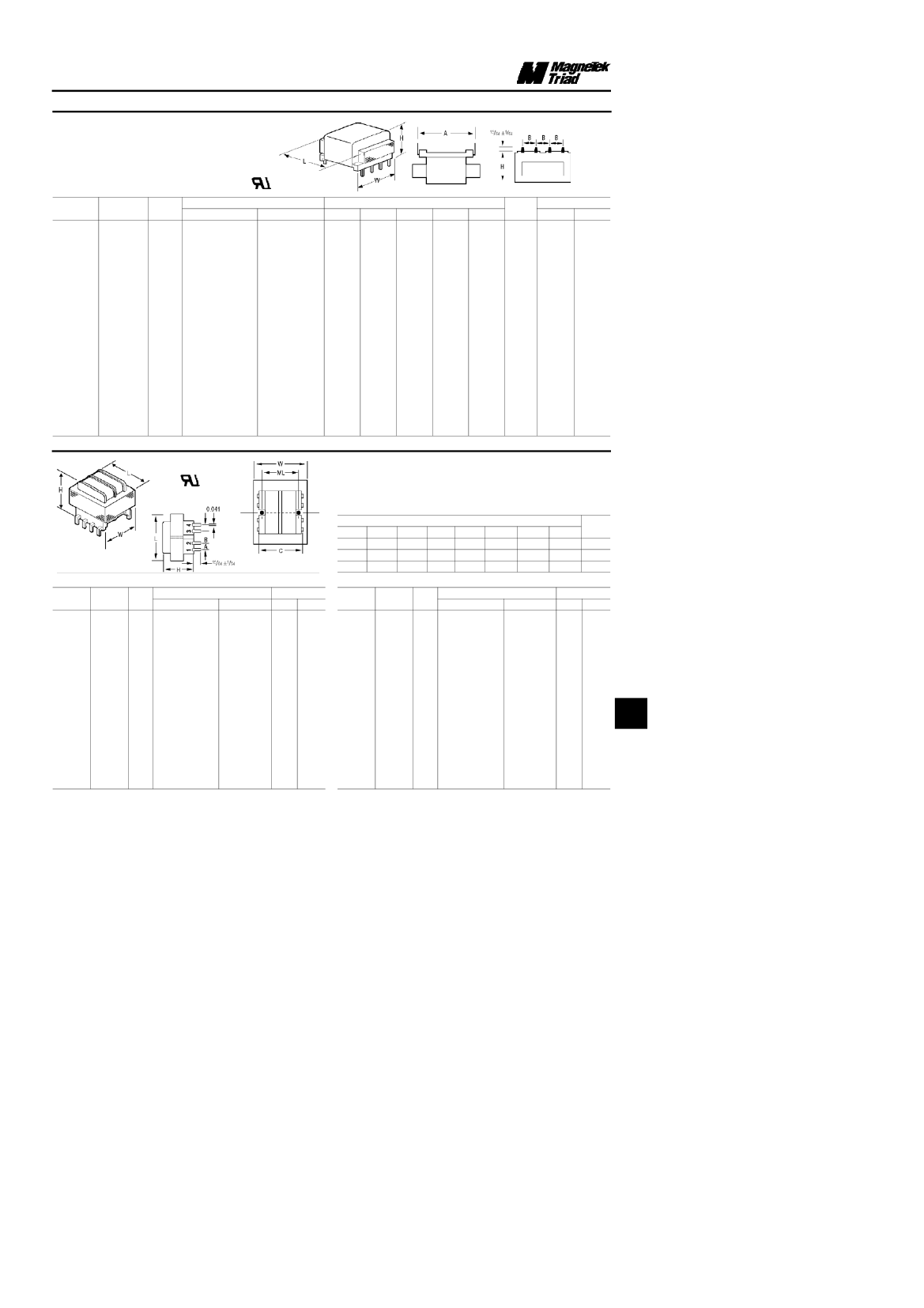

Low Clearance, Split Bobbin DC Transformers
Visit MagneTek/TriadÕs website at www.magnetek.com
MagneTek/Triad
Magnetek Triad
Flat Pack
ª
, Low Profile
The Triad Flat Pack power transformer from MagneTek is designed to meet the
needs of low clearance PC board and solid state power designs. These units
can also be used for control and instrumentation applications. Voltages and
currents were chosen for widely used power applications. It is offered in a dual
primary and dual secondary configuration.
Low Profile:
Allows
3
/
4
" card
spacing for 2.5 VA units, allows 1" card spacing for 6 VA units, allows 1
1
/
4
" card
spacing for 12 VA units.
Class B
UL Recognized
UL File E53148
Dual Primary, 115/230 V, 50/60 Hz
Stock
No.
967-9125
967-8200
967-8202
967-8204
967-8208
967-8210
967-8212
967-8214
967-8216
967-8218
967-8220
967-8222
967-8224
967-8226
967-8227
967-8230
967-8232
967-8234
967-8236
967-8238
967-8240
967-8242
967-8244
967-8246
967-8248
967-8250
967-8252
967-8254
967-8256
967-8260
967-8262
967-8264
967-8266
967-8268
*CT = With a center tap.
Class B
UL Recognized
Mfr.Õs
Type
FP10-250
FP12-200
FP16-150
FP20-125
FP30-85
FP34-75
FP40-60
FP56-45
FP88-28
FP120-20
FP230-10
FP10-600
FP12-475
FP16-375
FP20-300
FP24-250
FP30-200
FP34-170
FP40-150
FP56-100
FP88-65
FP120-50
FP230-25
FP10-1200
FP12-950
FP16-750
FP20-600
FP24-500
FP30-400
FP40-300
FP56-200
FP88-130
FP120-100
FP230-50
VA
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
12.0
12.0
12.0
12.0
12.0
12.0
12.0
12.0
12.0
12.0
12.0
Secondary Rating
Series*
10.0 V CT @ 0.250 A
12.6 V CT @ 0.200 A
16.0 V CT @ 0.150 A
20.0 V CT @ 0.125 A
30.0 V CT @ 0.080 A
34.0 V CT @ 0.075 A
40.0 V CT @ 0.060 A
56.0 V CT @ 0.045 A
88.0 V CT @ 0.028 A
120.0 V CT @ 0.020 A
230.0 V CT @ 0.010 A
10.0 V CT @ 0.600 A
12.6 V CT @ 0.475 A
16.0 V CT @ 0.375 A
20.0 V CT @ 0.300 A
24.0 V CT @ 0.250 A
30.0 V CT @ 0.200 A
34.0 V CT @ 0.170 A
40.0 V CT @ 0.150 A
56.0 V CT @ 0.100 A
88.0 V CT @ 0.065 A
120.0 V CT @ 0.050 A
230.0 V CT @ 0.025 A
10.0 V CT @ 1.200 A
12.6 V CT @ 0.950 A
16.0 V CT @ 0.750 A
20.0 V CT @ 0.600 A
24.0 V CT @ 0.500 A
30.0 V CT @ 0.400 A
40.0 V CT @ 0.300 A
56.0 V CT @ 0.200 A
88.0 V CT @ 0.130 A
120.0 V CT @ 0.100 A
230.0 V CT @ 0.050 A
Parallel
5.0 V @ 0.500 A
6.3 V @ 0.400 A
8.0 V @ 0.300 A
10.0 V @ 0.250 A
15.0 V @ 0.160 A
17.0 V @ 0.150 A
20.0 V @ 0.120 A
28.0 V @ 0.090 A
44.0 V @ 0.056 A
60.0 V @ 0.040 A
115.0 V @ 0.020 A
5.0 V @ 1.200 A
6.3 V @ 0.950 A
8.0 V @ 0.750 A
10.0 V @ 0.600 A
12.0 V @ 0.500 A
15.0 V @ 0.400 A
17.0 V @ 0.340 A
20.0 V @ 0.300 A
28.0 V @ 0.200 A
44.0 V @ 0.130 A
60.0 V @ 0.100 A
115.0 V @ 0.050 A
5.0 V @ 2.400 A
6.3 V @ 1.900 A
8.0 V @ 1.500 A
10.0 V @ 1.200 A
12.0 V @ 1.000 A
15.0 V @ 0.800 A
20.0 V @ 0.600 A
28.0 V @ 0.400 A
44.0 V @ 0.260 A
60.0 V @ 0.200 A
115.0 V @ 0.100 A
H
0.650
0.650
0.650
0.650
0.650
0.650
0.650
0.650
0.650
0.650
0.650
0.875
0.875
0.875
0.875
0.875
0.875
0.875
0.875
0.875
0.875
0.875
0.875
1.062
1.062
1.062
1.062
1.062
1.062
1.062
1.062
1.062
1.062
1.062
W
1.562
1.562
1.562
1.562
1.562
1.562
1.562
1.562
1.562
1.562
1.562
1.562
1.562
1.562
1.562
1.562
1.562
1.562
1.562
1.562
1.562
1.562
1.562
2.000
2.000
2.000
2.000
2.000
2.000
2.000
2.000
2.000
2.000
2.000
Case Dimensions
L
1.875
1.875
1.875
1.875
1.875
1.875
1.875
1.875
1.875
1.875
1.875
1.875
1.875
1.875
1.875
1.875
1.875
1.875
1.875
1.875
1.875
1.875
1.875
2.500
2.500
2.500
2.500
2.500
2.500
2.500
2.500
2.500
2.500
2.500
A
1.600
1.600
1.600
1.600
1.600
1.600
1.600
1.600
1.600
1.600
1.600
1.600
1.600
1.600
1.600
1.600
1.600
1.600
1.600
1.600
1.600
1.600
1.600
2.000
2.000
2.000
2.000
2.000
2.000
2.000
2.000
2.000
2.000
2.000
B
0.375
0.375
0.375
0.375
0.375
0.375
0.375
0.375
0.375
0.375
0.375
0.375
0.375
0.375
0.375
0.375
0.375
0.375
0.375
0.375
0.375
0.375
0.375
0.500
0.500
0.500
0.500
0.500
0.500
0.500
0.500
0.500
0.500
0.500
Wt.
Oz.
5
5
5
5
5
5
5
5
5
5
5
7
7
7
7
7
7
7
7
7
7
7
7
11
11
11
11
11
11
11
11
11
11
11
EACH
1-9
8.98
8.98
8.98
8.98
8.98
8.98
8.98
8.98
8.98
8.98
8.98
10.01
10.01
10.01
10.01
10.01
10.01
10.01
10.01
10.01
10.01
10.01
10.01
11.68
11.68
11.68
11.68
11.68
11.68
11.68
11.68
11.68
11.68
11.68
10-24
8.37
8.37
8.37
8.37
8.37
8.37
8.37
8.37
8.37
8.37
8.37
9.34
9.34
9.34
9.34
9.34
9.34
9.34
9.34
9.34
9.34
9.34
9.34
10.89
10.89
10.89
10.89
10.89
10.89
10.89
10.89
10.89
10.89
10.89
Split Pack
ª
, Split Bobbin
The Triad Split Pack split bobbin transformer from MagneTek is an extremely versatile tool for PC board applications. Split
Pack transformers are nonconcentrically wound Ñ with primaries and secondaries side by side. Unlike the secondary-on-
top-of primary designs of standard PC board transformers, the split bobbin winding and low capacitive coupling eliminate
costly electrostatic shielding. It is offered in a dual secondary configuration with either single or dual primaries.
Case Dimensions (Inches)
VA
2.5
6.0
12.0
H
1
3
/
16
1
5
/
16
1
7
/
16
W
1
1
/
8
1
5
/
16
1
9
/
16
L
1
3
/
8
1
5
/
8
1
7
/
8
ML
Ñ
1
1
/
16
1
1
/
4
A
0.250
0.250
0.300
B
0.250
0.350
0.400
C
1.200
1.280
1.410
Wt.
Lbs.
0.25
0.44
0.70
Single Primary, 115 V, 6 Pins
Stock
No.
967-8270
967-8272
967-8274
967-8276
967-8278
967-8280
967-8282
967-8288
967-8290
967-8292
967-8294
967-8296
967-8298
967-8300
967-8302
967-8304
967-8306
967-8308
967-8310
967-8312
967-8314
967-8316
967-8318
967-8320
967-8322
967-8324
967-8326
967-8328
Mfr.Õs
Type
F10-250
F12-200
F16-150
F20-120
F24-100
F28-85
F36-65
F120-020
F10-600
F12-500
F16-400
F20-300
F24-250
F28-200
F36-170
F48-125
F56-110
F120-050
F10-1200
F12-1000
F16-800
F20-600
F24-500
F28-420
F36-350
F48-250
F56-220
F120-100
VA*
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
12.0
12.0
12.0
12.0
12.0
12.0
12.0
12.0
12.0
12.0
Secondary Rating
Series
10.0 V CT @ 0.250 A
12.6 V CT @ 0.200 A
16.0 V CT @ 0.150 A
20.0 V CT @ 0.120 A
24.0 V CT @ 0.100 A
28.0 V CT @ 0.085 A
36.0 V CT @ 0.065 A
120.0 V CT @ 0.020 A
10.0 V CT @ 0.600 A
12.6 V CT @ 0.500 A
16.0 V CT @ 0.400 A
20.0 V CT @ 0.300 A
24.0 V CT @ 0.250 A
28.0 V CT @ 0.200 A
36.0 V CT @ 0.170 A
48.0 V CT @ 0.125 A
56.0 V CT @ 0.110 A
120.0 V CT @ 0.005 A
10.0 V CT @ 1.200 A
12.6 V CT @ 1.000 A
16.0 V CT @ 0.800 A
20.0 V CT @ 0.600 A
24.0 V CT @ 0.500 A
28.0 V CT @ 0.402 A
36.0 V CT @ 0.350 A
48.0 V CT @ 0.250 A
56.0 V CT @ 0.220 A
120.0 V CT @ 0.100 A
Parallel
5.0 V @ 0.50 A
6.3 V @ 0.40 A
8.0 V @ 0.30 A
10.0 V @ 0.24 A
12.0 V @ 0.20 A
14.0 V @ 0.17 A
18.0 V @ 0.13 A
60.0 V @ 0.04 A
5.0 V @ 1.20 A
6.3 V @ 1.00 A
8.0 V @ 0.80 A
10.0 V @ 0.60 A
12.0 V @ 0.50 A
14.0 V @ 0.40 A
18.0 V @ 0.34 A
24.0 V @ 0.25 A
28.0 V @ 0.22 A
60.0 V @ 0.10 A
5.0 V @ 2.40 A
6.3 V @ 2.00 A
8.0 V @ 1.60 A
10.0 V @ 1.20 A
12.0 V @ 1.00 A
14.0 V @ 0.84 A
18.0 V @ 0.70 A
24.0 V @ 0.50 A
28.0 V @ 0.44 A
60.0 V @ 0.20 A
1-9
6.38
6.38
6.38
6.38
6.38
6.38
6.38
6.38
7.21
7.21
7.21
7.21
7.21
7.21
7.21
7.21
7.21
7.21
8.27
8.27
8.27
8.27
8.27
8.27
8.27
8.27
8.27
8.27
EACH
10-24
5.95
5.95
5.95
5.95
5.95
5.95
5.95
5.95
6.73
6.73
6.73
6.73
6.73
6.73
6.73
6.73
6.73
6.73
7.71
7.71
7.71
7.71
7.71
7.71
7.71
7.71
7.71
7.71
Dual Primary, 115/230 V, 8 Pins
Stock
No.
967-9515
967-9520
967-9525
967-9530
967-9535
967-9545
967-8330
967-8332
967-8334
967-9550
967-9555
967-9560
967-9565
967-9570
967-9575
967-9580
967-8336
967-8338
967-8340
967-9585
967-9590
967-9595
967-9605
967-9610
967-9615
967-8342
967-8344
967-8346
Mfr.Õs
Type
FS10-250
FS12-200
FS16-150
FS20-120
FS24-100
FS36-65
FS48-050
FS56-045
FS120-02
FS10-600
FS12-500
FS16-400
FS20-300
FS24-250
FS28-200
FS36-170
FS48-125
FS56-110
FS120-05
FS10-1200
FS12-1000
FS16-800
FS24-500
FS28-420
FS36-350
FS48-250
FS56-220
FS120-100
VA*
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
12.0
12.0
12.0
12.0
12.0
12.0
12.0
12.0
12.0
Secondary Rating
Series
10.0 V CT @ 0.250 A
12.6 V CT @ 0.200 A
16.0 V CT @ 0.150 A
20.0 V CT @ 0.120 A
24.0 V CT @ 0.100 A
36.0 V CT @ 0.065 A
48.0 V CT @ 0.050 A
56.0 V CT @ 0.045 A
120.0 V CT @ 0.020 A
10.0 V CT @ 0.600 A
12.6 V CT @ 0.500 A
16.0 V CT @ 0.400 A
20.0 V CT @ 0.300 A
24.0 V CT @ 0.250 A
28.0 V CT @ 0.200 A
36.0 V CT @ 0.170 A
48.0 V CT @ 0.125 A
56.0 V CT @ 0.110 A
120.0 V CT @ 0.050 A
10.0 V CT @ 1.200 A
12.6 V CT @ 1.000 A
16.0 V CT @ 0.800 A
24.0 V CT @ 0.500 A
28.0 V CT @ 0.420 A
36.0 V CT @ 0.350 A
48.0 V CT @ 0.250 A
56.0 V CT @ 0.220 A
120.0 V CT @ 0.100 A
Parallel
5.0 V @ 0.50 A
6.3 V @ 0.40 A
8.0 V @ 0.30 A
10.0 V @ 0.24 A
12.0 V @ 0.20 A
18.0 V @ 0.13 A
24.0 V @ 0.10 A
28.0 V @ 0.09 A
60.0 V @ 0.04 A
5.0 V @ 1.20 A
6.3 V @ 1.00 A
8.0 V @ 0.80 A
10.0 V @ 0.60 A
12.0 V @ 0.50 A
14.0 V @ 0.40 A
18.0 V @ 0.34 A
24.0 V @ 0.25 A
28.0 V @ 0.22 A
60.0 V @ 0.10 A
5.0 V @ 2.40 A
6.3 V @ 2.00 A
8.0 V @ 1.60 A
12.0 V @ 1.00 A
14.0 V @ 0.84 A
18.0 V @ 0.70 A
24.0 V @ 0.50 A
28.0 V @ 0.44 A
60.0 V @ 0.20 A
1-9
7.51
7.51
7.51
7.51
7.51
7.51
7.51
7.51
7.51
8.01
8.01
8.01
8.01
8.01
8.01
8.01
8.01
8.01
8.01
9.18
9.18
9.18
9.18
9.18
9.18
9.18
9.18
9.18
EACH
10-24
7.00
7.00
7.00
7.00
7.00
7.00
7.00
7.00
7.00
7.47
7.47
7.47
7.47
7.47
7.47
7.47
7.47
7.47
7.47
8.56
8.56
8.56
8.56
8.56
8.56
8.56
8.56
8.56
17
*Also available in these VA ranges Ñ 1.1, 20.0, and 36.0. Contact your Allied branch.
Same Day Shipments For Product In Stock
ALLIED
c
1043

Recommended Resources

Relay power saving circuit 4a

Dynamically biased high-fidelity power amplifier circuit (b)

Application of frequency converter in gas generator booster

Reflective fiber optic sensor circuit

chain-type multivibrator circuit

Shortcut:   E0 E1 E2 E3 E4 E5 E6 E7 E8 E9 EA EB EC ED EE EF EG EH EI EJ EK EL EM EN EO EP EQ ER ES ET EU EV EW EX EY EZ F0 F1 F2 F3 F4 F5 F6 F7 F8 F9 FA FB FC FD FE FF FG FH FI FJ FK FL FM FN FO FP FQ FR FS FT FU FV FW FX FY FZ G0 G1 G2 G3 G4 G5 G6 G7 G8 G9 GA GB GC GD GE GF GG GH GI GJ GK GL GM GN GO GP GQ GR GS GT GU GV GW GX GZ H0 H1 H2 H3 H4 H5 H6 H7 H8 HA HB HC HD HE HF HG HH HI HJ HK HL HM HN HO HP HQ HR HS HT HU HV HW HX HY HZ I1 I2 I3 I4 I5 I6 I7 IA IB IC ID IE IF IG IH II IK IL IM IN IO IP IQ IR IS IT IU IV IW IX J0 J1 J2 J6 J7 JA JB JC JD JE JF JG JH JJ JK JL JM JN JP JQ JR JS JT JV JW JX JZ K0 K1 K2 K3 K4 K5 K6 K7 K8 K9 KA KB KC KD KE KF KG KH KI KJ KK KL KM KN KO KP KQ KR KS KT KU KV KW KX KY KZ

Popular Components

  1. Am7968-125JC
  2. MB2461E1G30
  3. HKQ0603W1N1B-T
  4. RC55LFT430CB
  5. 803-005-07ZNU10-26PY
  6. 74HC4538PW-Q100,118
  7. RNR55H2432BSR36
  8. SIP-4709SD-00-5360FA
  9. AME8500AEEVCE16
  10. GLZ33B
  11. P6SMB15
  12. CR2010D45K9E04

Popular Articles

  1. The harm of inverter condensation_How to deal with inverter condensation
  2. Diodes Incorporated's New Signal Repeater (ReDriver) Portfolio
  3. TCL to supply OLED panels for smartphones to Samsung
  4. Zhang Lai of Qiying Tailun: Just right is the best product philosophy
  5. Data shows that it actually takes half an hour to read the Apple user agreement
  6. MAXIEYE releases NOM system, three versions to solve "point-to-point" intelligent driving
  7. The impact of power battery degradation on electric vehicles
  8. Electromagnetic Vibration Analysis of Common Rotor Structures of Permanent Magnet Synchronous Motors
  9. Power Amplifier Principle
  10. Microchip Introduces Industry’s Highest-Performing 16-Lane PCIe® Gen 5 Enterprise-Class NVMe® SSD Controller

Technical ResourceMore

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 2843  702  1033  604  2  58  15  21  13  1
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
