HD74LS126AFP datasheet, PDF - EEWORLD Datasheet

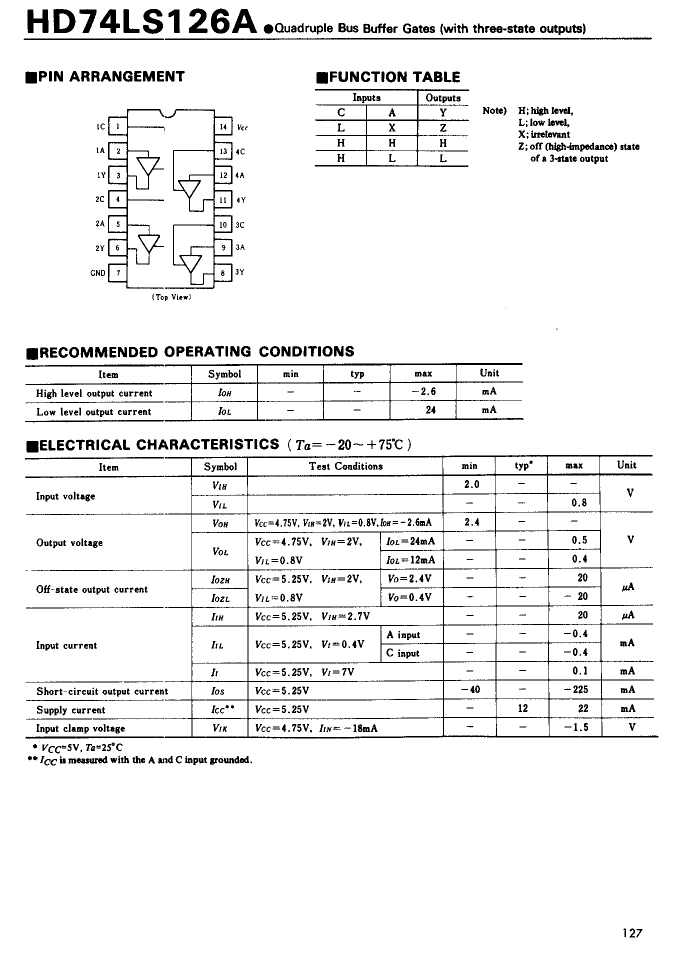

HD74LS126AFP: DescriptionBus Driver, LS Series, 4-Func, 1-Bit, True Output, TTL, PDSO14, FP-14DA; Categorylogic; File Size50KB，6 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/; Environmental Compliance

Download Datasheet Parametric Compare View All

HD74LS126AFP Overview

Bus Driver, LS Series, 4-Func, 1-Bit, True Output, TTL, PDSO14, FP-14DA

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Hitachi （Renesas ）
Parts packaging code	SOIC
package instruction	SOP, SOP14,.3
Contacts	14
Reach Compliance Code	unknown
Is Samacsys	N
Control type	ENABLE HIGH
series	LS
JESD-30 code	R-PDSO-G14
length	10.06 mm
Load capacitance (CL)	45 pF
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.024 A
Number of digits	1
Number of functions	4
Number of ports	2
Number of terminals	14
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP14,.3
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5 V
Maximum supply current (ICC)	22 mA
Prop。Delay @ Nom-Sup	18 ns
propagation delay (tpd)	18 ns
Certification status	Not Qualified
Maximum seat height	2.2 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL EXTENDED
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	5.5 mm
Base Number Matches	1

	HD74LS126AFP	HD74LS126ARP
Description	Bus Driver, LS Series, 4-Func, 1-Bit, True Output, TTL, PDSO14, FP-14DA	Bus Driver, LS Series, 4-Func, 1-Bit, True Output, TTL, PDSO14, FP-14DN
Maker	Hitachi （Renesas ）	Hitachi （Renesas ）
Parts packaging code	SOIC	SOIC
package instruction	SOP, SOP14,.3	SOP, SOP14,.25
Contacts	14	14
Reach Compliance Code	unknown	unknown
Control type	ENABLE HIGH	ENABLE HIGH
series	LS	LS
JESD-30 code	R-PDSO-G14	R-PDSO-G14
length	10.06 mm	8.65 mm
Load capacitance (CL)	45 pF	45 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER
MaximumI(ol)	0.024 A	0.024 A
Number of digits	1	1
Number of functions	4	4
Number of ports	2	2
Number of terminals	14	14
Maximum operating temperature	75 °C	75 °C
Minimum operating temperature	-20 °C	-20 °C
Output characteristics	3-STATE	3-STATE
Output polarity	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Encapsulate equivalent code	SOP14,.3	SOP14,.25
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
power supply	5 V	5 V
Maximum supply current (ICC)	22 mA	22 mA
Prop。Delay @ Nom-Sup	18 ns	18 ns
propagation delay (tpd)	18 ns	18 ns
Certification status	Not Qualified	Not Qualified
Maximum seat height	2.2 mm	1.75 mm
Maximum supply voltage (Vsup)	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	TTL	TTL
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
width	5.5 mm	3.95 mm
