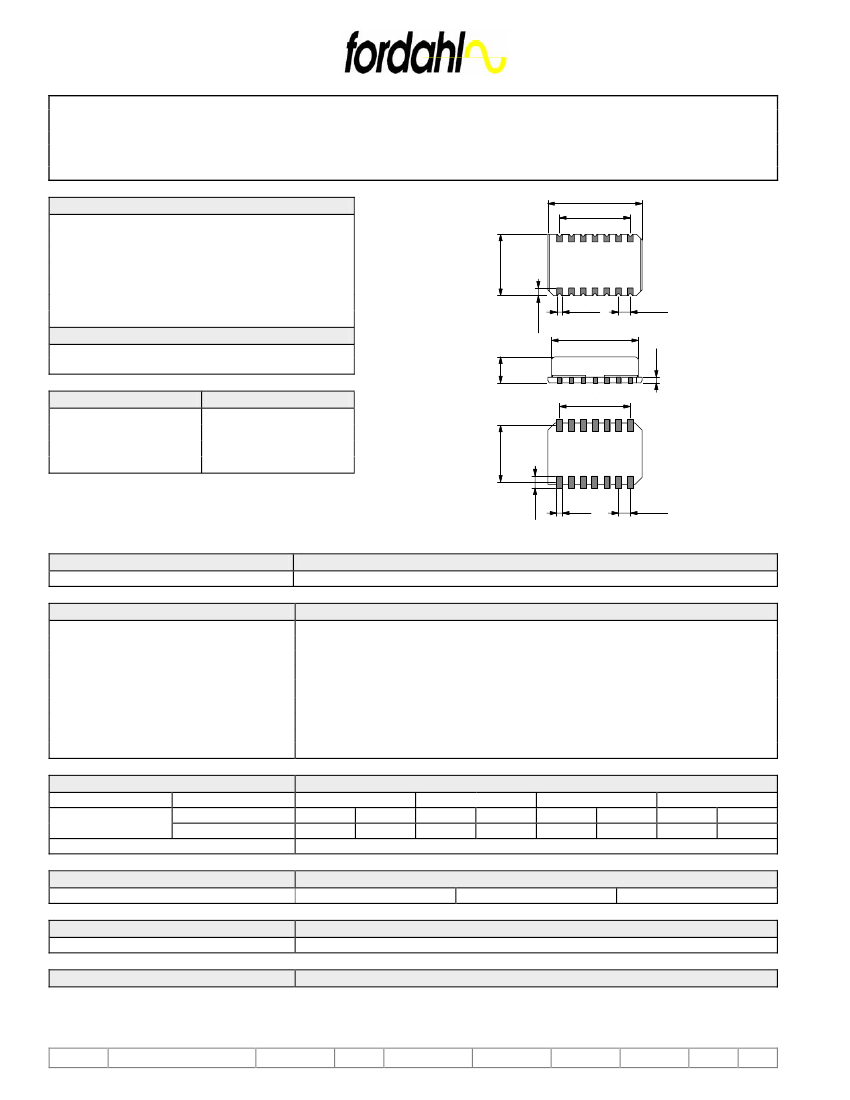

FREQUENCY CONTROL PRODUCTS

SINE WAVE SURFACE MOUNT PXO

DFN S8-MLS (3.3 V)

KEY FEATURES

12.8±0.2

19.8±0.3

15.24

300 to 500 MHz

± 20 ppm/15 years stability available

Analogue frequency multiplication

APPLICATIONS

Microwave transmissions

Function

N/C

GND

Output

Vcc

DFN S8

1,2,6,9,13

3,4,5,7,10,11,12

8

14

H = 5.50 mm

1.65

1.27

18.4

2.54

H±0.2

15.24

14

12.0

8

1

7

2.6

1.3

2.54

TYPE

Frequency Range

DFN S8-MLS

300 to 500 MHz

ELECTRICAL SPECIFICATIONS

supply voltage

supply current (no load)

output load

output amplitude

subharmonics and spurious

harmonics

start up

3.3 V ± 5 %

≤

30 mA

Sine wave, 50

Ω

± 10 %

≥

3 dBm

≤

- 40 dBc

≤

- 20 dBc

≤

10 ms @ 3.15 V

FREQUENCY STABILITY

types

all types

remark

stability [ ppm ] and temperature code

temperature range

stability code

0 to 70°C

± 20

XB20

± 25

XB25

± 50

XB50

± 100

XB100

-40 to 85°C

± 25

XE25

± 50

XE50

± 75

XE75

± 100

XE100

st

includes calibration at 25°C, temperature, ageing, Vcc and load changes 1 year

OPTIONS

stability over long life time

A = 5 years

B = 10 years

C = 15 years

ORDERING CODE

Example

type + option code + frequency + stability / temperature code

DFN S8-MLS 500 MHz XB20

REMARK

Please consult factory for life time/stabilities possible combinations

TYPE

DFN S8-MLS

REVISION

00

CHECKED

NE

DATE

14.10.2002

1.2

PAGE

20

DFNS8-MLSFREQXE25 Related Products

	DFNS8-MLSFREQXE25	DFNS8-MLSFREQXE100	DFNS8-MLSFREQXB20	DFNS8-MLSFREQXB50	DFNS8-MLSFREQXB25	DFNS8-MLSFREQXB100	DFNS8-MLSFREQXE75	DFNS8-MLSFREQXE50
Description	Sine Output Oscillator, 300MHz Min, 500MHz Max	Sine Output Oscillator, 300MHz Min, 500MHz Max	Sine Output Oscillator, 300MHz Min, 500MHz Max	Sine Output Oscillator, 300MHz Min, 500MHz Max	Sine Output Oscillator, 300MHz Min, 500MHz Max	Sine Output Oscillator, 300MHz Min, 500MHz Max	Sine Output Oscillator, 300MHz Min, 500MHz Max	Sine Output Oscillator, 300MHz Min, 500MHz Max
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Frequency Adjustment - Mechanical	NO	NO	NO	NO	NO	NO	NO	NO
frequency stability	25%	100%	20%	50%	25%	100%	75%	50%
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating frequency	500 MHz	500 MHz	500 MHz	500 MHz	500 MHz	500 MHz	500 MHz	500 MHz
Minimum operating frequency	300 MHz	300 MHz	300 MHz	300 MHz	300 MHz	300 MHz	300 MHz	300 MHz
Maximum operating temperature	85 °C	85 °C	70 °C	70 °C	70 °C	70 °C	85 °C	85 °C
Oscillator type	SINE	SINE	SINE	SINE	SINE	SINE	SINE	SINE
Output impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Output level	0.32 V	0.32 V	0.32 V	0.32 V	0.32 V	0.32 V	0.32 V	0.32 V
physical size	19.8mm x 12.8mm x 5.5mm	19.8mm x 12.8mm x 5.5mm	19.8mm x 12.8mm x 5.5mm	19.8mm x 12.8mm x 5.5mm	19.8mm x 12.8mm x 5.5mm	19.8mm x 12.8mm x 5.5mm	19.8mm x 12.8mm x 5.5mm	19.8mm x 12.8mm x 5.5mm
Nominal supply voltage	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Maker	CTS	CTS	-	-	CTS	CTS	CTS	CTS
