B-13/14-1250-T-SSC2A datasheet, PDF

Datasheet> All Categories > Optical fiber> Optical transceiver> B-13/14-1250-T-SSC2A

B-13/14-1250-T-SSC2A: DescriptionTransceiver, 1260nm Min, 1360nm Max, 155Mbps(Tx), 155Mbps(Rx), SC Connector, Through Hole Mount; CategoryOptical fiber Optical transceiver; File Size552KB，6 Pages; ManufacturerSource Photonics

Download Datasheet Parametric Compare View All

B-13/14-1250-T-SSC2A Overview

Transceiver, 1260nm Min, 1360nm Max, 155Mbps(Tx), 155Mbps(Rx), SC Connector, Through Hole Mount

B-13/14-1250-T-SSC2A Parametric

Parameter Name	Attribute value
Maker	Source Photonics
Reach Compliance Code	unknown
Is Samacsys	N
Other features	IT ALSO OPERATES WAVELENGTH FROM 1480NM TO 1600NM

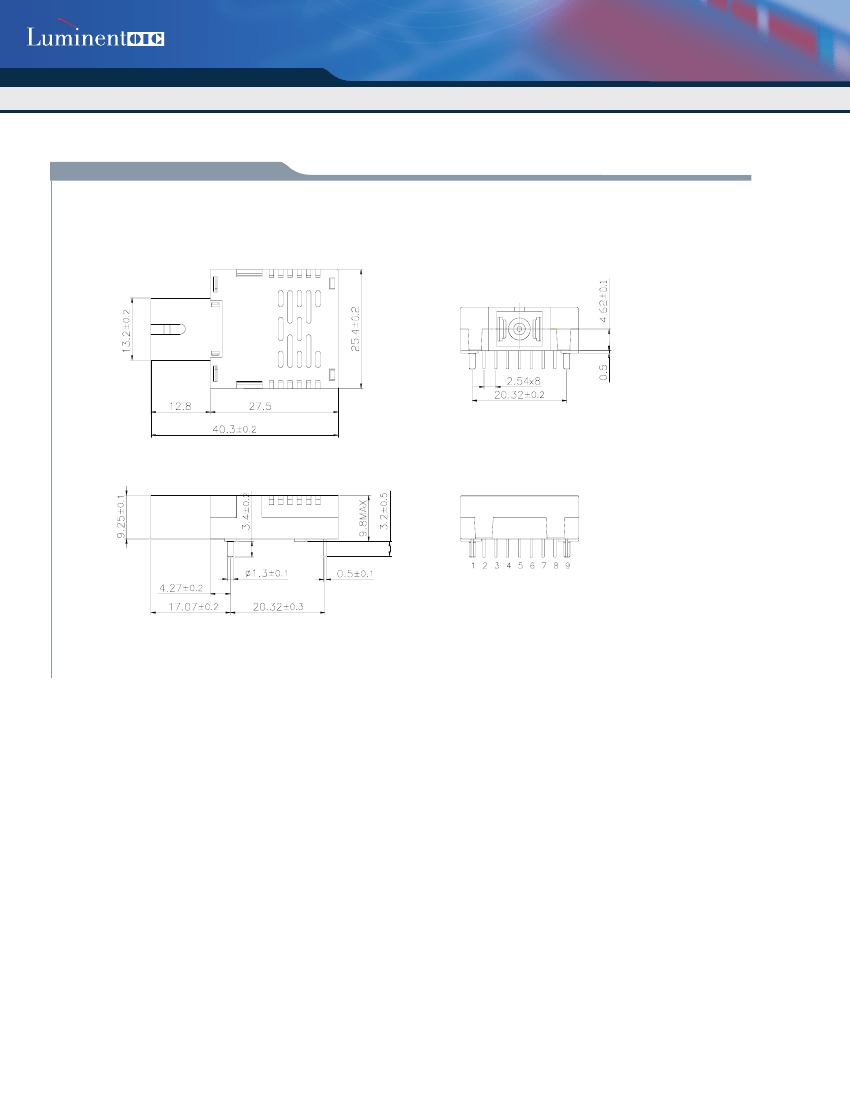

body width	25.4 mm
body height	9.8 mm
Body length or diameter	27.5 mm
Connection Type	SC CONNECTOR
Data rate (receive)	155 Mbps
Data rate (send)	155 Mbps
Fiber optic equipment types	TRANSCEIVER
Fiber type	SMF
Installation features	THROUGH HOLE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum operating wavelength	1360 nm
Minimum operating wavelength	1260 nm
Nominal operating wavelength	1310 nm
Nominal optical power output	0.562 mW
Sensitivity	-20 dBm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
Base Number Matches	1

Preview

Download Datasheet

View All

1.25 Gbps Bi-directional Receptacle

Single Fiber Transceiver

B-13/15-1250(C)-T(3)-SSC2A

Features

• Diplexer Single Mode Single Fiber 1x9 SC Receptacle

Connector

• Wavelength Tx 1310 nm/Rx 1530 nm

• IEEE 802.3 Compliant

• Single +5V Power Supply [B-13/15-1250(C)-T-SSC2A]

• Single +3.3V power Supply [B-13/15-1250(C)-T3-SSC2A]

• PECL/LVPECL Differential Inputs and Output

[B-13/15-1250-T(3)-SSC2A]

• TTL/LVTTL Signal Detection Output Optional

[B-13/15-1250C-T(3)-SSC2A]

• Wave Solderable and Aqueous Washable

• LED Multisourced 1x9 Transceiver Interchangeable

• Class 1 Laser Int. Safety Standard IEC 825 Compliant

• Uncooled Laser diode with MQW structure

• Complies with Telcordia (Bellcore) GR-468-CORE

• Temperature Range: -40 to 85ºC

• Optical Isolation > 30 dB

• Cross Talk < -33 dB

Absolute Maximum Rating

Parameter

Power Supply Voltage

Input Voltage

Output Current

Soldering Temperature

Storage Temperature

Symbol

Min.

-40

Max.

3.6

260

Unit

ºC

Note

B-13/15-1250(C)-T-SSC2A

B-13/15-1250(C)-T3-SSC2A

out

10 seconds on leads only

stg

Recommended Operating Condition

Parameter

Power Supply Voltage

Operating Temperature (Case)

Data Rate

Symbol

opr

Min.

4.75

3.1

-40

Typ.

3.3

155

Max.

5.25

3.5

Unit

ºC

Mbps

Transmitter Speciﬁcations (Optical)

Parameter

Optical Transmit Power

Output center Wavelength

Output Spectrum Width

Extinction Ratio

Output Eye

Optical Rise Time

Optical Fall Time

Optical Isolation

Relative Intensity Noise

Total Jitter

Symbol

∆λ

Min

-5

1260

Typical

1310

Max

1360

0.26

-116

0.27

Unit

dBm

dB/Hz

RMS (σ)

Notes

Output power is coupled into a 9/125 µm

single mode ﬁber

Compliant with IEEE 802.3

20% to 80% Values

Tx:1310 nm/ Rx:1530 nm

Measured with 2

-1 PRBS

RIN

LUMINENTOIC.COM

20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486

9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213

LUMNDS899-Nov0405

Rev A.0

B-13/14-1250-T-SSC2A Related Products

	B-13/14-1250-T-SSC2A	B-13/15-1250C-T-SSCA2A	B-13/14-1250-T3-SSC2A
Description	Transceiver, 1260nm Min, 1360nm Max, 155Mbps(Tx), 155Mbps(Rx), SC Connector, Through Hole Mount	Fiber Optic Device,	Transceiver, 1260nm Min, 1360nm Max, 155Mbps(Tx), 155Mbps(Rx), SC Connector, Through Hole Mount
Reach Compliance Code	unknown	unknown	unknown
Base Number Matches	1	1	1
Maker	Source Photonics	-	Source Photonics
Is Samacsys	N	-	N
Other features	IT ALSO OPERATES WAVELENGTH FROM 1480NM TO 1600NM	-	IT ALSO OPERATES WAVELENGTH FROM 1480NM TO 1600NM
body width	25.4 mm	-	25.4 mm
body height	9.8 mm	-	9.8 mm
Body length or diameter	27.5 mm	-	27.5 mm
Connection Type	SC CONNECTOR	-	SC CONNECTOR
Data rate (receive)	155 Mbps	-	155 Mbps
Data rate (send)	155 Mbps	-	155 Mbps
Fiber optic equipment types	TRANSCEIVER	-	TRANSCEIVER
Fiber type	SMF	-	SMF
Installation features	THROUGH HOLE MOUNT	-	THROUGH HOLE MOUNT
Maximum operating temperature	85 °C	-	85 °C
Minimum operating temperature	-40 °C	-	-40 °C
Maximum operating wavelength	1360 nm	-	1360 nm
Minimum operating wavelength	1260 nm	-	1260 nm
Nominal operating wavelength	1310 nm	-	1310 nm
Nominal optical power output	0.562 mW	-	0.562 mW
Sensitivity	-20 dBm	-	-20 dBm
Maximum supply voltage	5.25 V	-	3.5 V
Minimum supply voltage	4.75 V	-	3.1 V
Nominal supply voltage	5 V	-	3.3 V
surface mount	NO	-	NO
