B45192E3226K309 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> B45192E3226K309

B45192E3226K309: DescriptionTantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 10% +Tol, 10% -Tol, 22uF, Surface Mount, 2413, CHIP; CategoryPassive components capacitor; File Size456KB，16 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com; Environmental Compliance

Download Datasheet Parametric Compare View All

B45192E3226K309 Overview

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 10% +Tol, 10% -Tol, 22uF, Surface Mount, 2413, CHIP

B45192E3226K309 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	KEMET
package instruction	, 2413
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
capacitance	22 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
high	1.5 mm
JESD-609 code	e3
leakage current	0.0035 mA
length	6 mm
Installation features	SURFACE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, 7 INCH
polarity	POLARIZED
positive tolerance	10%
Rated (DC) voltage (URdc)	16 V
ripple current	69.2 mA
series	B45-LOW PROFILE
size code	2413
surface mount	YES
Delta tangent	0.1
Terminal surface	Matte Tin (Sn)
Terminal shape	J BEND
width	3.2 mm
Base Number Matches	1

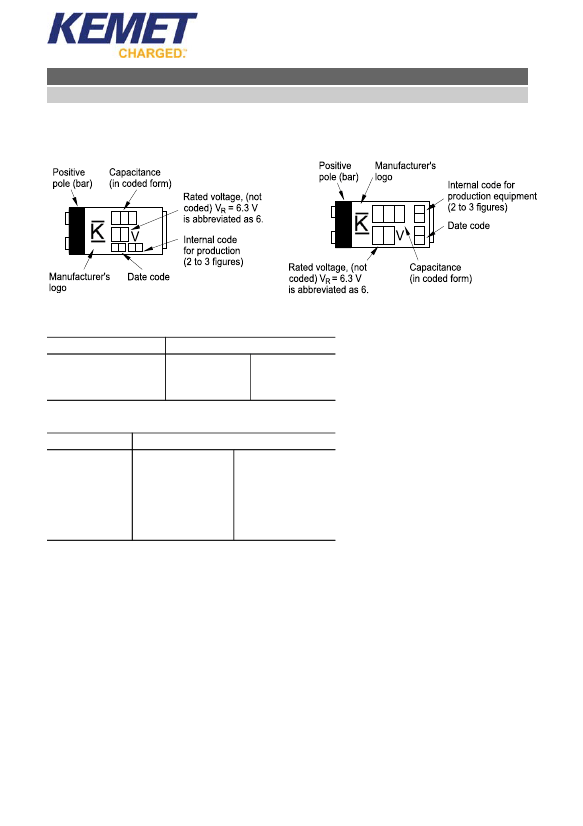

Preview

Download Datasheet

View All

Tantalum Chip Capacitors

Low Profile, Standard and Low ESR

Series/Type:

Date:

B45190E/R, B45192E/R,

B45194E/R, B450

July 2006

information contained therein without KEMET's prior express consent is prohibited.

B45192E3226K309 Related Products

	B45192E3226K309	B45192E3226K306	B45192E3226M306	B45194E1337K409	B45194E1107K409	B45194E1227K406
Description	Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 10% +Tol, 10% -Tol, 22uF, Surface Mount, 2413, CHIP	Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 10% +Tol, 10% -Tol, 22uF, Surface Mount, 2312, CHIP, ROHS COMPLIANT	Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 20% +Tol, 20% -Tol, 22uF, Surface Mount, 2312, CHIP, ROHS COMPLIANT	Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 10% +Tol, 10% -Tol, 330uF, Surface Mount, 2917, CHIP, ROHS COMPLIANT	Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 10% +Tol, 10% -Tol, 100uF, Surface Mount, 2917, CHIP, ROHS COMPLIANT	Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 10% +Tol, 10% -Tol, 220uF, Surface Mount, 2917, CHIP, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	KEMET	KEMET	KEMET	KEMET	KEMET	KEMET
package instruction	, 2413	, 2312	, 2312	, 2917	, 2917	, 2917
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Is Samacsys	N	N	N	N	N	N
capacitance	22 µF	22 µF	22 µF	330 µF	100 µF	220 µF
Capacitor type	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)
high	1.5 mm	1.5 mm	1.5 mm	2 mm	2 mm	2 mm
JESD-609 code	e3	e3	e3	e3	e3	e3
leakage current	0.0035 mA	0.0035 mA	0.0035 mA	0.0208 mA	0.0063 mA	0.0139 mA
length	6 mm	6 mm	6 mm	7.3 mm	7.3 mm	7.3 mm
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
negative tolerance	10%	10%	20%	10%	10%	10%
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
Package form	SMT	SMT	SMT	SMT	SMT	SMT
method of packing	TR, 7 INCH	TR, 13 INCH	TR, 13 INCH	TR, 7 INCH	TR, 7 INCH	TR, 13 INCH
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
positive tolerance	10%	10%	20%	10%	10%	10%
Rated (DC) voltage (URdc)	16 V	16 V	16 V	6.3 V	6.3 V	6.3 V
series	B45-LOW PROFILE	B45-LOW PROFILE	B45-LOW PROFILE	B45-LOW PROFILE	B45-LOW PROFILE	B45-LOW PROFILE
size code	2413	2312	2312	2917	2917	2917
surface mount	YES	YES	YES	YES	YES	YES
Delta tangent	0.1	0.06	0.06	0.08	0.08	0.08
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal shape	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND
width	3.2 mm	3.2 mm	3.2 mm	4.3 mm	4.3 mm	4.3 mm
Base Number Matches	1	1	1	1	1	1
Manufacturer's serial number	-	B45192E	B45192E	B45194E	B45194E	B45194E
