LQN1HR29K04 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > inductor> Fixed inductance> LQN1HR29K04

LQN1HR29K04: DescriptionGeneral Purpose Inductor, 0.29uH, 10%, 1 Element, Ferrite-Core, SMD; Categoryinductor Fixed inductance; File Size38KB，1 Pages; ManufacturerMurata; Websitehttps://www.murata.com

Download Datasheet Parametric View All

LQN1HR29K04 Overview

General Purpose Inductor, 0.29uH, 10%, 1 Element, Ferrite-Core, SMD

LQN1HR29K04 Parametric

Parameter Name	Attribute value
Maker	Murata
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
core material	FERRITE
DC Resistance	0.17 Ω
Nominal inductance(L)	0.29 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Minimum quality factor (at nominal inductance)	60
Maximum rated current	0.42 A
self resonant frequency	360 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	Q MEASURED AT 100 MHZ
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	J BEND
Test frequency	1 MHz
Tolerance	10%
Base Number Matches	1

Preview

Download Datasheet

View All

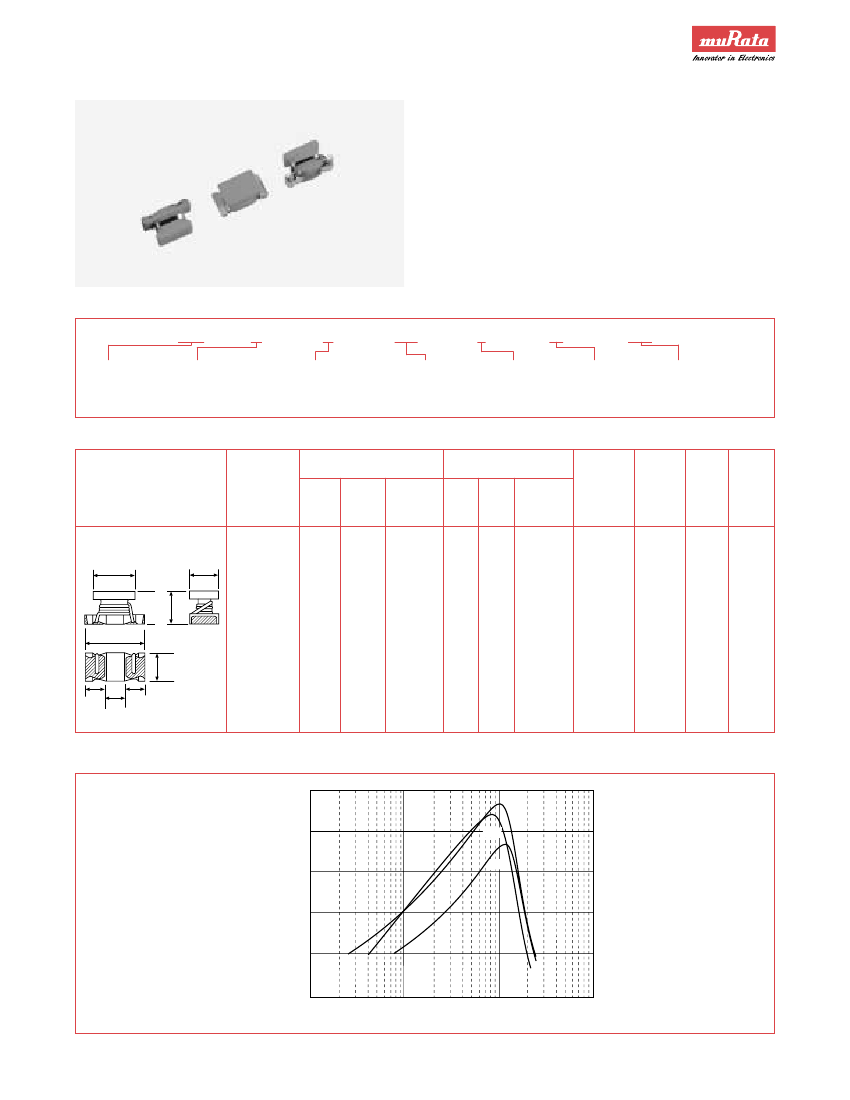

SURFACE MOUNT INDUCTORS

CHIP INDUCTORS

LQN1H Series

Chip coil LQN1H Series is a wire wound type chip coil

using a high frequency ferrite core. Its high Q value at

30MHz ~ 150MHz and low DC resistance are suitable

for high frequency resonator circuits use.

APPLICATIONS

Voltage controlled oscillator, trap, filter circuit built-in mobile

communication equipment, cordless phones, various radio

equipment, FM radio tuners, TV tuners (VHF low), VIF

circuits, etc.

PART NUMBERING SYSTEM

LQN

TYPE

LQN:

Without Coating

54N

INDUCTANCE

54N: 54nH

TOLERANCE

K: ±10%

J: ±5%

M00

ELECTRODE

MATERIAL

04: Nickel &

Solder

UNMARKED

SIZE

1: 3.2 x 1.6mm (1206)

APPLICATION

H: High Frequency

Application

SPECIFICATIONS

Inductance

Dimensions: mm

Part

Number

Resistance

(Ohms)

Self-

Allowable Operating

resonant

Current

Temp.

Frequency

(mA)

Range

(MHz min.)

Nominal

Measurement Peak Nominal Measurement

Tolerance

Value

Frequency Value Value Frequency

(%)

(nH)

(MHz)

Typ. (min.)

(MHz)

_____________

_______

1206

2.3 ± 0.2

1.8 ± 0.2

1.6 ± 0.2

LQN1H54NK04

______________________

LQN1H95NK04

______________________

LQN1HR14K(J)04

145

______________________

LQN1HR21K(J)04

215

______________________

LQN1HR29K(J)04

290

______________________

±10

(±5)

LQN1HR39K(J)04

390

______________________

LQN1HR50K(J)04

500

______________________

LQN1HR61K(J)04

610

______________________

LQN1HR75K(J)04

750

______________________

LQN1HR88K(J)04

0.035 ± 30%

800

920

_____________________________

0.047 ± 30%

650

790

_____________________________

0.061 ± 30%

500

700

_____________________________

0.11 ± 30%

430

520

_____________________________

0.17 ± 30%

360

420

_____________________________

0.26 ± 30%

300

330

_____________________________

0.44 ± 30%

270

260

_____________________________

0.48 ± 30%

240

250

_____________________________

0.79 ± 30%

220

190

_____________________________

0.86 ± 30%

200

180

–25°C

+85°C

3.2 ± 0.3

1.6 ± 0.2

100

0.7

min. 0.7 min.

min.

_______

880

Available as standard through authorized Murata Electronics Distributors.

TYPICAL Q-FREQUENCY CHARACTERISTICS

100

R21

R88

54N

Frequency (MHz)

100

1000

226

CG01-I
