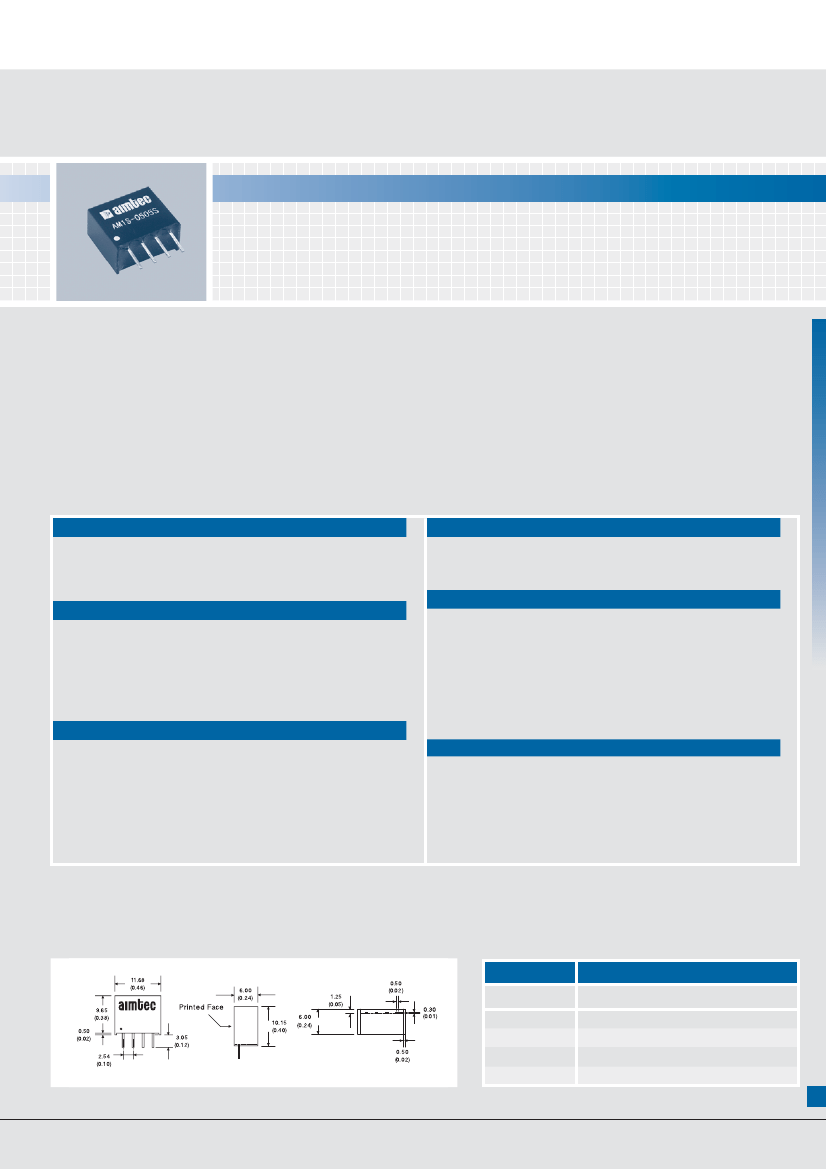

AM1S Series
1 watt dc-dc converters
•
•
•
4PIN SIP PACKAGE
LOW RIPPLE & NOISE
HIGH EFFICIENCY UP TO 80%
•
•
•
INPUT/OUTPUT ISOLATION: 1000 & 3000VDC
OPERATING TEMPERATURE: -40°C ... +85°C
PIN-COMPATIBLE WITH MULTIPLE MANUFACTURERS
GENERAL DESCRIPTION
Our AM1S series is a family of cost effective 1W single
output isolated DC/DC converters. These converters
achieve low cost and ultra-miniature SIP4 pin size without
compromising performance and reliability. Forty eight
models operate from input voltage 5, 12 & 24VDC;
producing output voltage levels of 3.3, 5, 7.2, 9, 12, 15, 18,
24VDC. Full SMD-design and a 100 % production test of
parameters ensures a high reliability in this product.
ELECTRICAL SPECIFICATIONS
Specifications typical at +25°C, nominal input voltage, rated output current unless otherwise specified.
Input Specifications:
Voltage range
Filter
Isolation Specifications:
Rated voltage (60 sec)
Resistance
Capacitance
Output Specifications:
Voltage accuracy
Ripple & noise (at 20MHz BW)
Short circuit protection
Line voltage regulation
Load voltage regulation
Temperature coefficient
±10%
Capacitor
General Specifications:
Efficiency
Switching frequency
71% to 80%
80KHz, typ. 100% load
1000VDC
3000VDC
> 1000MOhm
60pF, typ.
Environmental Specifications:
Operating temperature (ambient) -40°C ... +85°C
Storage temperature
-55°C ... +125°C
Case Temperature
+90°C, max.
Derating
None required
Humidity (non-condensing)
Up to 90%
Cooling
Free-air Convection
Physical Specifications:
Dimensions
Weight
Case material
11.68x6.00x10.15mm
0.46x0.24x0.40inches
1.8g
Non-conductive black
plastic
±5%, max.
100mVp-p, max.
Momentary
±1.2% / 1.0% of Vin
±8%, load=20~100%
±0.02%/°C, typ.
MTBF: > 1,191,000 hrs (MIL-HDBK-217F, Ground Benign, t=+25°C)
Specifications are subject to change without notification
OUTLINE DIMENSIONS & PIN CONNECTIONS
Pin
1
2
3
4
1000 & 3000VDC
Single
-V Input
+V Input
-V Output
+V Output
Continued on next page
5
VISIT US AT WWW.AIMTEC.CA
AM1S Series
MODELS
Single output
Models
Isolation 1000VDC
AM1S-0503S
AM1S-0505S
AM1S-0507S
AM1S-0509S
AM1S-0512S
AM1S-0515S
AM1S-0518S
AM1S-0524S
AM1S-1203S
AM1S-1205S
AM1S-1207S
AM1S-1209S
AM1S-1212S
AM1S-1215S
AM1S-1218S
AM1S-1224S
AM1S-2403S
AM1S-2405S
AM1S-2407S
AM1S-2409S
AM1S-2412S
AM1S-2415S
AM1S-2418S
AM1S-2424S
Isolation 3000VDC
AM1S-0503SH30
AM1S-0505SH30
AM1S-0507SH30
AM1S-0509SH30
AM1S-0512SH30
AM1S-0515SH30
AM1S-0518SH30
AM1S-0524SH30
AM1S-1203SH30
AM1S-1205SH30
AM1S-1207SH30
AM1S-1209SH30
AM1S-1212SH30
AM1S-1215SH30
AM1S-1218SH30
AM1S-1224SH30
AM1S-2403SH30
AM1S-2405SH30
AM1S-2407SH30
AM1S-2409SH30
AM1S-2412SH30
AM1S-2415SH30
AM1S-2418SH30
AM1S-2424SH30
Input Voltage
Ouput Voltage
3.3VDC
5VDC
7.2VDC
9VDC
12VDC
15VDC
18VDC
24VDC
3.3VDC
5VDC
7.2VDC
9VDC
12VDC
15VDC
18VDC
24VDC
3.3VDC
5VDC
7.2VDC
9VDC
12VDC
15VDC
18VDC
24VDC
Ouput Current max.
300mA
200mA
140mA
110mA
83mA
67mA
56mA
42mA
300mA
200mA
140mA
110mA
83mA
67mA
56mA
42mA
300mA
200mA
140mA
110mA
83mA
67mA
56mA
42mA
DC-DC CONVERTERS
5V±10%
12V±10%
24V±10%
6
